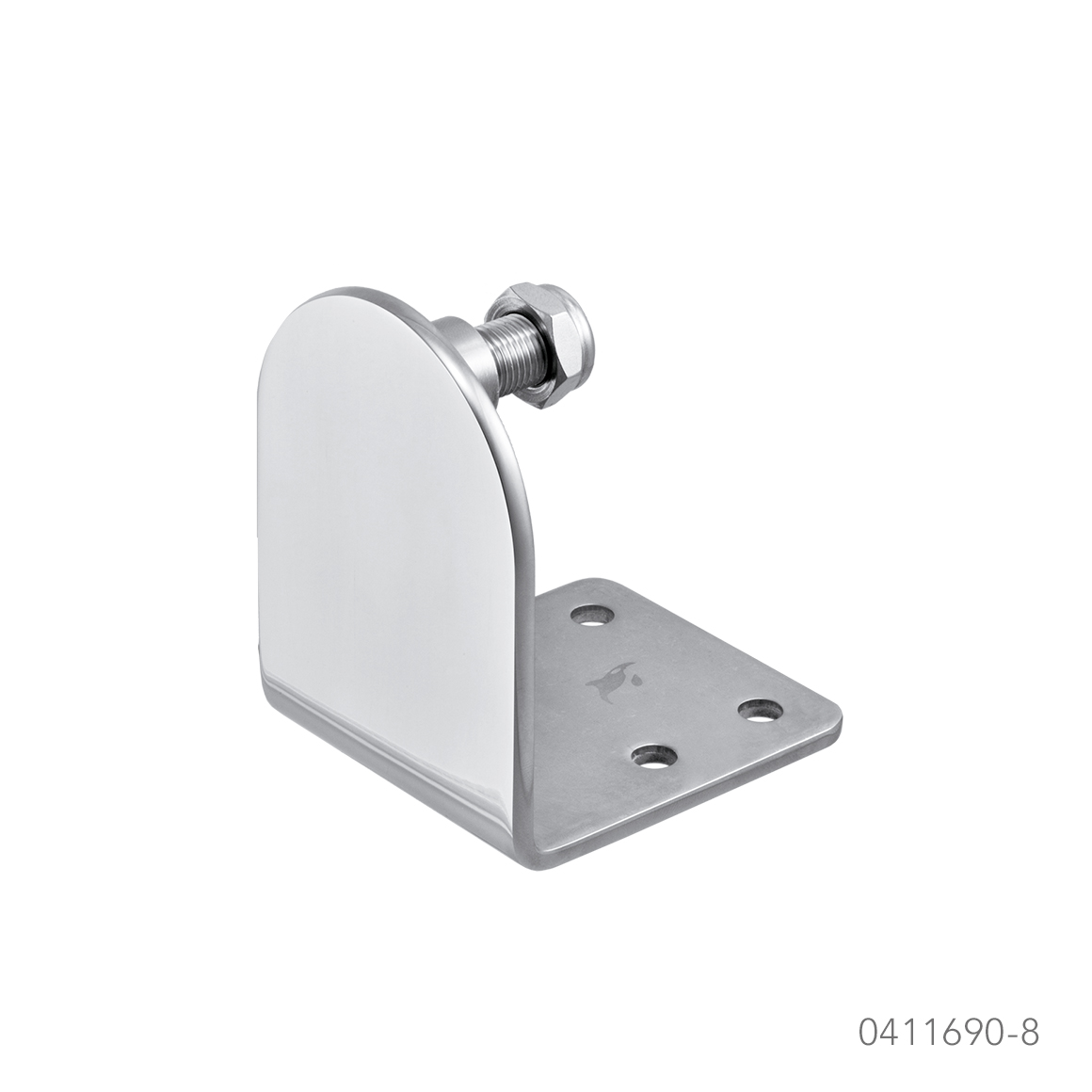

ARMREST BRACKET
Stainless Steel 316
- Marine-grade stainless steel construction.
- Incorporates a position pin.
- Screw size M6 or 1/4".
- Stainless steel 304 locking nut is included.
- Marine-grade stainless steel construction.
- Incorporates a position pin.
- Screw size M6 or 1/4".
- Stainless steel 304 locking nut is included.
Qty
MOQ
Qty
-

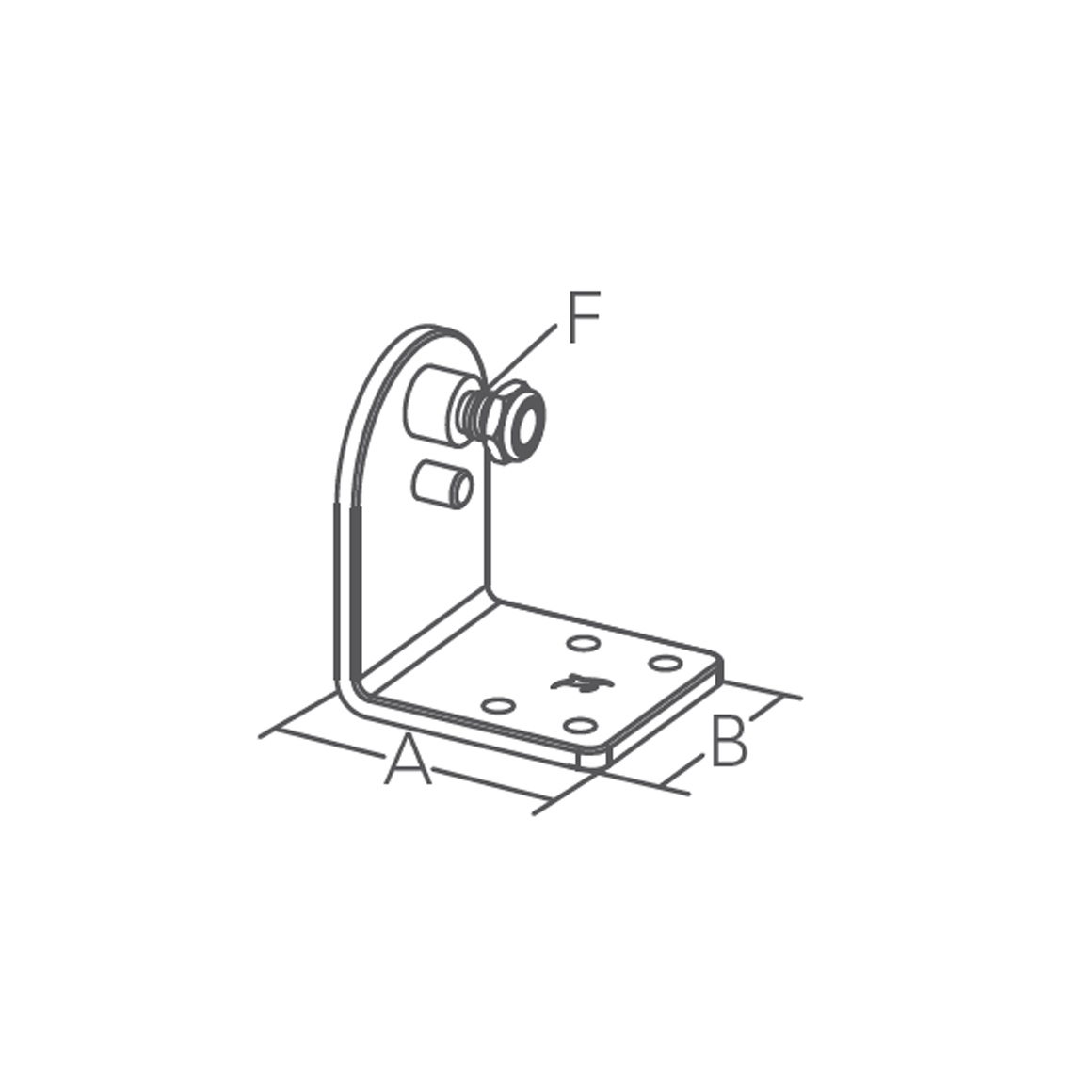

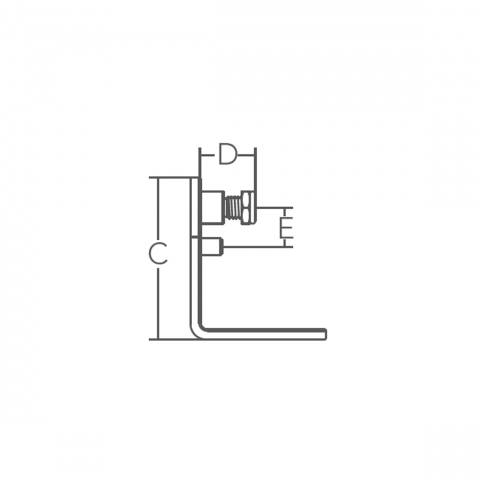

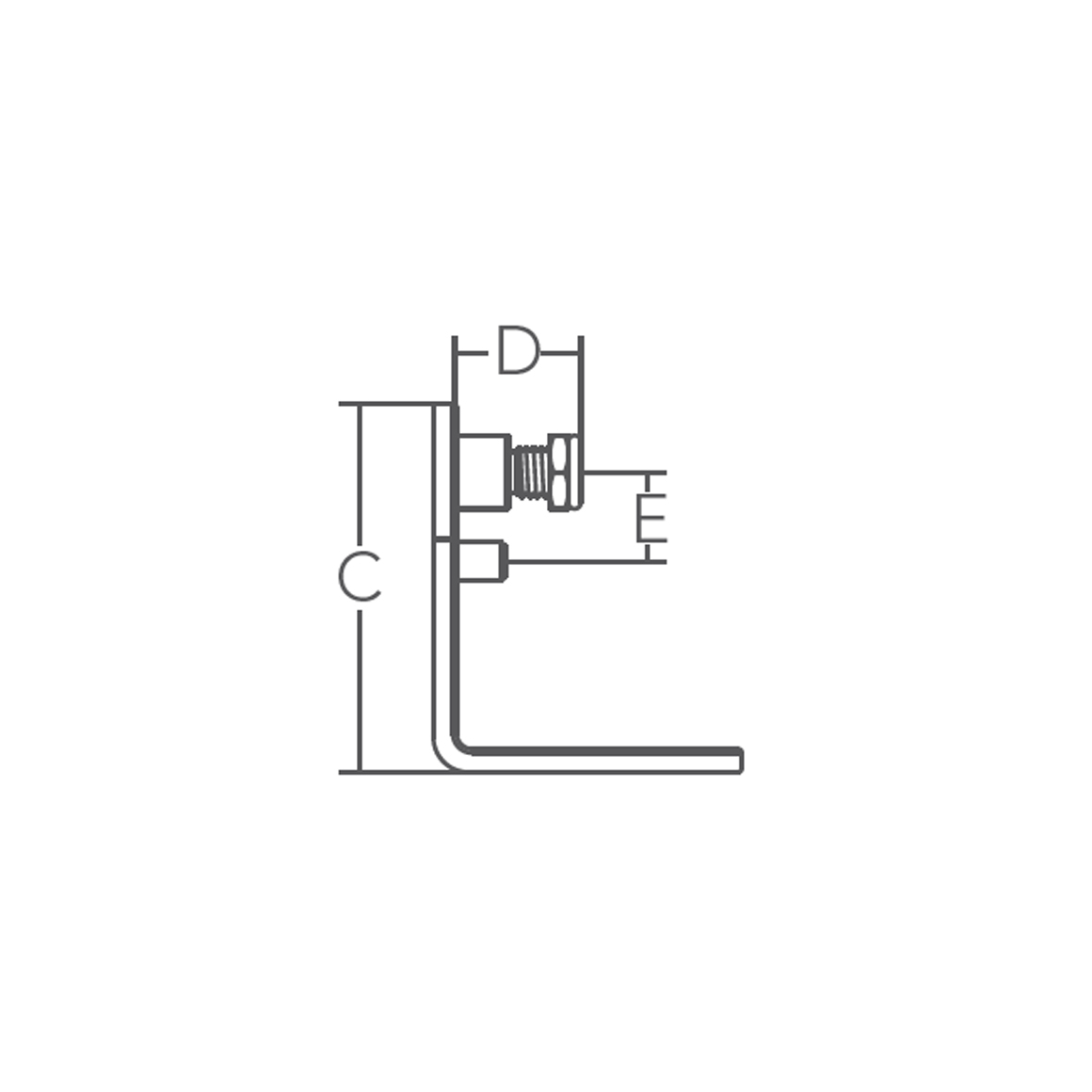

Bulk No.
Screw Hole
A mm
B mm
C mm
D mm
E mm
F
0411690 Straight Hole 80(3-1/8") 70(2-3/4") 95(3-3/4") 32(1-1/4") 23(15/16") 1/2" - 13 0411690-8 Countersink Hole 80(3-1/8") 70(2-3/4") 95(3-3/4") 32(1-1/4") 23(15/16") 1/2" - 13
