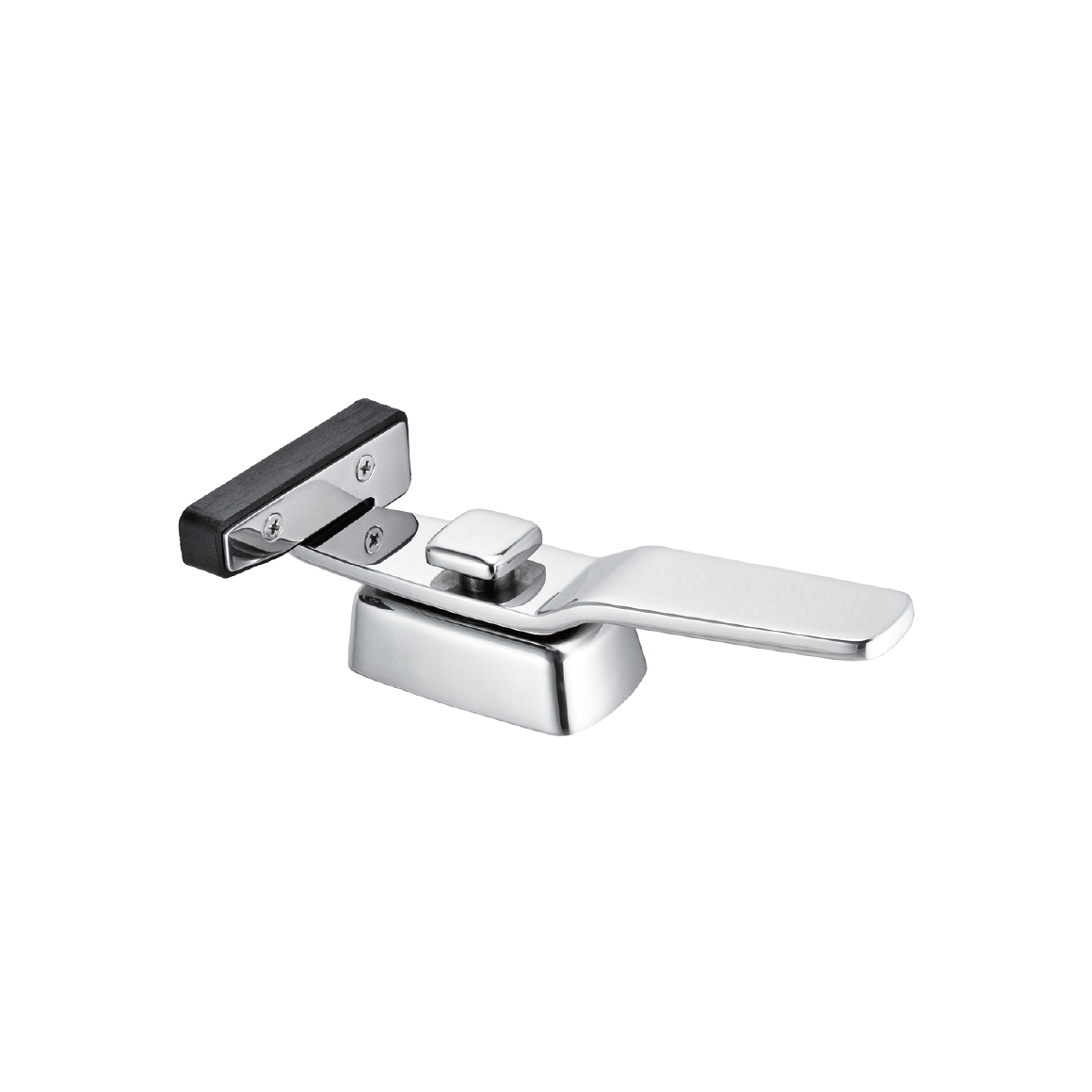

BUTTON RELEASE DOOR LATCH W/ PROUD STRIKE
Stainless Steel 316
- Contemporary design.
- One hand operation.
- Door can be opened and locked by pushing the button and rotating the handle.
- Every 90° turn can secure the handle in position.
- Strike is designed to prevent handle surface from scratching.

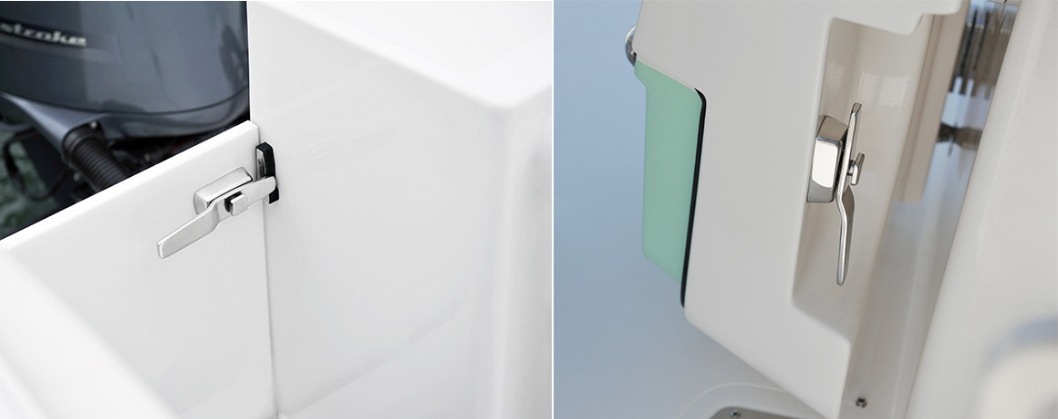

- Works on both right and left hand transom doors.
- Stainless steel 304 screws and plastic strike are included.
- Contemporary design.
- One hand operation.
- Door can be opened and locked by pushing the button and rotating the handle.
- Every 90° turn can secure the handle in position.
- Strike is designed to prevent handle surface from scratching.
- Works on both right and left hand transom doors.
- Stainless steel 304 screws and plastic strike are included.
Qty
Qty
-
Bulk No.
Strike

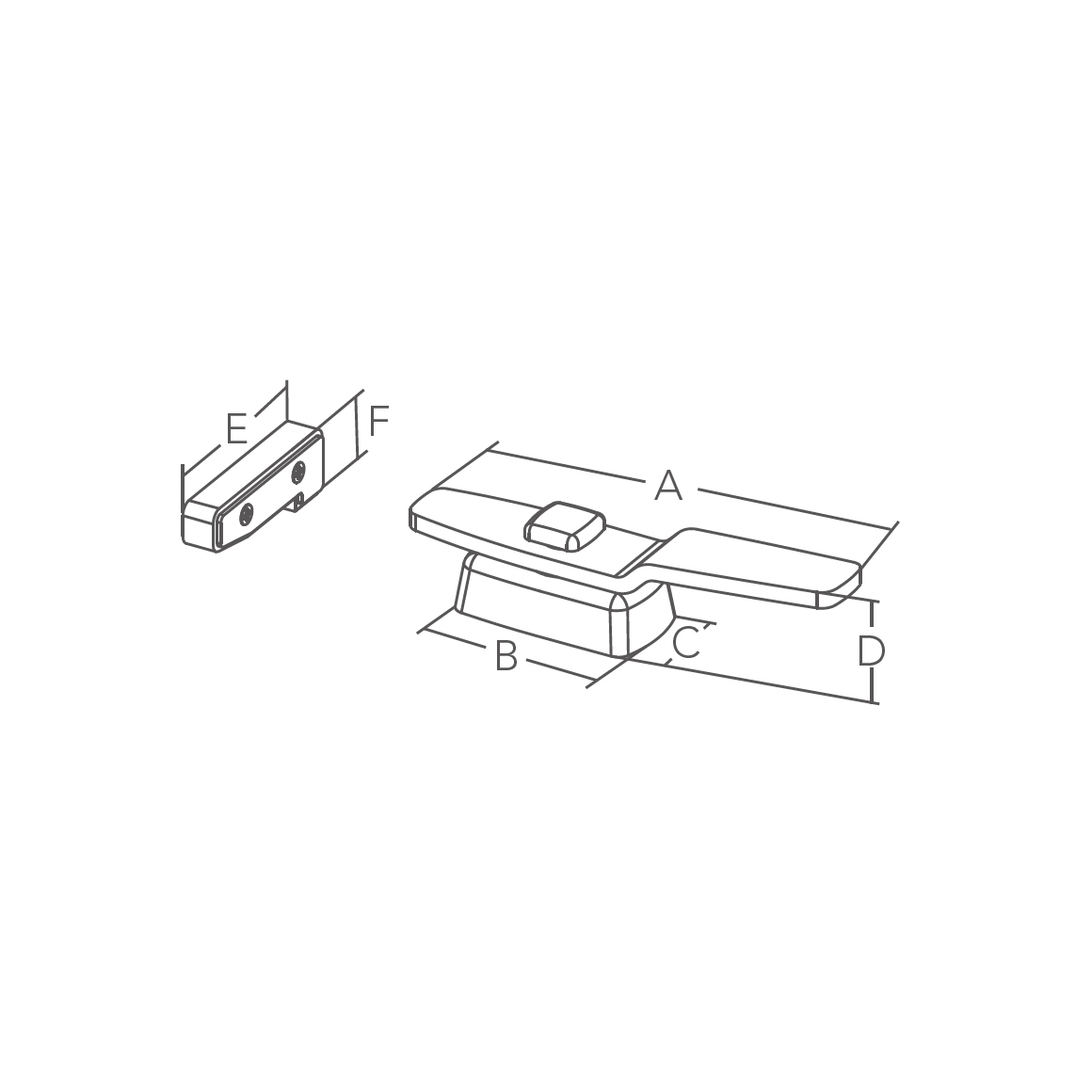

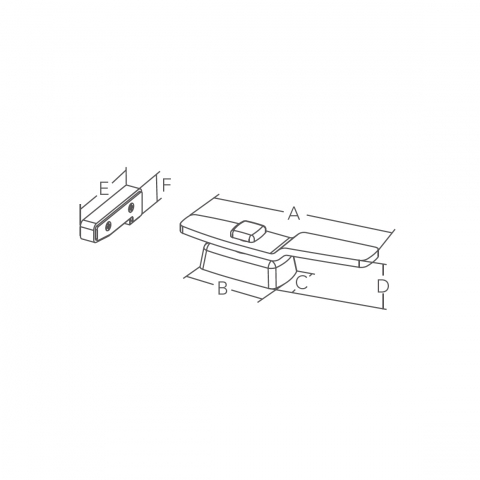

A mm
B mm
C mm
D mm
E mm
F mm
0107366 Proud 166(6-9/16") 73(2-7/8") 39(1-9/16") 43(1-11/16") 71(2-13/16") 24(15/16") 0107367 Proud 213(8-3/8") 84(3-5/16") 49(1-15/16") 53(2-1/16") 71(2-13/16") 24(15/16") MODEL
SCREW SIZE
Latch Body 0107366 M6 or 1/4" Latch Body 0107367 M5 or #10 Proud Strike M3 or #6
