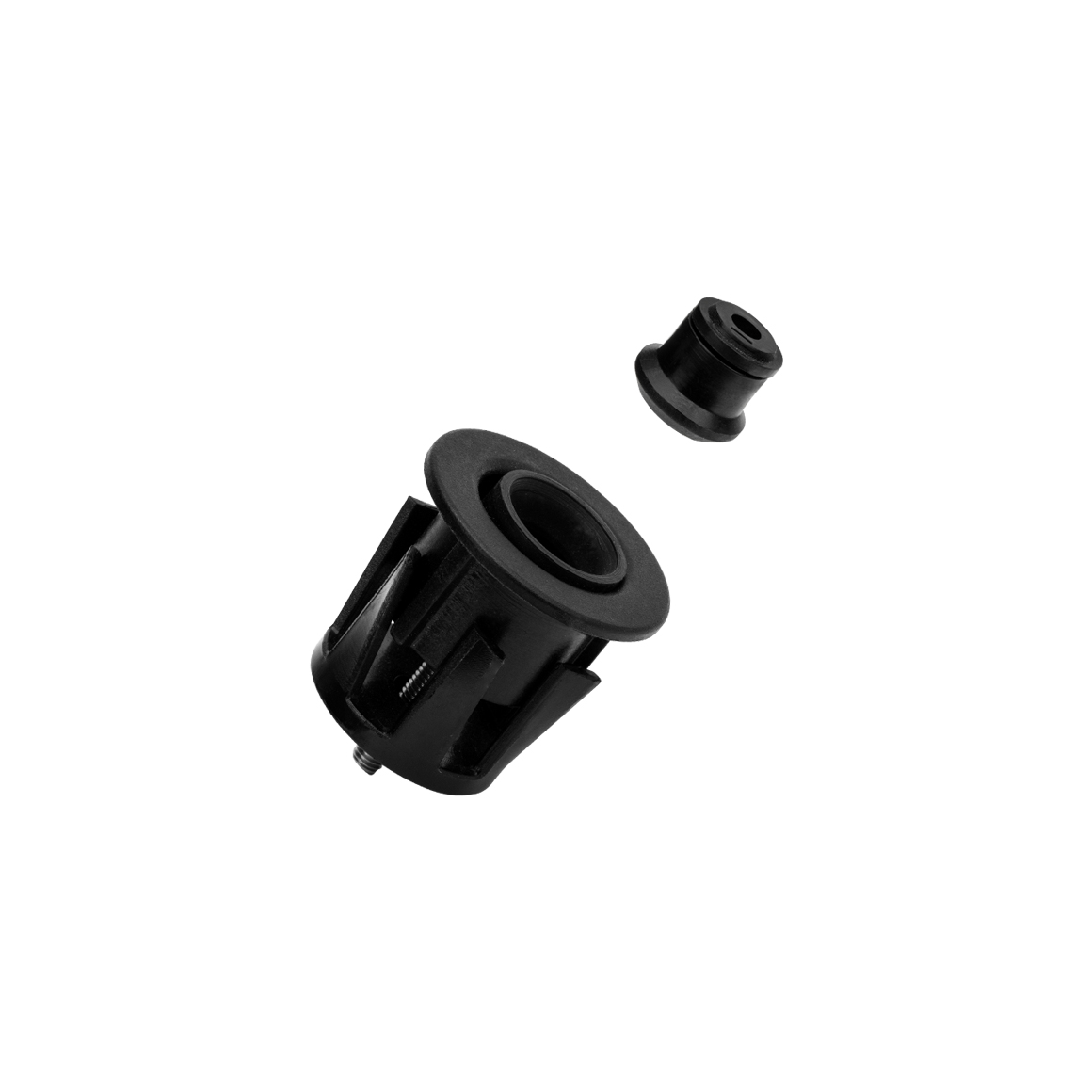

SNAP IN PLUNGER
Nylon & Rubber & PP

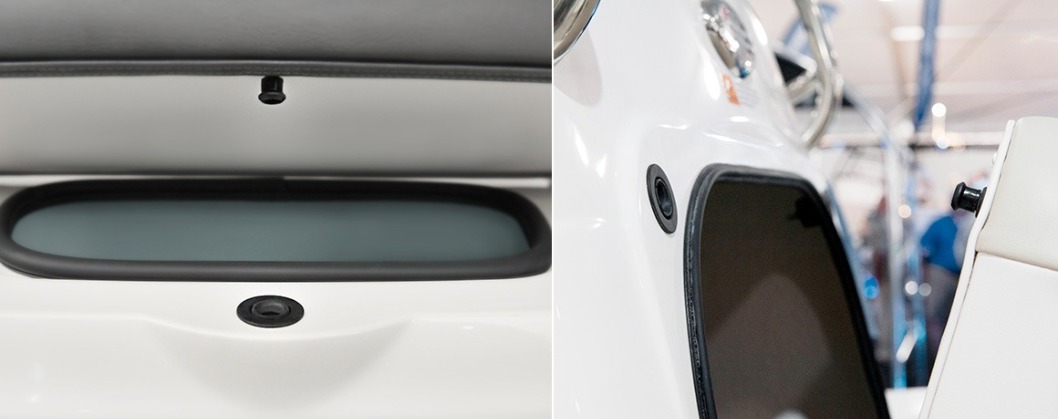

- Compact design for versatile applications on seat cushions, hatches,
electric panels, etc.
- Different holding power can be customized upon request.
- Engagement can be adjusted by reversing or removing the spacer under catch.
- 32mm (1-1/4") installation hole is required.
- Reusable marking punch is required for proper installation and
warranty will be voided in the event one is not used.
Marking punch should be replaced after prolonged use to ensure
ongoing proper alignment during installation.
- Stainless steel 304 accessories are included.
- Compact design for versatile applications on seat cushions, hatches,
electric panels, etc.
- Different holding power can be customized upon request.
- Engagement can be adjusted by reversing or removing the spacer under catch.
- 32mm (1-1/4") installation hole is required.
- Reusable marking punch is required for proper installation and
warranty will be voided in the event one is not used.
Marking punch should be replaced after prolonged use to ensure
ongoing proper alignment during installation.
- Stainless steel 304 accessories are included.
Qty
Qty
-
Bulk No.

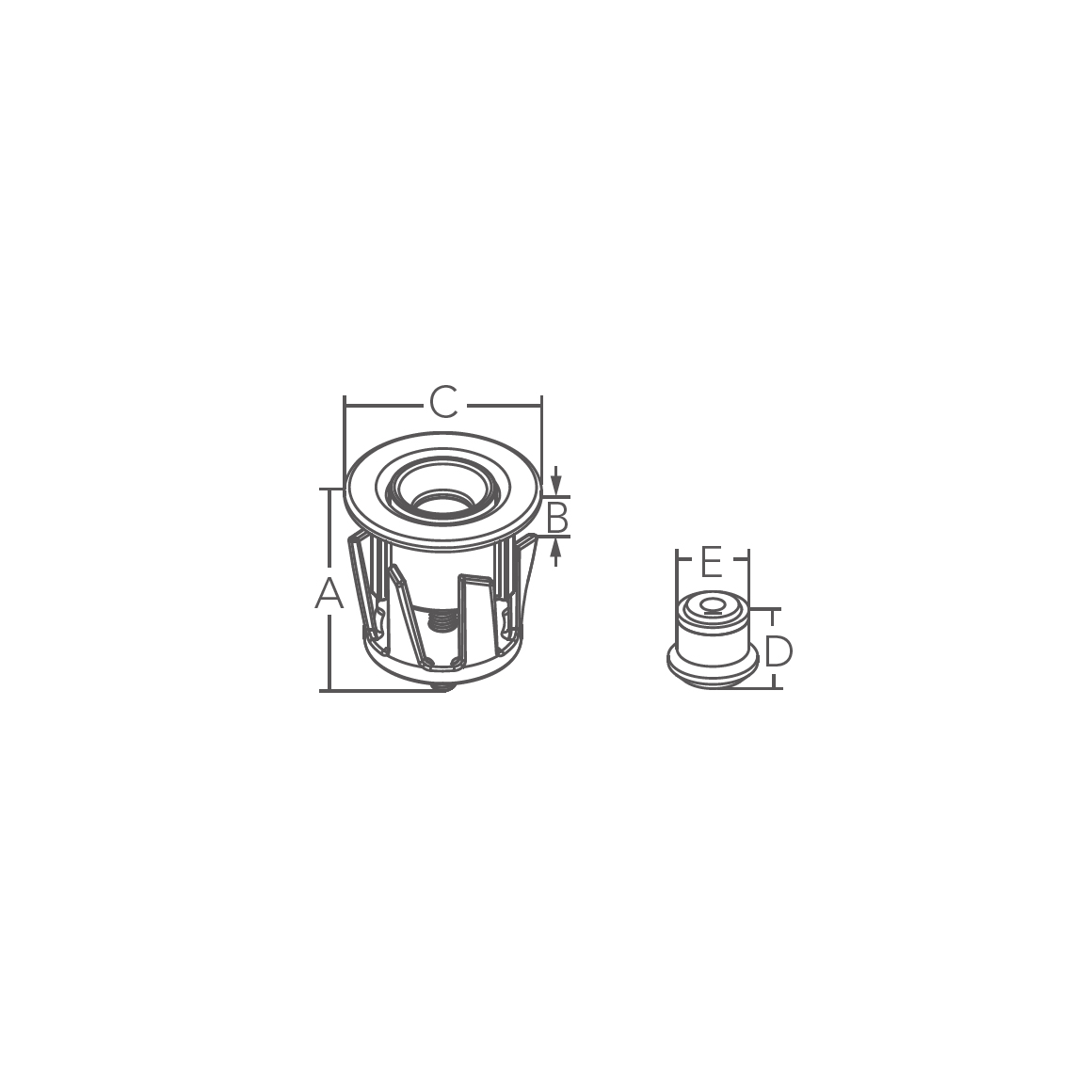

A mm
B mm
C mm
D mm
E mm
Screw Size
Holding Power
0107426 46(1-13/16") 3~13(1/8"~1/2") 39(1-9/16") 13.5(1/2") 13(1/2") M4 or #8 8 kg(17 lb) 0107426-G Aluminum Marking Punch for 0107426
INSTALLATION INSTRUCTION
❶
Snap in.
❷
Tighten screw.
❸

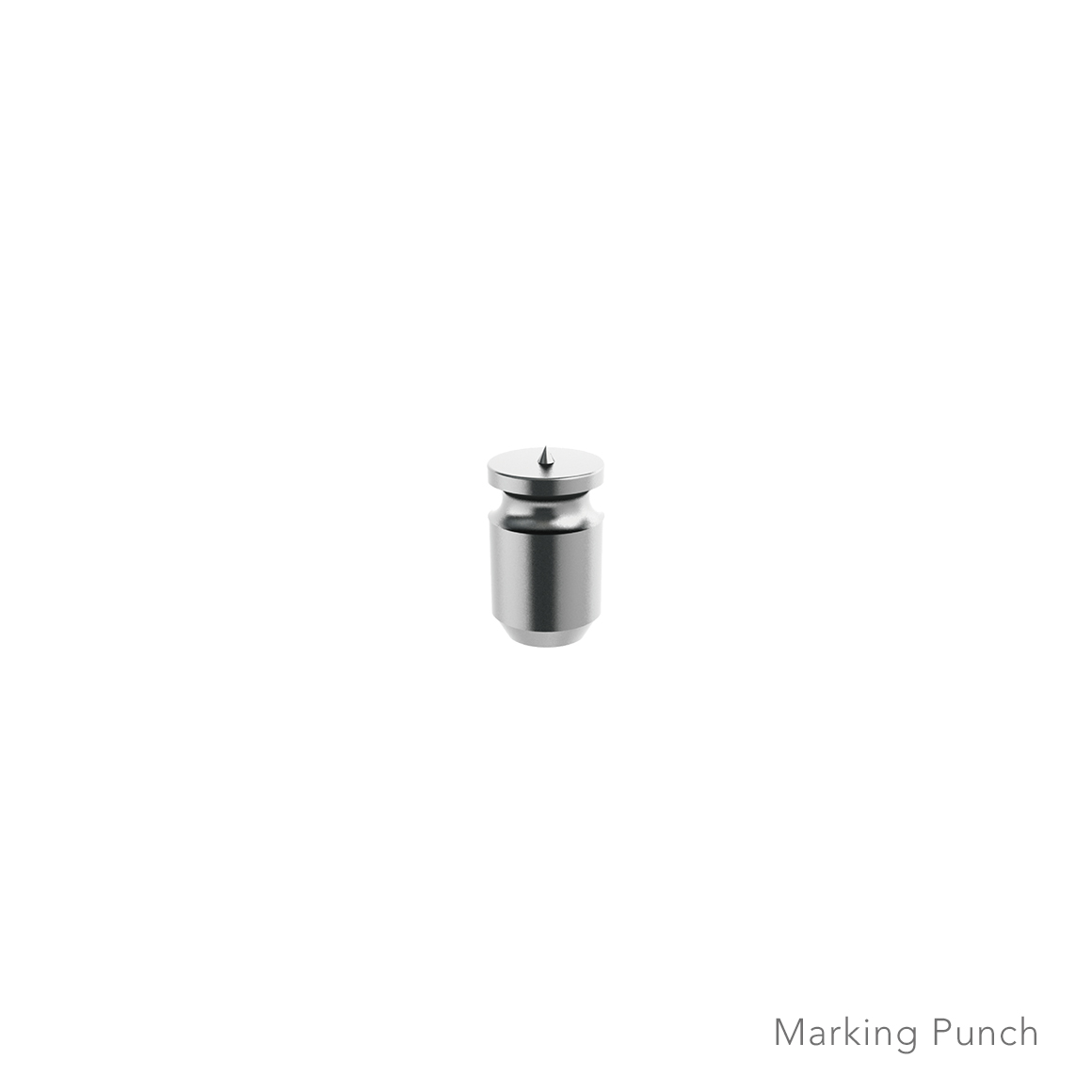

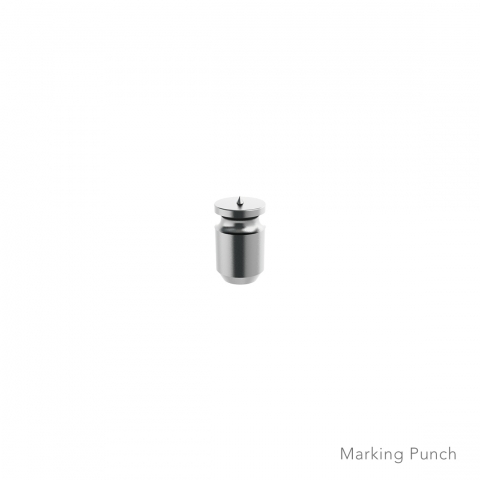

Insert marking punch
to mark for alignment.❹

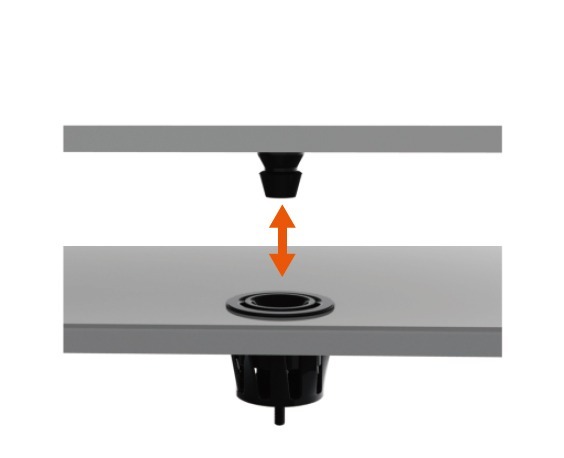

Install male part and
hold in place.
0107426 CATCH HEIGHT
Without Spacer With Spacer Reverse Spacer
11(7/16") 13.5(1/2") 16(5/8") Tighter
Engagement
Looser
Engagement
