MINI THRU HULL

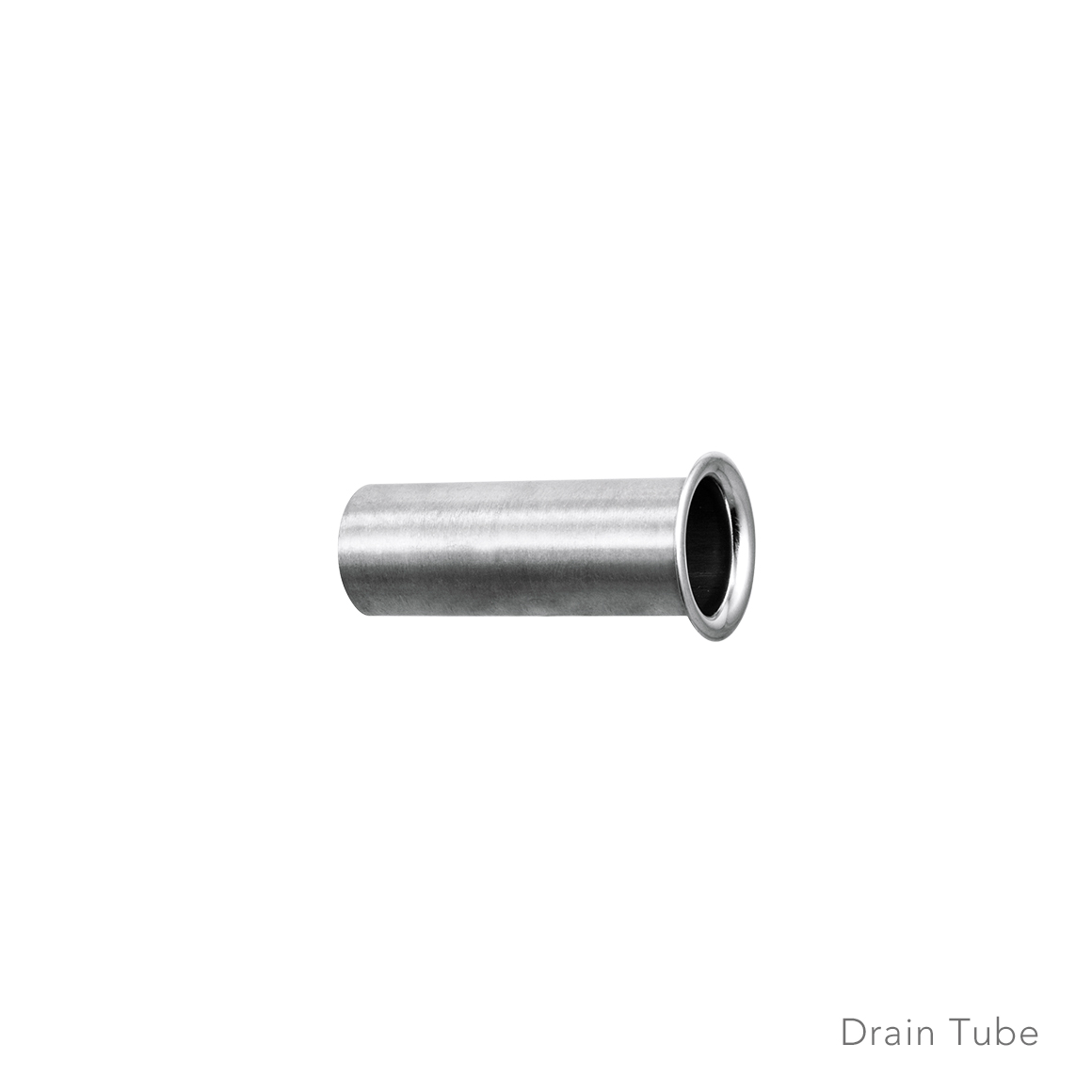

Stainless Steel 304 Drain Tube & Rubber Receptor

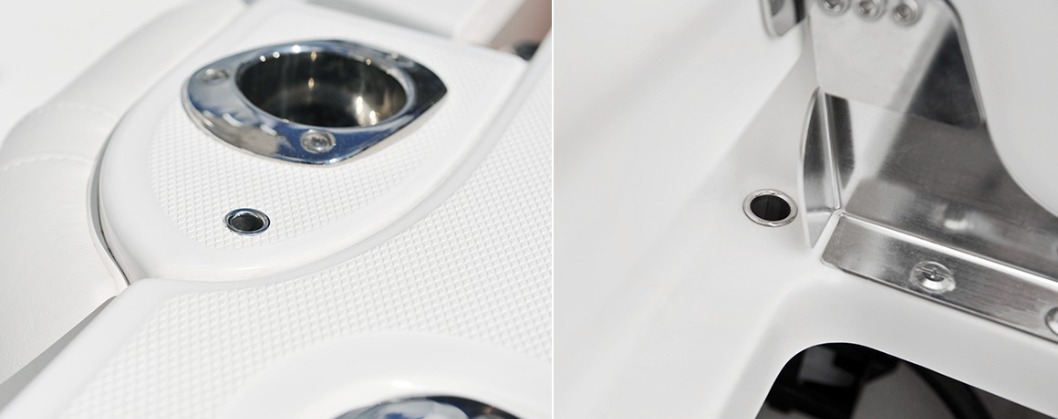

- Ideal for cup holder, cleat, rod holder, hatch gutter, deck and ice chest drain.

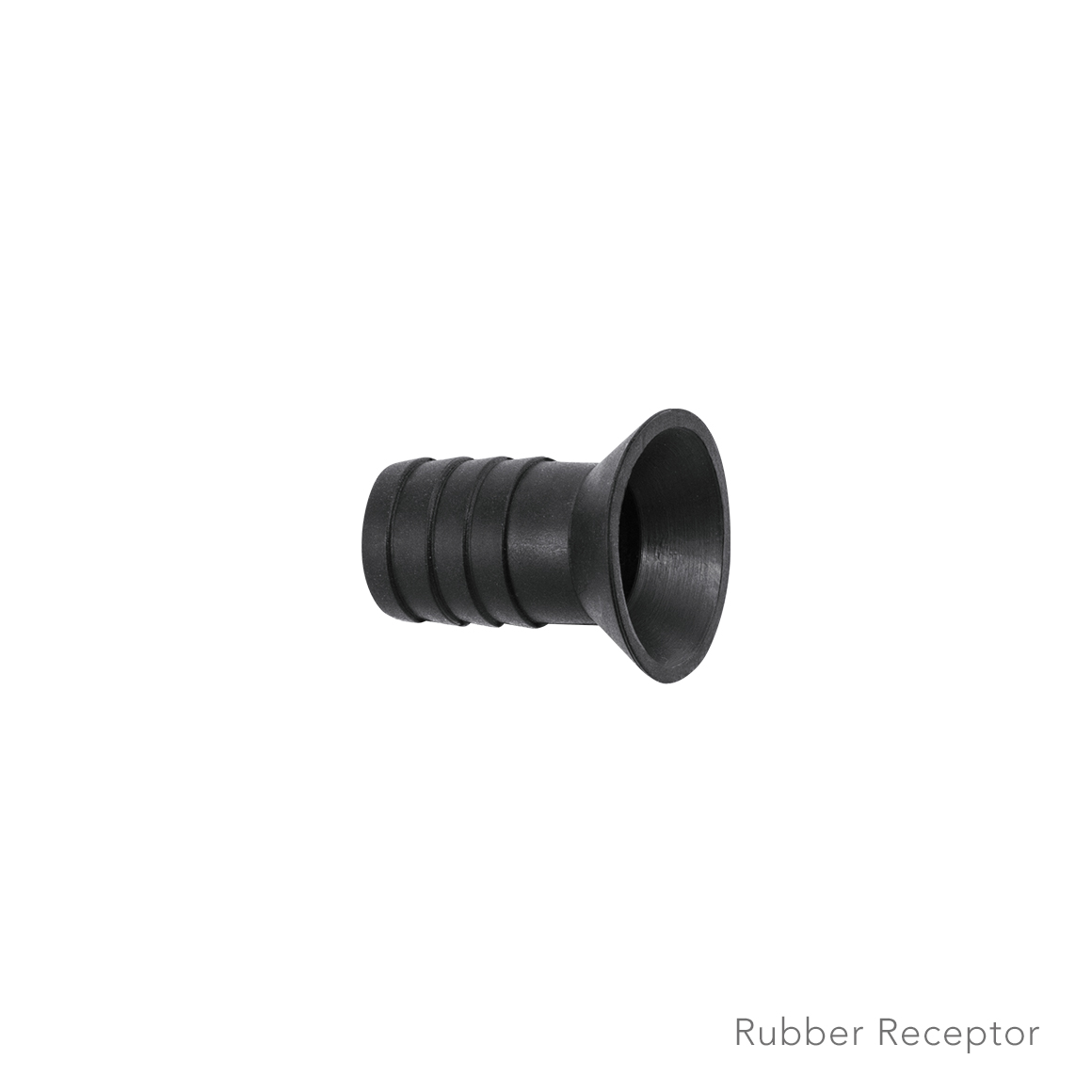

- The barbed internal rear rubber receptor allows quick fit-up.

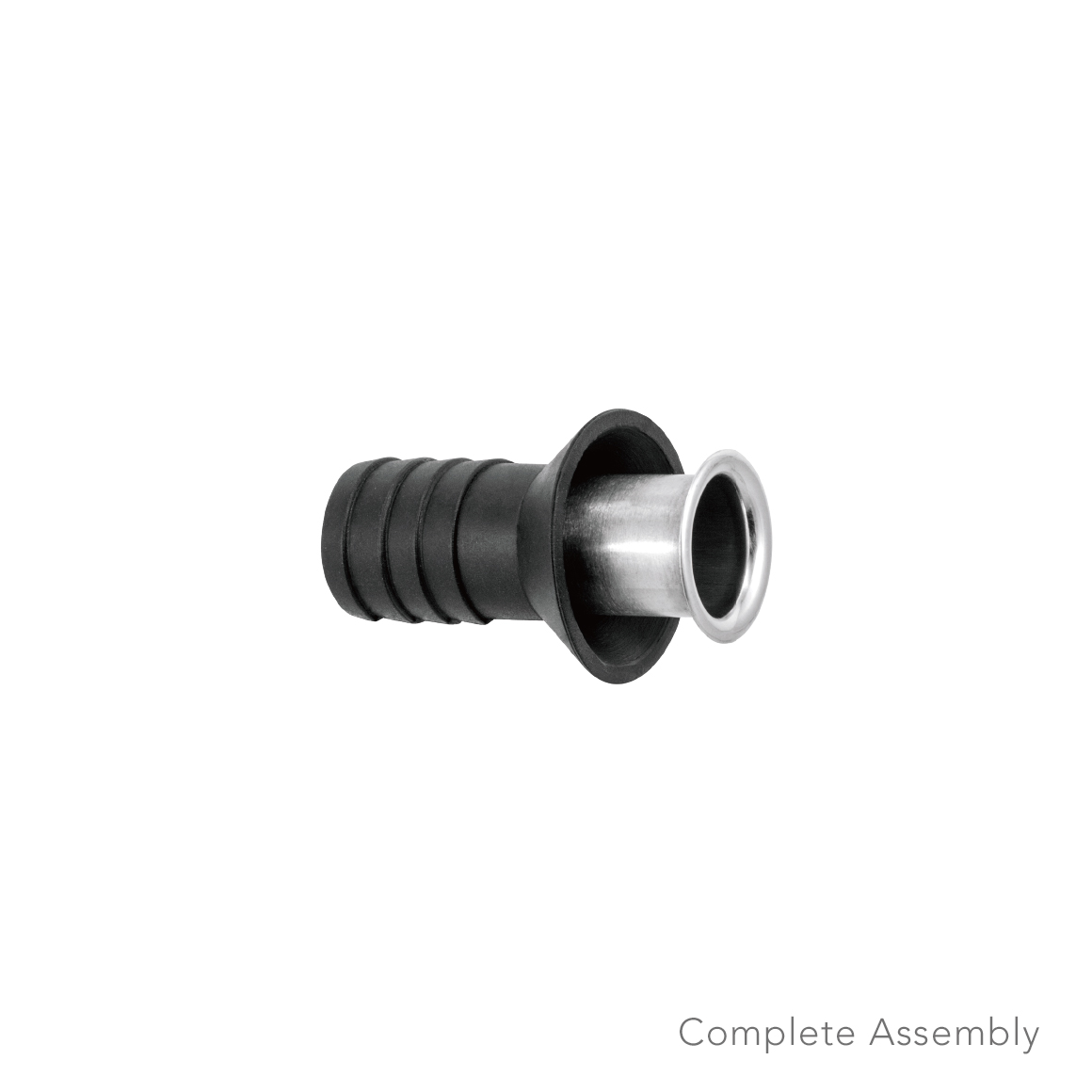

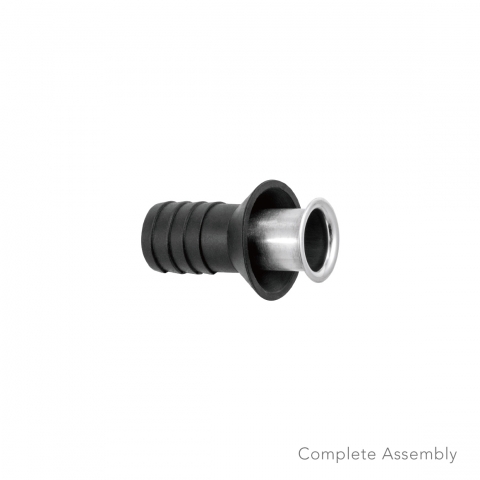

- Simply push stainless steel outlet tube into the receptor for assembly.
   Drainage hose is then attached and hose clamped into place to create a strong and
   secure connection.
Qty
Qty
Qty
Qty
Qty
Qty
  •

    Bulk No.

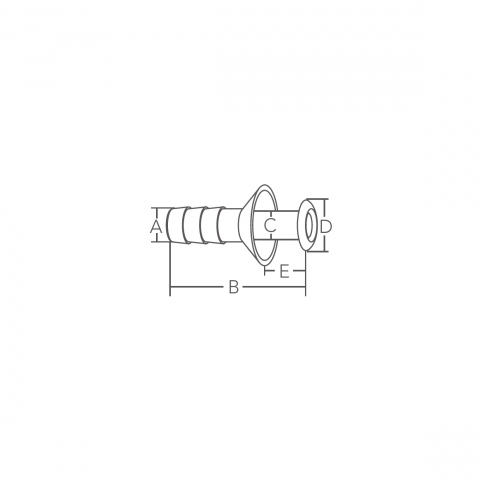

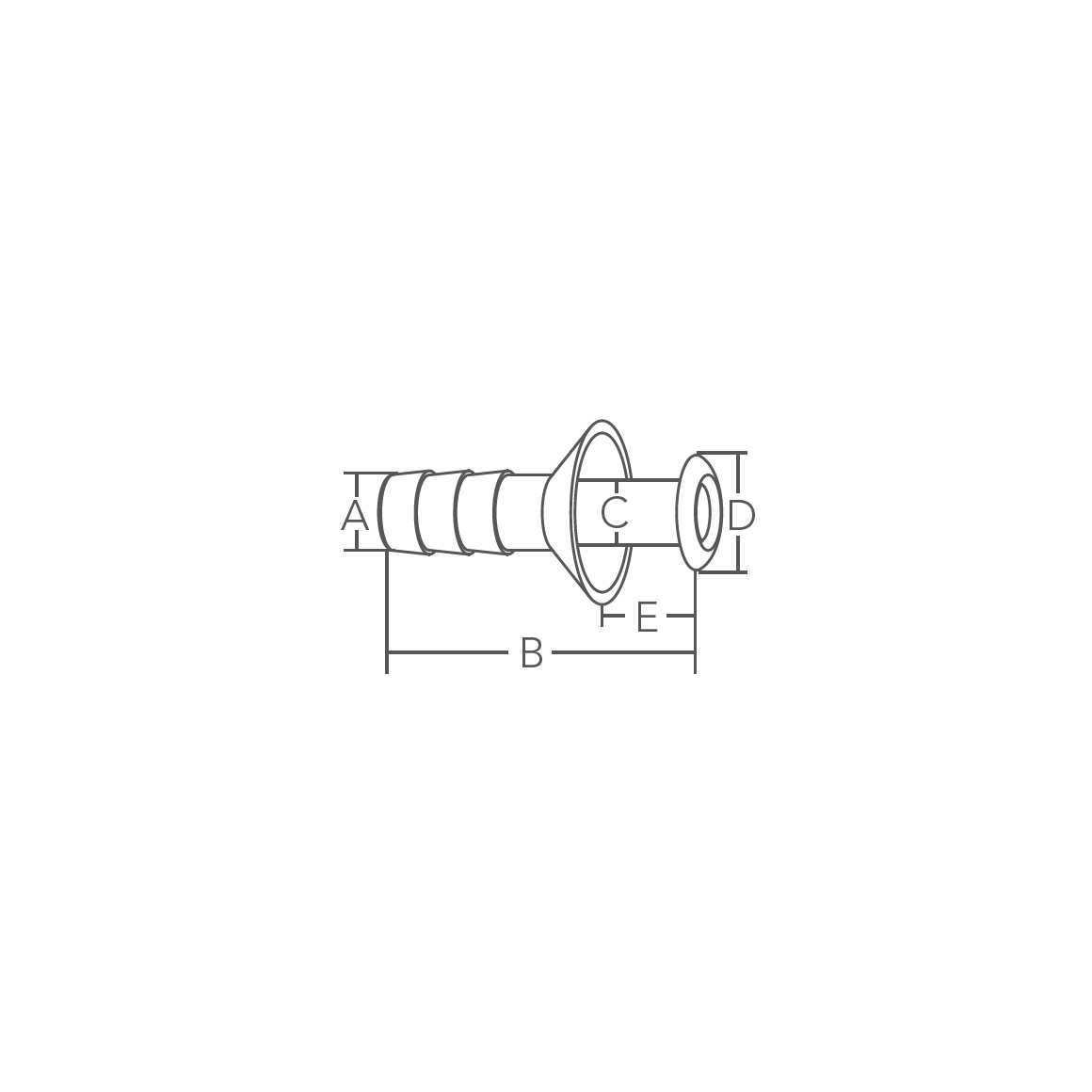

    A mm

    B mm

    C mm

    D mm

    E-Max. mm

    0203697 10(3/8") 36(1-7/16") 8(5/16") 13(1/2") 9(3/8")
    0203699 13(1/2") 36(1-7/16") 10(3/8") 16(5/8") 9(3/8")
    9503701 16(5/8") 39(1-9/16") 13(1/2") 19(3/4") 9(3/8")
    9503703 20(3/4") 44(1-3/4") 16(5/8") 22(7/8") 9(3/8")
    9503705 26(1") 44(1-3/4") 22(7/8") 29(1-1/8") 9(3/8")
    0303707 28(1-1/8") 77(3") 25(1") 35(1-3/8") 38(1-1/2")

  •

    Bulk No.

    Download

    0203697 Drawing
    0203699 Drawing
    9503701 Drawing
    9503703 Drawing
    9503705 Drawing
    0303707 Drawing
