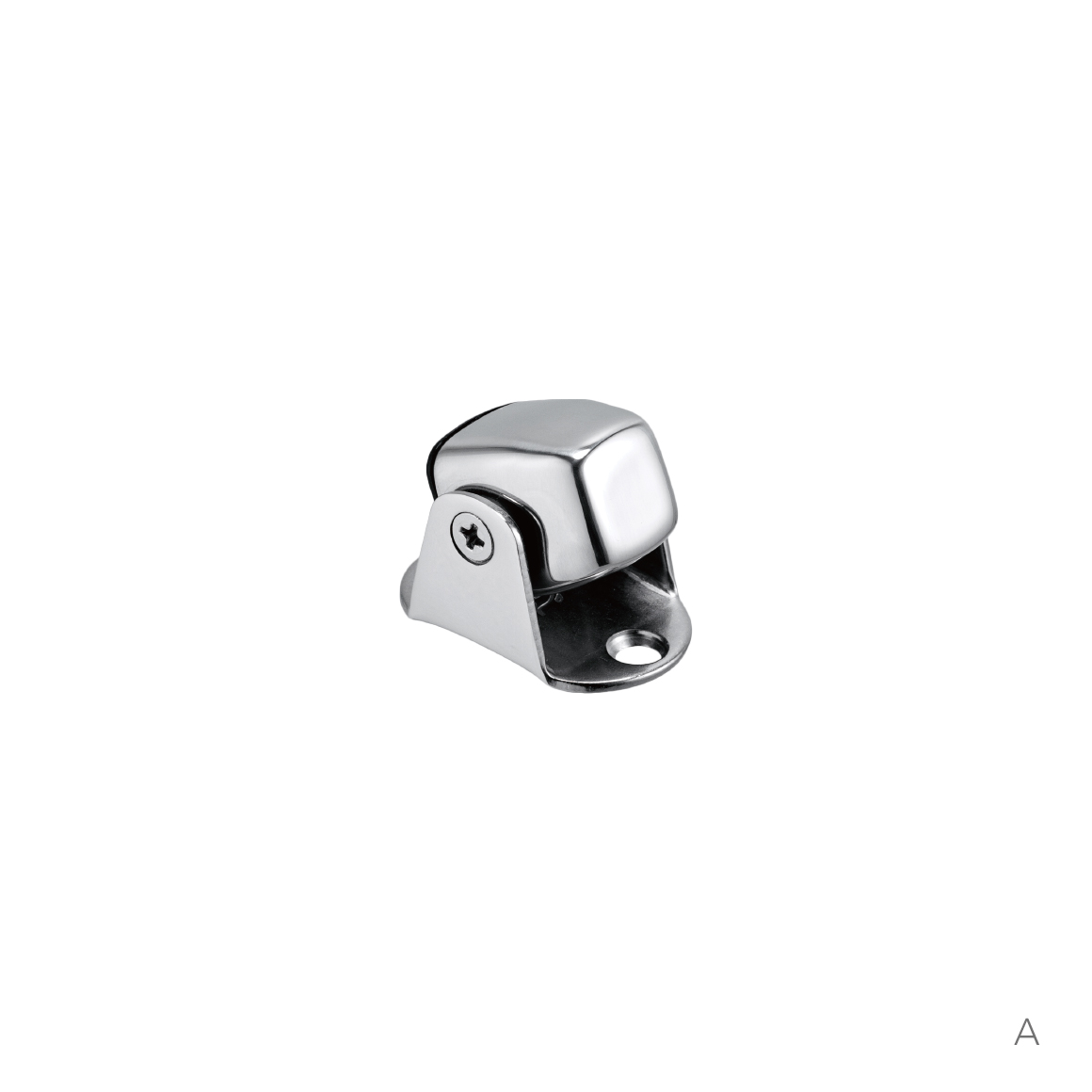

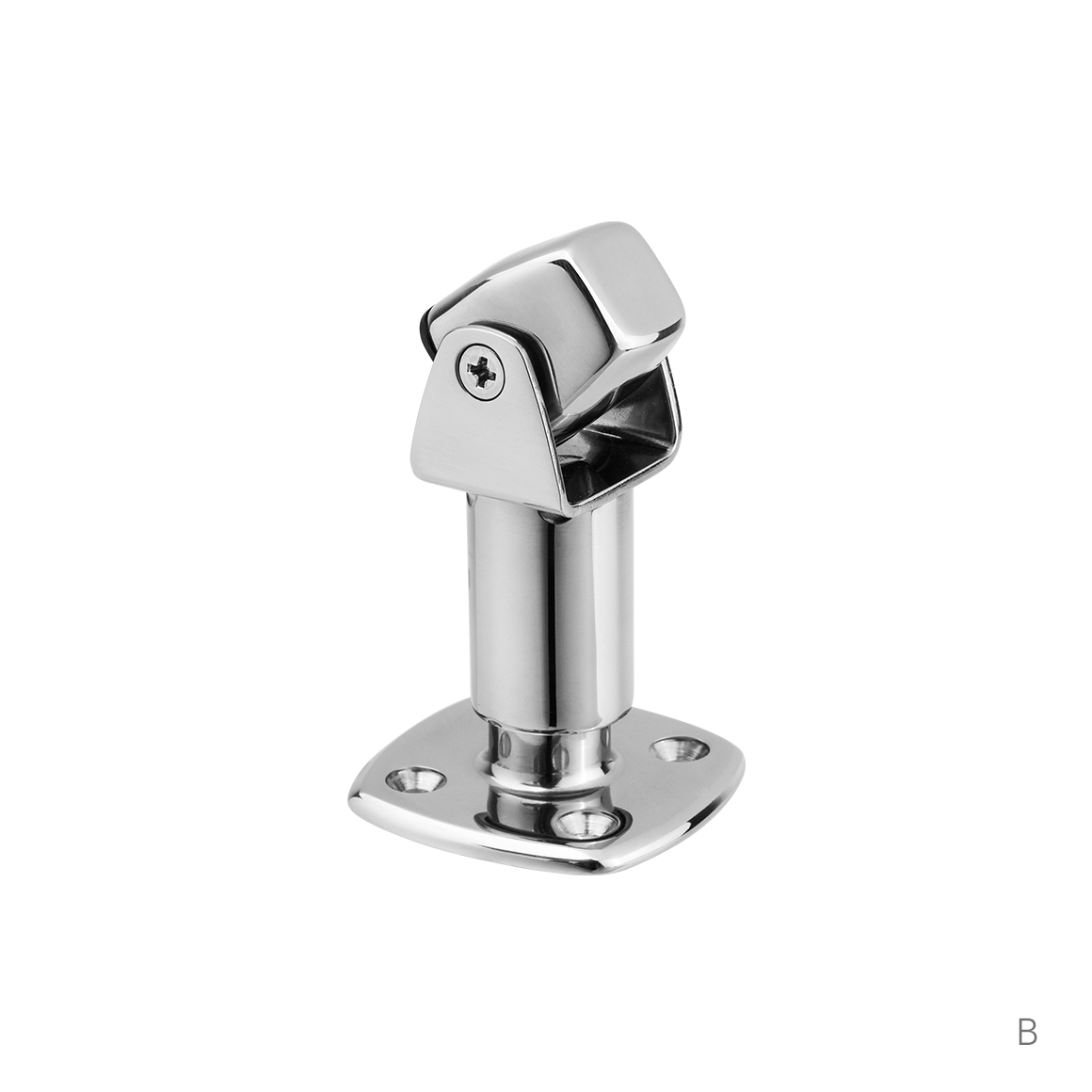

CUBIC MAG. HOLDER - SWIVEL TYPE
Stainless Steel 316 & Nylon & Rubber
- Magnets fully encapsulated in stainless steel 316 to withstand corrosive marine
environment.
- Holder can be rotated to any desired angle.
- Match any south pole magnets as a set.
- If you pair a flush rubber bumper style magnet with a proud magnet, the proud side
should be the same or larger size to prevent damages.
- Sold by piece.
- Screw size M4 or #8.
- Stainless steel 304 accessories are included.
- Magnets fully encapsulated in stainless steel 316 to withstand corrosive marine
environment.
- Holder can be rotated to any desired angle.
- Match any south pole magnets as a set.
- If you pair a flush rubber bumper style magnet with a proud magnet, the proud side
should be the same or larger size to prevent damages.
- Sold by piece.
- Screw size M4 or #8.
- Stainless steel 304 accessories are included.
Qty
Qty
Qty
Qty
Qty
-
Bulk No.
Mag. Pole

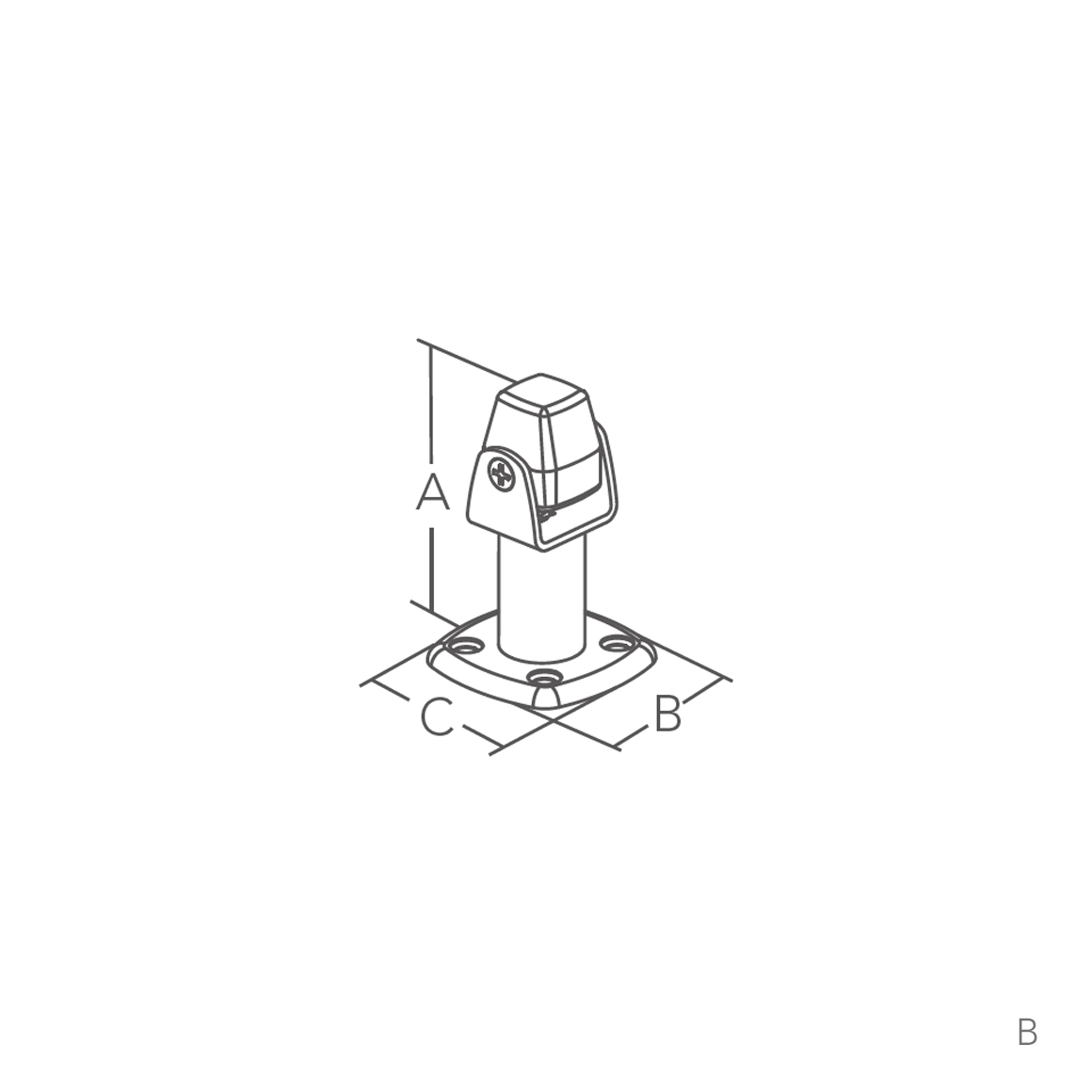

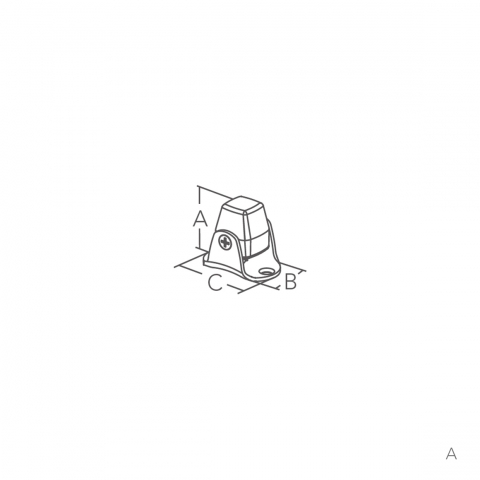

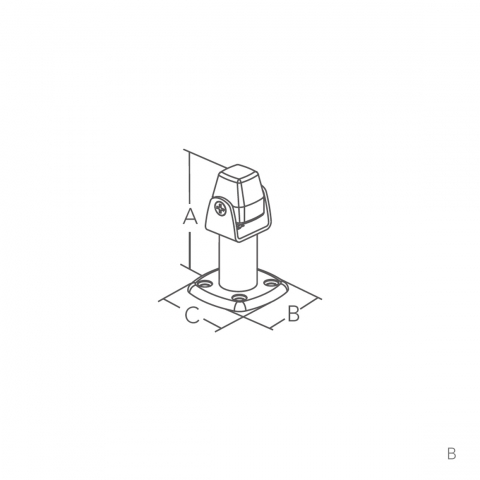

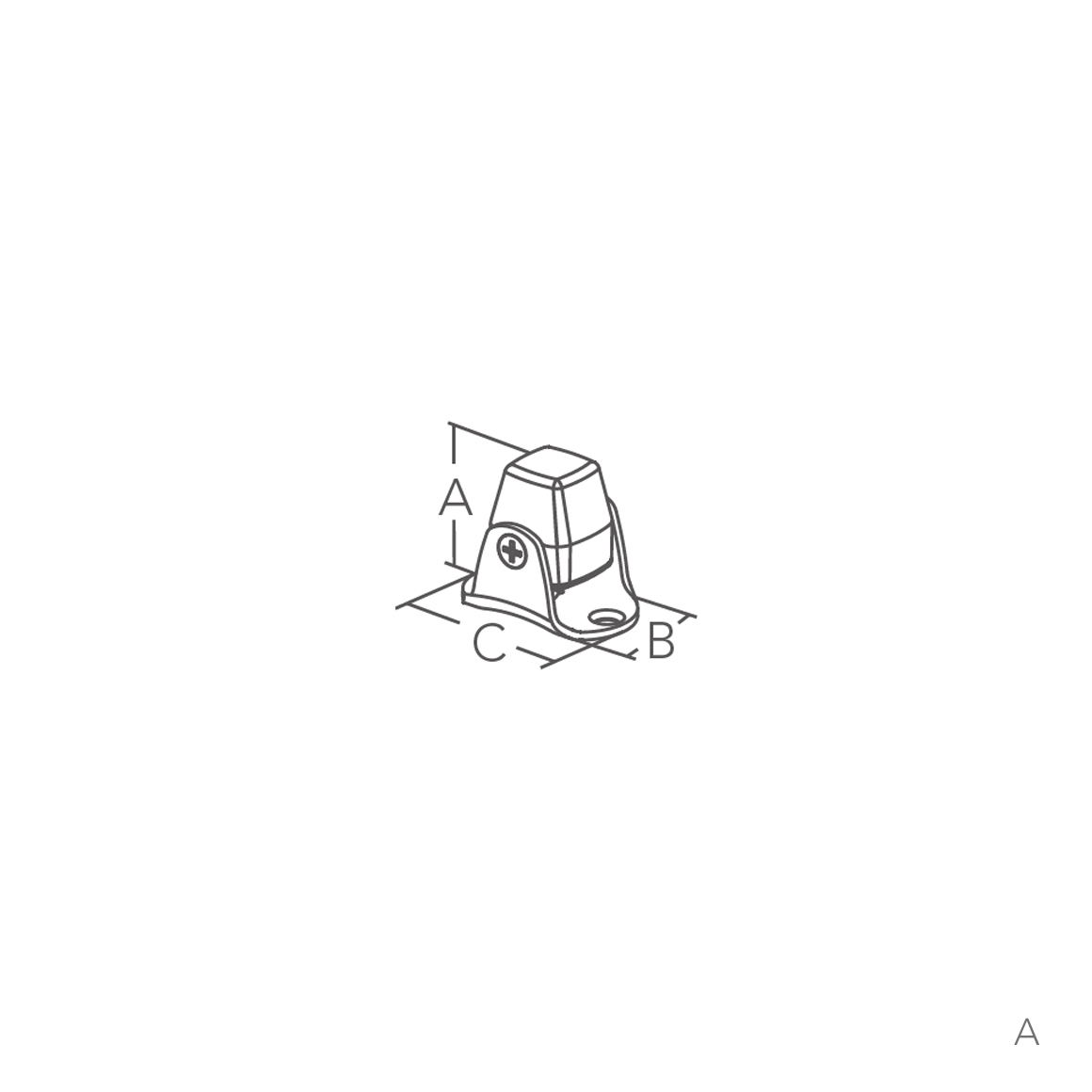

Model
Mag. Size
A mm
B mm
C mm
0207667P North A 15 x 10 35(1-3/8") 29(1-1/8") 44(1-3/4") 0207669P North A 25 x 10 42(1-5/8") 37(1-7/16") 53(2-1/16") 0507670P North A 30 x 15 50(2") 42(1-5/8") 60(2-3/8") 0107361P North B 15 x 10 72~95(2-13/16"~3-3/4") 48(1-7/8") 48(1-7/8") 0507363P North B 30 x 15 86~110(3-3/8"~4-5/16") 61(2-3/8") 61(2-3/8") MAGNET SIZE
HOLDING POWER
W/O RUBBER BUMPER
W/ RUBBER BUMPER
15 x 10 15 x 10 3.3 kg / 7.3 lb 1.5 kg / 3.3 lb 25 x 10 25 x 10 7.0 kg / 15.4 lb 5.2 kg / 11.5 lb 35 x 10 35 x 10 9.0 kg / 19.8 lb 7.2 kg / 15.8 lb 30 x 15 35 x 10 11 kg / 24.2 lb 10 kg / 22 lb MAG. HOLDER BOTTOM
P (North) N (South)
