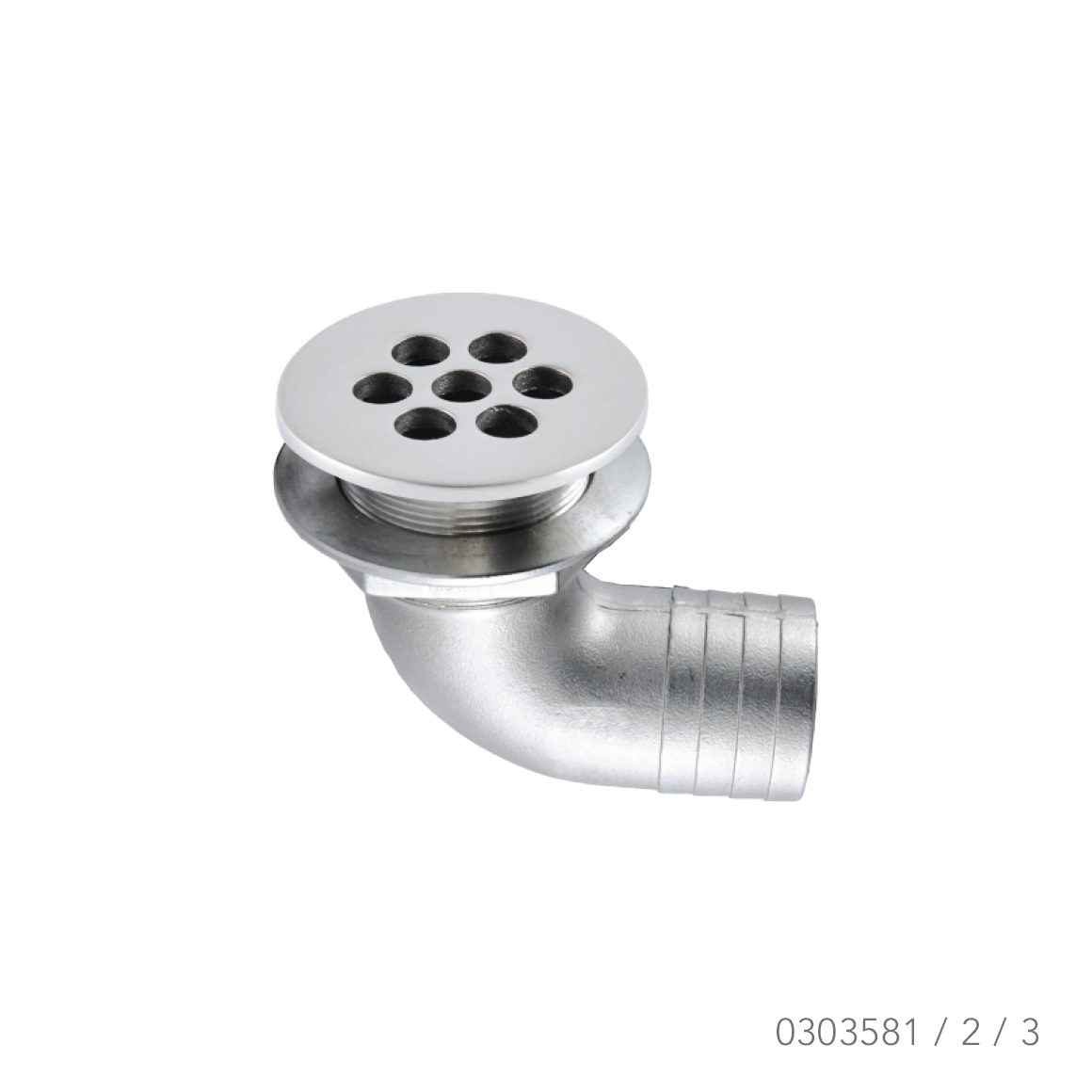

90° COCKPIT DRAIN

Stainless Steel 316
- Polished face grate.
- Compact flange design.
- One piece construction.
- Low profile for limited space under the deck.
- Easy installation.
Qty
Qty
Qty
Qty
  •

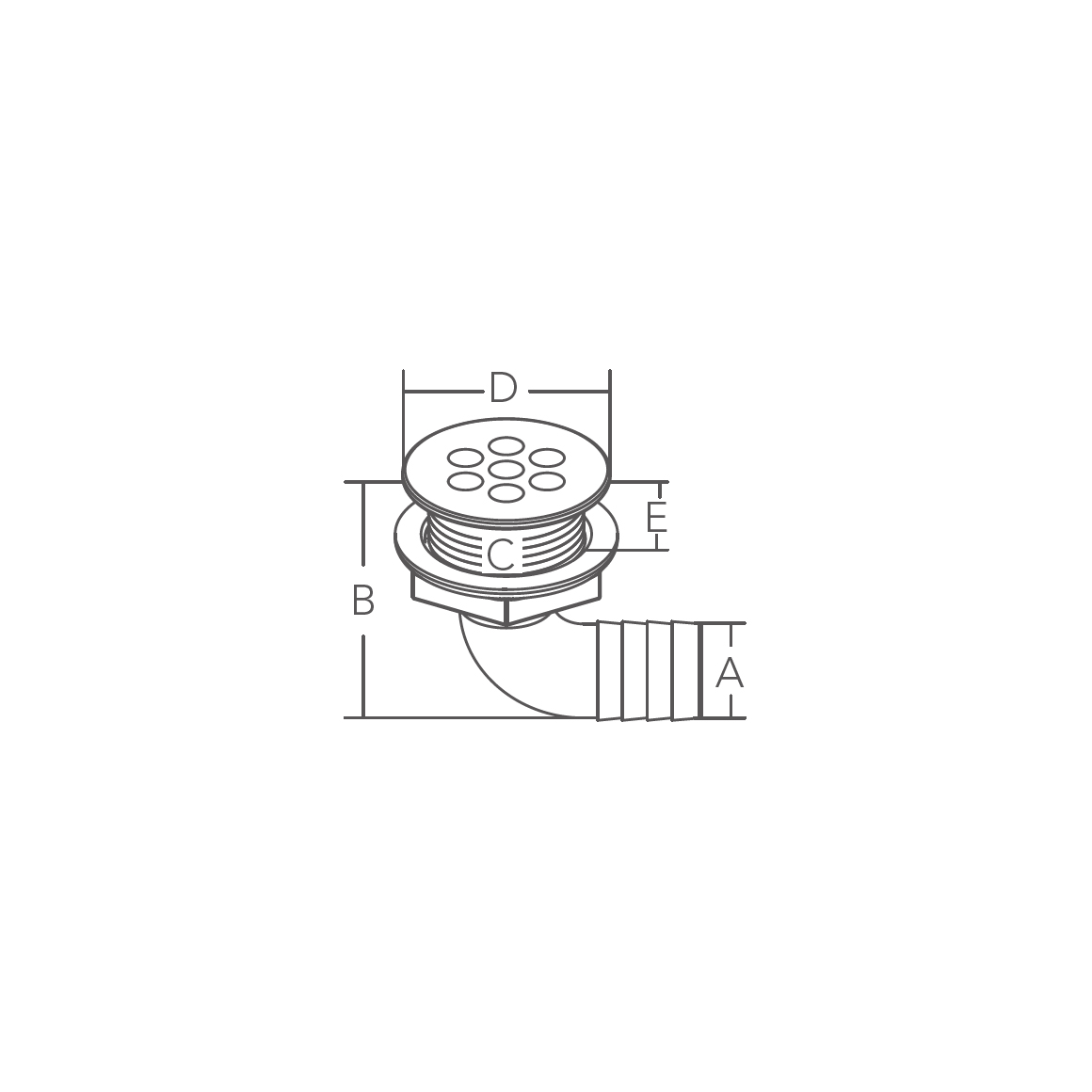

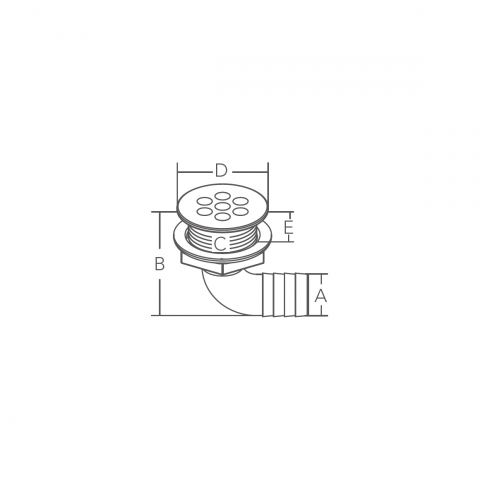

    Bulk No.

    A mm

    B mm

    C mm

    D mm

    E mm

    0303581 19(3/4") 55(2-3/16") 33(1-5/16") 42(1-5/8") 13(1/2")
    0303582 25(1") 58(2-1/4") 33(1-5/16") 42(1-5/8") 13(1/2")
    0303583 28(1-1/8") 61(2-3/8") 33(1-5/16") 42(1-5/8") 13(1/2")

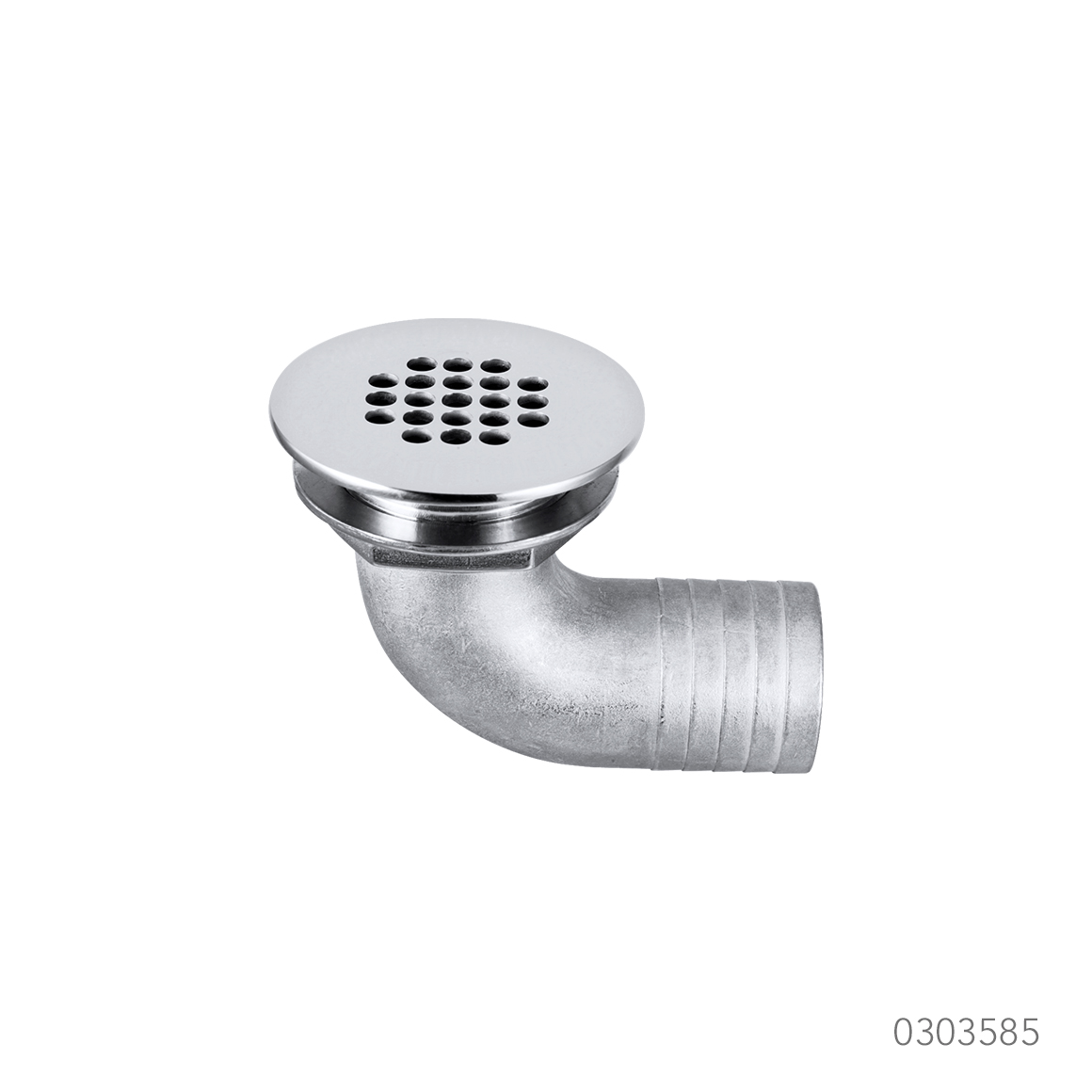

    0303585 38(1-1/2") 76(3") 45(1-3/4") 70(2-3/4") 13(1/2")

  •

    Bulk No.

    Download

    0303581 Drawing
    0303582 Drawing
    0303583 Drawing
    0303585 Drawing
