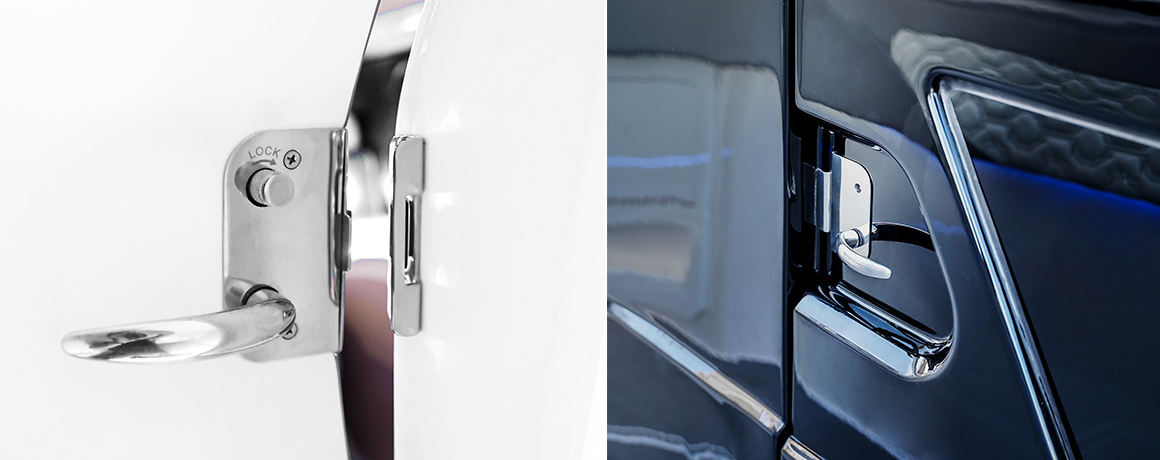

PRIVACY DOOR LATCH W/ HOOK
Stainless Steel 316 & Nylon
- Lever handle with key lock design.
- Adjustable slide fits various door gaps to maximum 5mm (3/16").

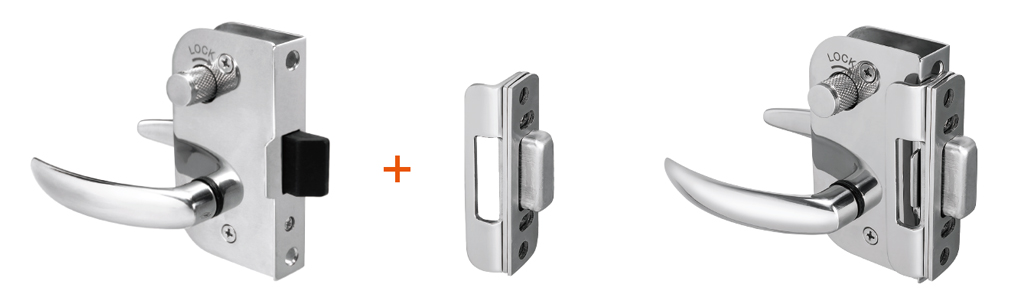

- Upgraded design incorporates hook which engages with the strike to ensure secure
closure underway.
- Ideal for curved head doors.

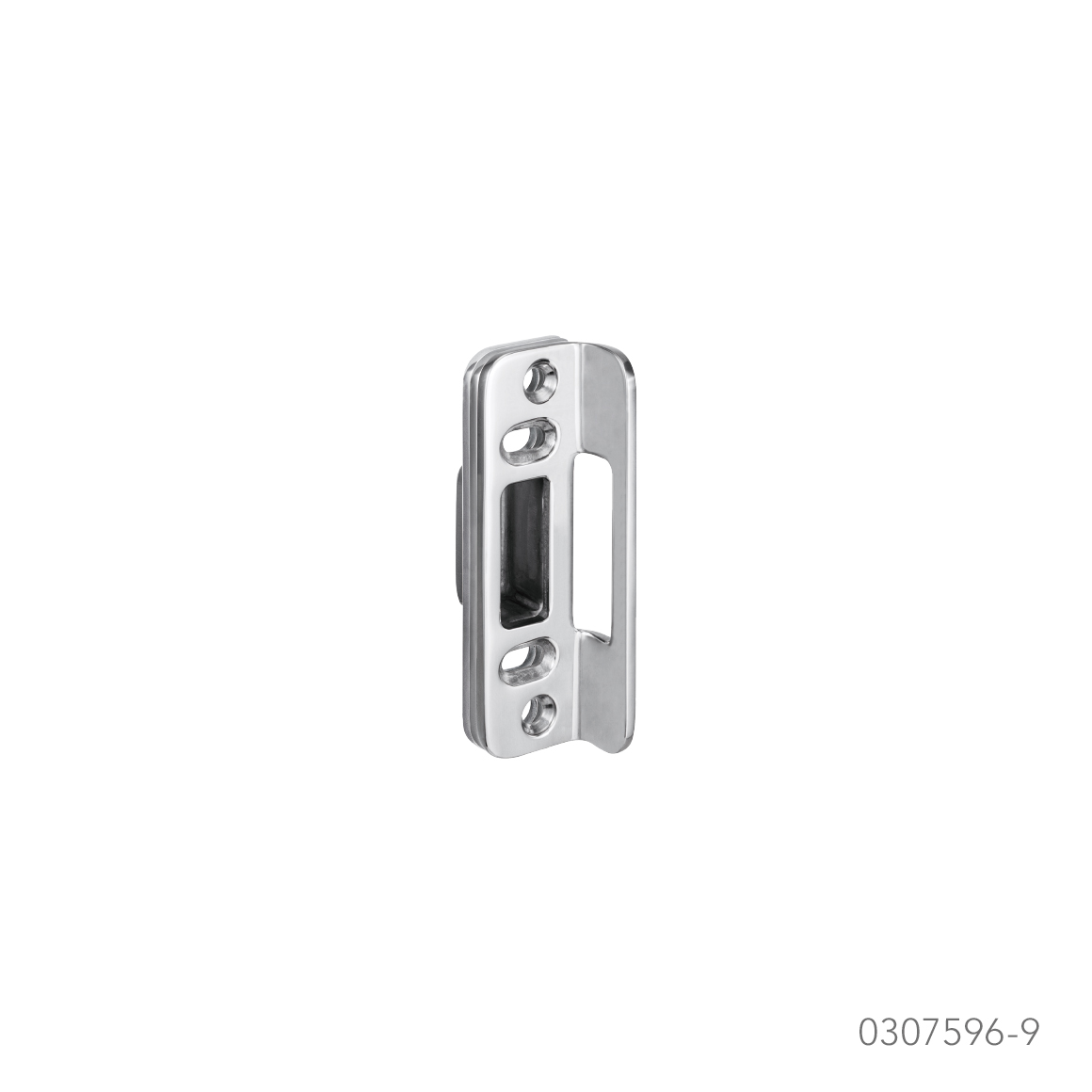

- 0307596-9 strike includes 2 pcs of shims for minor adjustments.
- 0307596-9 and 0307598-9 are sold separately.
- Screw size M4 or #8.
- Stainless steel 304 accessories are included.
- Lever handle with key lock design.
- Adjustable slide fits various door gaps to maximum 5mm (3/16").
- Upgraded design incorporates hook which engages with the strike to ensure secure
closure underway.
- Ideal for curved head doors.
- 0307596-9 strike includes 2 pcs of shims for minor adjustments.
- 0307596-9 and 0307598-9 are sold separately.
- Screw size M4 or #8.
- Stainless steel 304 accessories are included.
Qty
Qty
Qty
Qty
-
Bulk No.
Model
A mm
B mm
C mm

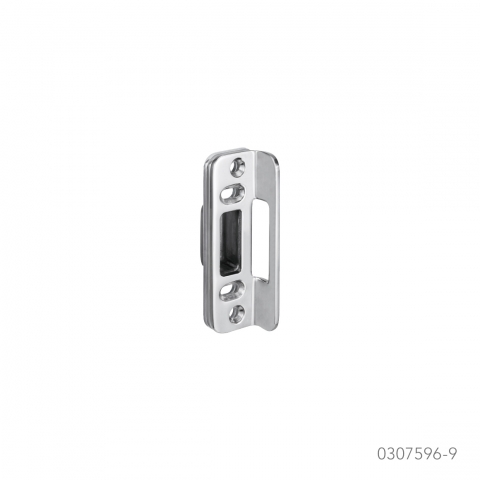

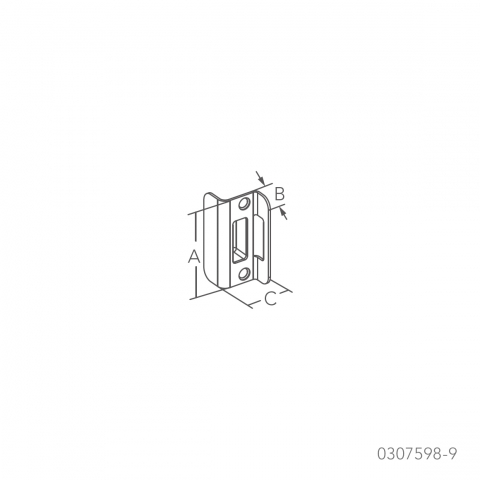

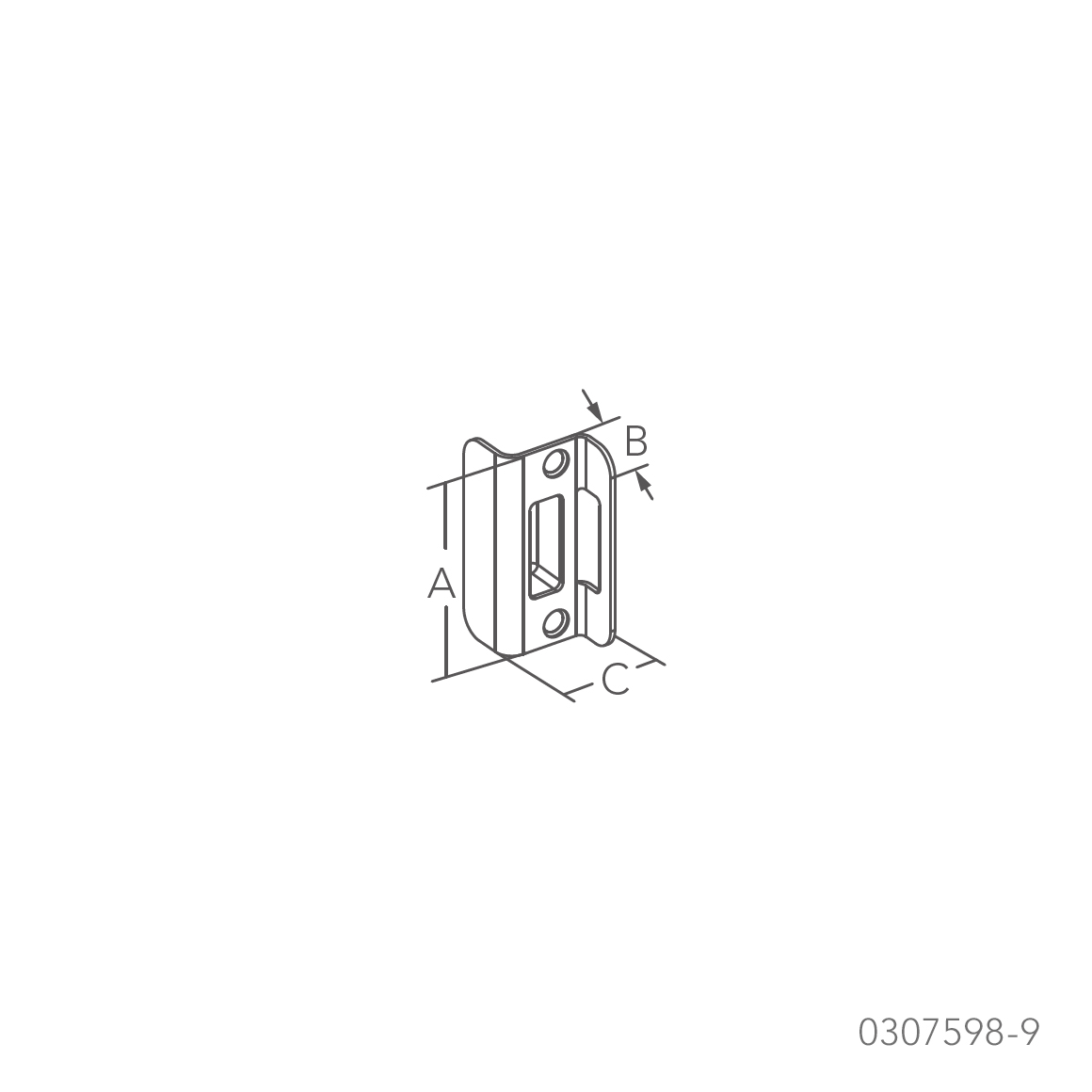

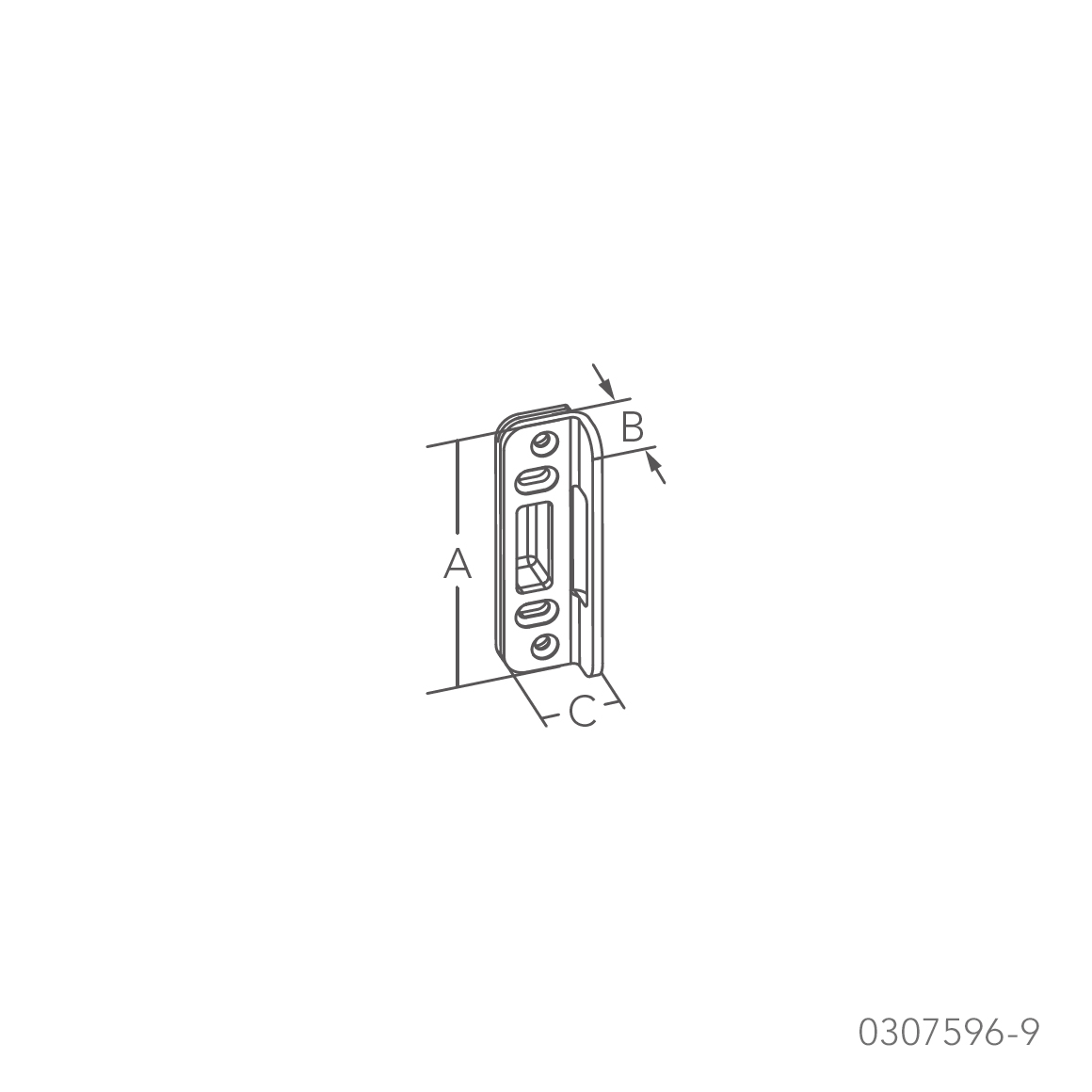

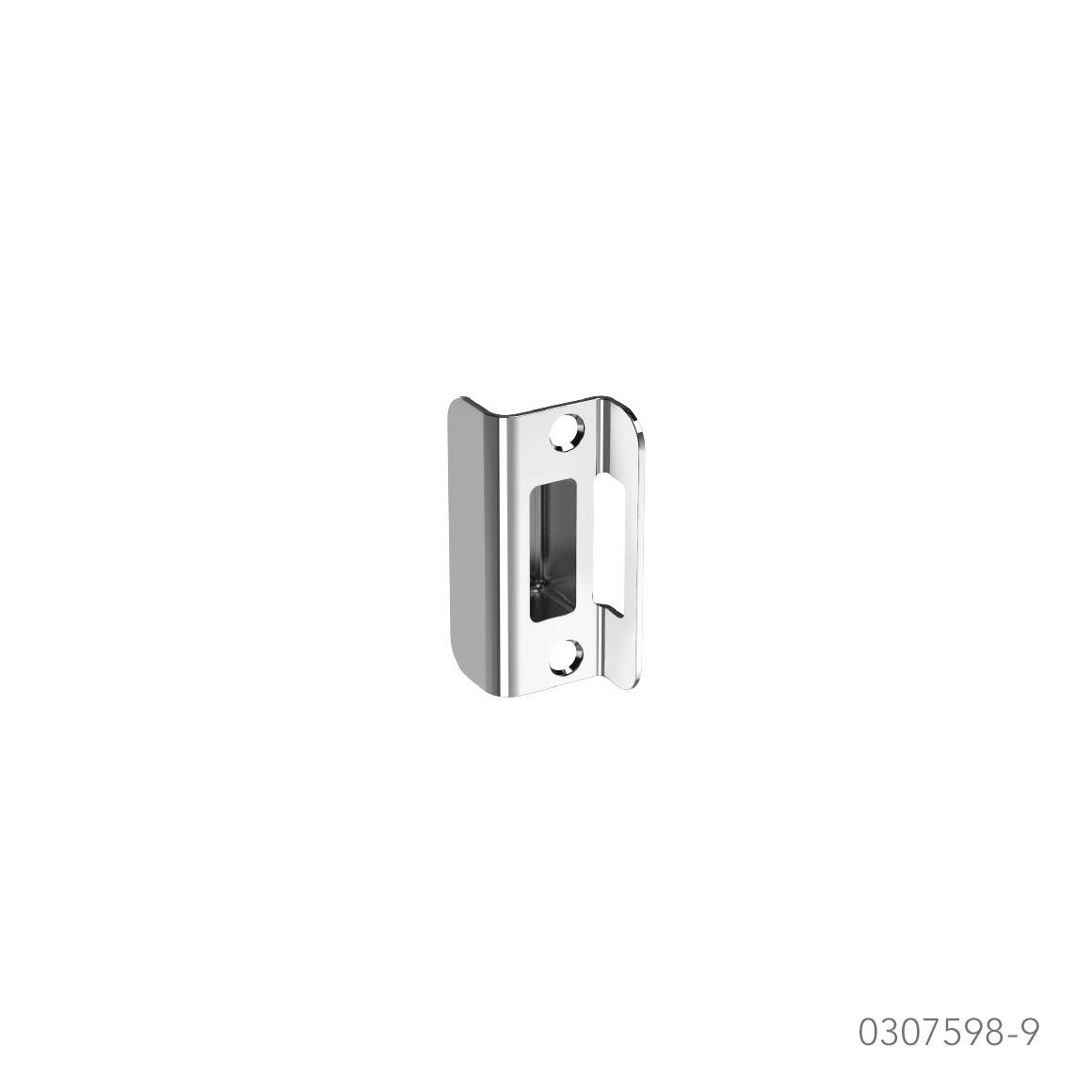

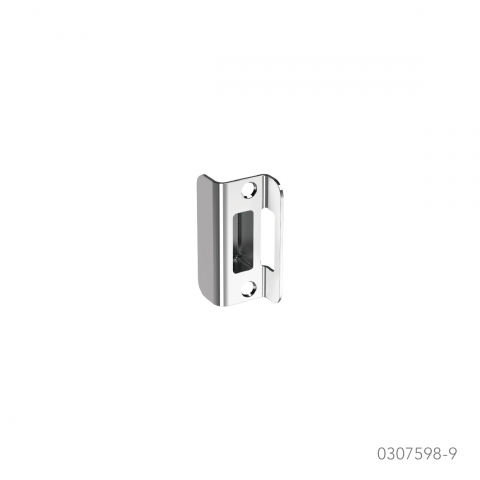

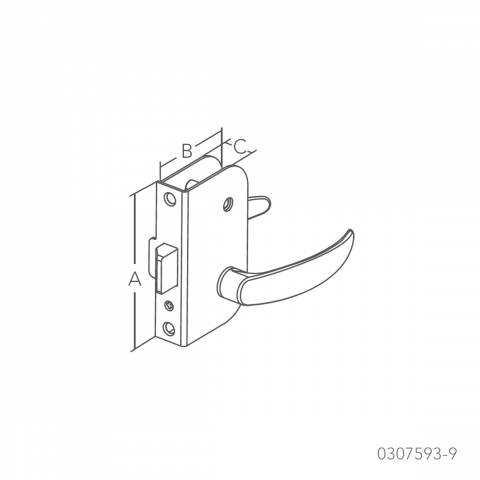

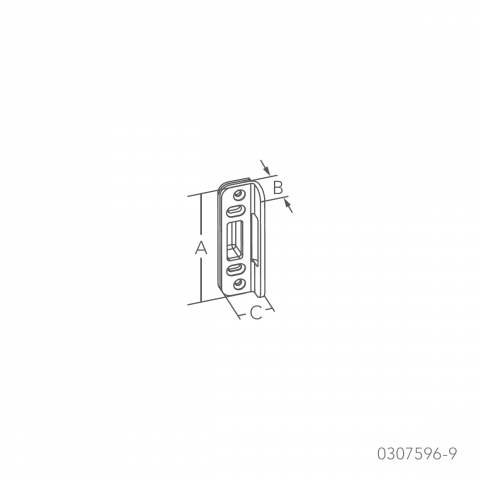

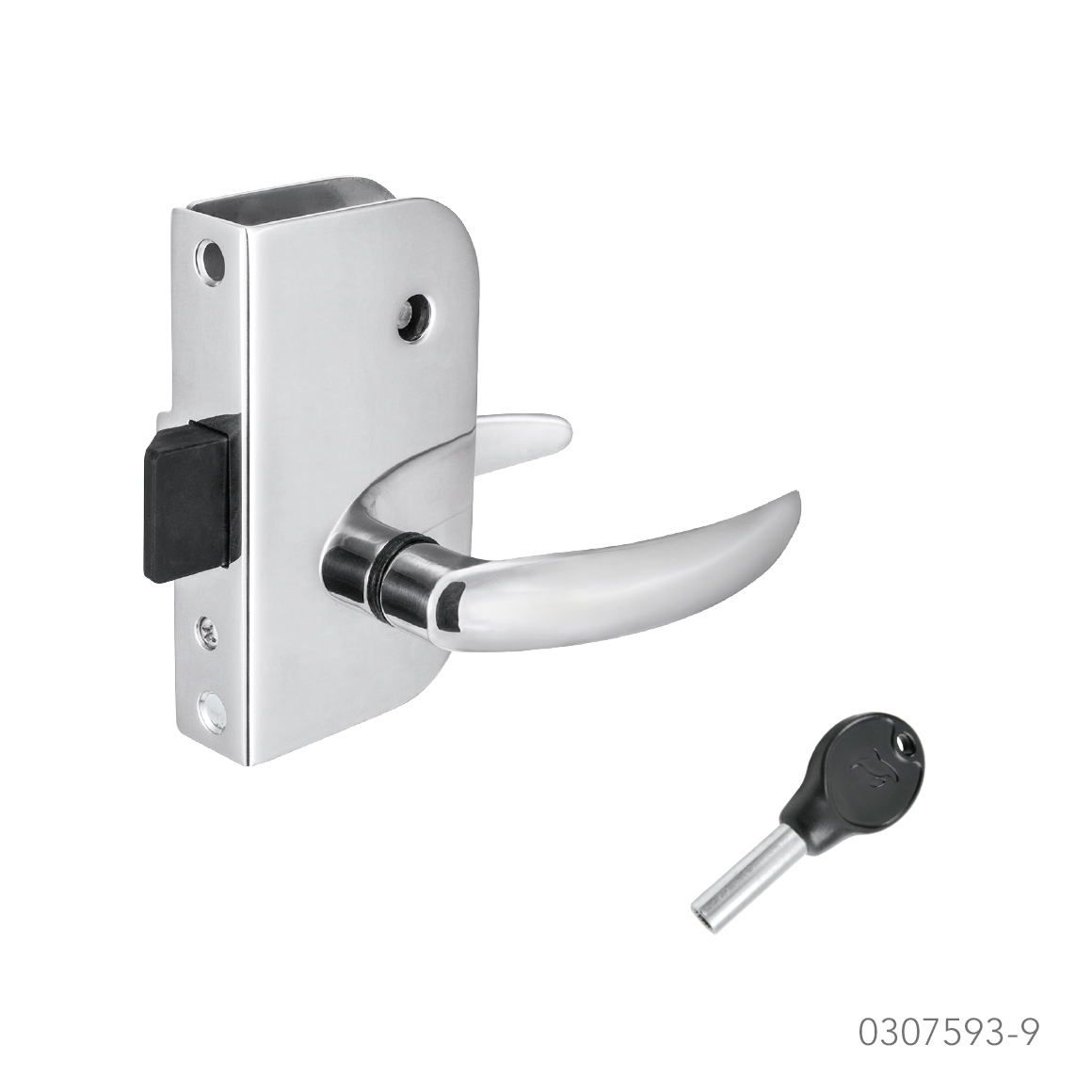

0307591-9 Left 100(3-15/16") 58(2-1/4") 17~22(11/16"~7/8") 0307593-9 Right 100(3-15/16") 58(2-1/4") 17~22(11/16"~7/8") 0307596-9 Strike 85(3-3/8") 16.5(5/8") 26(1") 0307598-9 Strike 62(2-7/16") 15(9/16") 25(1") ENGAGEMENT
❶ ❷
