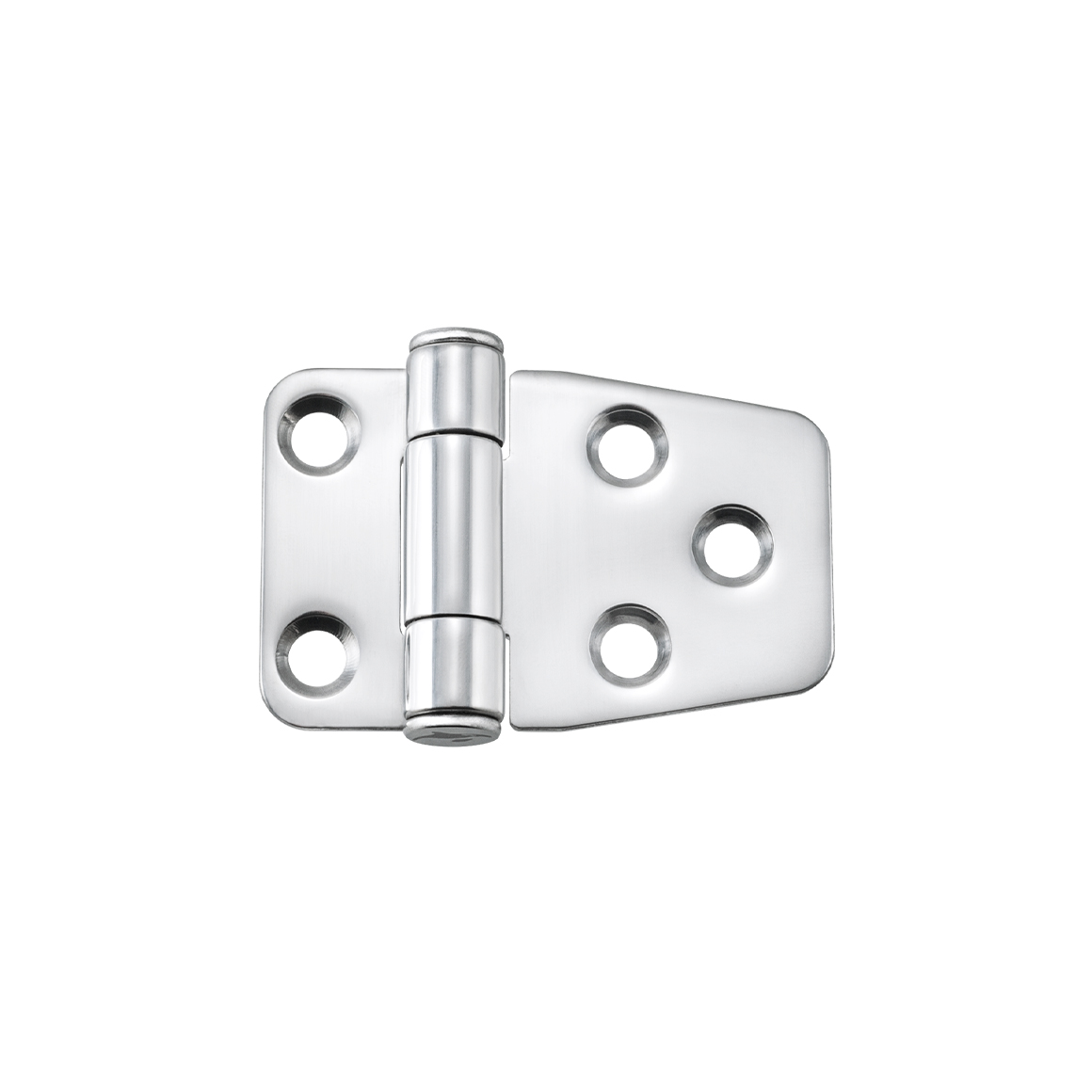

FRICTION HINGE - BARREL UP
Stainless Steel 316
- Provides constant torque throughout the entire range of motion.
- Holds door open at any desired angle without torque adjustment.
- Ideal for light-weight doors, such as overhead door, baitwell lid,
glove box, interior door, anchor locker, electronic panel, etc.
- Passed 10,000 times cycle test and lost less than 10% on torque;
20,000 times lost only 20% or less.
- Passed 500-hour salt-spray test.
- Provides constant torque throughout the entire range of motion.
- Holds door open at any desired angle without torque adjustment.
- Ideal for light-weight doors, such as overhead door, baitwell lid,
glove box, interior door, anchor locker, electronic panel, etc.
- Passed 10,000 times cycle test and lost less than 10% on torque;
20,000 times lost only 20% or less.
- Passed 500-hour salt-spray test.
Qty
Qty
-
Bulk No.
TYPE
Size
Screw Size
Torque Range
0319227-A Barrel Up 37.2mm X 57mm 1-7/16" X 2-1/4" #8 1.5±0.4N-m 0319227 Barrel Up 37.2mm X 57mm 1-7/16" X 2-1/4" M4 1.5±0.4N-m
