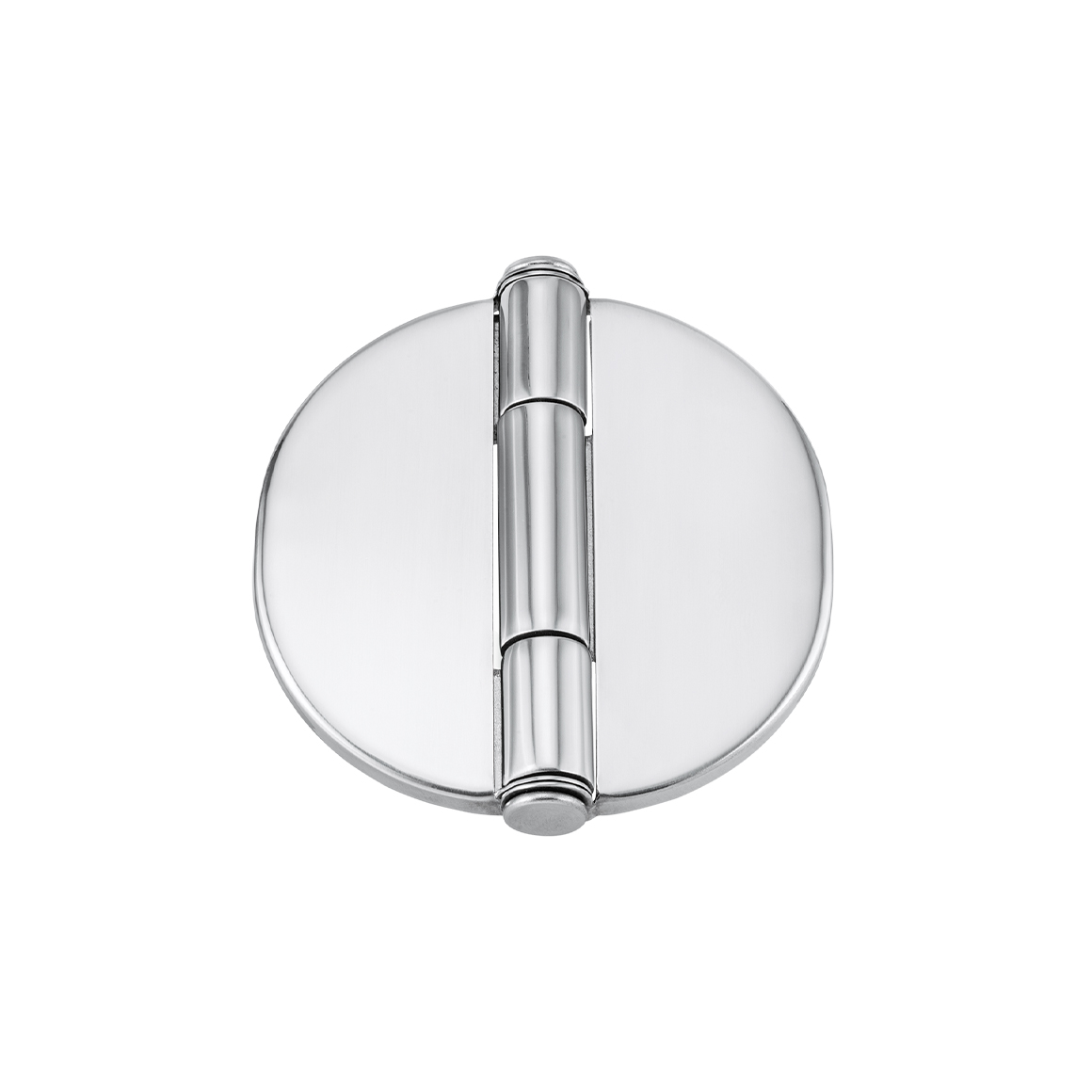

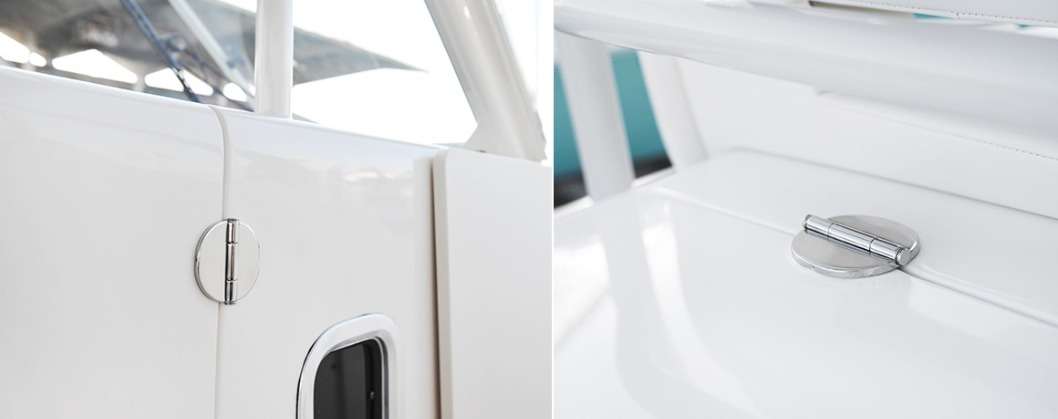

BUTTERFLY HINGE - BARREL UP
Stainless Steel 316
- Modern shape and simplified two seam barrel design.
- The unique patented covers are built into the pivot for permanent use and
concealing the screws.
- Push cover to snap in place. Can be unsnapped by using a small flat-head screwdriver.
- Fits different countersunk screw types.
- Silicone caulking on cover is required for specific application use.
- Passes 500 hours salt-spray test.
- If this hinge is mounted in the pocket, make sure to have enough
room around the hinge leaves to allow the covers to be snapped down.
- Modern shape and simplified two seam barrel design.
- The unique patented covers are built into the pivot for permanent use and
concealing the screws.
- Push cover to snap in place. Can be unsnapped by using a small flat-head screwdriver.
- Fits different countersunk screw types.
- Silicone caulking on cover is required for specific application use.
- Passes 500 hours salt-spray test.
- If this hinge is mounted in the pocket, make sure to have enough
room around the hinge leaves to allow the covers to be snapped down.
Qty
-
Bulk No.
TYPE
Size
Screw Size
0319319 Barrel Up 66.2mm X 66.6mm 2-5/8" X 2-5/8" M5 or #10
-
Bulk No.
Download

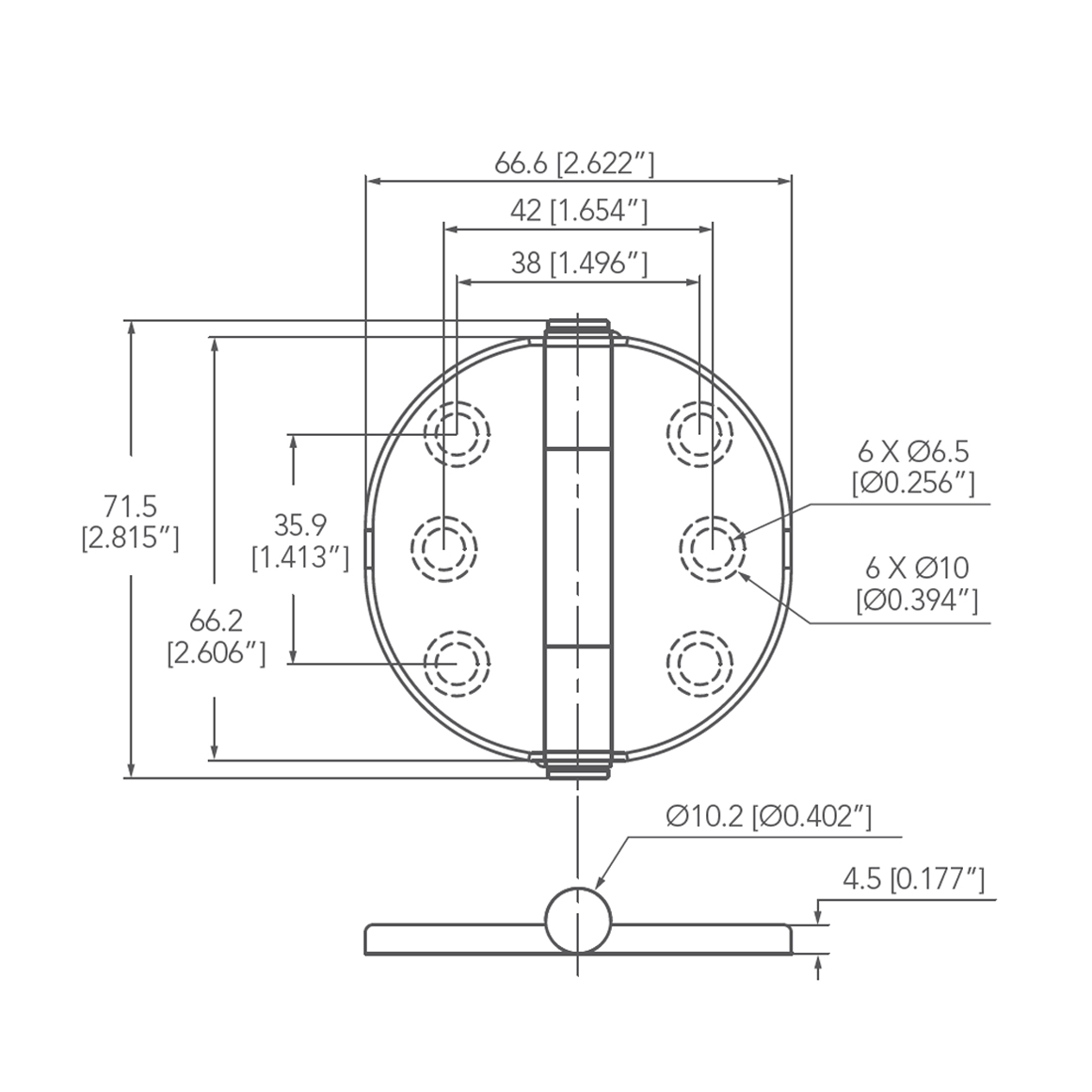

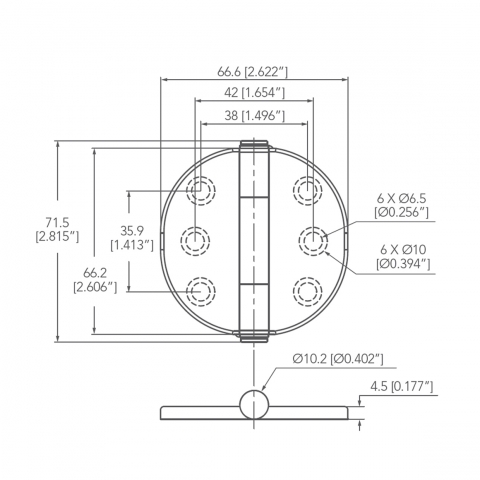

0319319 Drawing
