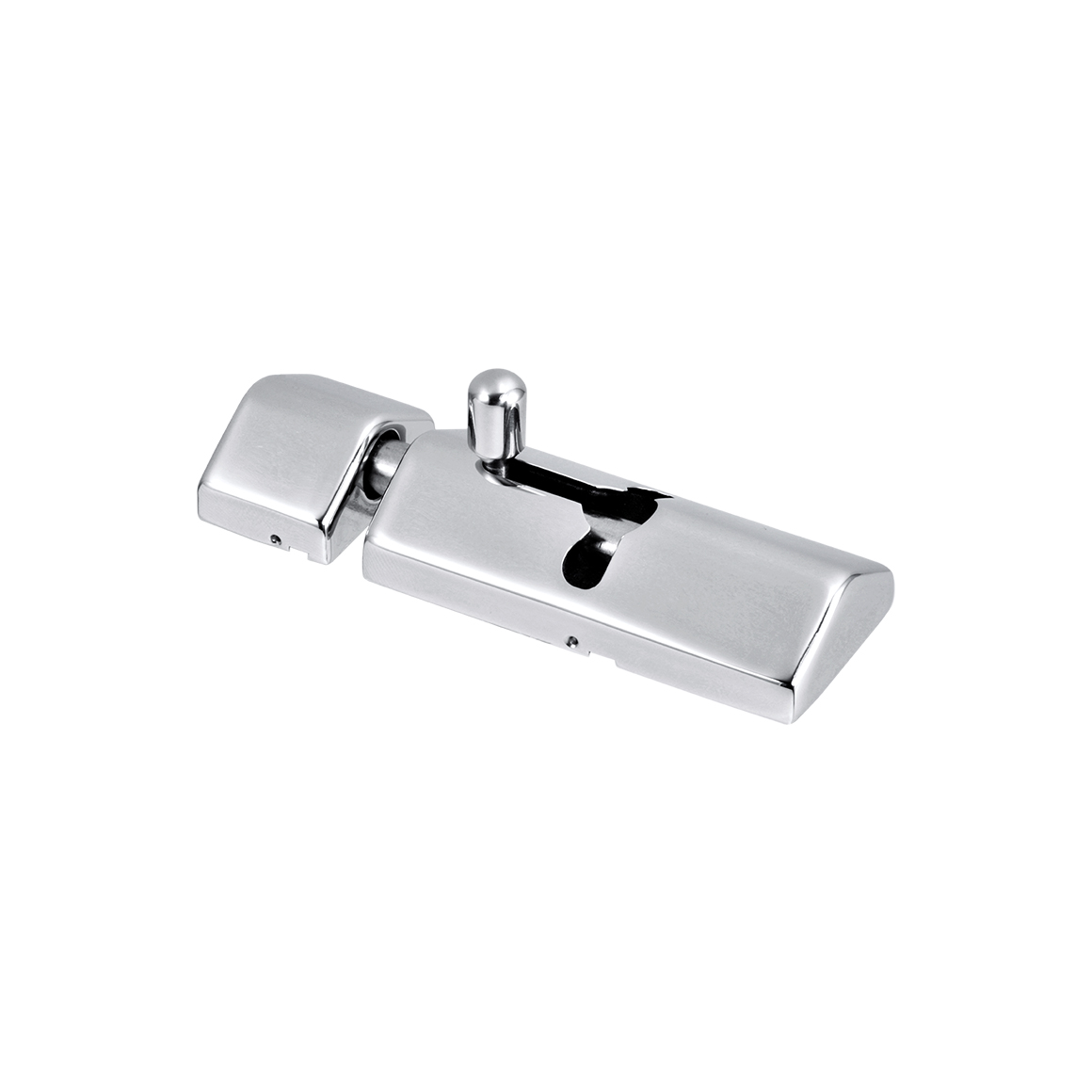

DELUXE BARREL BOLT - STANDARD STRIKE
Stainless Steel 316 & Plastic
- Clean and elegant appearance with snap-on SS316 cover to conceal installation fasteners.
- Knob can be positioned to keep the door open.
- Stainless steel slide works smoothly on plastic body.
- Spring-loaded slide ensures constant engagement and no rattle.
- Screw size M4 or #8.
- Clean and elegant appearance with snap-on SS316 cover to conceal installation fasteners.
- Knob can be positioned to keep the door open.
- Stainless steel slide works smoothly on plastic body.
- Spring-loaded slide ensures constant engagement and no rattle.
- Screw size M4 or #8.
Qty
-
Bulk No.
Strike

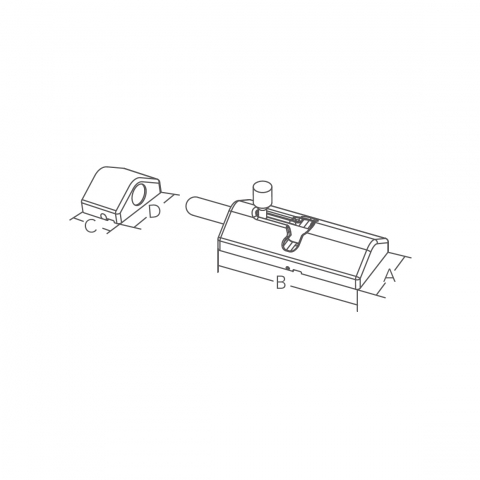

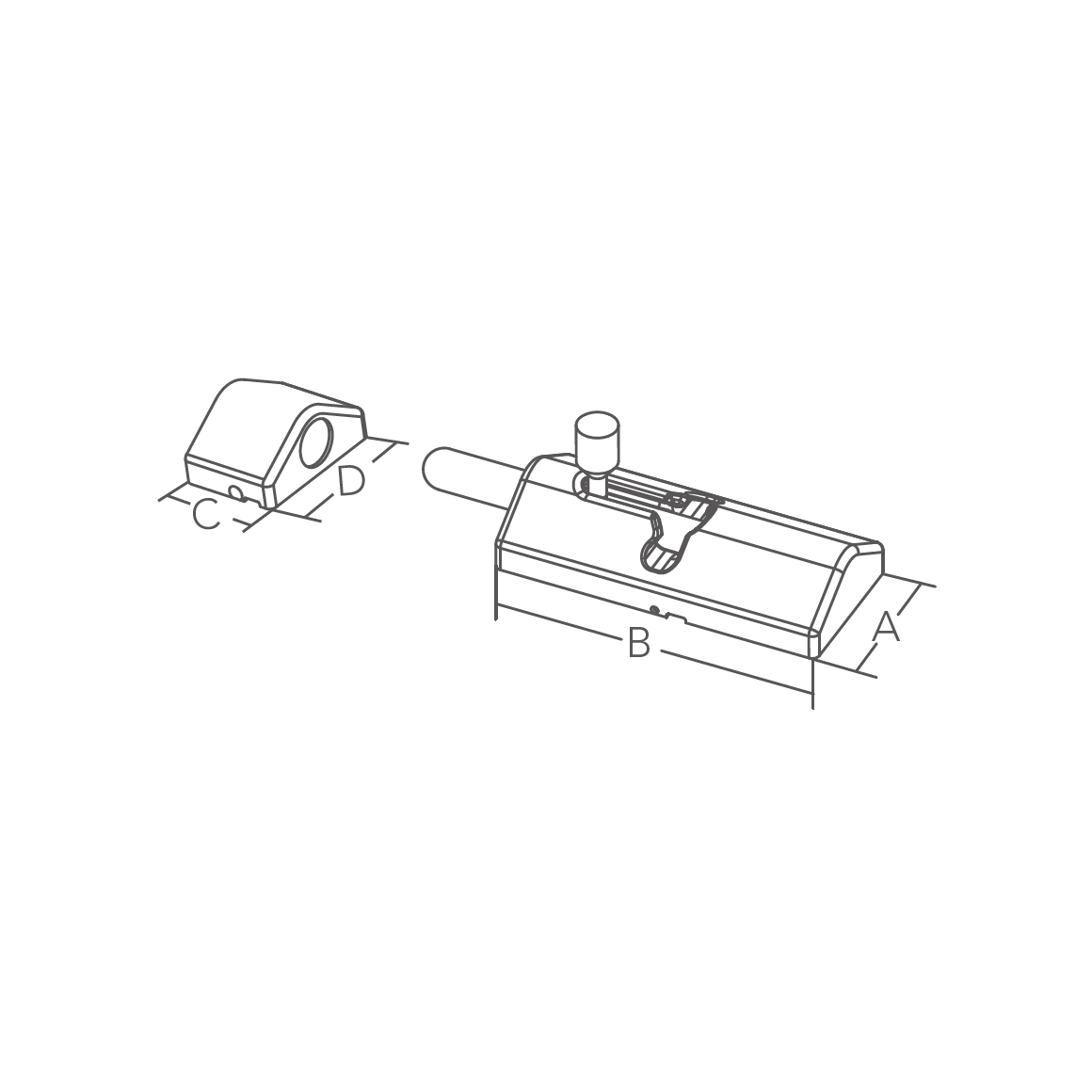

A mm
B mm
C mm
D mm
0407121 Standard 31(1-1/4") 67(2-5/8") 22(7/8") 31(1-1/4")
-
Bulk No.
Download
0407121 Drawing
