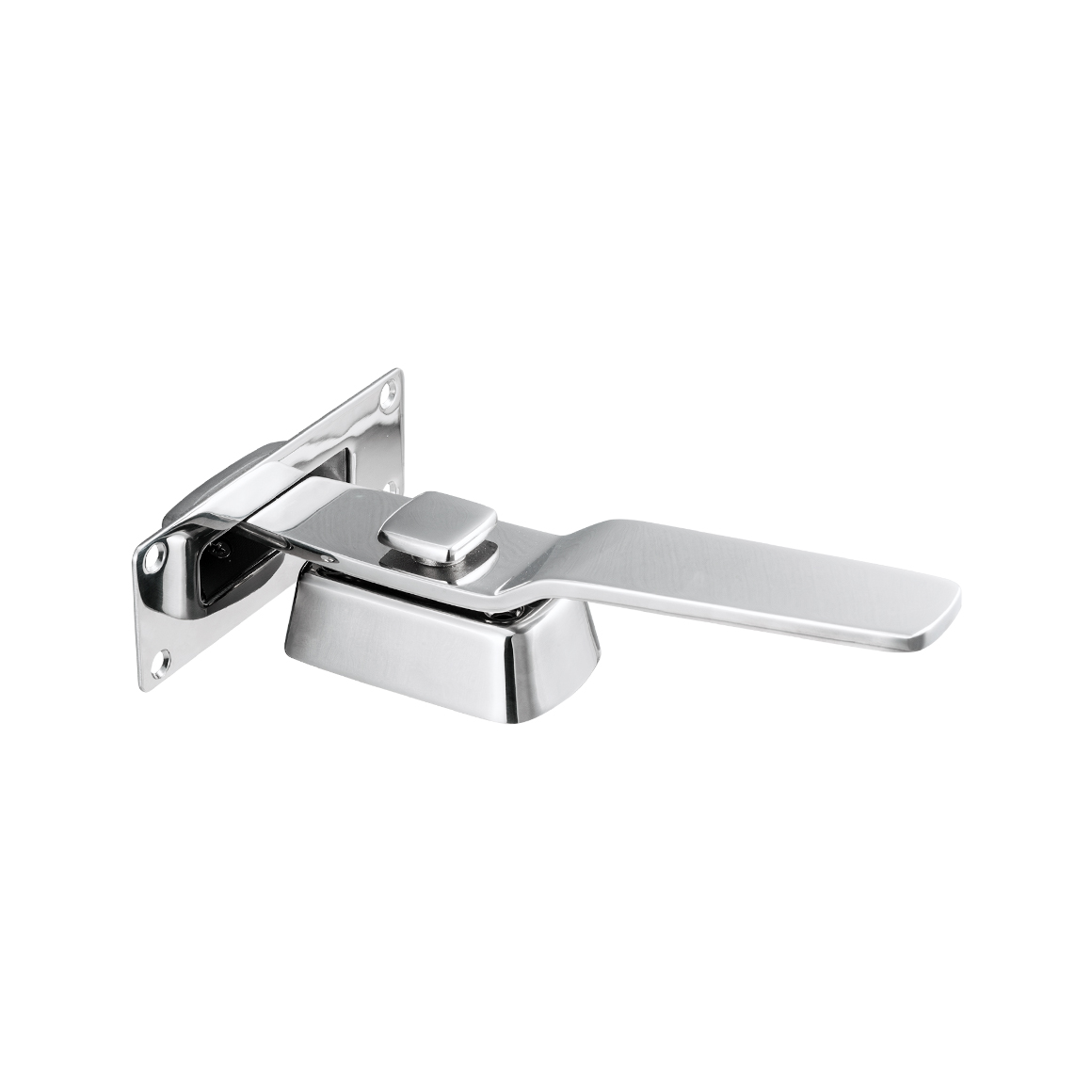

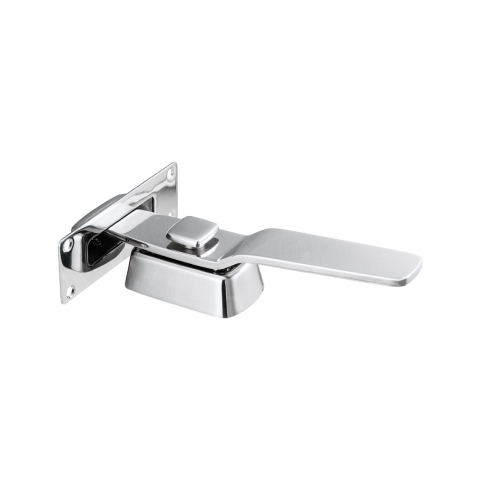

BUTTON RELEASE DOOR LATCH - WIDE FLUSH STRIKE
Stainless Steel 316
- Contemporary design.
- One hand operation.
- Door can be opened and locked by pushing the button and rotating the handle.
- Every 90 turn can secure the handle in position.
- Wide flush strike covers pre-drilled mounting hole.
- Strike is designed to prevent handle surface from scratching.
- Works on out-swing or in-swing doors.
- Works on both right and left hand transom doors.
- Contemporary design.
- One hand operation.
- Door can be opened and locked by pushing the button and rotating the handle.
- Every 90 turn can secure the handle in position.
- Wide flush strike covers pre-drilled mounting hole.
- Strike is designed to prevent handle surface from scratching.
- Works on out-swing or in-swing doors.
- Works on both right and left hand transom doors.

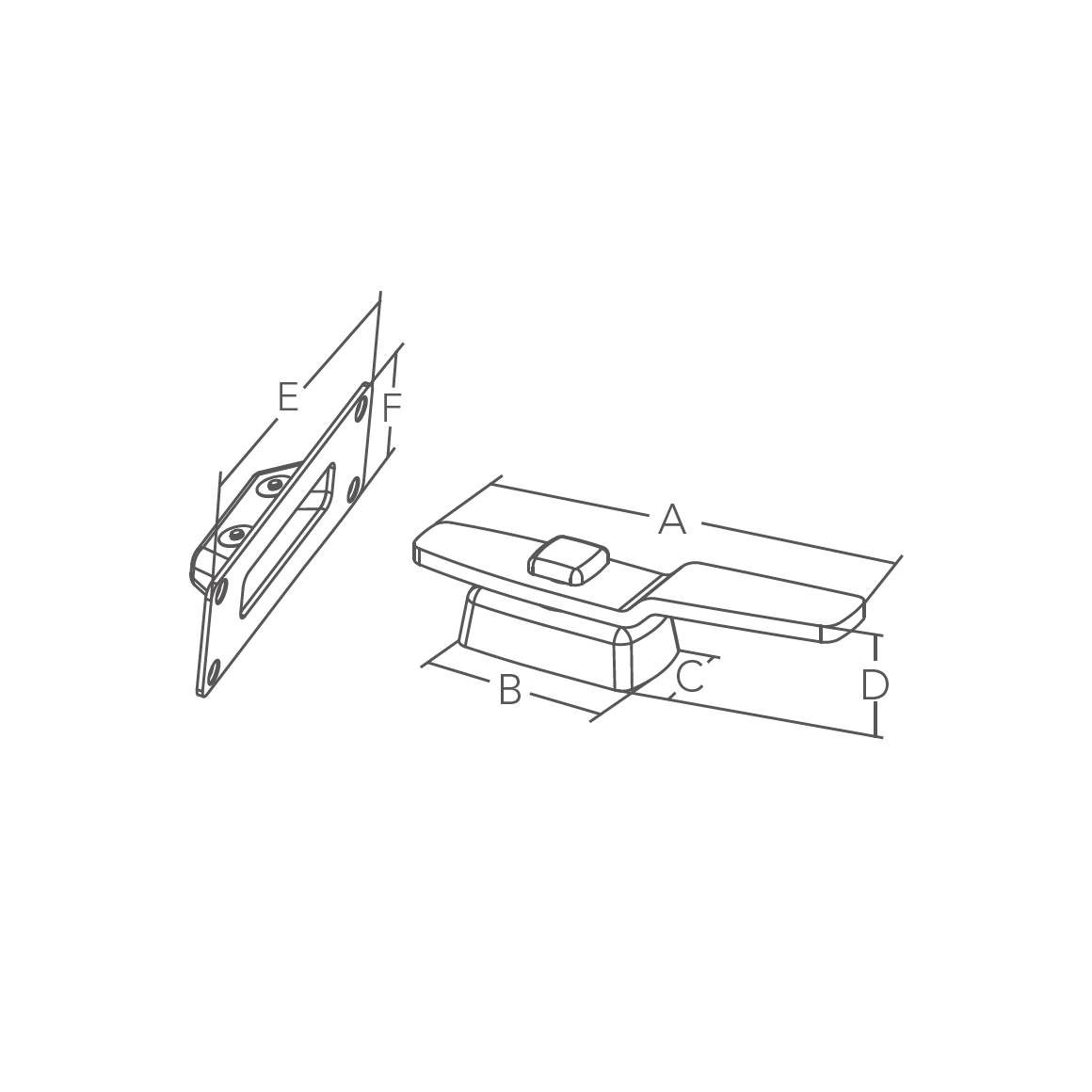

Qty
-
Bulk No.
Strike
A mm
B mm
C mm
D mm
E mm
F mm
0407369-8 Wide Flush 213(8-3/8") 84(3-5/16") 49(1-15/16") 53(2-1/16") 127(5") 45(1-3/4") MODEL
SCREW SIZE
Latch Body 0407369-8 M5 or #10 Wide Flush Strike M4 or #8
-
Bulk No.
Download
0407369-8 Drawing
