GRAND SERIES - PRIVACY DOOR COMPRESSION LATCH
Stainless Steel 316
- Designed to eliminate the need for a bulky handle for protruding
from the face of the latch.
- Detent handle design ensures fixed positioning after a 90° turn.
- Handle up position indicates head in use. Unique design
allows inside egress even if the handle is pushed accidentally
to closed position.
- Loctite is required during installation of lever handle.
- A 9mm spacer is included for 0407841, 0407843/-9,
and 2 pcs of 5mm spacers for 0807855.
- #8 installation screws are included.
- Stainless steel 304 accessories are included.
- Designed to eliminate the need for a bulky handle for protruding
from the face of the latch.
- Detent handle design ensures fixed positioning after a 90° turn.
- Handle up position indicates head in use. Unique design
allows inside egress even if the handle is pushed accidentally
to closed position.
- Loctite is required during installation of lever handle.
- A 9mm spacer is included for 0407841, 0407843/-9,
and 2 pcs of 5mm spacers for 0807855.
- #8 installation screws are included.
- Stainless steel 304 accessories are included.
Qty
Qty
Qty
Qty
-

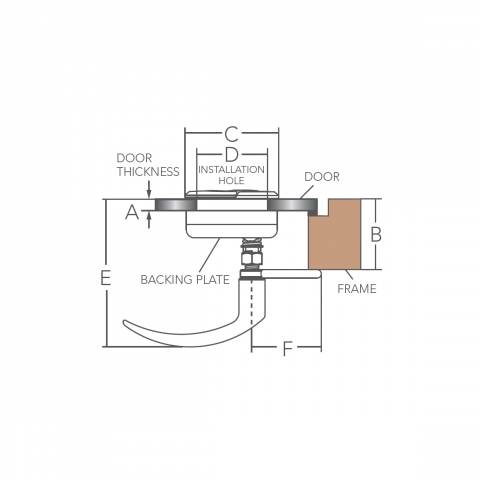

Bulk No.
Model
A mm
B mm
C mm
D mm
E mm
F mm

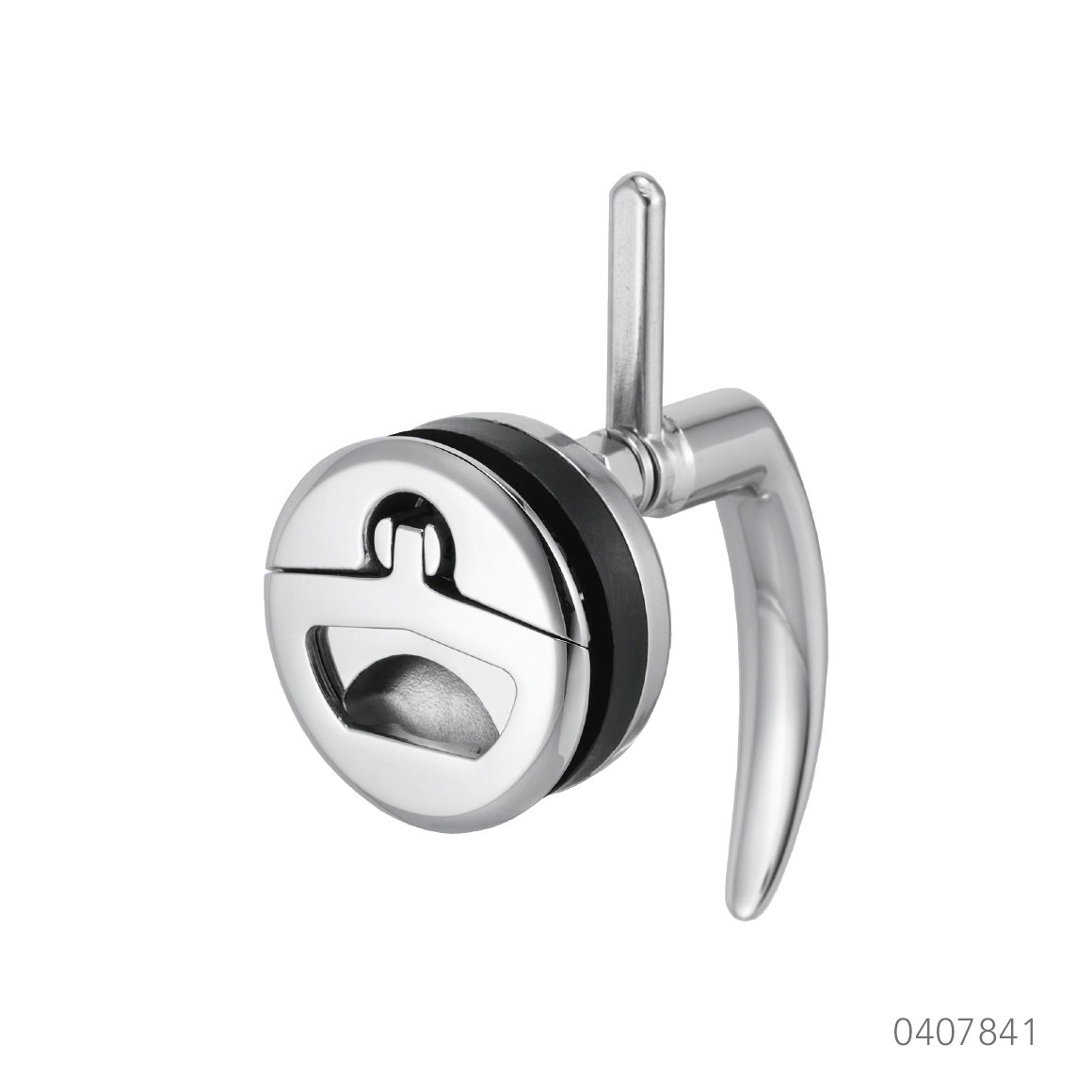

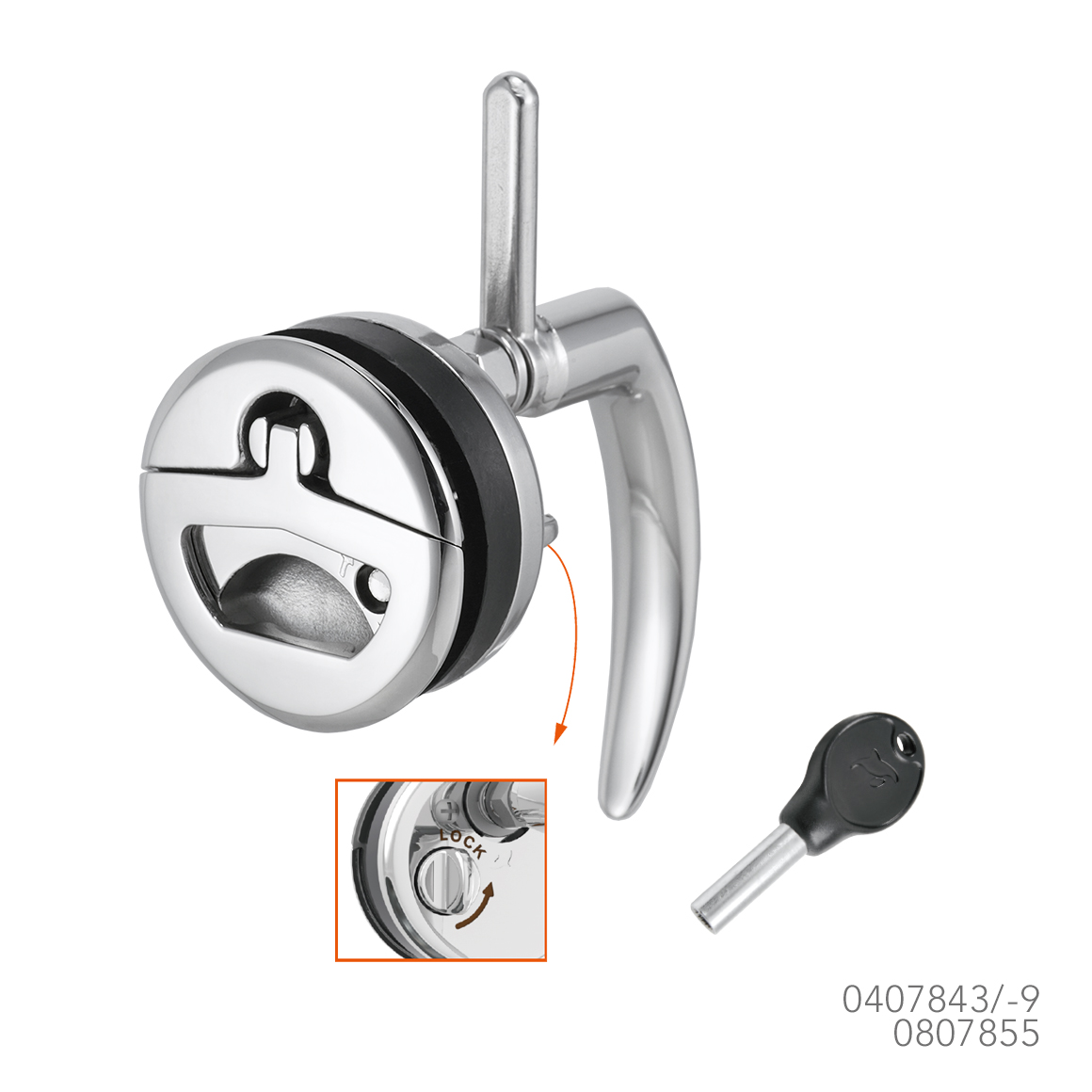

0407841 W/O Lock 1~20(1/16"~13/16") 49~64(1-15/16"~2-1/2") 65(2-9/16") 51(2") 103~118(4-1/16"~4-5/8") 50(2") 0407843 W/ Lock 7~20(1/4"~13/16") 49~64(1-15/16"~2-1/2") 65(2-9/16") 51(2") 103~118(4-1/16"~4-5/8") 50(2") 0407843-9 W/ Lock 12~26(1/2"~1") 49~64(1-15/16"~2-1/2") 65(2-9/16") 51(2") 103~118(4-1/16"~4-5/8") 50(2") 0807855 W/ Lock 6~16(1/4"~5/8") 60~73(2-3/8"~2-7/8") 78(3-1/16") 64(2-1/2") 114~126(4-1/2"~4-15/16") 50(2")
