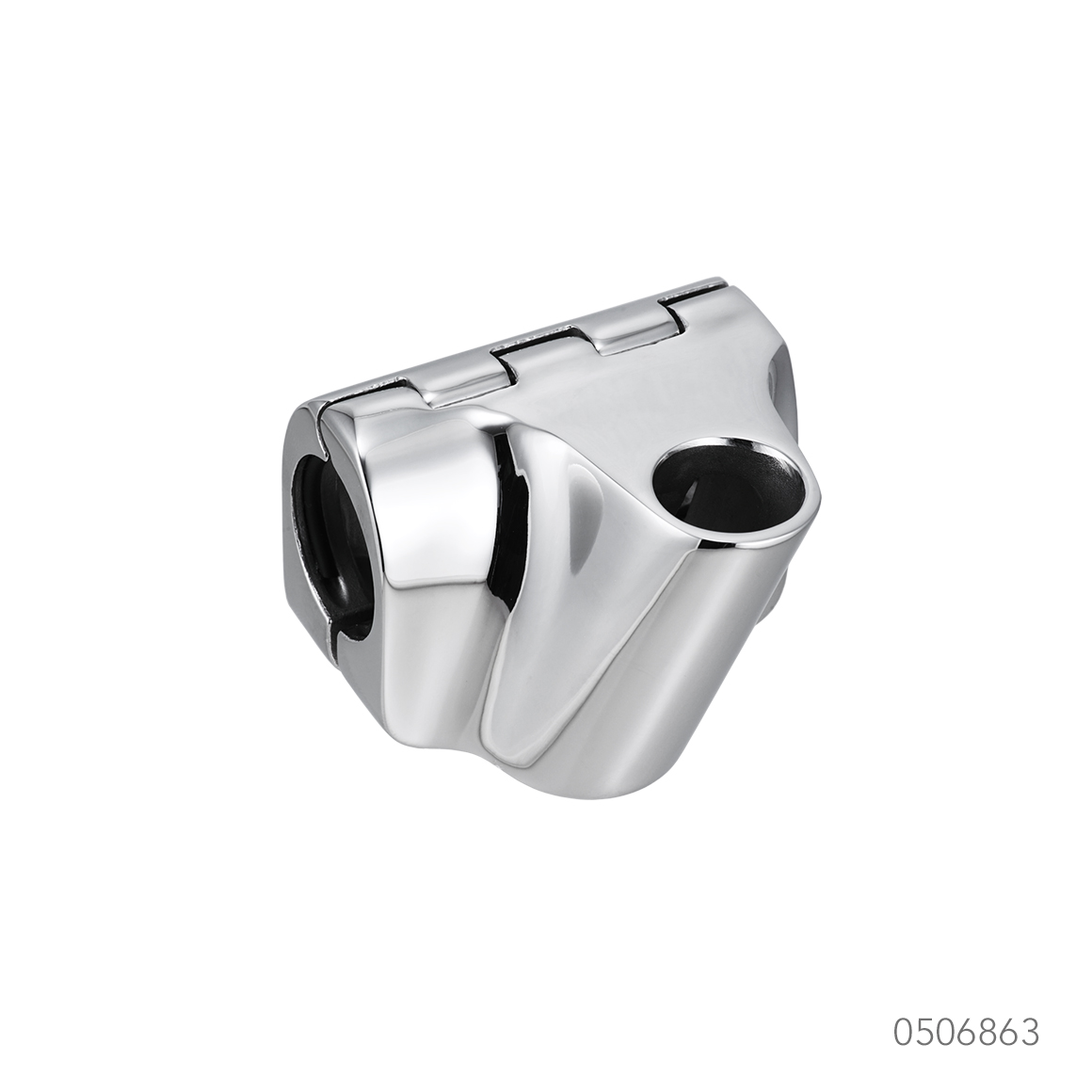

SUNSHADE SOCKET RAIL MOUNT
Stainless Steel 316 & Rubber

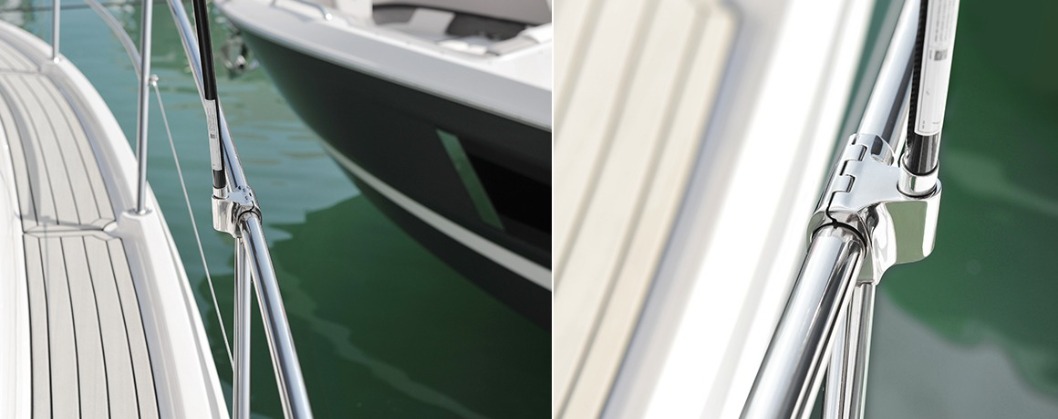

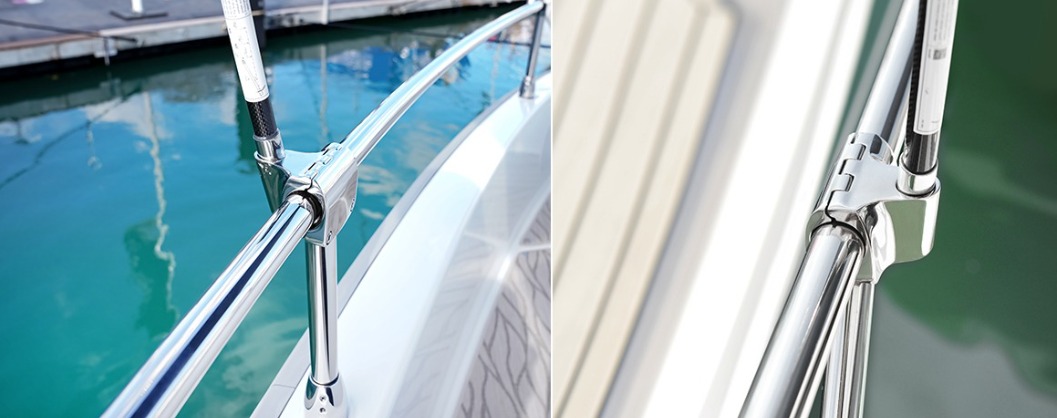

- Sockets should be installed where supports meet the horizontal rail to ensure
stability and prevent movement and turning underway.
- Ensure that sockets are oriented facing outward from the boat.
- Designed with a 15° vertical angle combined with an outboard angle pointing
away from the bow/stern to create a self-tensioning system.
- Compatible with supports angled between 60°~90°.

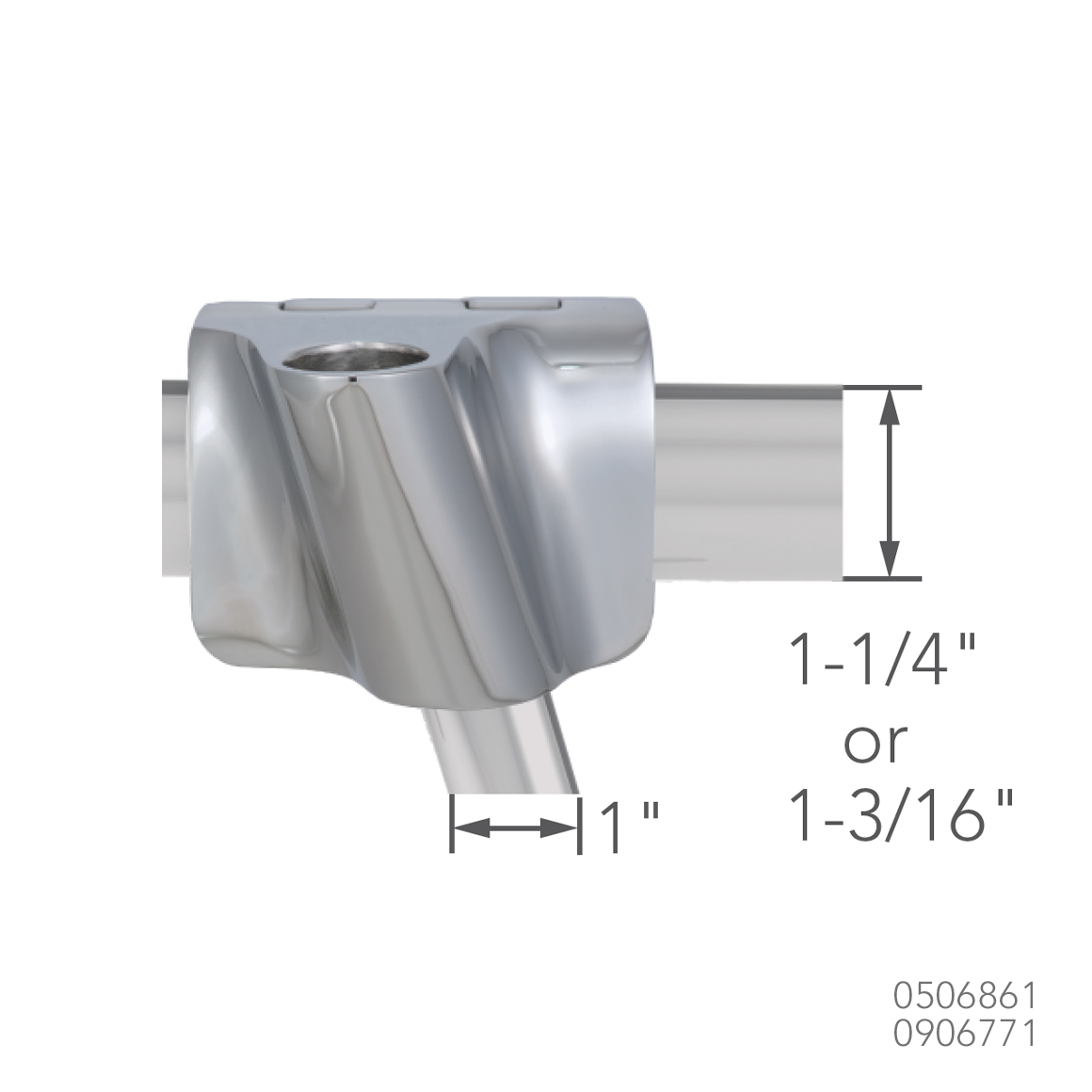

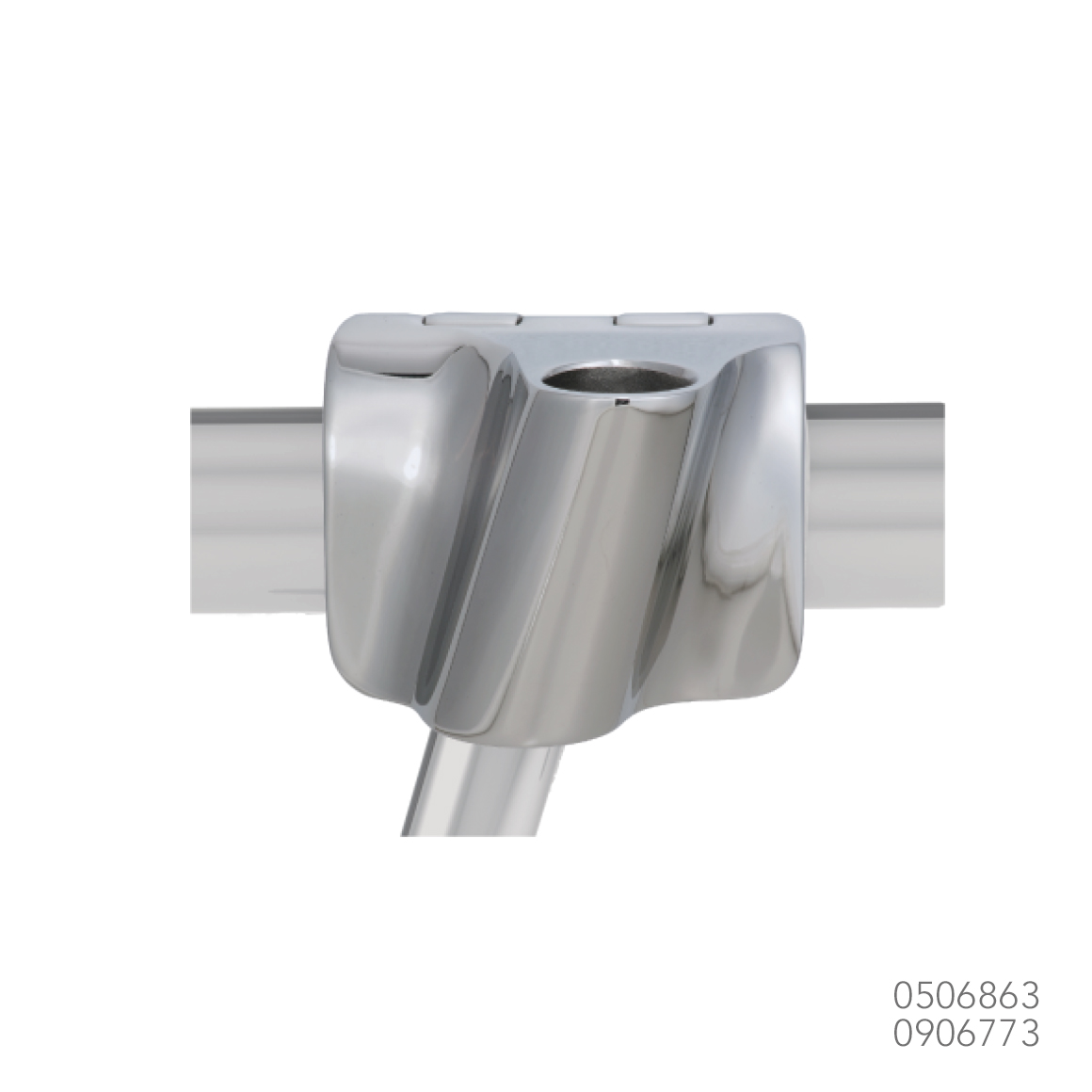

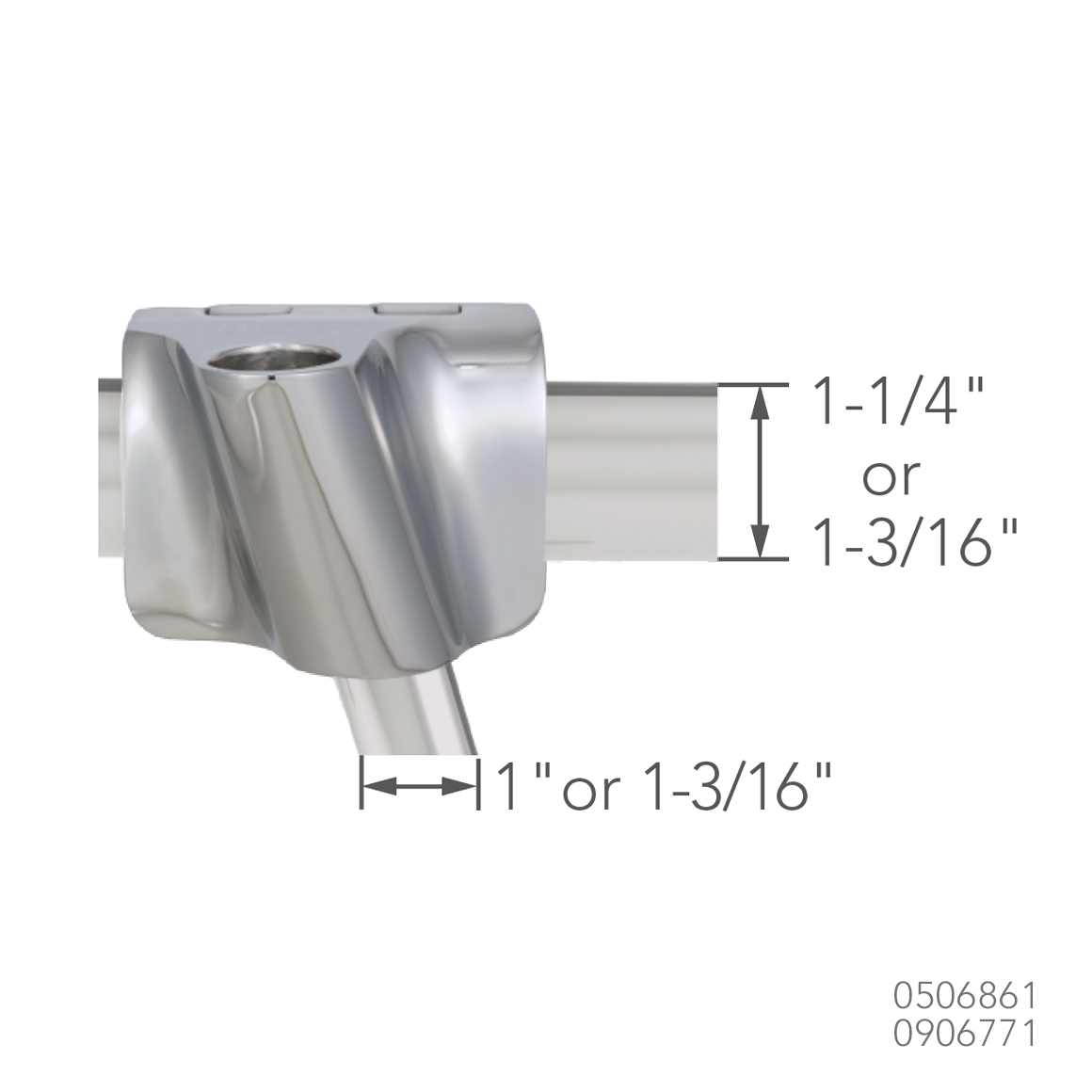

- 0506861/3: Fits 32mm (1-1/4") horizontal rail and 25.4mm (1") support rail.
- 0906771/3: Fits 30mm (1-3/16") horizontal rail and 25.4mm (1") support rail.

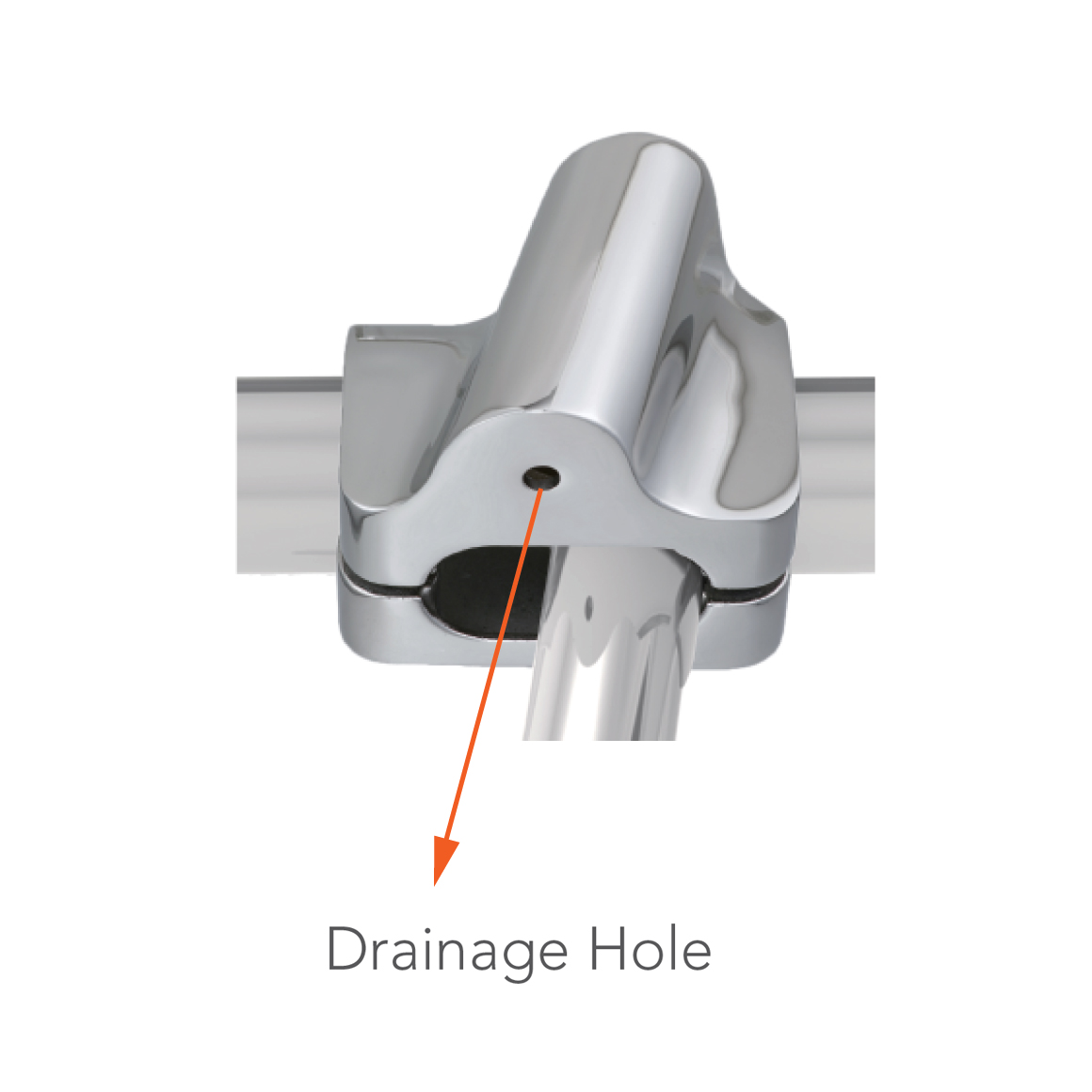

- Self-draining design.
- 1/4"-20 Allen screws are included.
- Sockets should be installed where supports meet the horizontal rail to ensure
stability and prevent movement and turning underway.
- Ensure that sockets are oriented facing outward from the boat.
- Designed with a 15° vertical angle combined with an outboard angle pointing
away from the bow/stern to create a self-tensioning system.
- Compatible with supports angled between 60°~90°.
- 0506861/3: Fits 32mm (1-1/4") horizontal rail and 25.4mm (1") support rail.
- 0906771/3: Fits 30mm (1-3/16") horizontal rail and 25.4mm (1") support rail.
- Self-draining design.
- 1/4"-20 Allen screws are included.
Qty
Qty
Qty
MOQ
Qty
MOQ
-

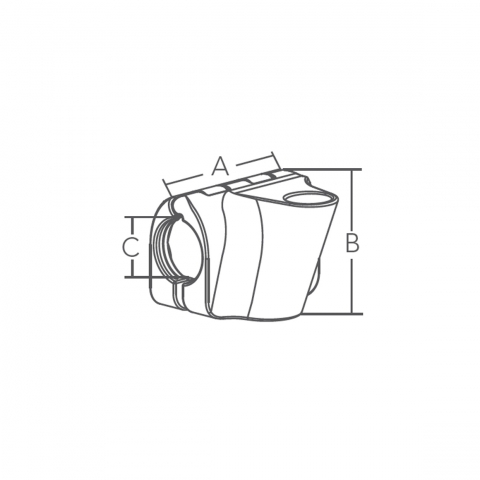

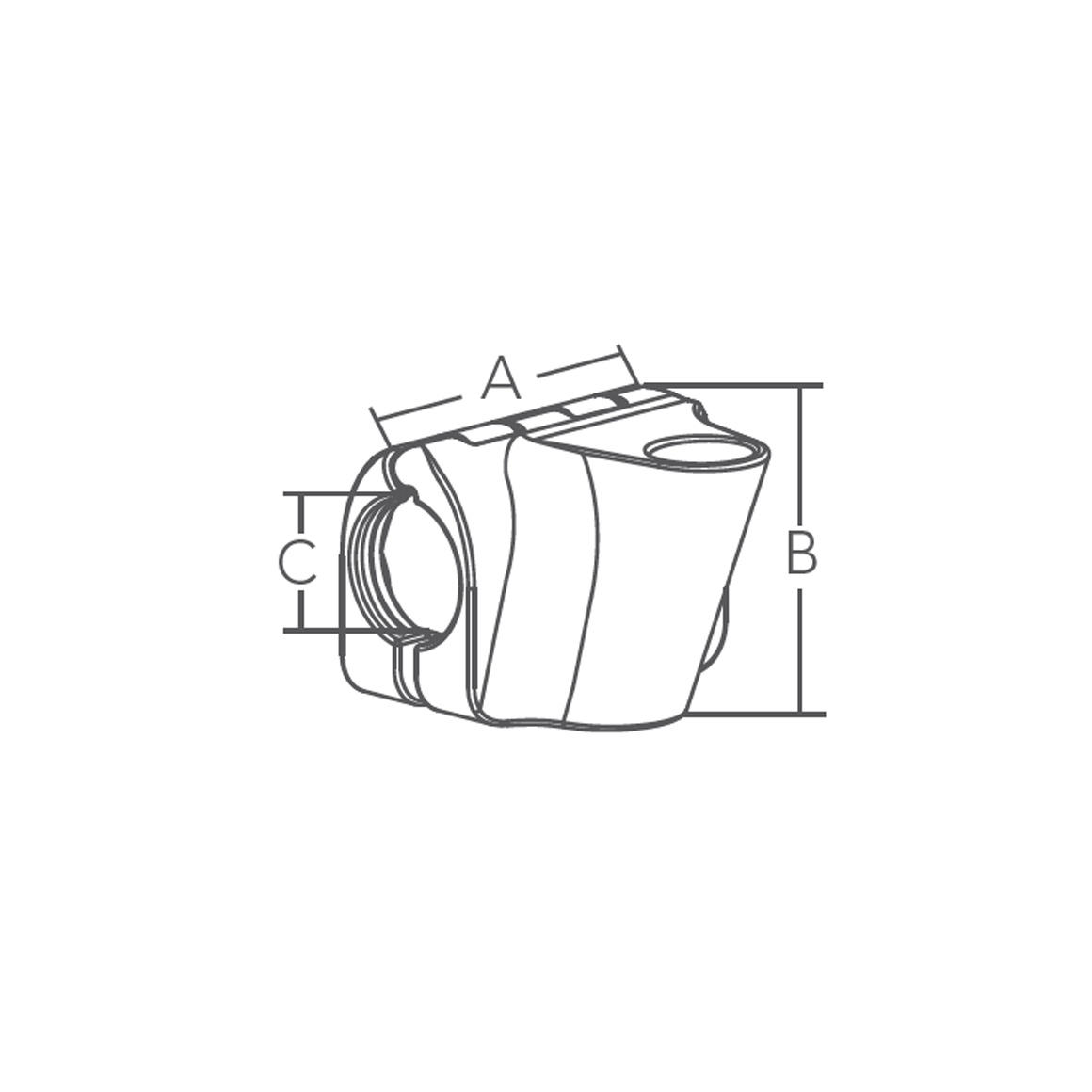

Bulk No.
A mm
B mm
C mm
0506861 80(3-1/8") 61(2-3/8") 32(1-1/4") 0506863 80(3-1/8") 61(2-3/8") 32(1-1/4") 0906771 80(3-1/8") 64(2-1/2") 30(1-3/16") 0906773 80(3-1/8") 64(2-1/2") 30(1-3/16")
