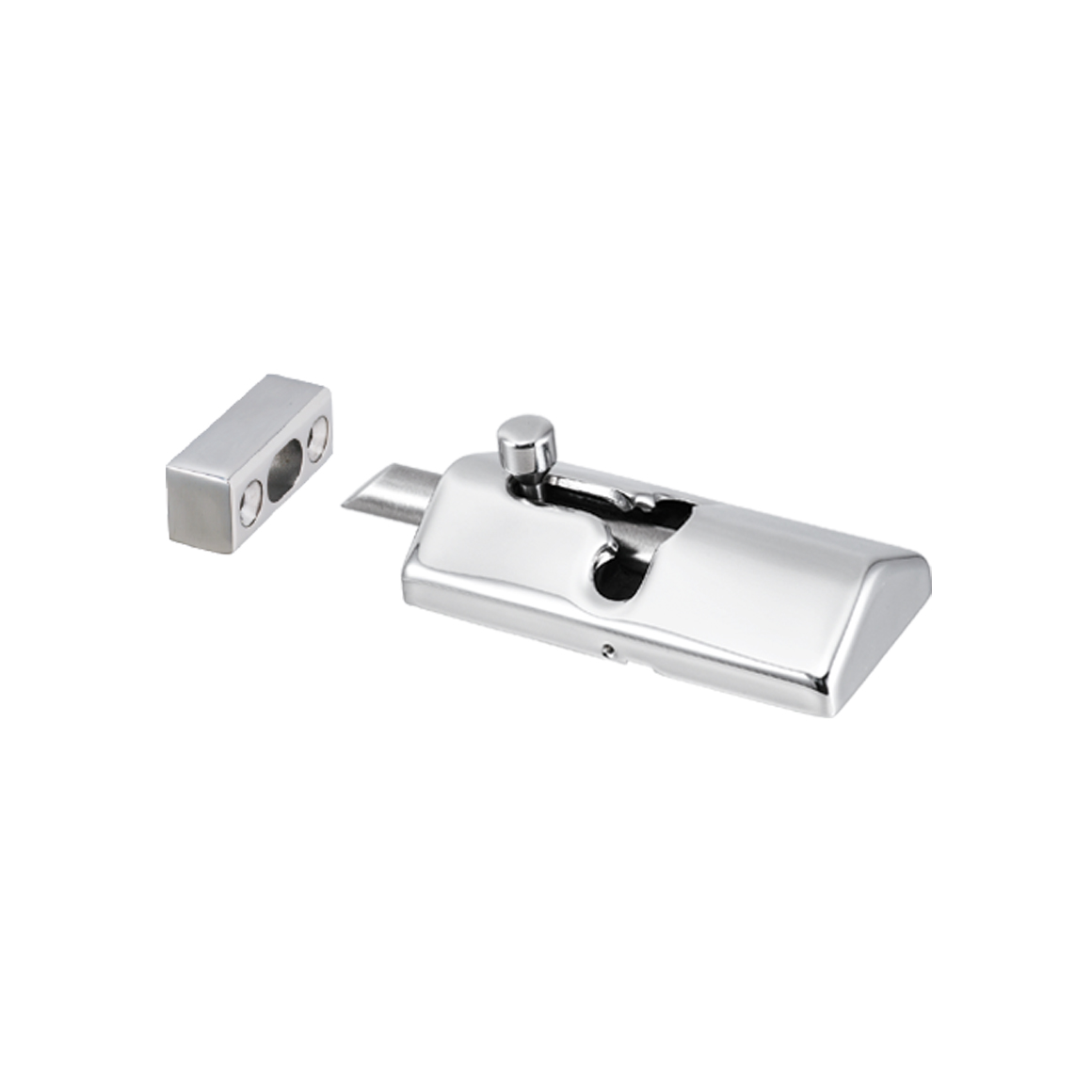

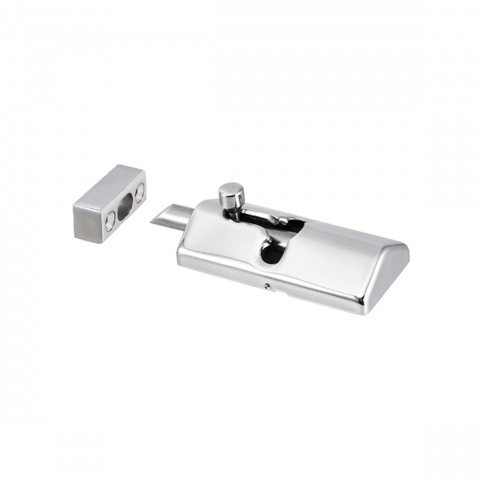

DELUXE SLAM BARREL BOLT
Stainless Steel 316 & Plastic
- Clean and elegant appearance with snap-on SS316 cover to conceal installation fasteners.
- Angled barrel design mimics slam latches for worry free closing.
- Knob can be locked in position to keep latch open.
- Stainless steel slide works smoothly on plastic body.
- The spring-loaded slide effortlessly self-latches to ensure constant engagement and no rattle.
- Screw size M4 or #8.
- Clean and elegant appearance with snap-on SS316 cover to conceal installation fasteners.
- Angled barrel design mimics slam latches for worry free closing.
- Knob can be locked in position to keep latch open.
- Stainless steel slide works smoothly on plastic body.
- The spring-loaded slide effortlessly self-latches to ensure constant engagement and no rattle.
- Screw size M4 or #8.
Qty
-
Bulk No.

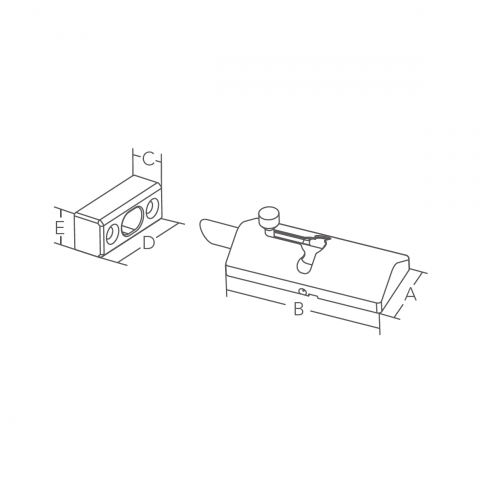

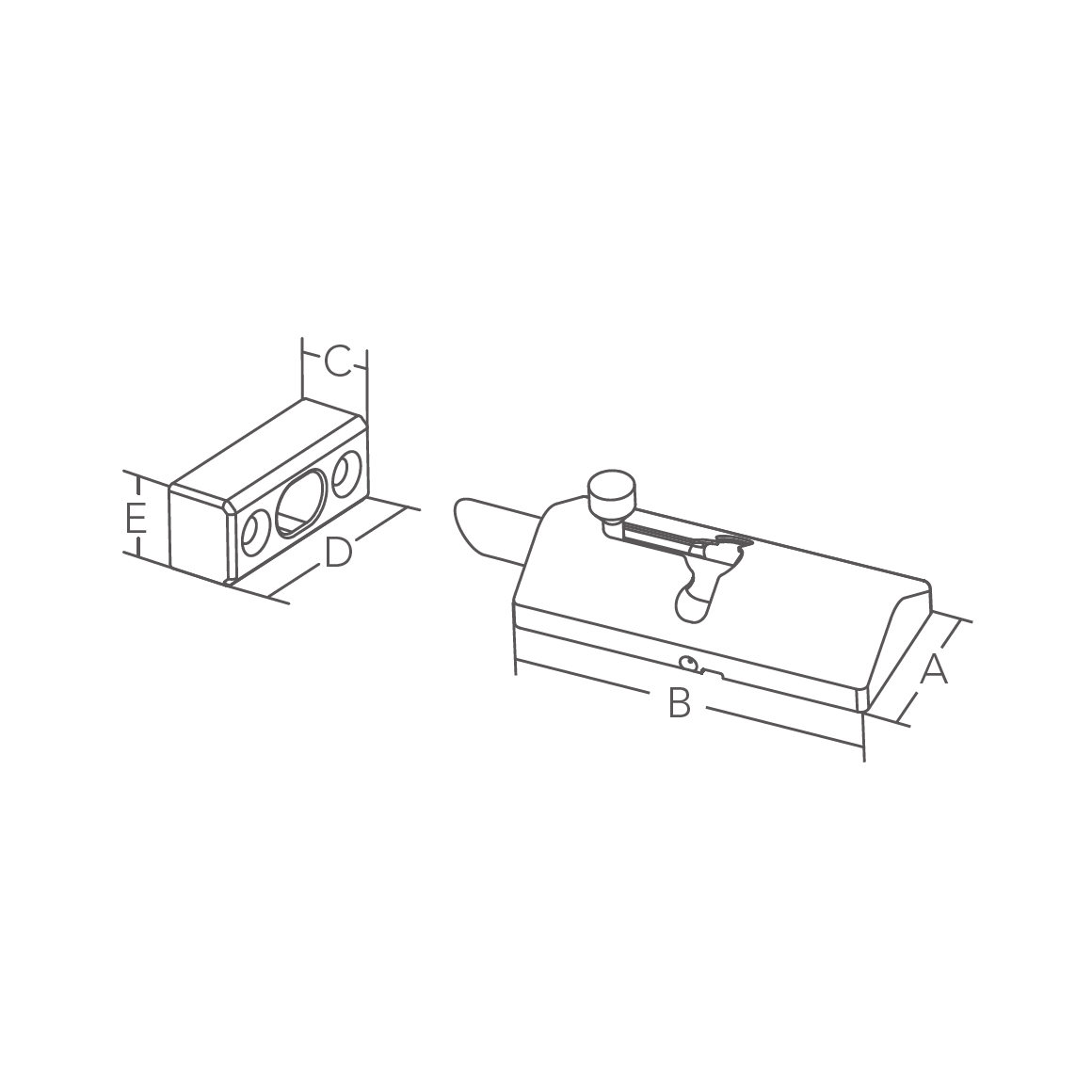

A mm
B mm
C mm
D mm
E mm
0507151 31(1-1/4") 67(2-5/8") 13(1/2") 38(1-1/2") 15.5(5/8") -
Bulk No.
Download
0507151 Drawing
