SCREW IN PLUNGER
Nylon & Rubber & PP
- Top mount design for installation where thickness limitation or solid core situation
is present.

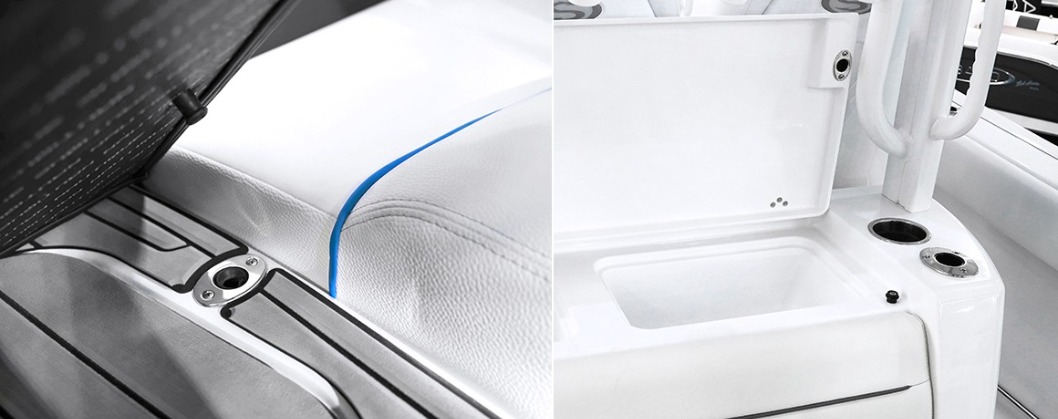

- Compact design can be used in numerous applications, including seat cushions,
seat backs, small hatches, electric panels, etc.
- Enables the cushion to open fully and allows unlimited access to storage spaces.
- 0507475/6 and 0607577/8: Engagement can be adjusted by reversing or
removing the spacer under catch.
- Reusable marking punch is required for proper installation and
warranty will be voided in the event one is not used.
Marking punch should be replaced after prolonged use to ensure
ongoing proper alignment during installation.
- Screw size: M4 or #8.
- Top mount design for installation where thickness limitation or solid core situation
is present.
- Compact design can be used in numerous applications, including seat cushions,
seat backs, small hatches, electric panels, etc.
- Enables the cushion to open fully and allows unlimited access to storage spaces.
- 0507475/6 and 0607577/8: Engagement can be adjusted by reversing or
removing the spacer under catch.
- Reusable marking punch is required for proper installation and
warranty will be voided in the event one is not used.
Marking punch should be replaced after prolonged use to ensure
ongoing proper alignment during installation.
- Screw size: M4 or #8.
Qty
Qty
Qty
Qty
Qty
-
Bulk No.
SS316 Cover

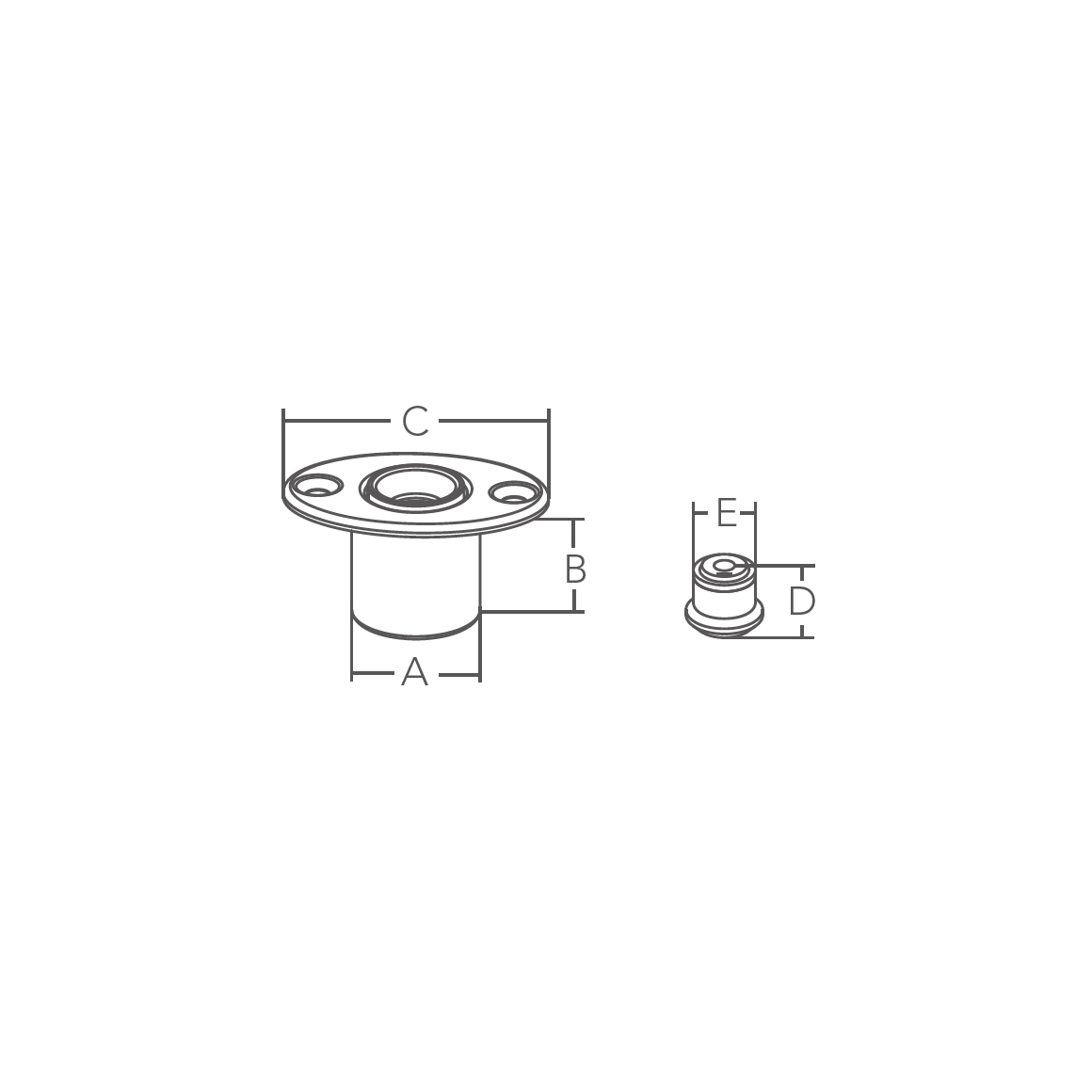

A mm
B mm
C mm
D mm
E mm
Holding Power

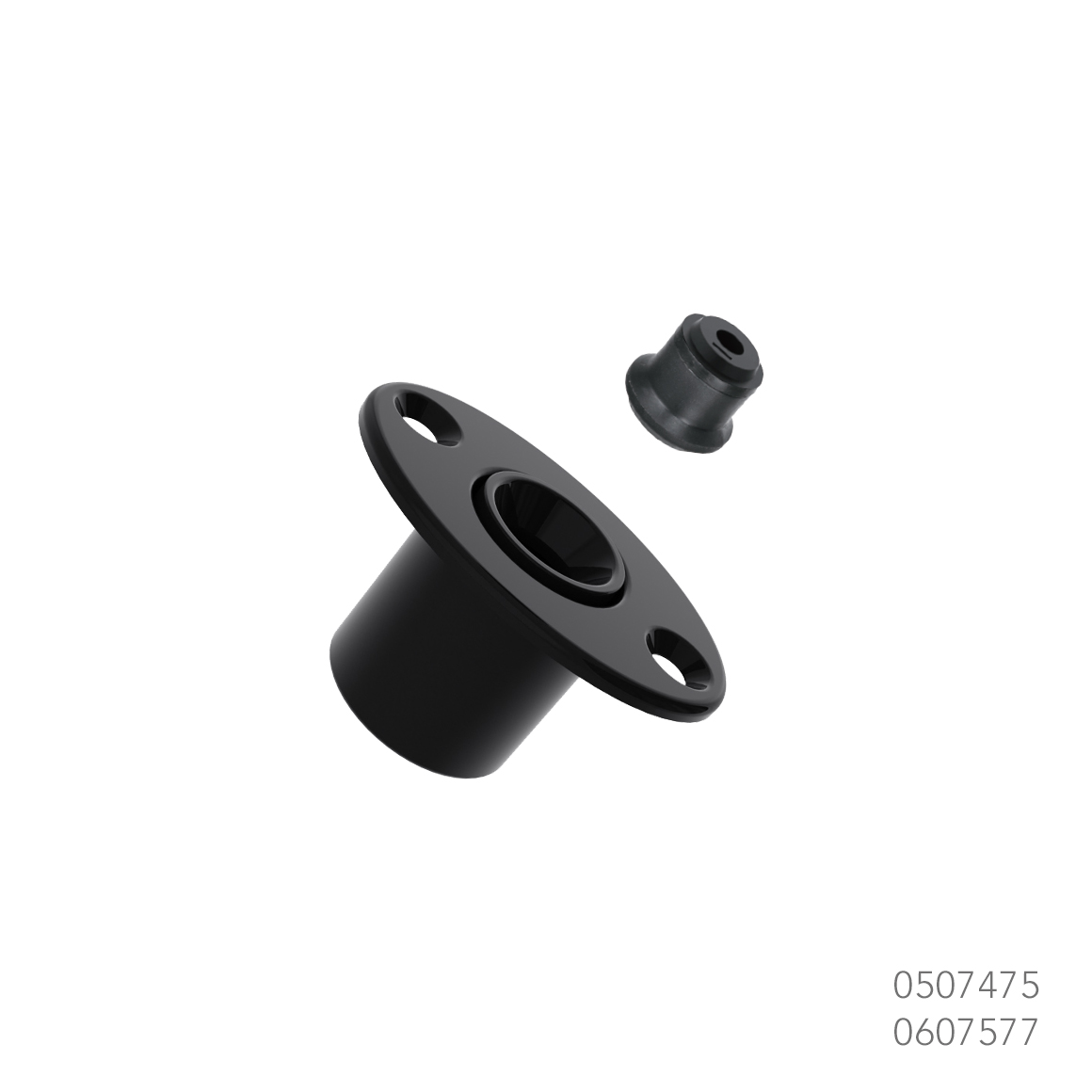

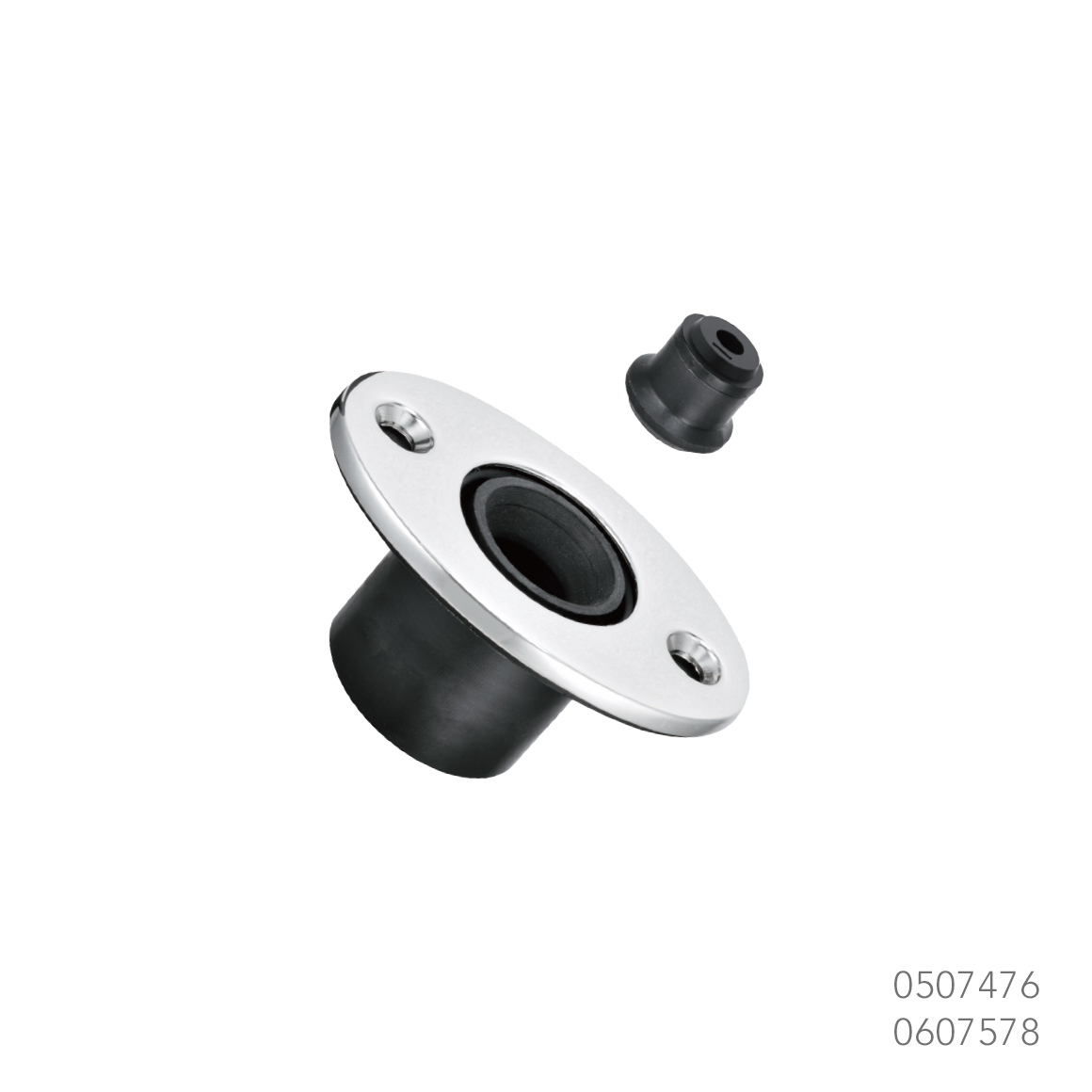

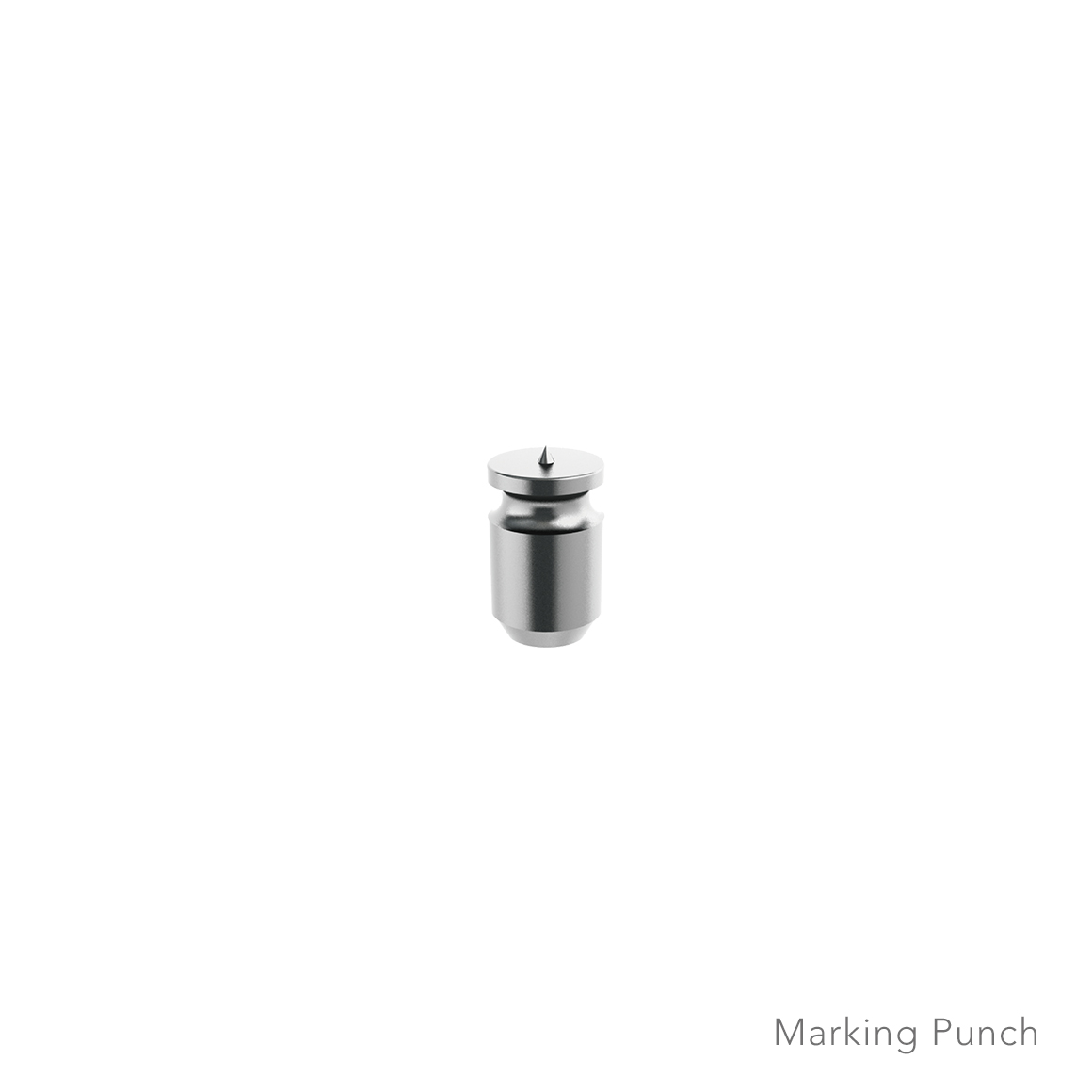

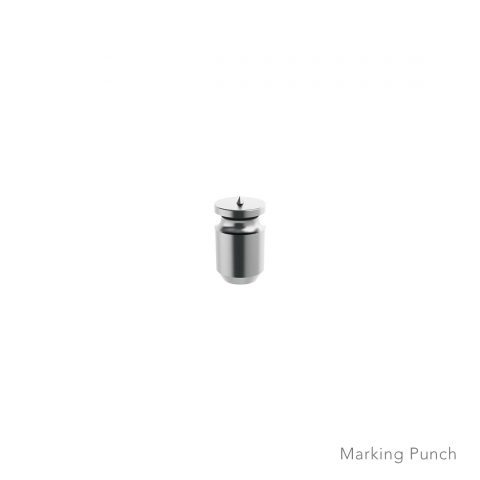

0507475 None 28(1-1/8") 26(1") 58(2-1/4") 13.5(1/2") 12.5(1/2") 8 kg(17 lb) 0507476 W/ Cover 28(1-1/8") 26(1") 60(2-3/8") 13.5(1/2") 12.5(1/2") 8 kg(17 lb) 0607577 None 28(1-1/8") 26(1") 58(2-1/4") 13.5(1/2") 12.5(1/2") 16 kg(35 lb) 0607578 W/ Cover 28(1-1/8") 26(1") 60(2-3/8") 13.5(1/2") 12.5(1/2") 16 kg(35 lb) 0107426-G Aluminum Marking Punch for 0507475/6, 0607577/8

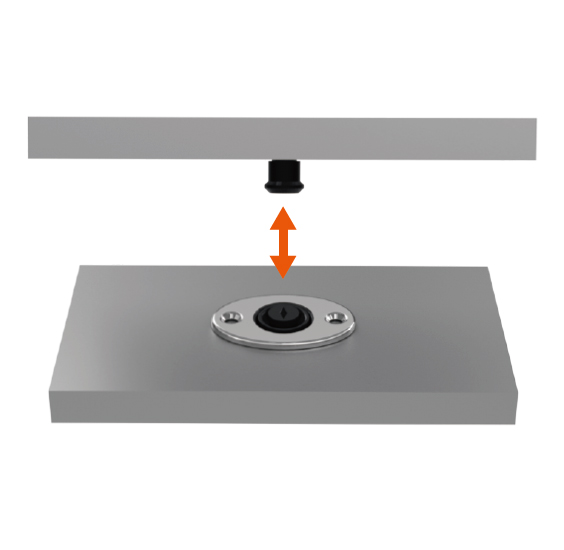

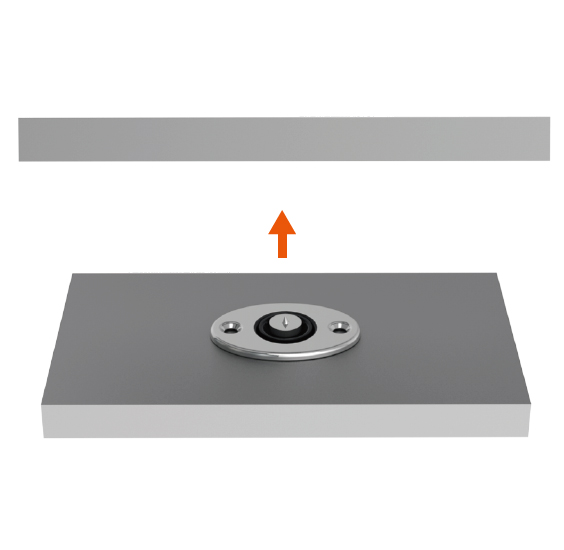

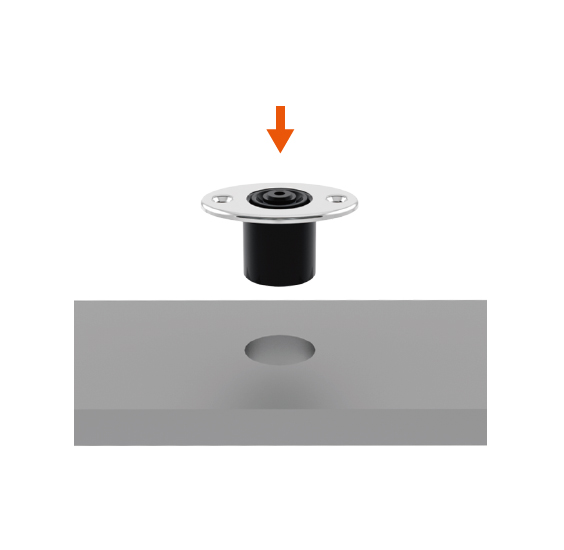

INSTALLATION INSTRUCTION
❶
Install female part.
❷
Tighten screw.
❸

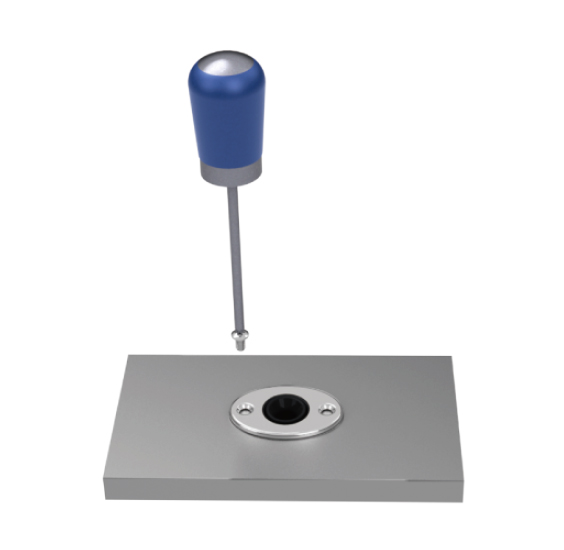

Insert marking punch
to mark for alignment.❹
Install male part and
hold in place.
0507475/6, 0607577/8 CATCH HEIGHT
Without Spacer With Spacer Reverse Spacer
11(7/16") 13.5(1/2") 16(5/8") Tighter
Engagement
Looser
Engagement
