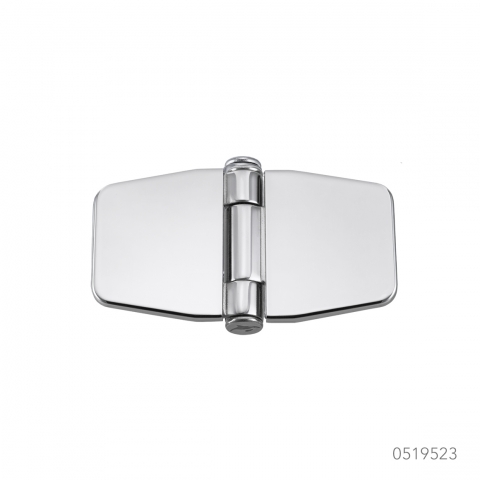

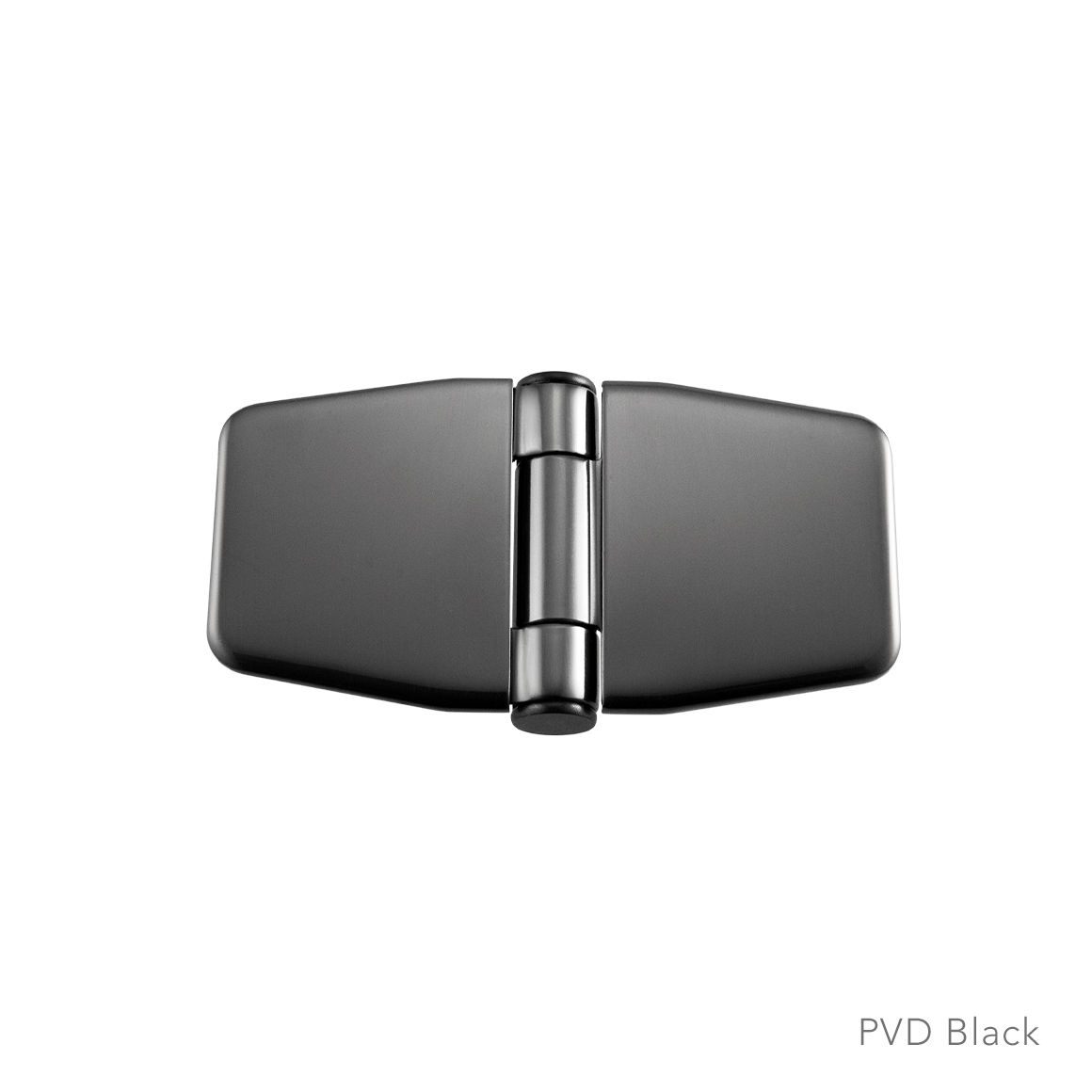

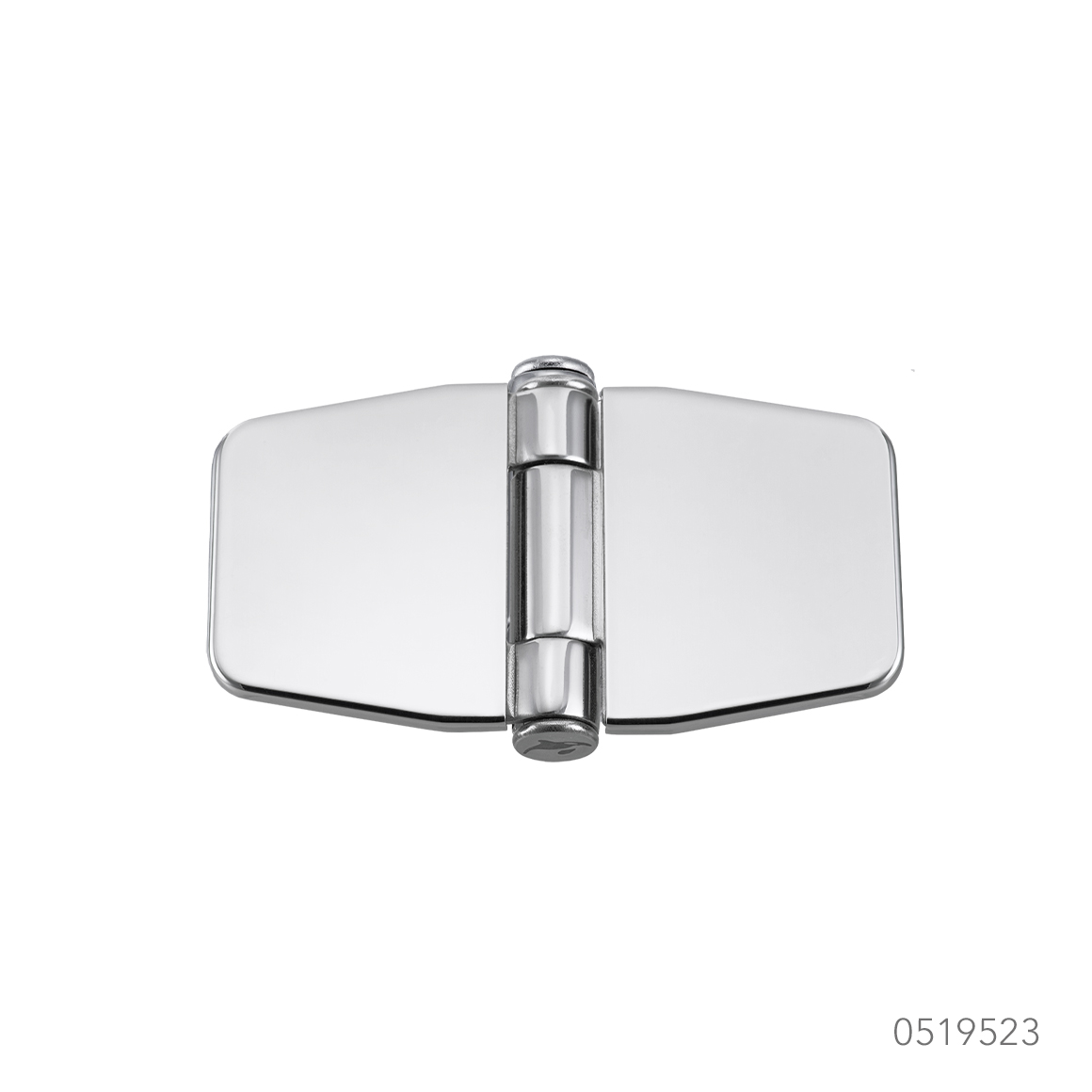

COVERED FRICTION HINGE - BARREL DOWN
Stainless Steel 316
- Provides constant torque throughout the entire range of motion.
- Holds door open at any desired angle without torque adjustment.

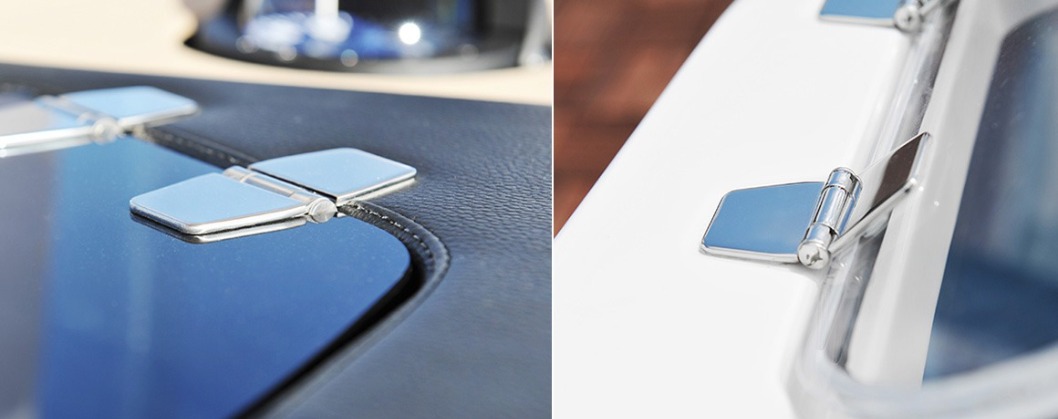

- Ideal for light-weight doors, such as overhead door, baitwell lid,
glove box, interior door, anchor locker, electronic panel, etc.
- Easy installation with 3M VHB double-side tape.
- The cover can be removed by using a heat gun or hair dryer.
- Passed 10,000 times cycle test and lost less than 10% on torque;
20,000 times lost 20% or less only.
- Passed 500-hour salt-spray test.
- Provides constant torque throughout the entire range of motion.
- Holds door open at any desired angle without torque adjustment.
- Ideal for light-weight doors, such as overhead door, baitwell lid,
glove box, interior door, anchor locker, electronic panel, etc.
- Easy installation with 3M VHB double-side tape.
- The cover can be removed by using a heat gun or hair dryer.
- Passed 10,000 times cycle test and lost less than 10% on torque;
20,000 times lost 20% or less only.
- Passed 500-hour salt-spray test.
Qty
Qty
-
Bulk No.
TYPE
Size
Screw Size
Torque Range
0519523-A Barrel Down 40mm X 78mm 1-9/16" X 3-1/16" #8 2.2±0.7N-m 0519523 Barrel Down 40mm X 78mm 1-9/16" X 3-1/16" M4 2.2±0.7N-m
