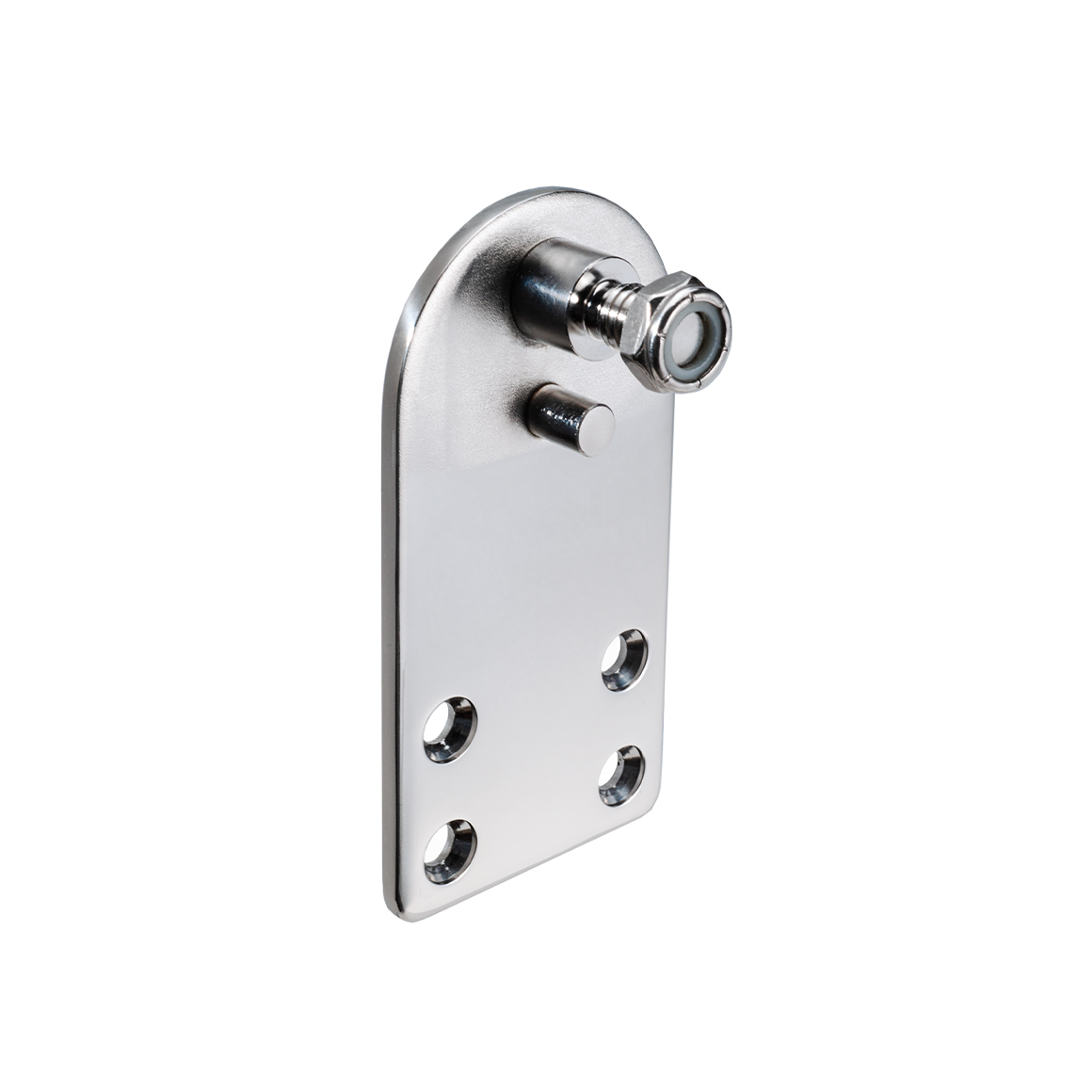

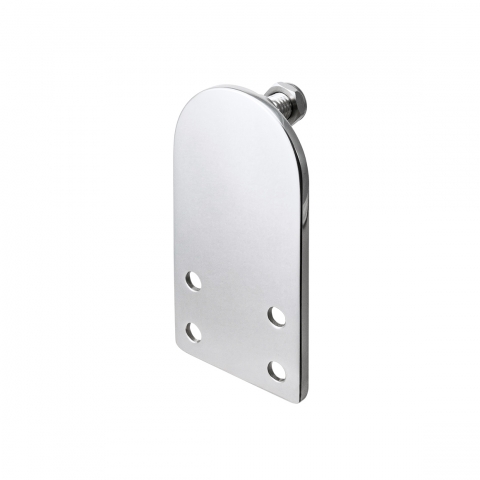

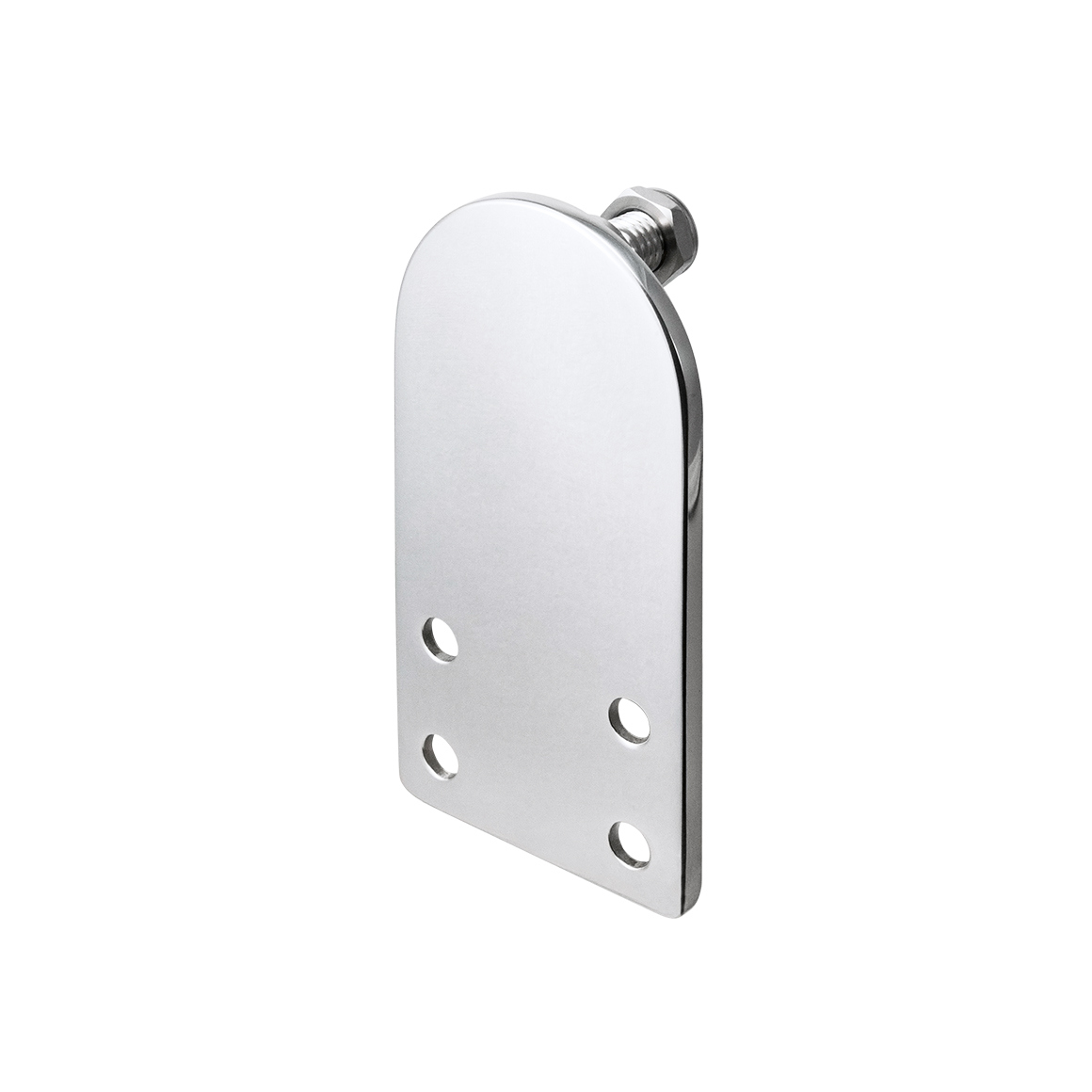

ARMREST BRACKET- FLAT
Stainless Steel 316
- Marine-grade stainless steel construction.
- Incorporates a position pin.
- Sold by piece.
- Screw size M6 or 1/4".
- Stainless steel 304 locking nut is included.
- Marine-grade stainless steel construction.
- Incorporates a position pin.
- Sold by piece.
- Screw size M6 or 1/4".
- Stainless steel 304 locking nut is included.
Qty
MOQ
-
Bulk No.

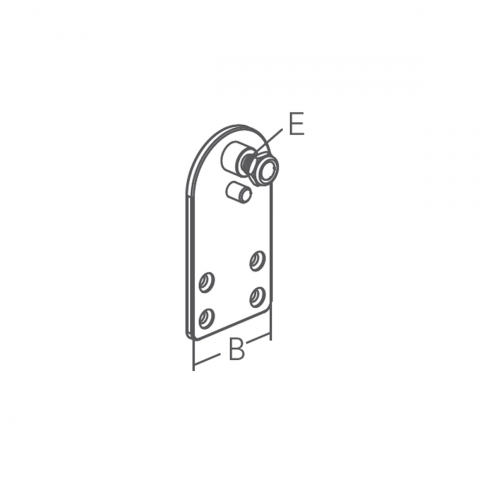

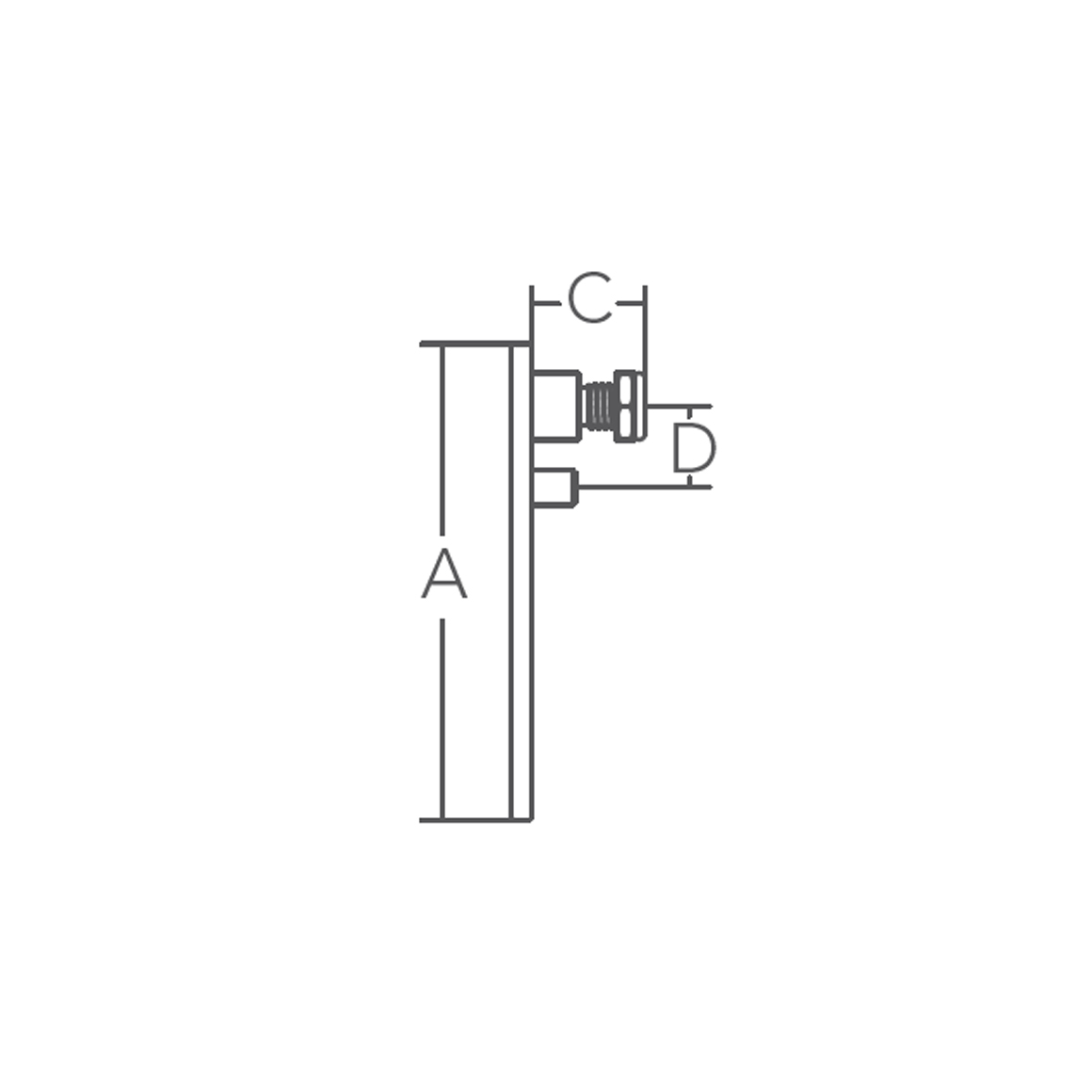

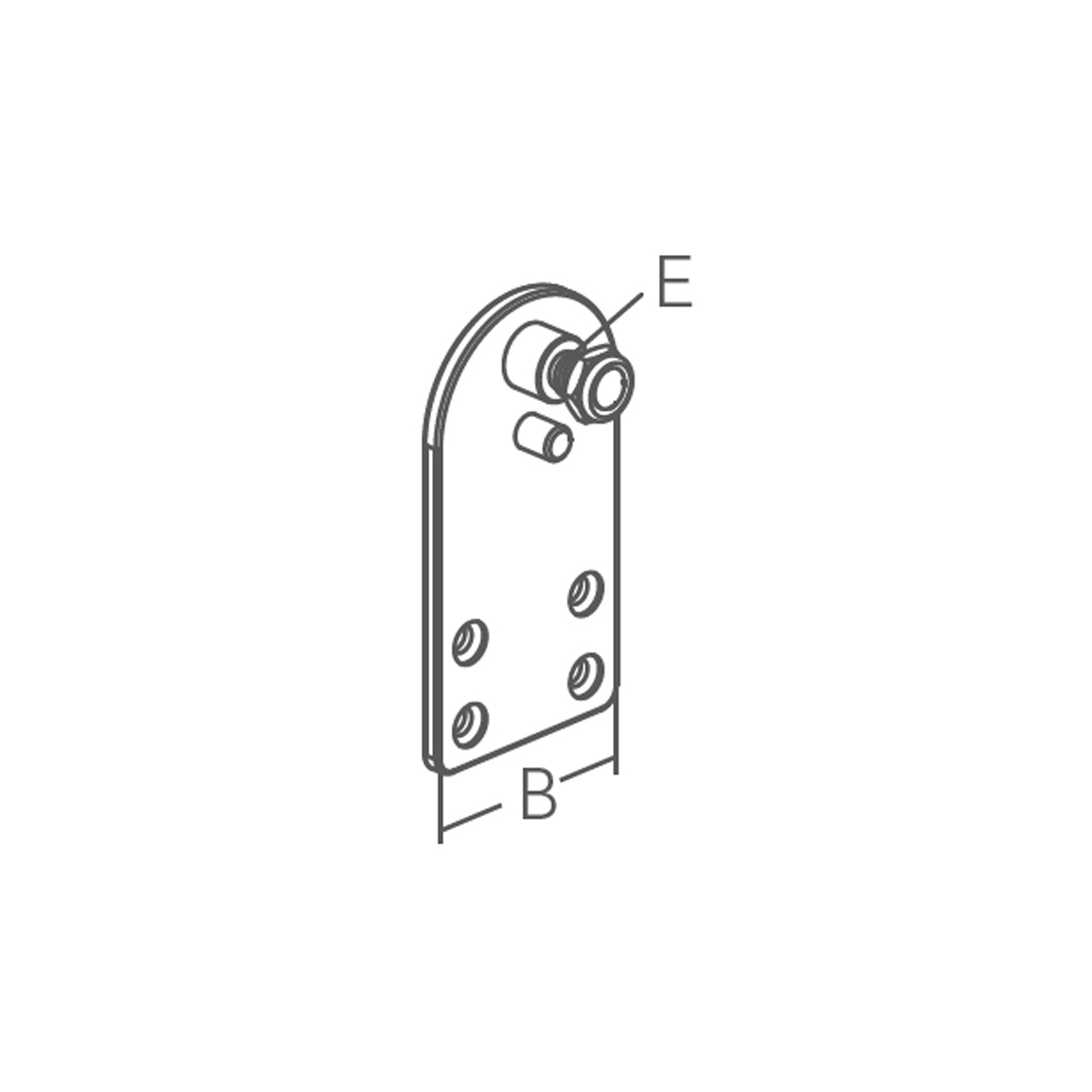

Screw Hole
A mm
B mm
C mm
D mm
E
0814590 Countersunk Hole 135(5-5/16") 70(2-3/4") 32(1-1/4") 23(15/16") 1/2"-13 -
Bulk No.
Download
0814590 Drawing
