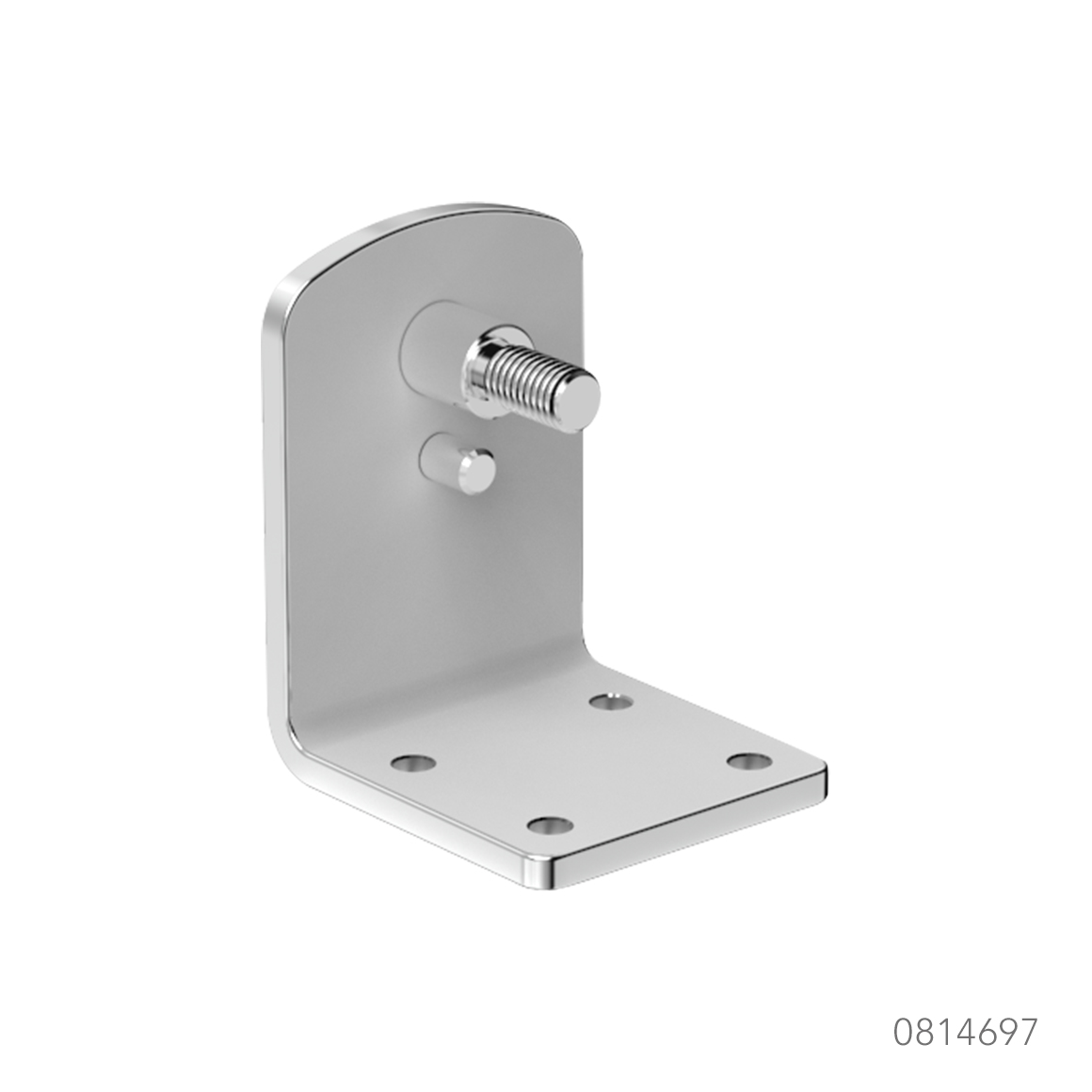

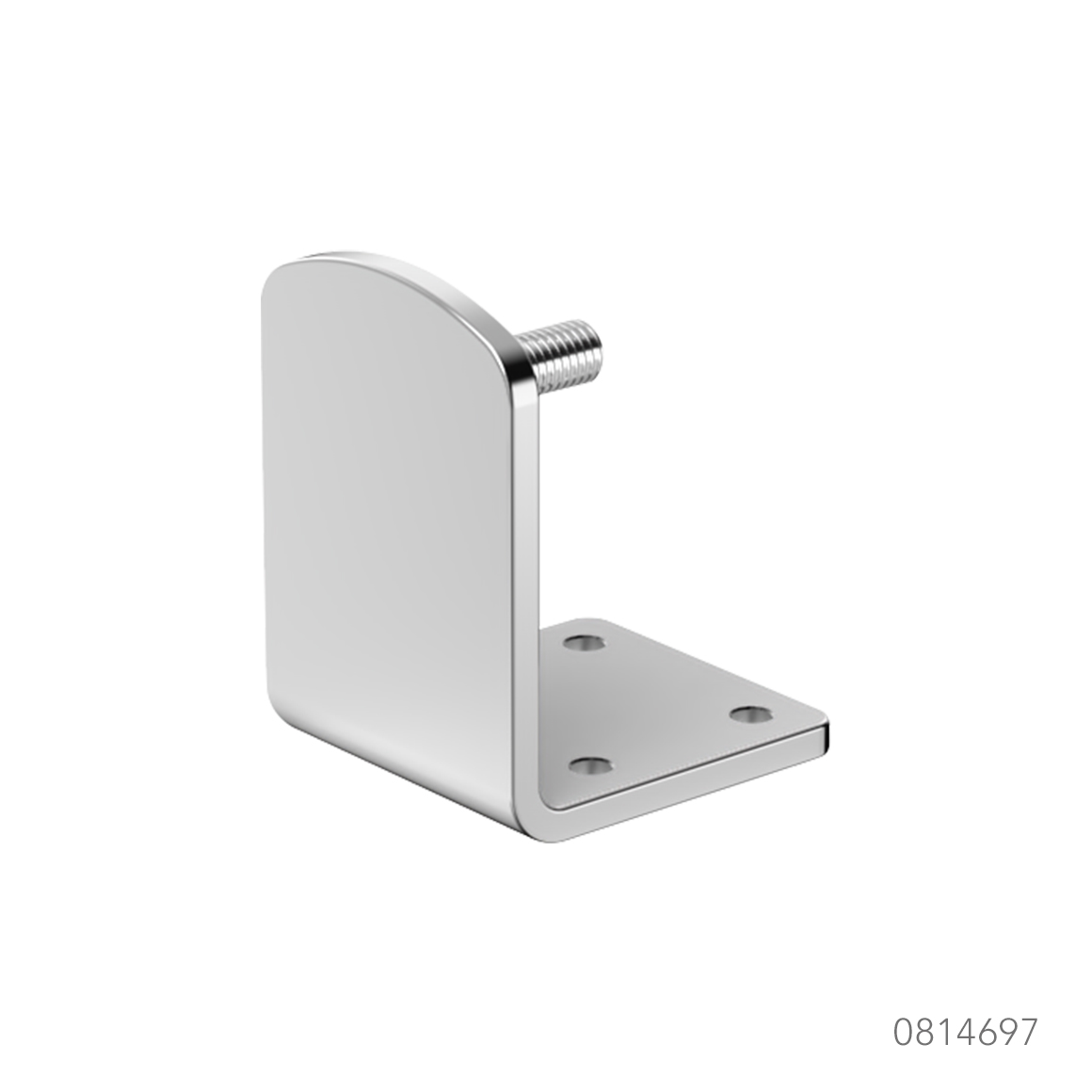

ARMREST BRACKET
Stainless Steel 316
- Marine-grade stainless steel construction.
- Incorporates a position pin.
- Screw size M6 or 1/4" for 0814697.
- Screw size 1/4"-20 for 0814699.
- Stainless steel 304 locking nut is included.
- Marine-grade stainless steel construction.
- Incorporates a position pin.
- Screw size M6 or 1/4" for 0814697.
- Screw size 1/4"-20 for 0814699.
- Stainless steel 304 locking nut is included.
Qty
MOQ
Qty
MOQ
-

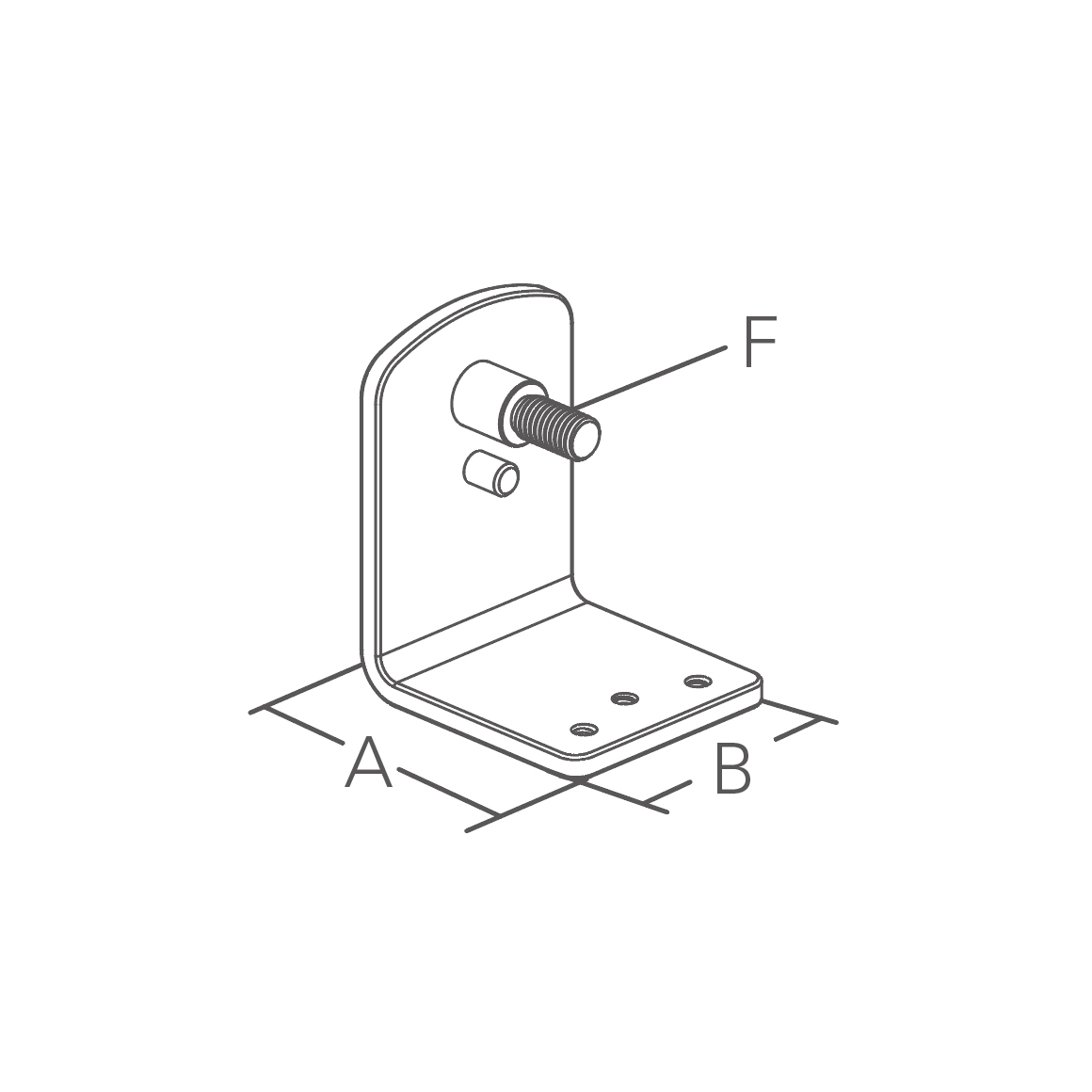

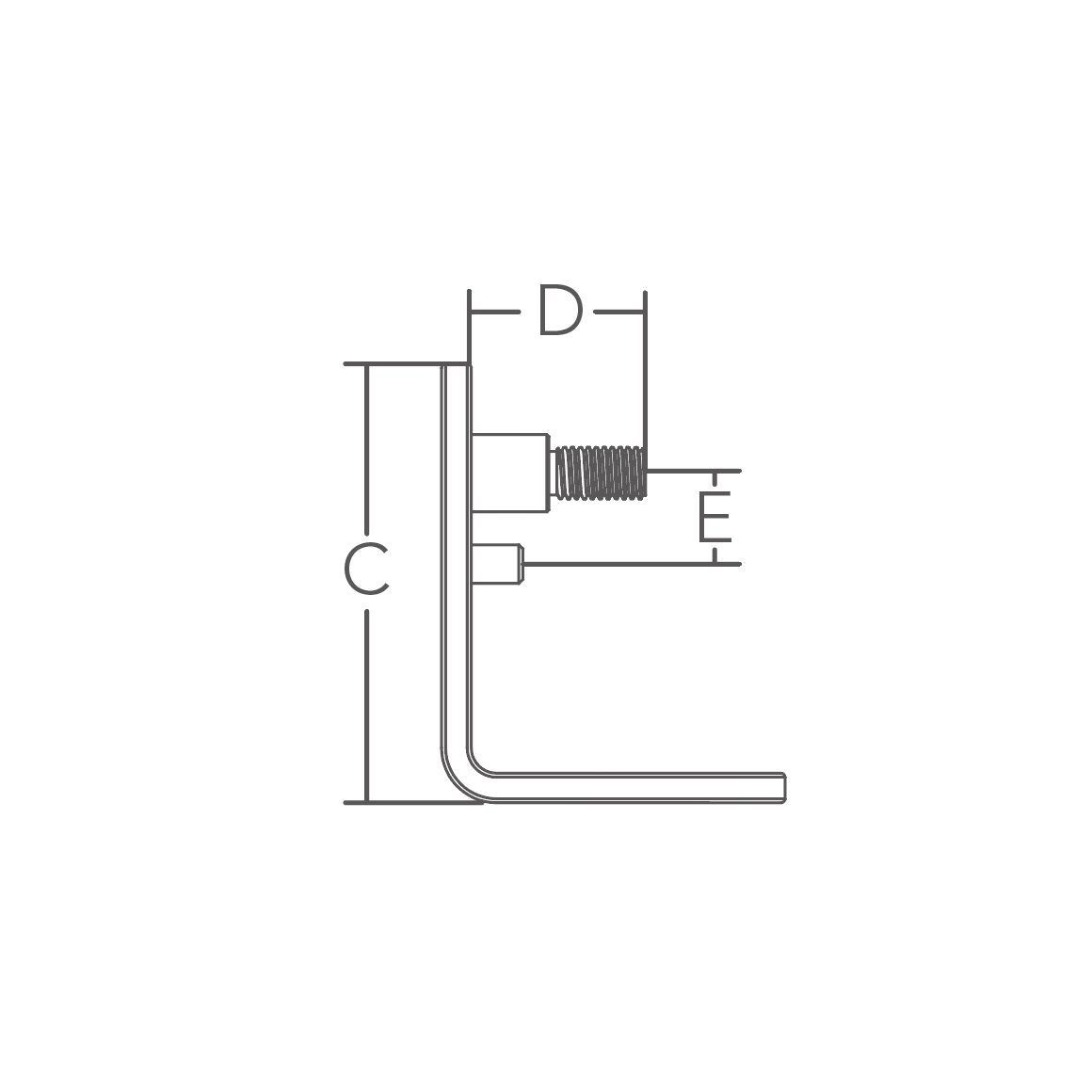

Bulk No.
Screw Hole
A mm
B mm
C mm
D mm
E mm
F
0814697 Straight Hole 85(3-3/8") 77(3") 108(4-1/4") 45(1-3/4") 22(7/8") 1/2" - 13 0814699 Threaded Hole 85(3-3/8") 77(3") 108(4-1/4") 45(1-3/4") 22(7/8") 1/2" - 13
