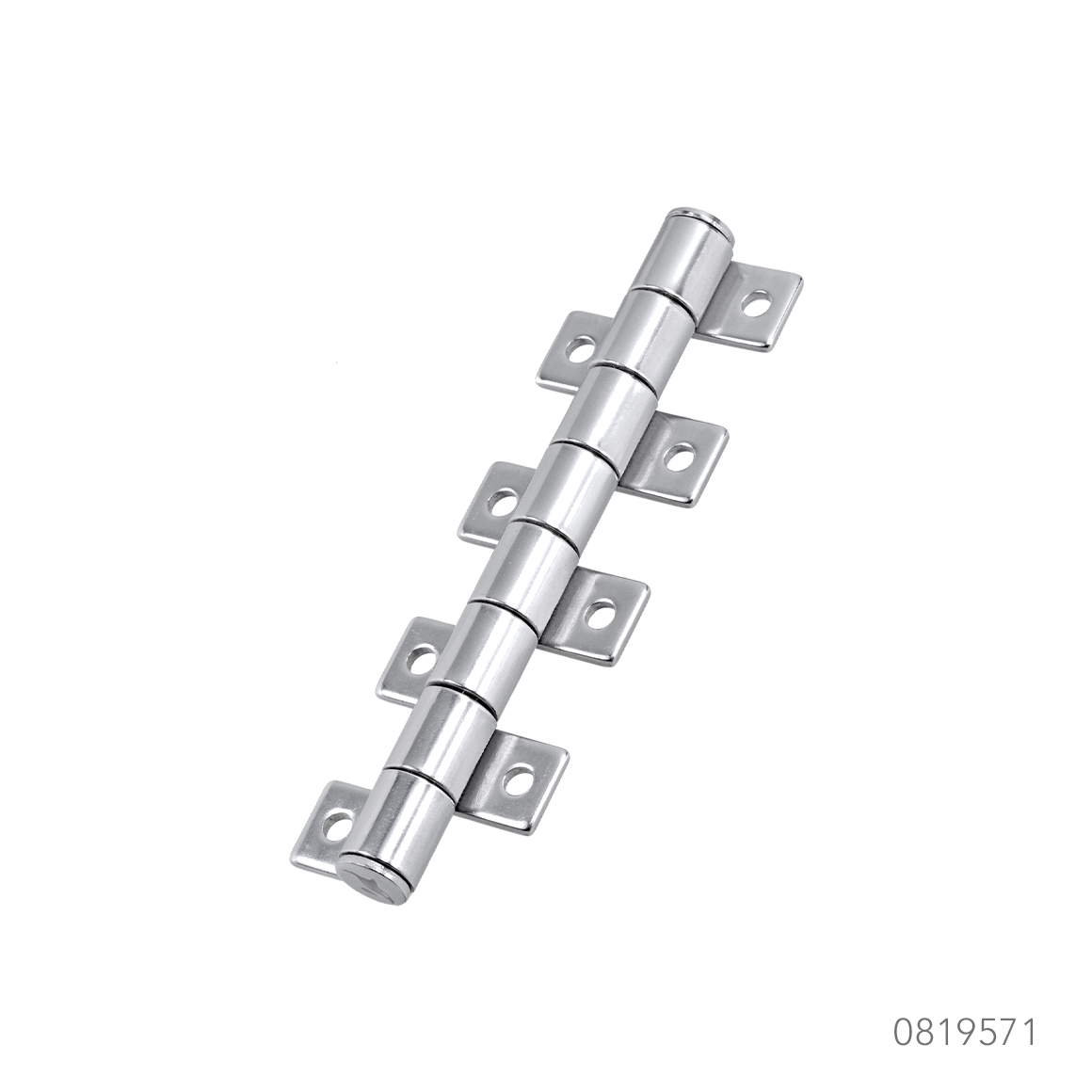

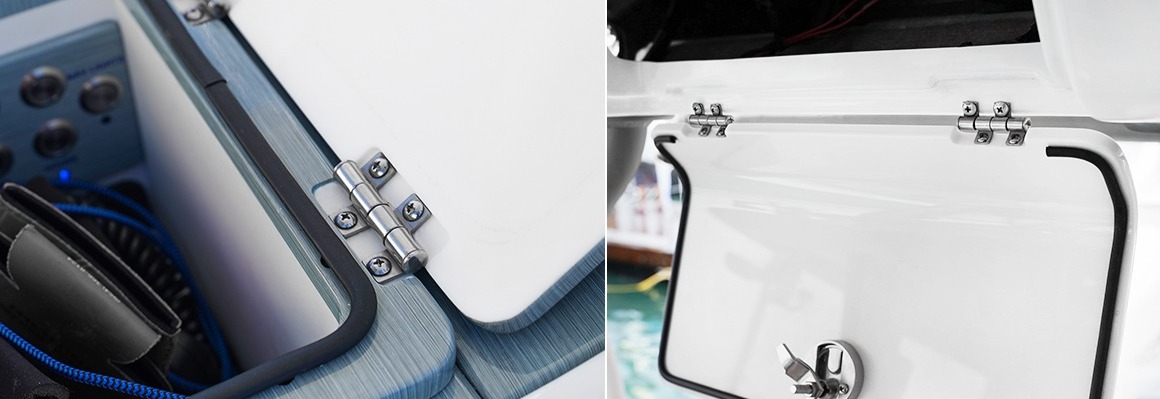

SEAM HINGE
Stainless Steel 316
- Piano-style hinge without friction.
- Hidden leaves design when door is closed.
- Short mounting leaves to fit 1/2"door thickness.
- Passed 500-hour salt-spray test.
- #6 R/H fasteners are required.
- Piano-style hinge without friction.
- Hidden leaves design when door is closed.
- Short mounting leaves to fit 1/2"door thickness.
- Passed 500-hour salt-spray test.
- #6 R/H fasteners are required.
Qty
Qty
Qty
Qty
-
Bulk No.
Leaves

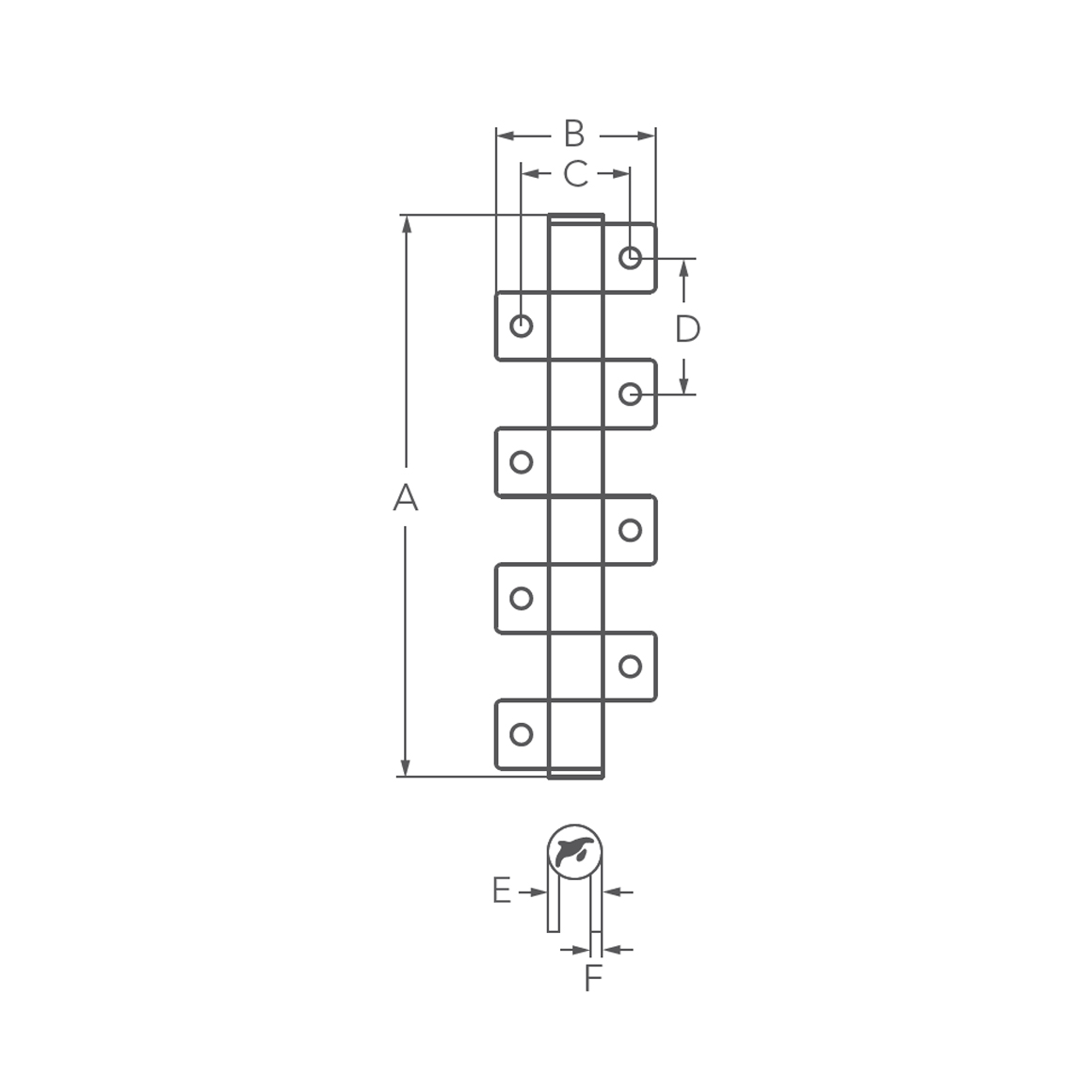

A mm
B mm
C mm
D mm
E mm
F mm
0819569 Short 51(2") 28(1-1/8") 19(3/4") 24(15/16") 10.3(7/16") 2(1/16") 0819570 Short 75(2-15/16") 28(1-1/8") 19(3/4") 24(15/16") 10.3(7/16") 2(1/16") 0819571 Short 99(3-7/8") 28(1-1/8") 19(3/4") 24(15/16") 10.3(7/16") 2(1/16") 0819572 Short 123(4-13/16") 28(1-1/8") 19(3/4") 24(15/16") 10.3(7/16") 2(1/16")
