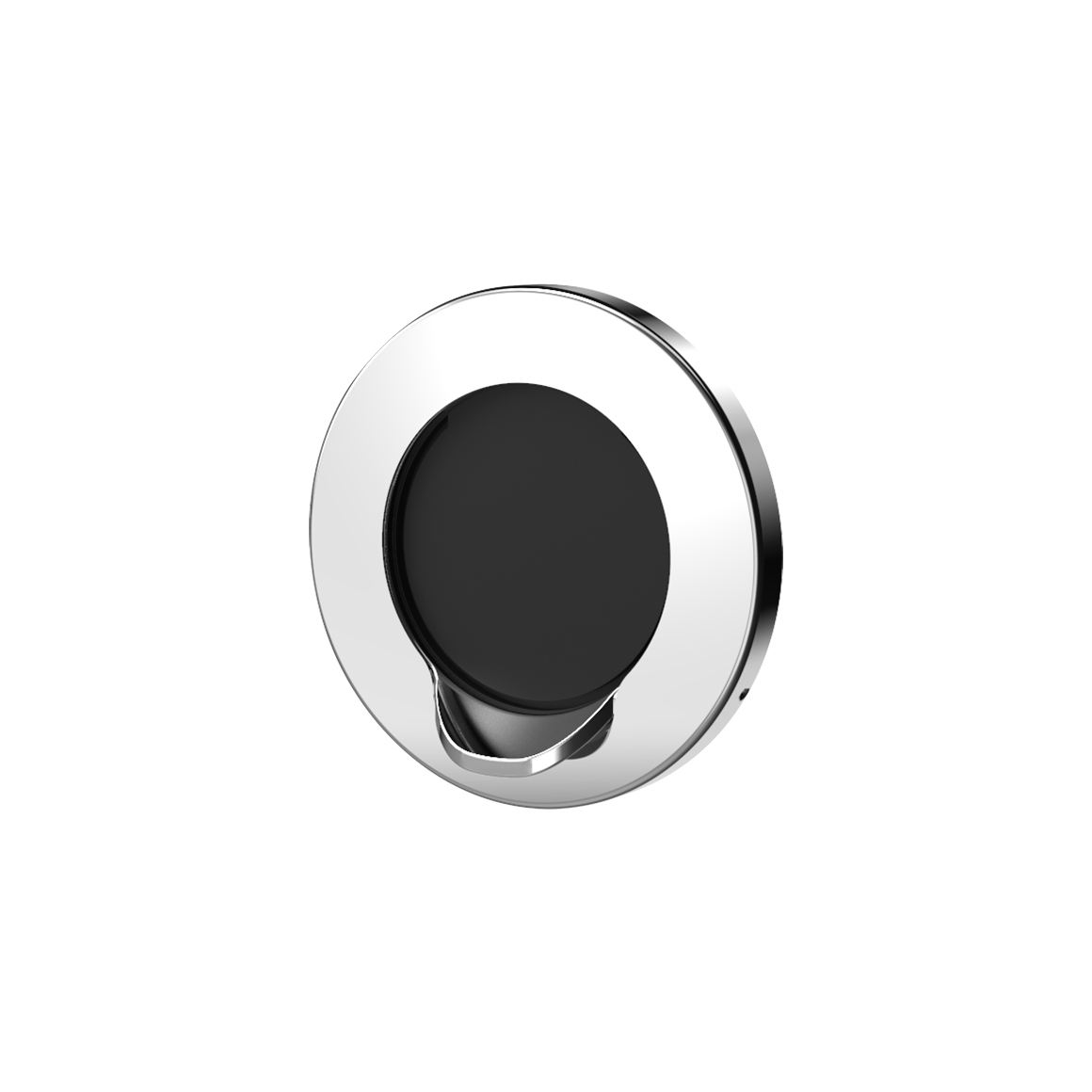

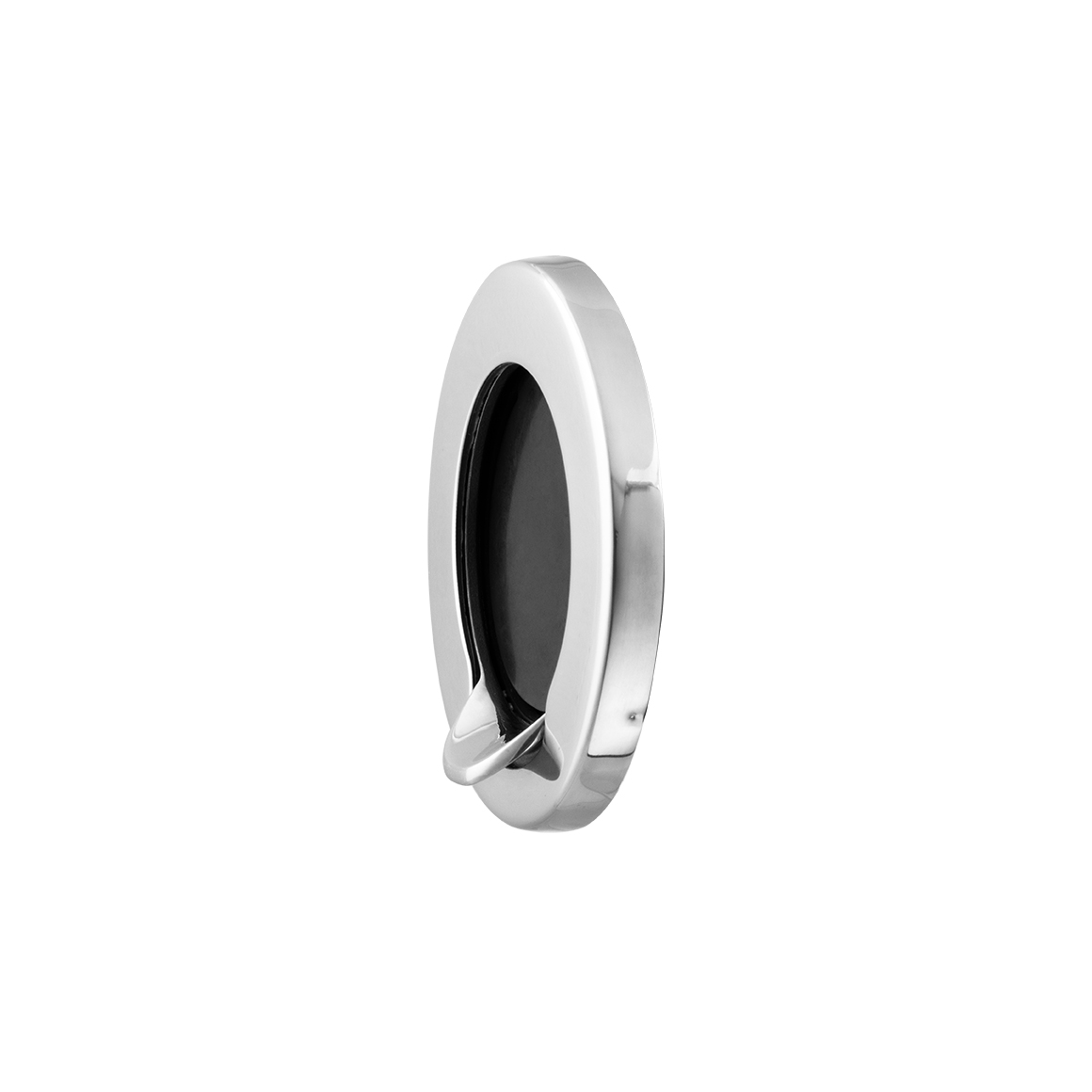

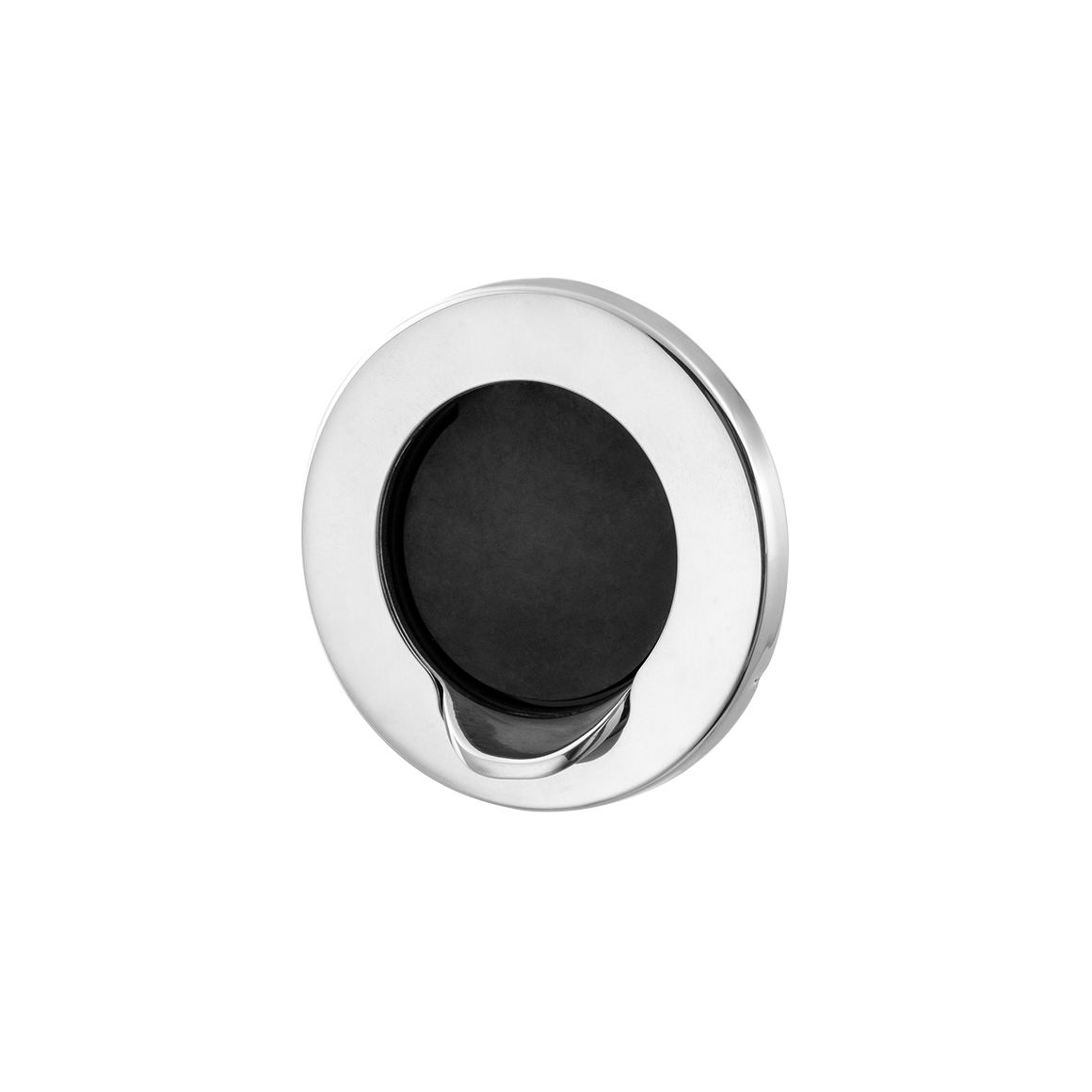

SCUPPER RING
Stainless Steel 316 & Nylon & Rubber
- Easy to install by utilizing 3M double-sided tape to secure the scupper ring to
the drain.
- One-way flapper valve is incorporated to help prevent water entry.
- Dripless lip is tooled in to significantly reduce the possibility of hull staining.
- Installation holes are strategically positioned to make it perfect candidate as a
replacement transom drain, allowing for effortless implementation into existing
applications.
- Fits 1-1/4" (32mm) brass drain tube.
- Comes with a stainless steel 316 cover provide an elegant appearance.
Push cover to snap in place. Cover is designed to conceal fasteners upon installation.
- Screw size M3 or #6.
- Easy to install by utilizing 3M double-sided tape to secure the scupper ring to
the drain.
- One-way flapper valve is incorporated to help prevent water entry.
- Dripless lip is tooled in to significantly reduce the possibility of hull staining.
- Installation holes are strategically positioned to make it perfect candidate as a
replacement transom drain, allowing for effortless implementation into existing
applications.
- Fits 1-1/4" (32mm) brass drain tube.
- Comes with a stainless steel 316 cover provide an elegant appearance.
Push cover to snap in place. Cover is designed to conceal fasteners upon installation.
- Screw size M3 or #6.

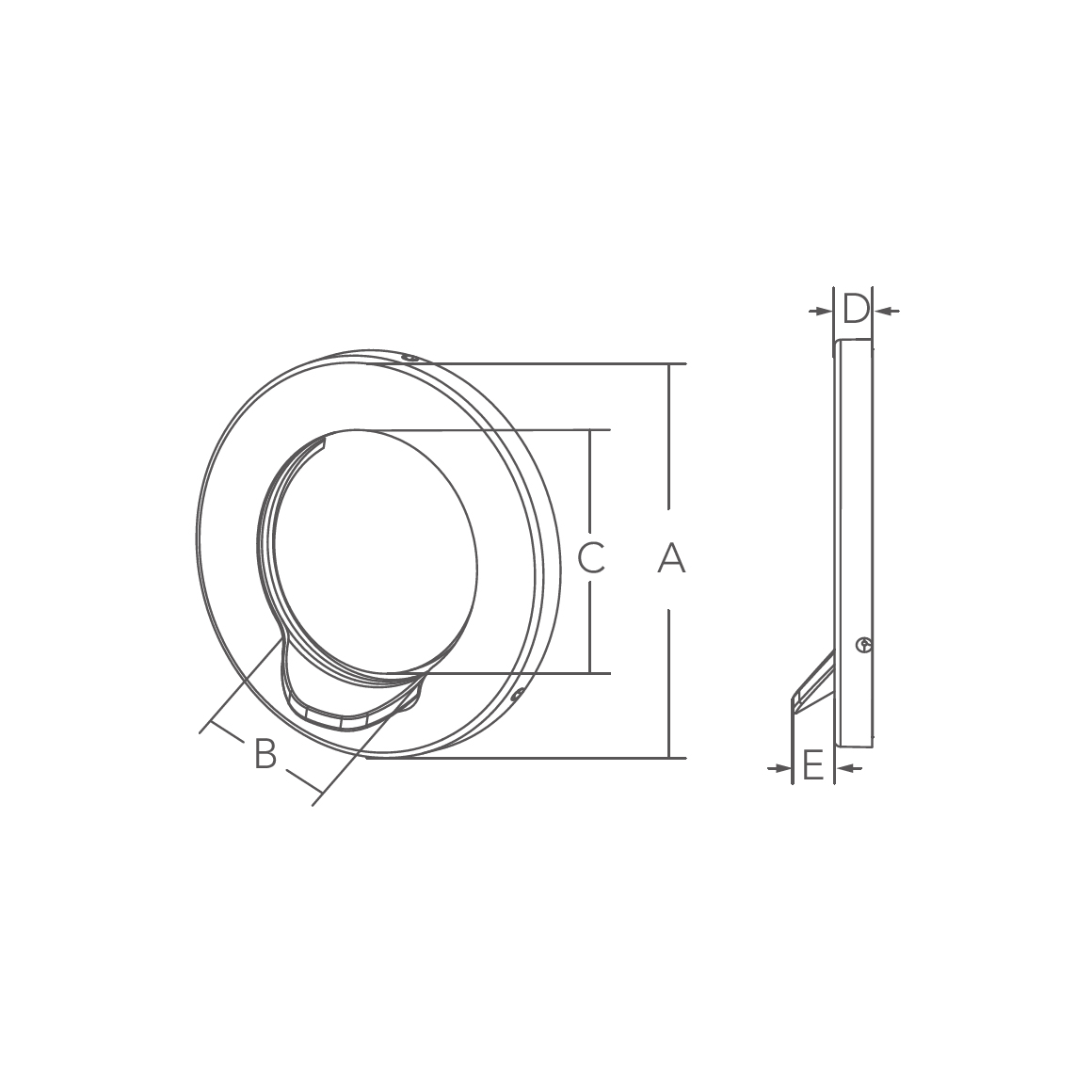

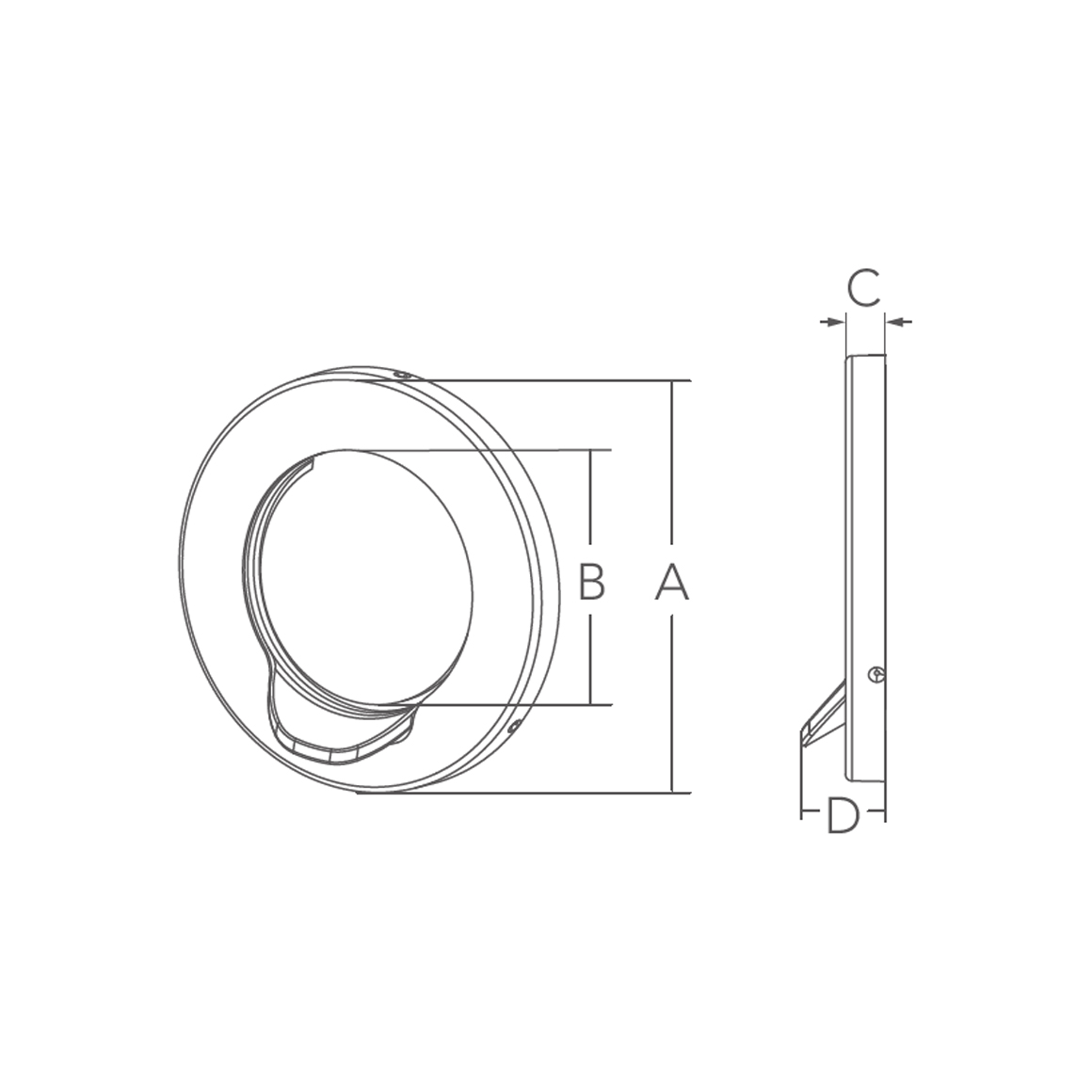

Qty
-
Bulk No.
Model
A mm
B mm
C mm
D mm
E mm
0903538 W/ Cover 79(3-1/16") 35(1-3/8") 50(2") 7(1/4") 8(5/16")
-
Bulk No.
Download
0903538 Drawing
