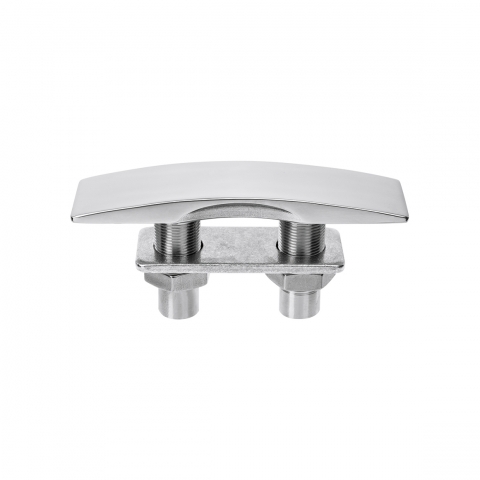

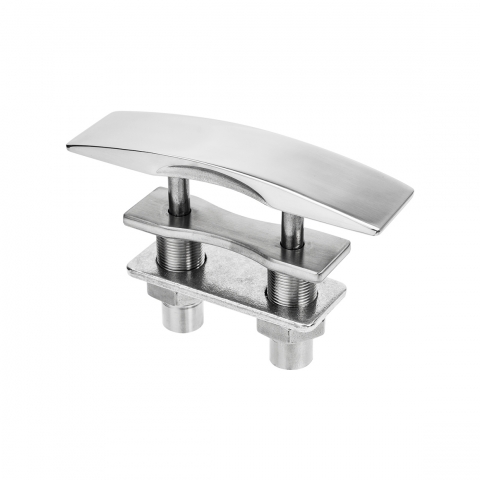

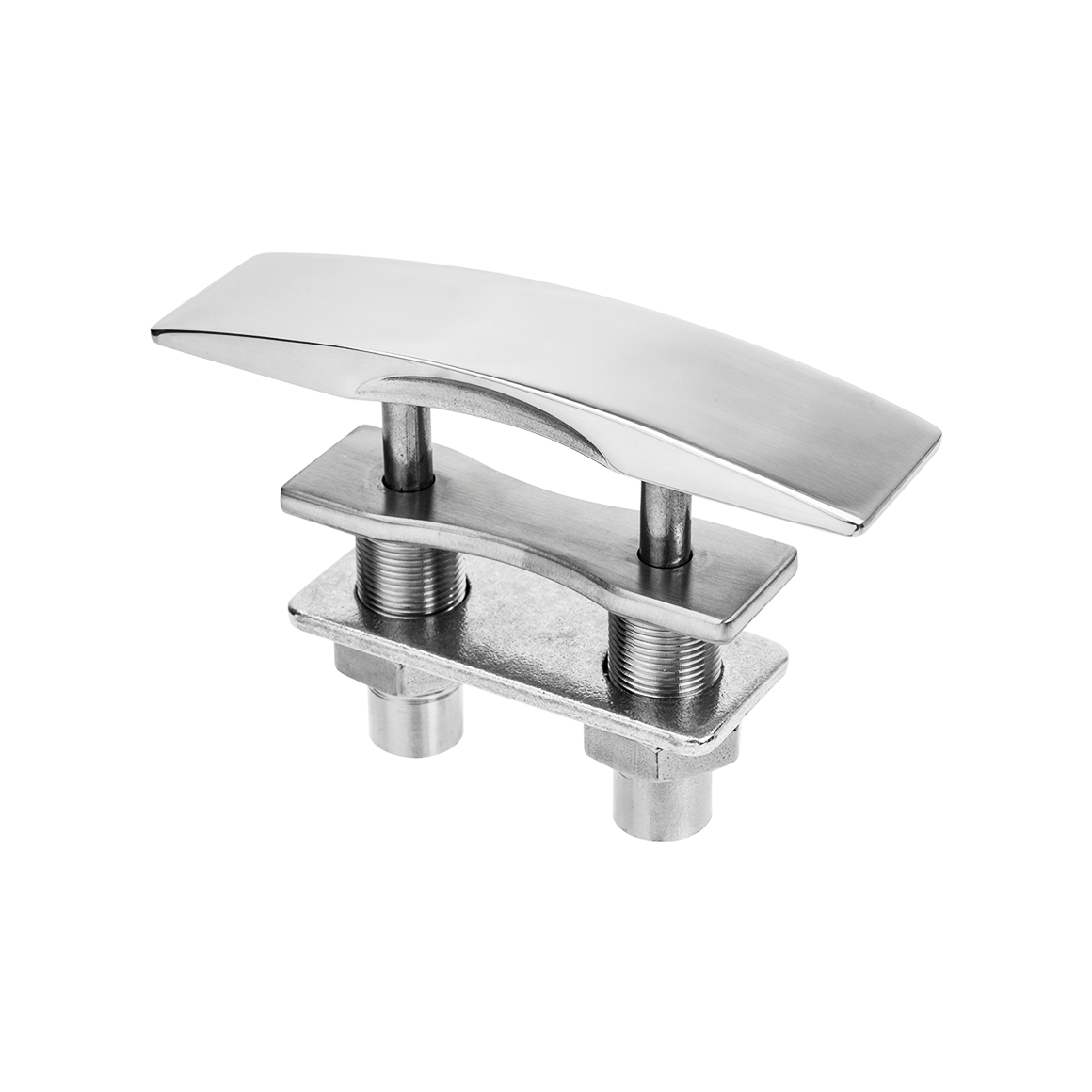

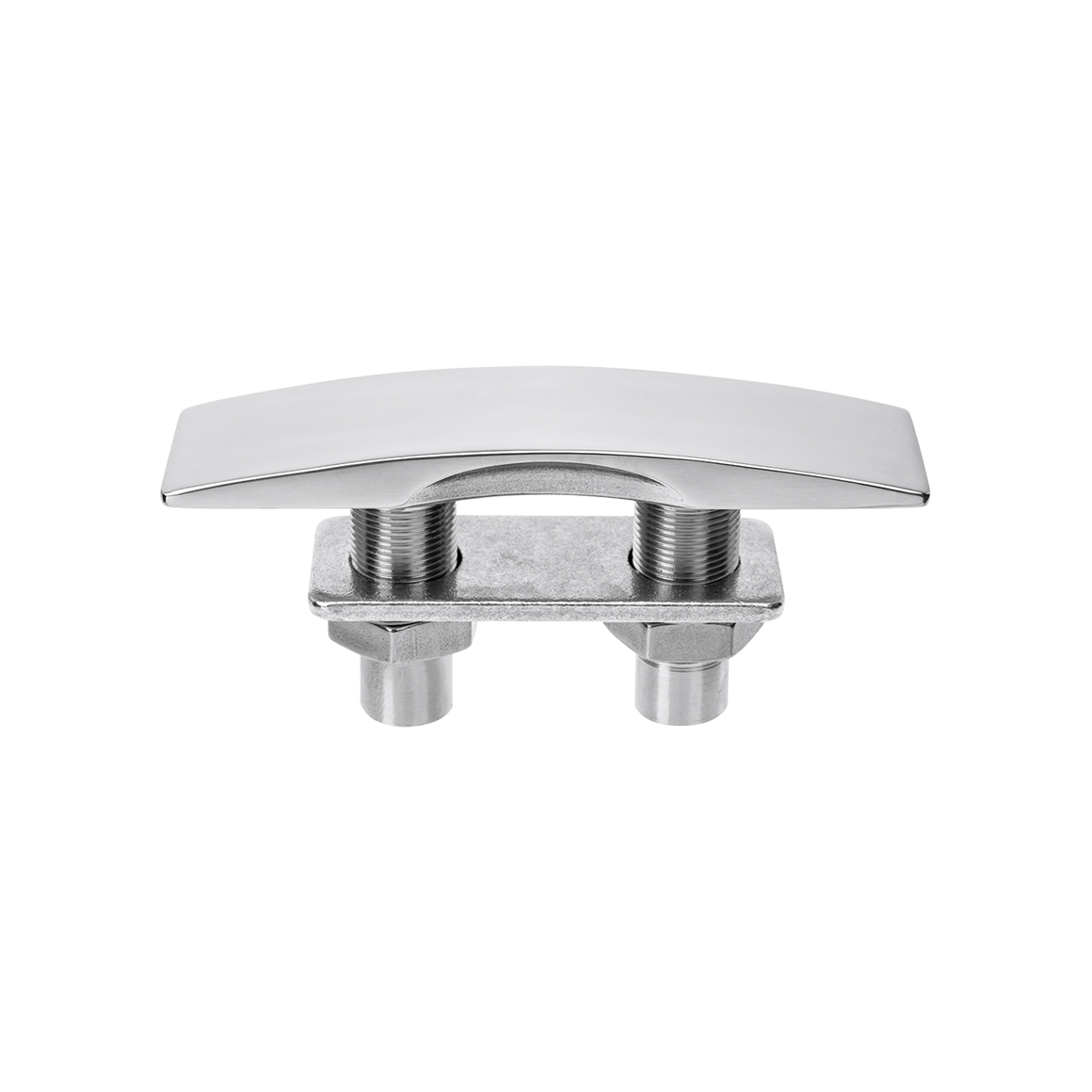

CURVED CLEAT
Stainless Steel 316
- Anti-rattle design.
- Easy installation.
- Modern shape with simple outline.

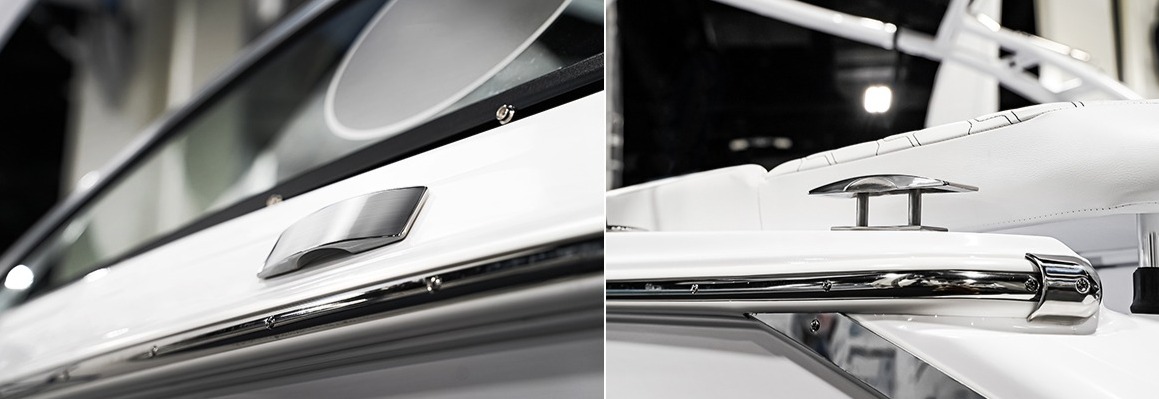

- Flush appearance that covers entire cleat base when stowed.
- Unique handle design allows for comfortable operation.
- Loading test report is available upon request.
- Water drainage adapter is available upon request.
- Aluminum backing plate, locking washers and stainless steel 304 nuts are included.
- Anti-rattle design.
- Easy installation.
- Modern shape with simple outline.
- Flush appearance that covers entire cleat base when stowed.
- Unique handle design allows for comfortable operation.
- Loading test report is available upon request.
- Water drainage adapter is available upon request.
- Aluminum backing plate, locking washers and stainless steel 304 nuts are included.
Qty
Qty
Qty
-

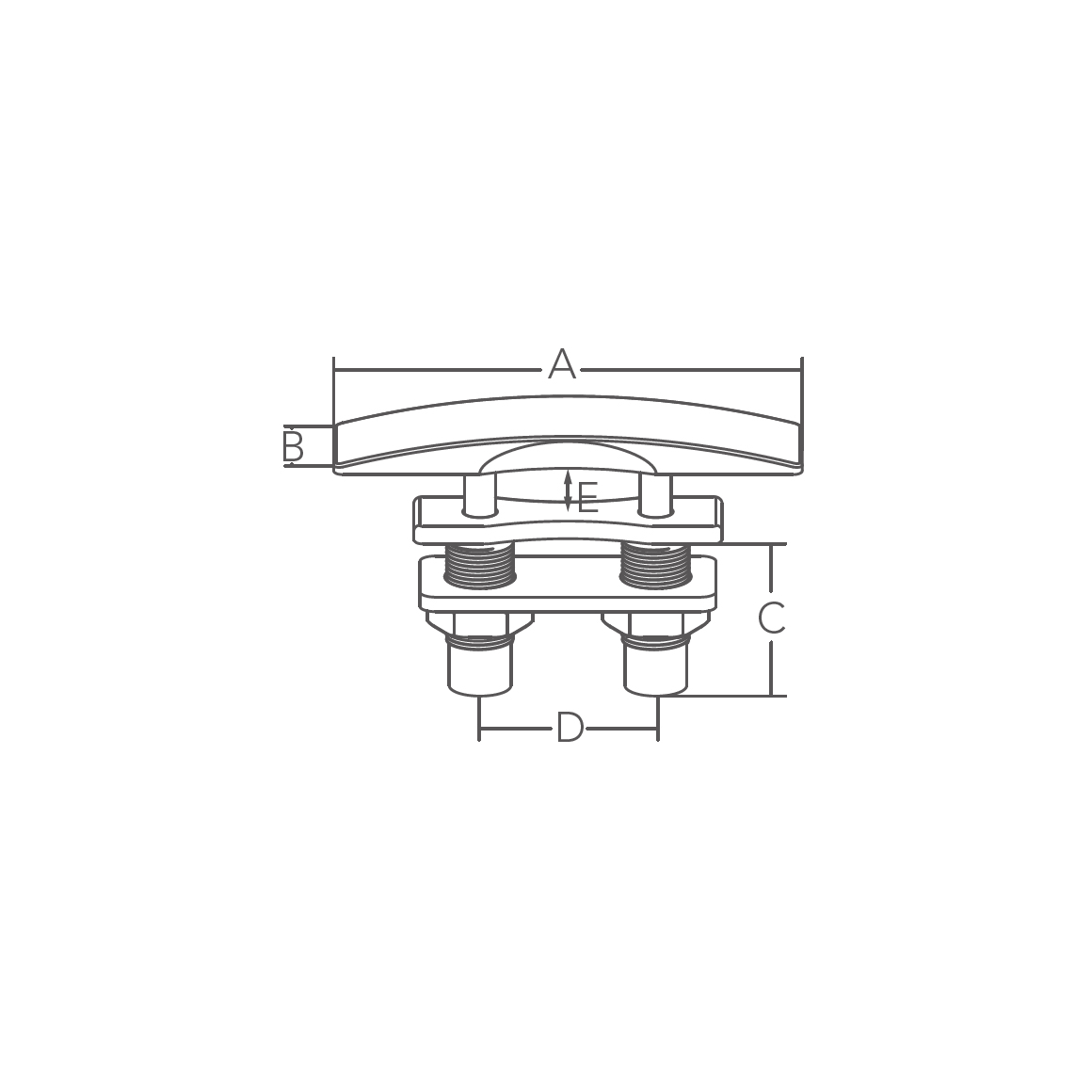

Bulk No.
A mm
B mm
C mm
D mm
E mm
Installation Hole
Grip mm
0906376 152(6") 40(1-9/16") 55(2-1/8") 57(2-1/4") 21(13/16") 25.4mm(1") 3.5~23.5(1/8"~15/16") 0906378 203(8") 43(1-11/16") 64(2-1/2") 70(2-3/4") 30(1-3/16") 25.4mm(1") 1~27(1/16"~1-1/16") 0906380 254(10") 51 ( 2") 94 (3-11/16") 87 (3-7/16") 37 (1-7/16") 32mm (1-1/4") 1~43(1/16"~1-11/16")
