30° POP-OUT DECK FILL
Stainless Steel 316

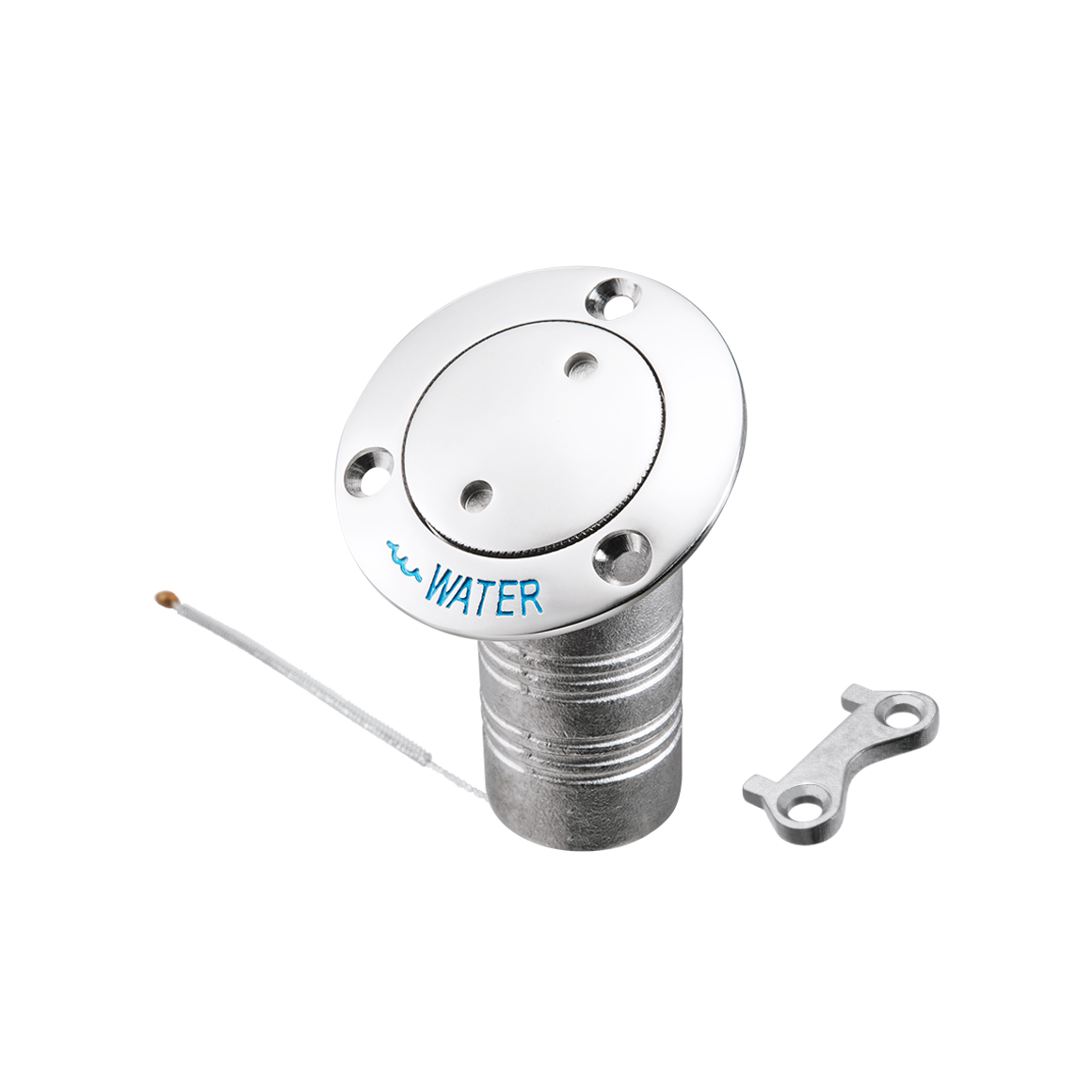

- Keyless pop-out cap is linked with a stainless steel 304 spring-loaded security cable.
- Color-coded international symbol with engraved lettering.
- 48mm (1-7/8") installation hole is required for the 38mm (1-1/2") fill.
- 54mm (2-1/8") installation hole is required for the 51mm (2") fill.
- Screw size M5 or #10.

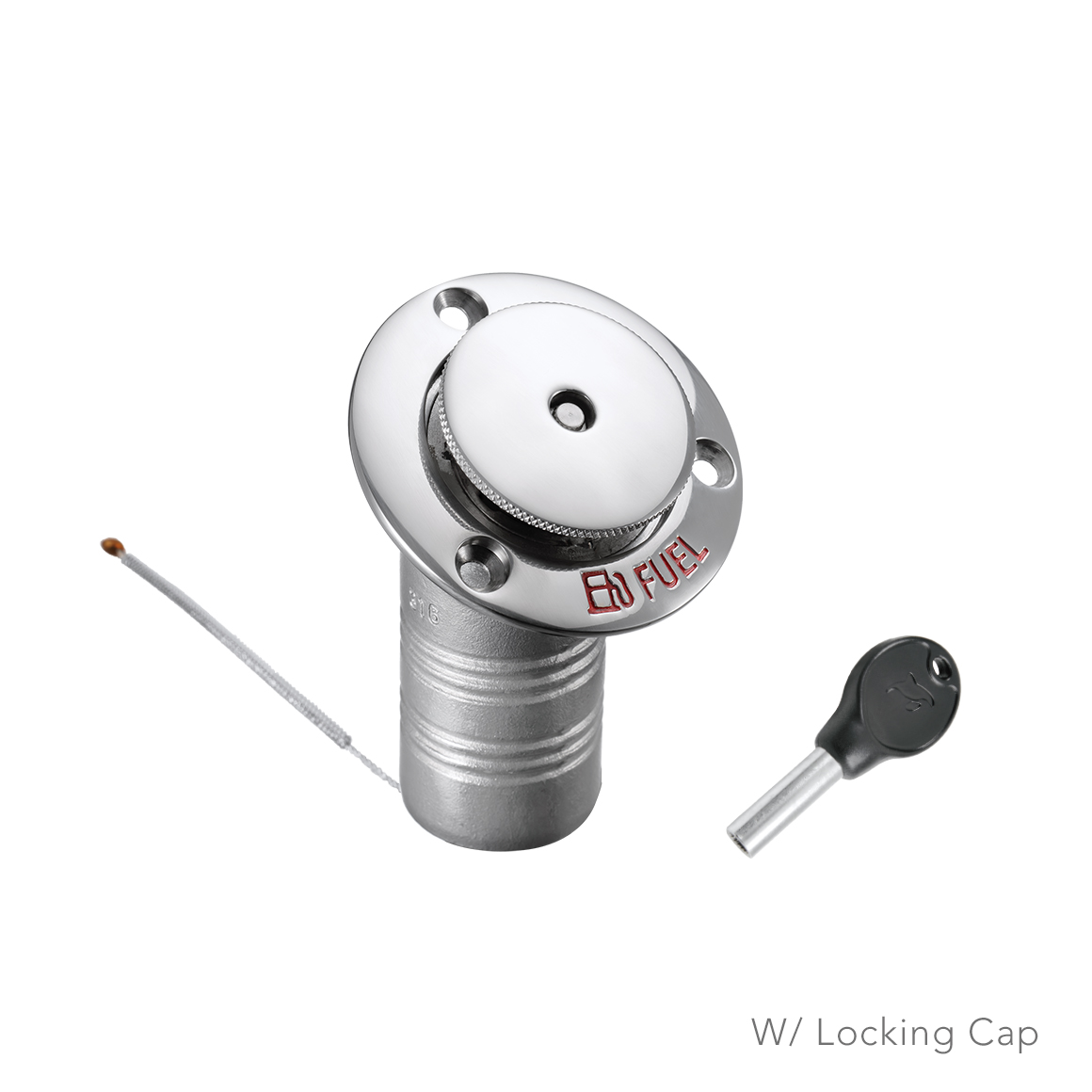

- For locking cap option, add the letter "-L" after bulk no.
- Other models not listed in are available upon request.
- Stainless steel 304 accessories are included.
- Keyless pop-out cap is linked with a stainless steel 304 spring-loaded security cable.
- Color-coded international symbol with engraved lettering.
- 48mm (1-7/8") installation hole is required for the 38mm (1-1/2") fill.
- 54mm (2-1/8") installation hole is required for the 51mm (2") fill.
- Screw size M5 or #10.
- For locking cap option, add the letter "-L" after bulk no.
- Other models not listed in are available upon request.
- Stainless steel 304 accessories are included.
Qty
Qty
Qty
MOQ
Qty
MOQ
-

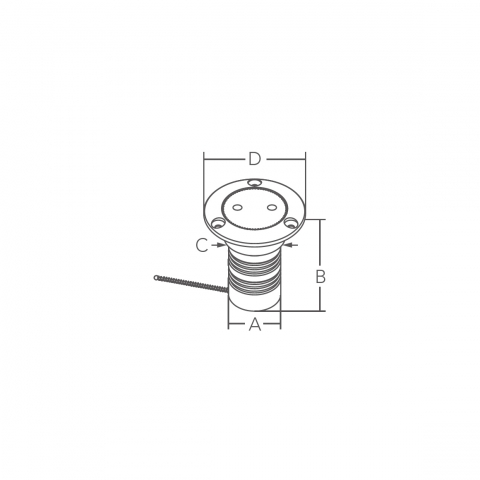

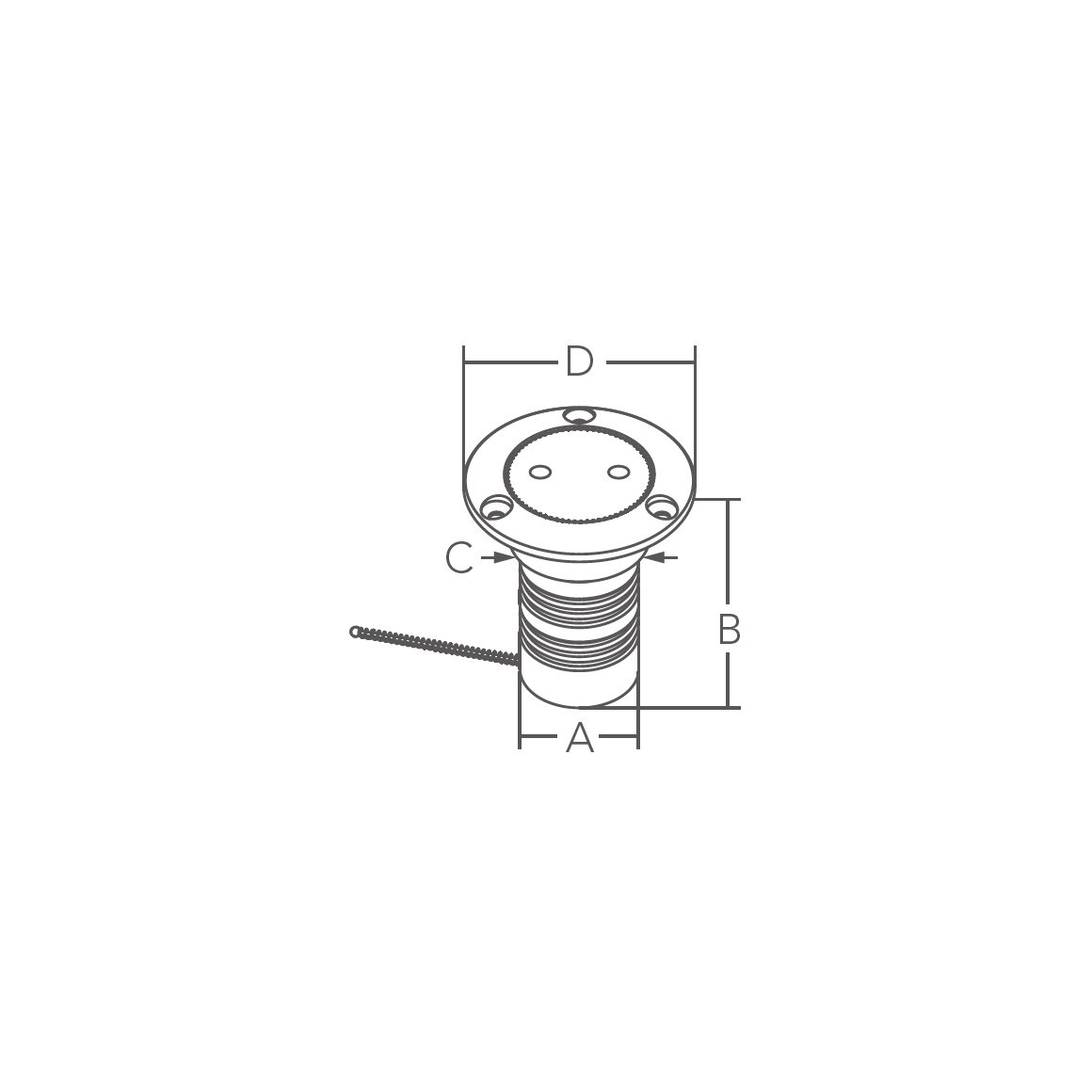

Bulk No.
Model
A mm
B mm
C mm
D mm
9007223 Water 38(1-1/2") 83(3-1/4") 45(1-3/4") 75(2-15/16") 9007224 Waste 38(1-1/2") 83(3-1/4") 45(1-3/4") 75(2-15/16") 9007226 Fuel 38(1-1/2") 83(3-1/4") 45(1-3/4") 75(2-15/16") 9007259 Diesel 51(2") 93(3-11/16") 53(2-1/16") 84(3-5/16")
