DELUXE STERN EYE
Stainless Steel
- Upgraded quality appearance.
- Welded and polished face plate to reduce potential rust.
- Upgraded quality appearance.
- Welded and polished face plate to reduce potential rust.
Qty
Qty
Qty
Qty
-
Bulk No.
Material

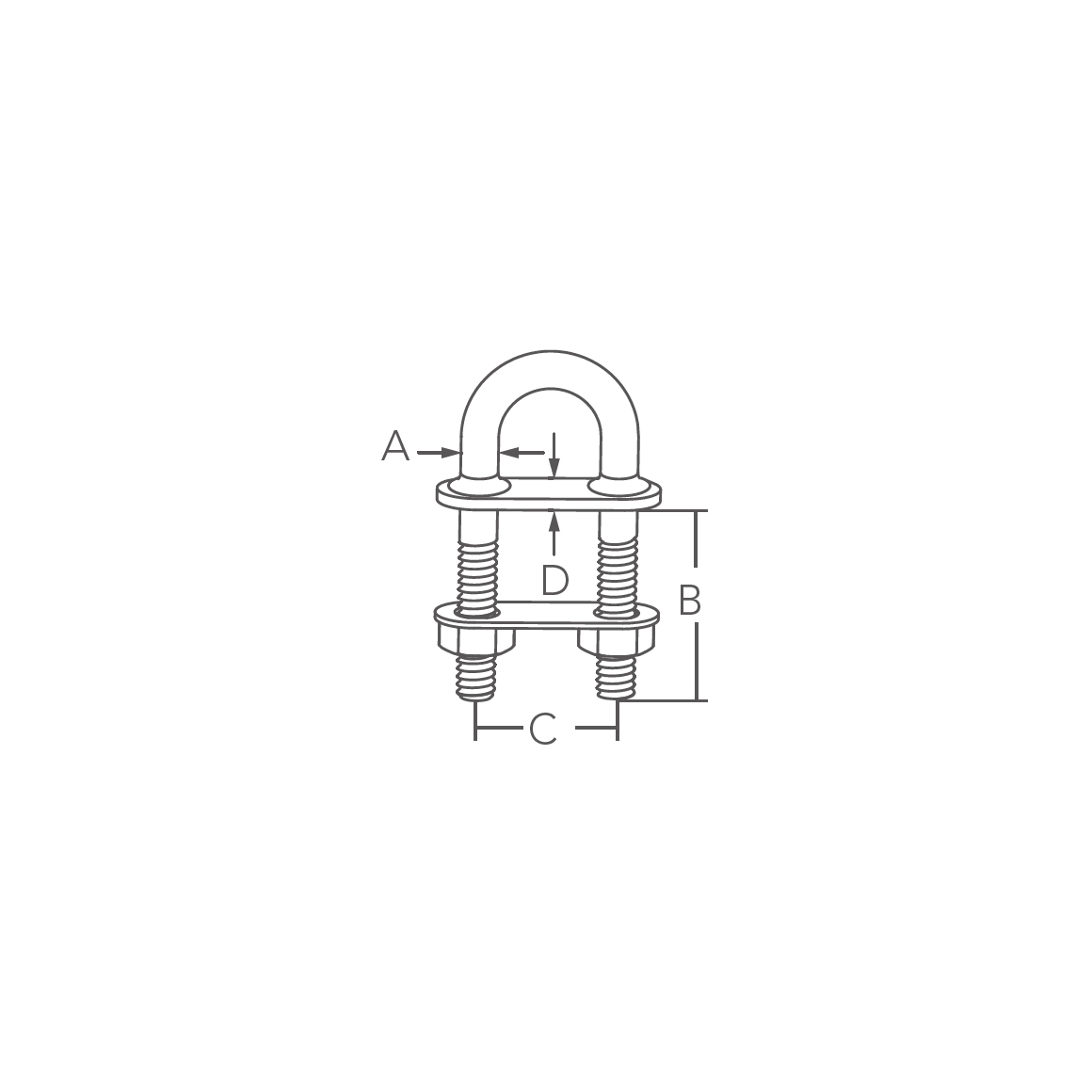

A mm
B mm
C mm
D mm
Face Plate Thickness
Thread

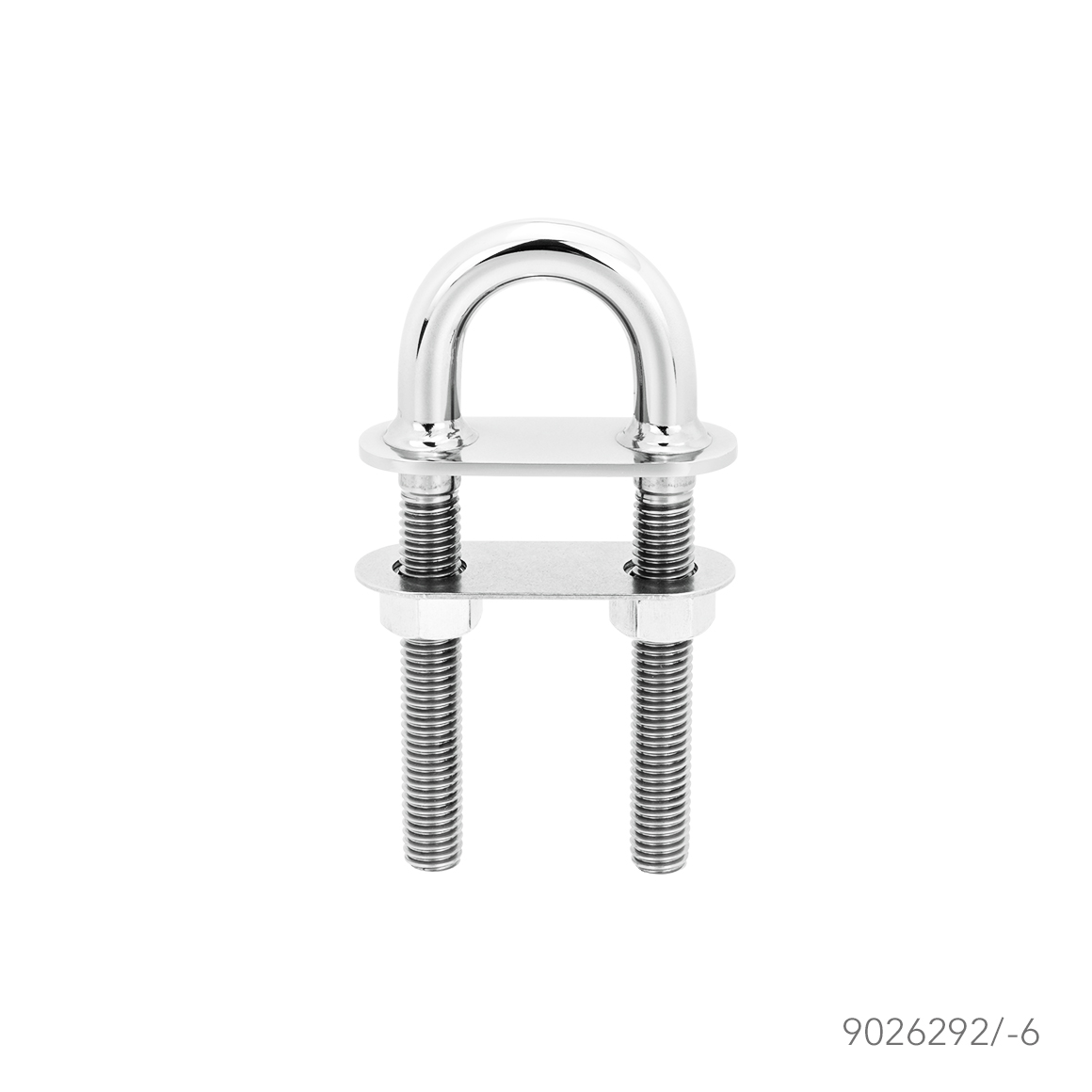

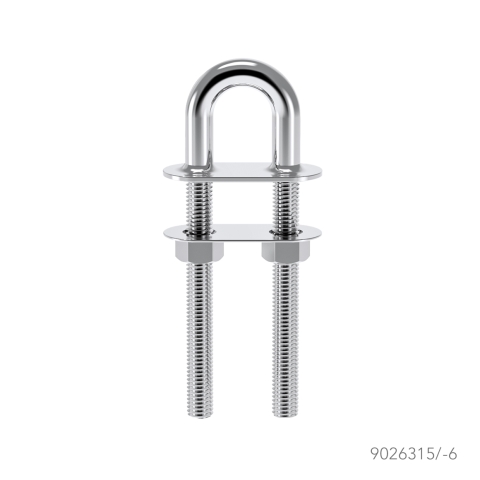

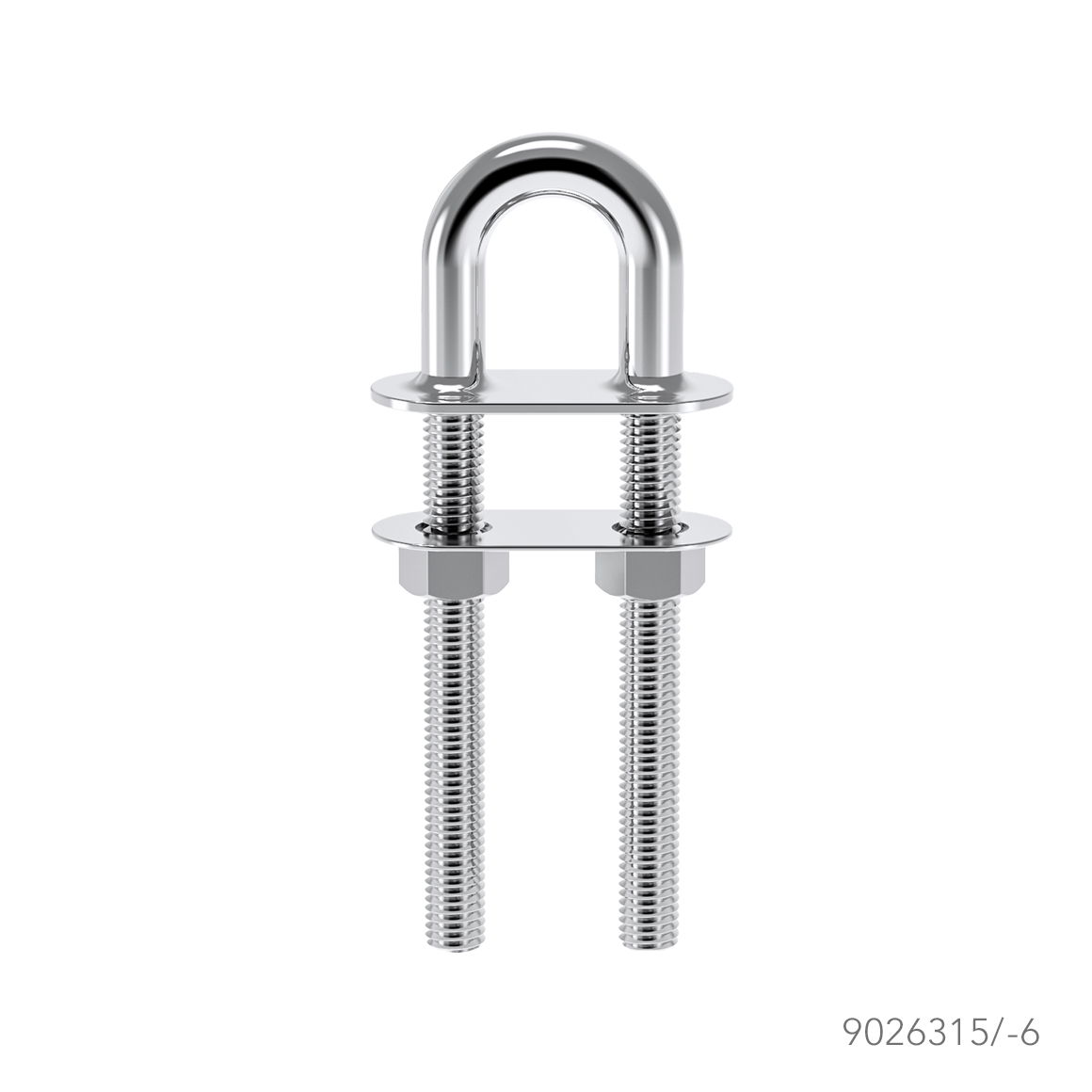

9026292 SS304 12.7(1/2") 88(3-7/16") 46(1-13/16") 30(1-3/16") 3mm(1/8") 1/2"-13T 9026315 SS304 16(5/8") 137.2(5-3/8") 48.3(1-7/8") 38(1-1/2") 3mm(1/8") 5/8"-11T 9026292-6 SS316 12.7(1/2") 88.5(3-7/16") 46(1-13/16") 30(1-3/16") 3mm(1/8") 1/2"-13T 9026315-6 SS316 16(5/8") 140.2(5-1/2") 48.3(1-7/8") 38(1-1/2") 3mm(1/8") 5/8"-11T
-
Bulk No.
Download
9026292 Drawing 9026315 Drawing 9026292-6 Drawing 9026315-6 Drawing
