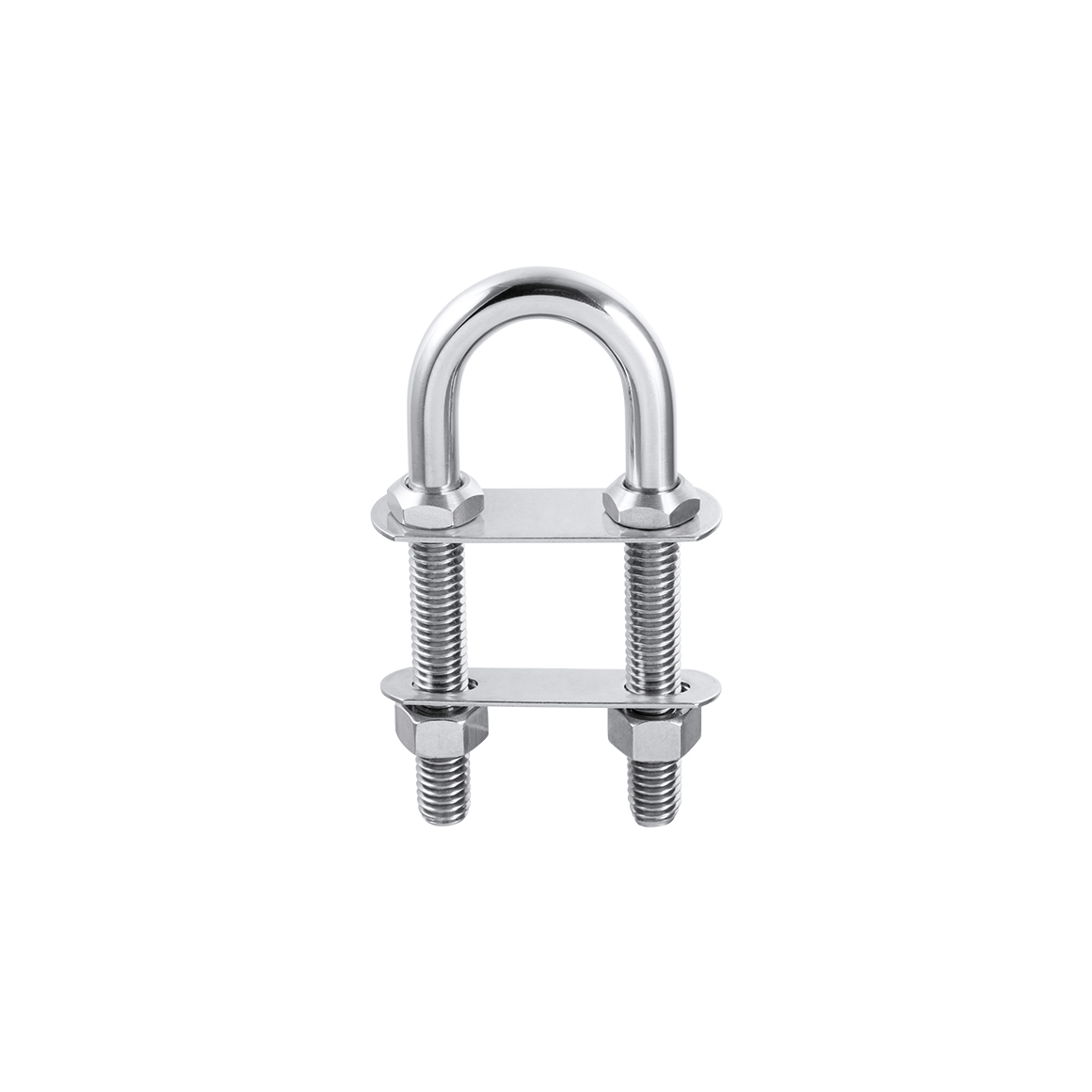

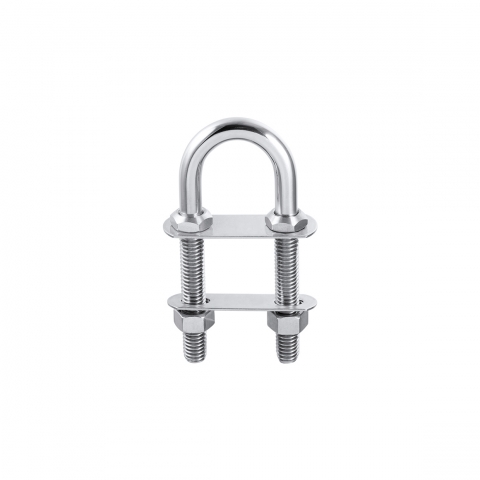

BOW EYE

Stainless Steel 304
Qty
MOQ
Qty
MOQ
Qty
MOQ
  •

    Bulk No.

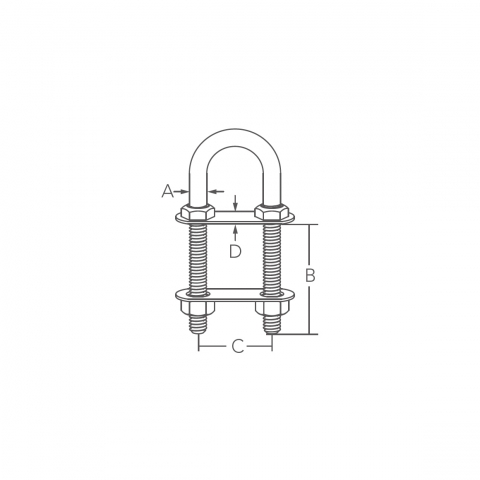

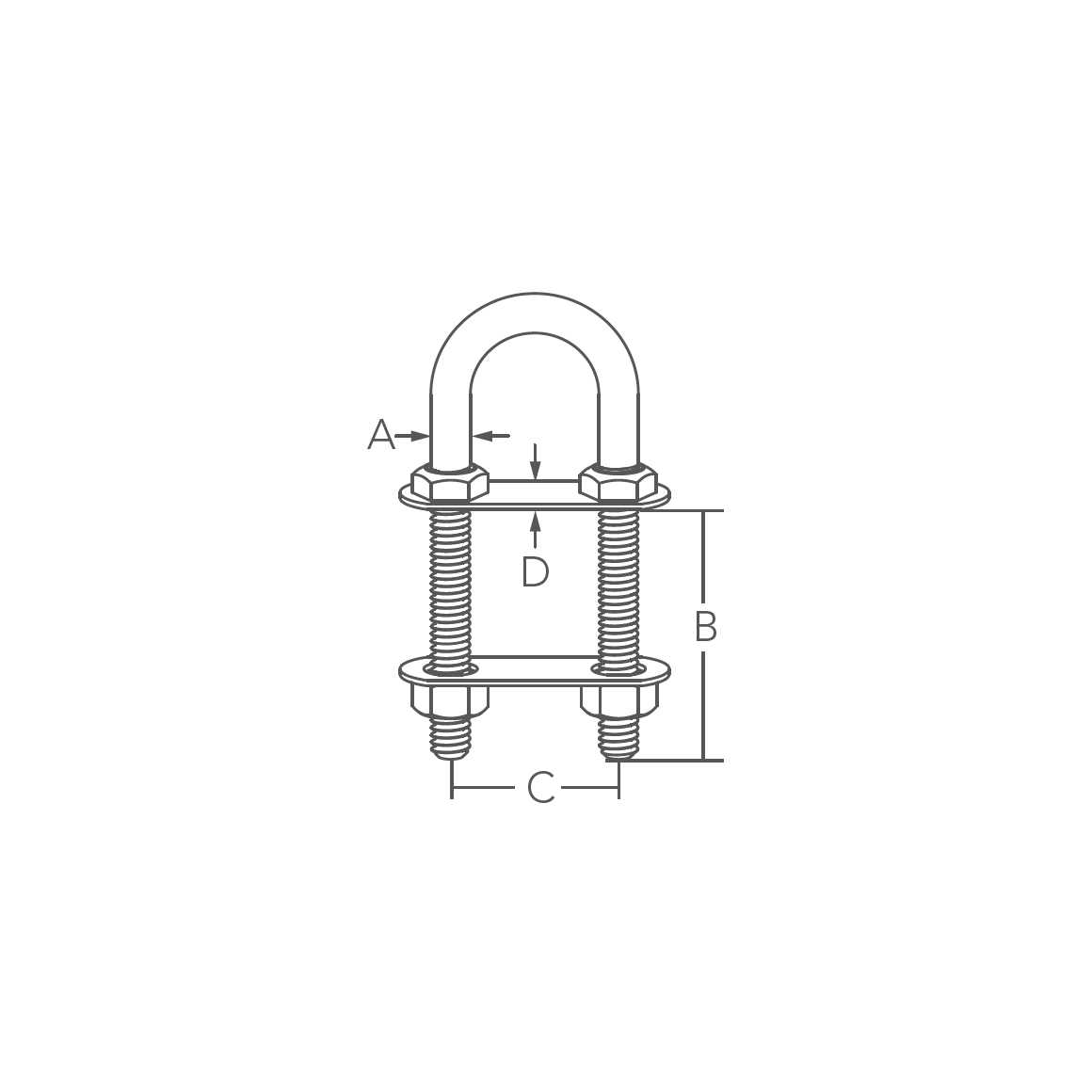

    A mm

    B mm

    C mm

    D mm

    Plate Thickness

    Thread

    9026307 8.4(5/16") 57(2-1/4") 36(1-7/16) 19(3/4") 1.2mm(1/16") 3/8"-16
    9026310 11.3(7/16") 55(2-3/16") 46(1-13/16") 19(3/4") 1.5mm(1/16") 1/2"-13
    9026312 11.3(7/16") 80(3-1/8") 46(1-13/16") 19(3/4") 1.5mm(1/16") 1/2"-13
  •

    Bulk No.

    Download

    9026307 Drawing
    9026310 Drawing
    9026312 Drawing
