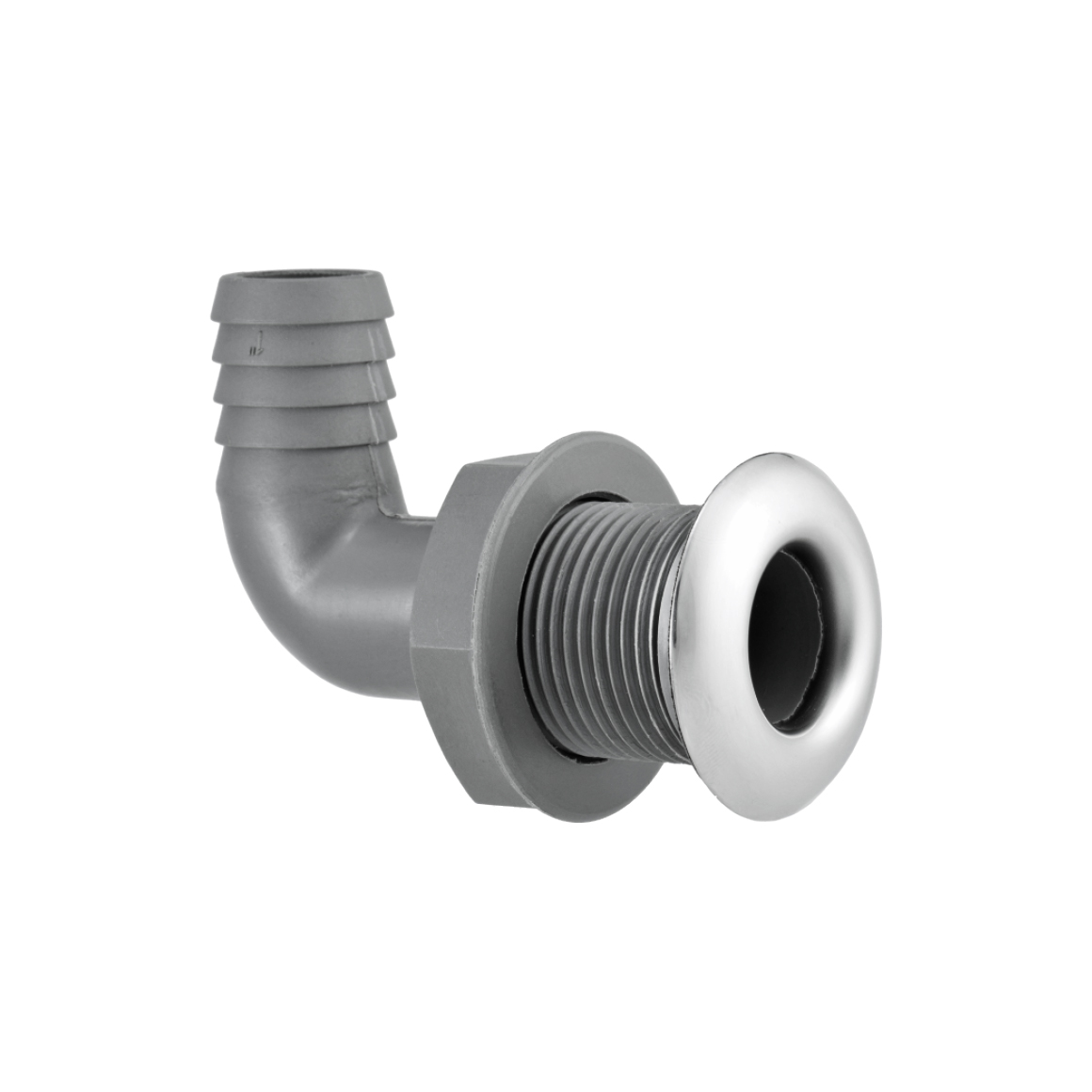

90° STALON THRU HULL
Nylon 66 + 30% Fiberglass Filled Body &
Stainless Steel 316 Face
- Combining the strength and light weight of a reinforced nylonwith the aesthetics of
polished stainless steel.
- Tested according to ASTM D638 and ASTM D790.

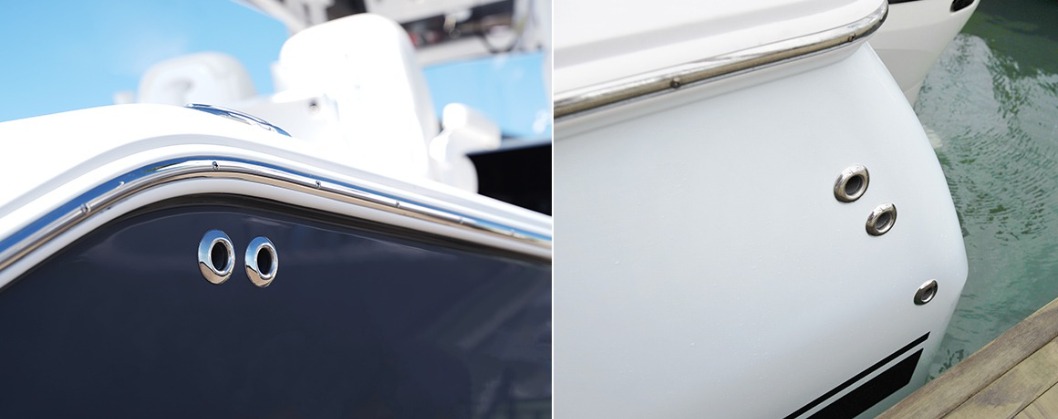

- Suitable for above waterline outlets.
Stainless Steel 316 Face
- Combining the strength and light weight of a reinforced nylonwith the aesthetics of
polished stainless steel.
- Tested according to ASTM D638 and ASTM D790.
- Suitable for above waterline outlets.
Qty
MOQ
Qty
Qty
Qty
MOQ
Qty
Qty
Qty
Qty
Qty
-

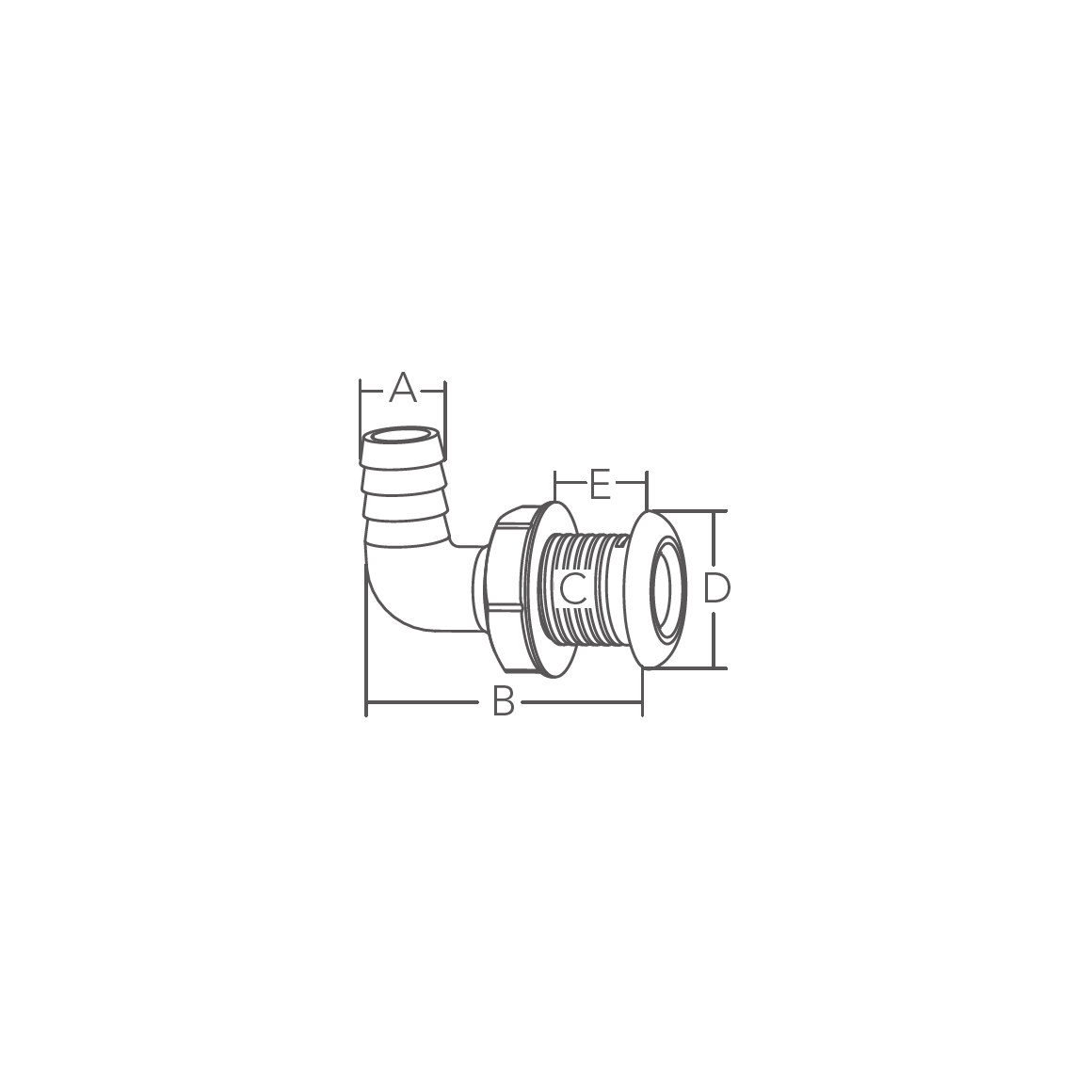

Bulk No.
A mm
B mm
C mm
D mm
E-Max. mm
9105418 16(5/8") 63(2-1/2") 33(1-5/16") 48(1-7/8") 10(3/8") 9005262 19(3/4") 63(2-1/2") 33(1-5/16") 48(1-7/8") 10(3/8") 9005256 19(3/4") 82(3-1/4") 33(1-5/16") 48(1-7/8") 28(1-1/8") 0803266 19(3/4") 112(4-7/16") 40(1-9/16") 60(2-3/8") 35(1-3/8") 9105419 25(1") 95(3-3/4") 33(1-5/16") 48(1-7/8") 22(7/8") 9005265 25(1") 108(4-1/4") 41(1-5/8") 60(2-3/8") 32(1-1/4") 9305113 29(1-1/8") 86(3-3/8") 33(1-5/16") 48(1-7/8") 19(3/4") 9005257 29(1-1/8") 108(4-1/4") 41(1-5/8") 60(2-3/8") 32(1-1/4") 9005258 38(1-1/2") 112(4-7/16") 41(1-5/8") 60(2-3/8") 29(1-1/8")
