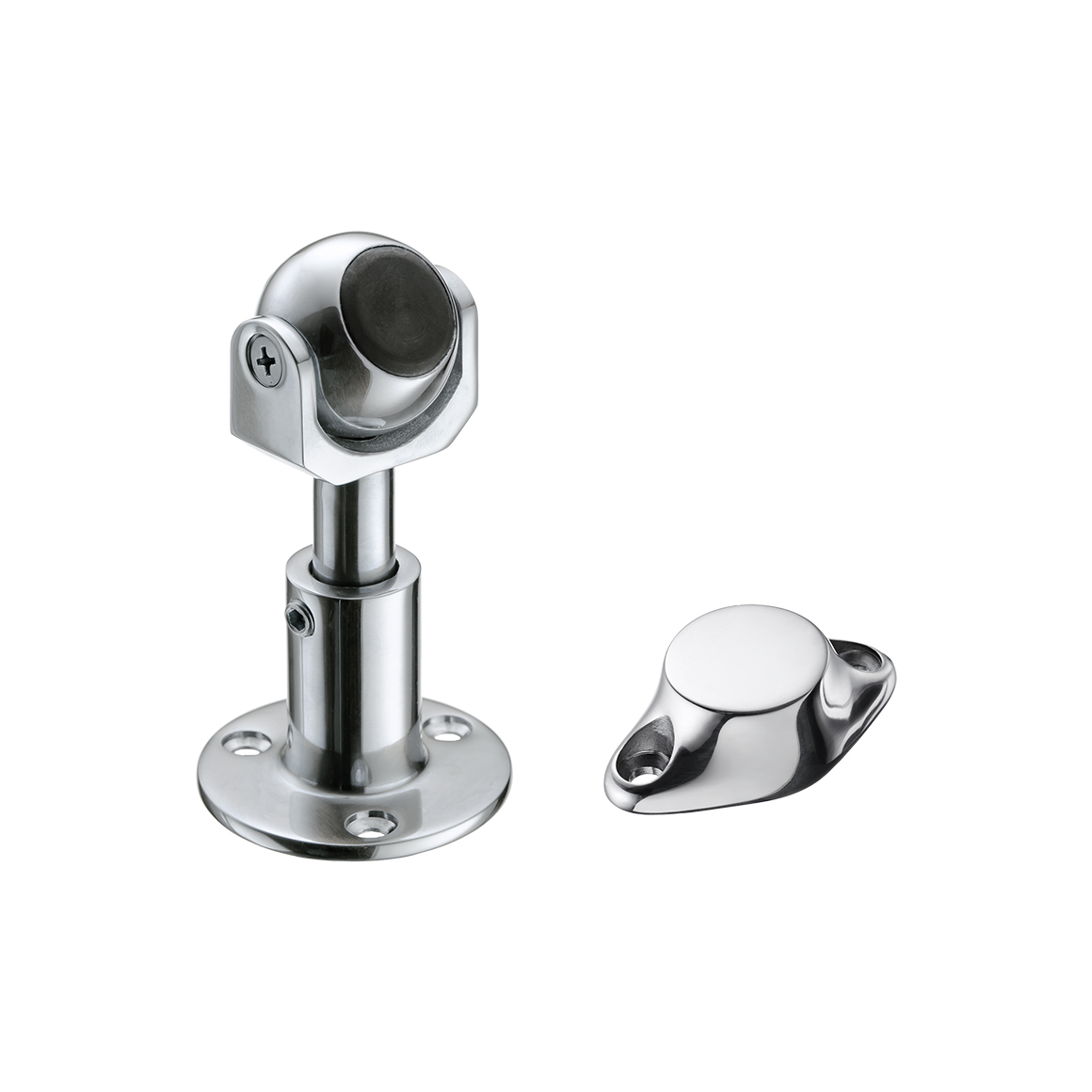

ADJUSTABLE MAG. DOOR HOLDER W/ PROUD STRIKE
Stainless Steel 316
- Holder can be adjusted to any desired angle and height.
- To position the mag. ball, loctite the fasteners before screwing in.
- Magnets fully encapsulated in stainless steel 316 to withstand corrosive
marine environment.
- Sold as set.
- Base screw size M5 or #10.
- Strike screw size M4 or #8.
- Holder can be adjusted to any desired angle and height.
- To position the mag. ball, loctite the fasteners before screwing in.
- Magnets fully encapsulated in stainless steel 316 to withstand corrosive
marine environment.
- Sold as set.
- Base screw size M5 or #10.
- Strike screw size M4 or #8.
Qty
MOQ
Qty
MOQ
Qty
MOQ
-
Bulk No.

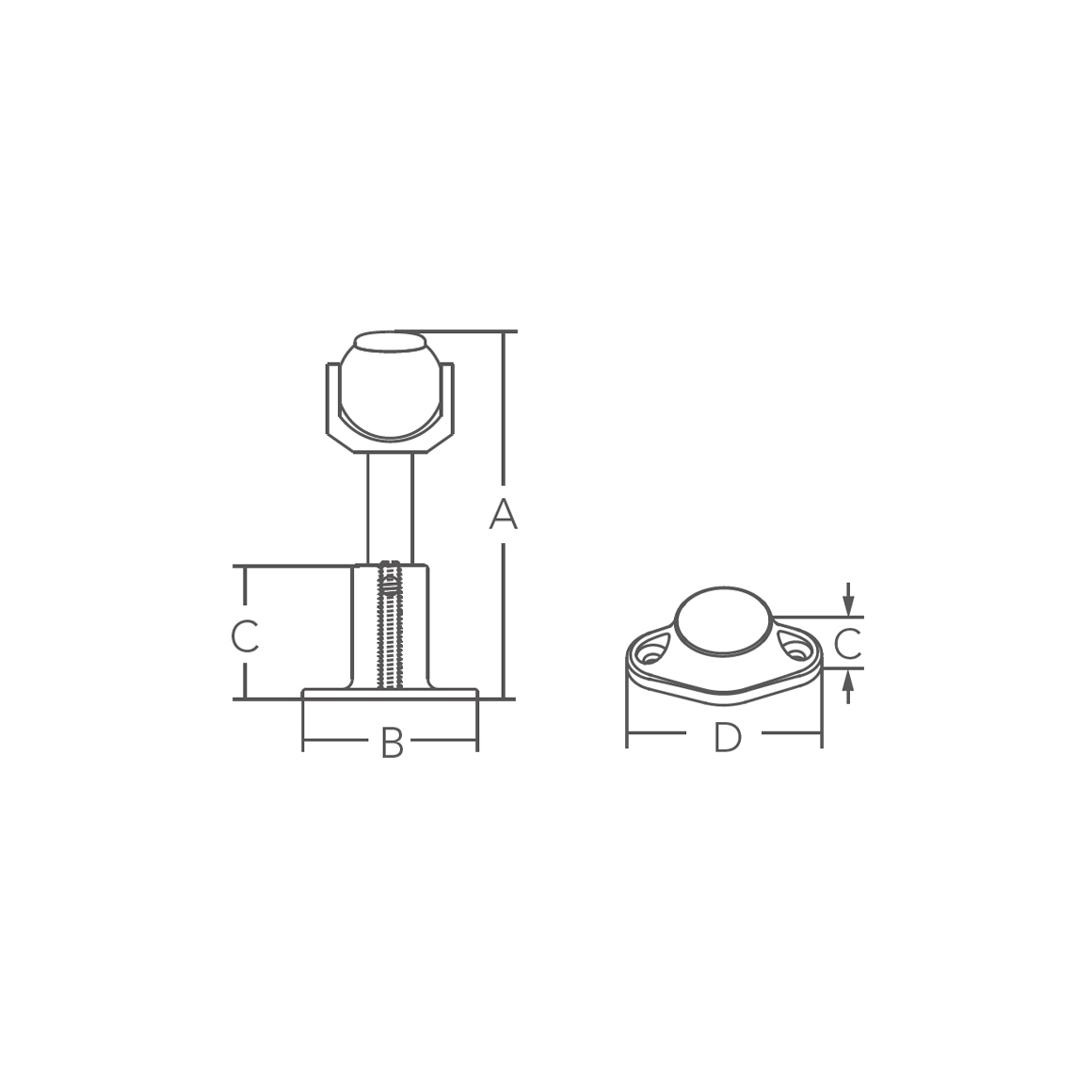

Mag. Size
A mm
B mm
C mm
D mm
E mm
Holding Power
Ball
Strike
9121382 20x20 Proud 20x10 75~105(2-15/16"~4-1/8") 51(2") 39(1-9/16") 15(9/16") 47(1-7/8") 3.8 kg(8.4 lb) 9321757 20x20 Proud 30x15 75~105(2-15/16"~4-1/8") 51(2") 39(1-9/16") 19(3/4") 70(2-3/4") 6.5 kg(14.3 lb) 9421158 30x15 Proud 30x15 87~118(3-7/16"~4-5/8") 51(2") 39(1-9/16") 19(3/4") 70(2-3/4") 10.7 kg(23.6 lb)
