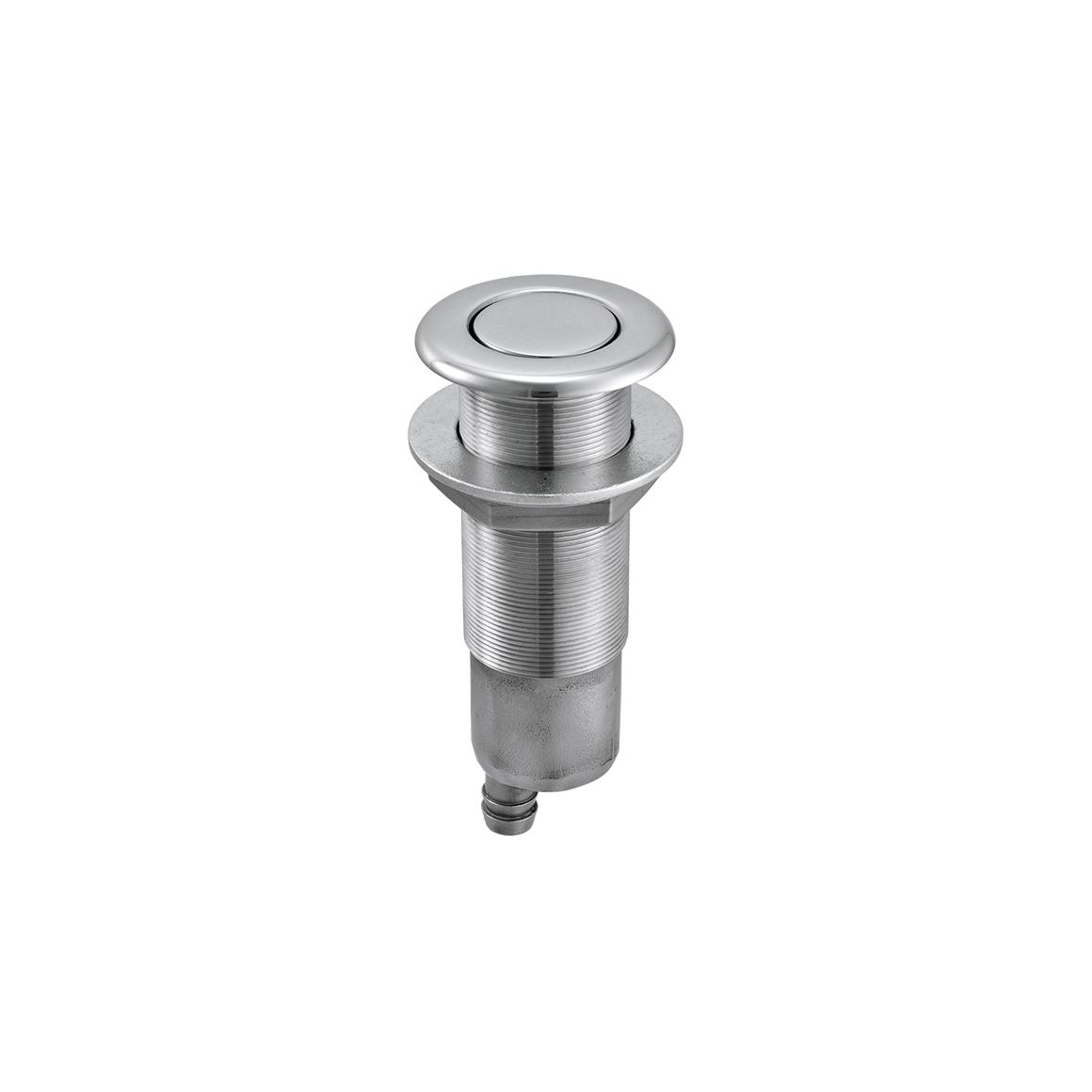

POP-OUT SKI TOW CLEAT
Stainless Steel 316
- Easy single hole installation.
- Can be used as ski tow ring and fender cleat.

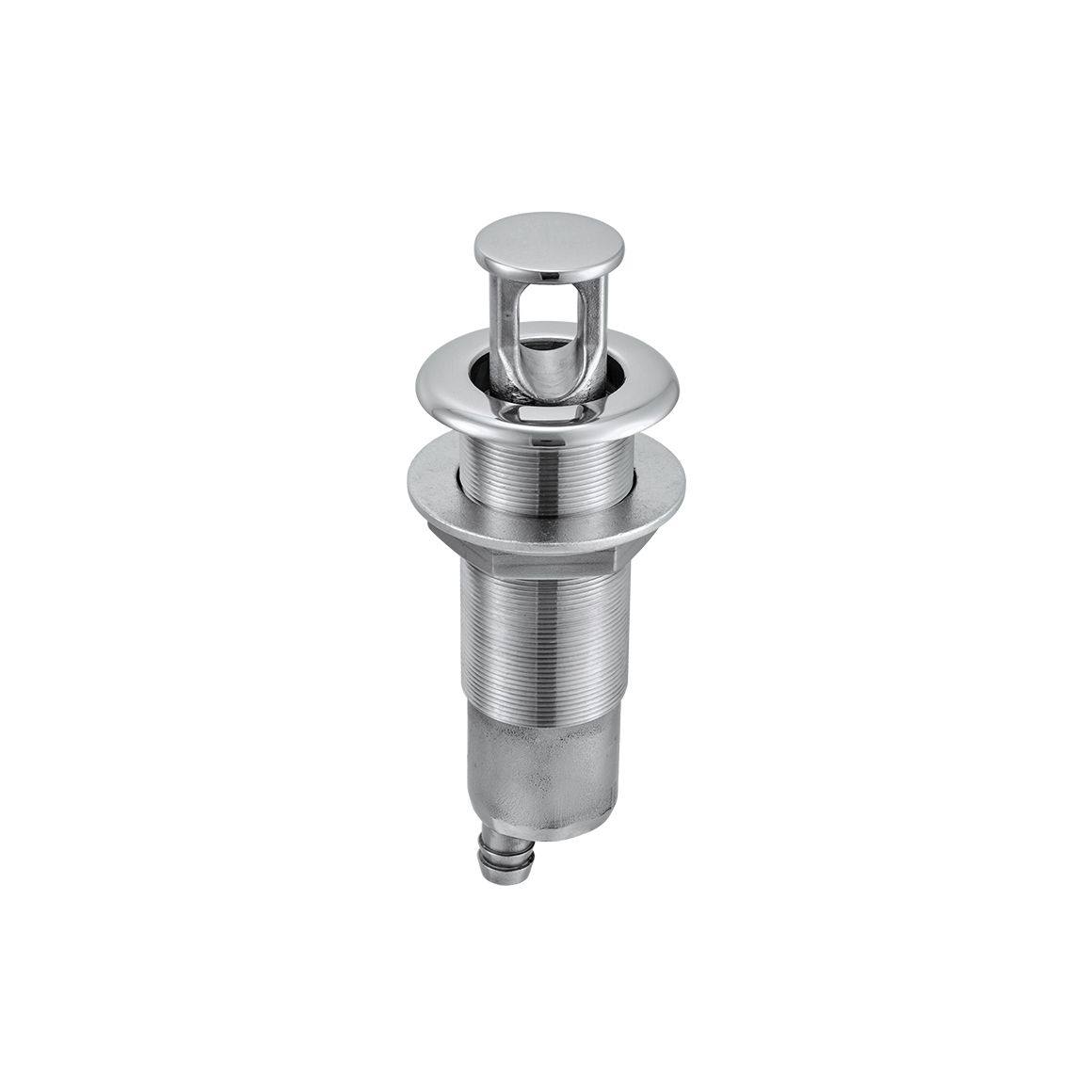

- When open, the pylon has an opening to hold ski tow rope and can be rotated 360˚.
- Product is designed to be installed vertically.
- The pulling force should be horizontal to ensure safety.
- 48mm (1-7/8") installation hole is required.
- Backing washer and nut are included.
- Easy single hole installation.
- Can be used as ski tow ring and fender cleat.
- When open, the pylon has an opening to hold ski tow rope and can be rotated 360˚.
- Product is designed to be installed vertically.
- The pulling force should be horizontal to ensure safety.
- 48mm (1-7/8") installation hole is required.
- Backing washer and nut are included.
Qty
MOQ
-
Bulk No.

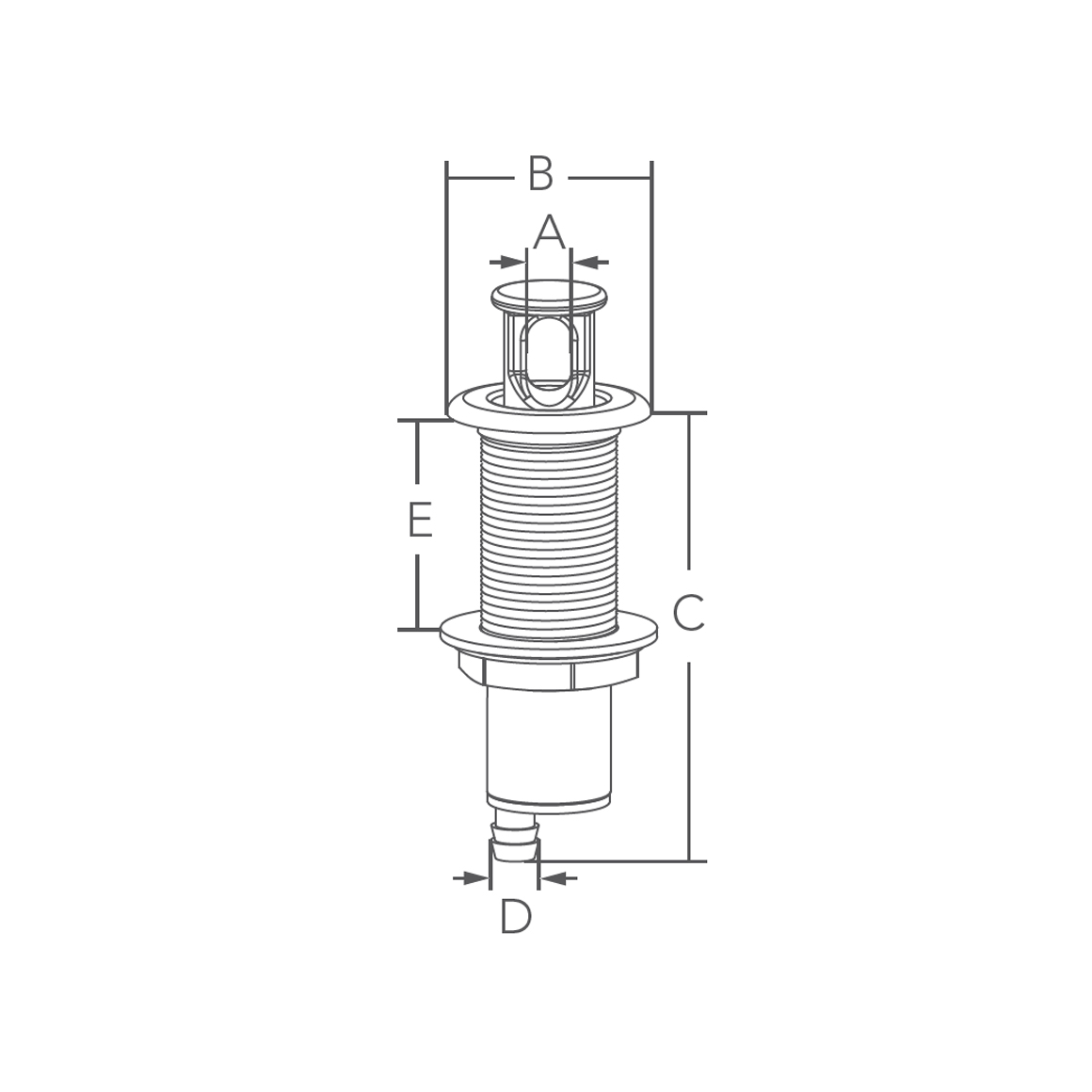

A mm
B mm
C mm
D mm
E mm
9512930 15(9/16") 68(2-11/16") 146(5-3/4") 16(5/8") 73(2-7/8") -
Bulk No.
Download
9512930 Drawing
