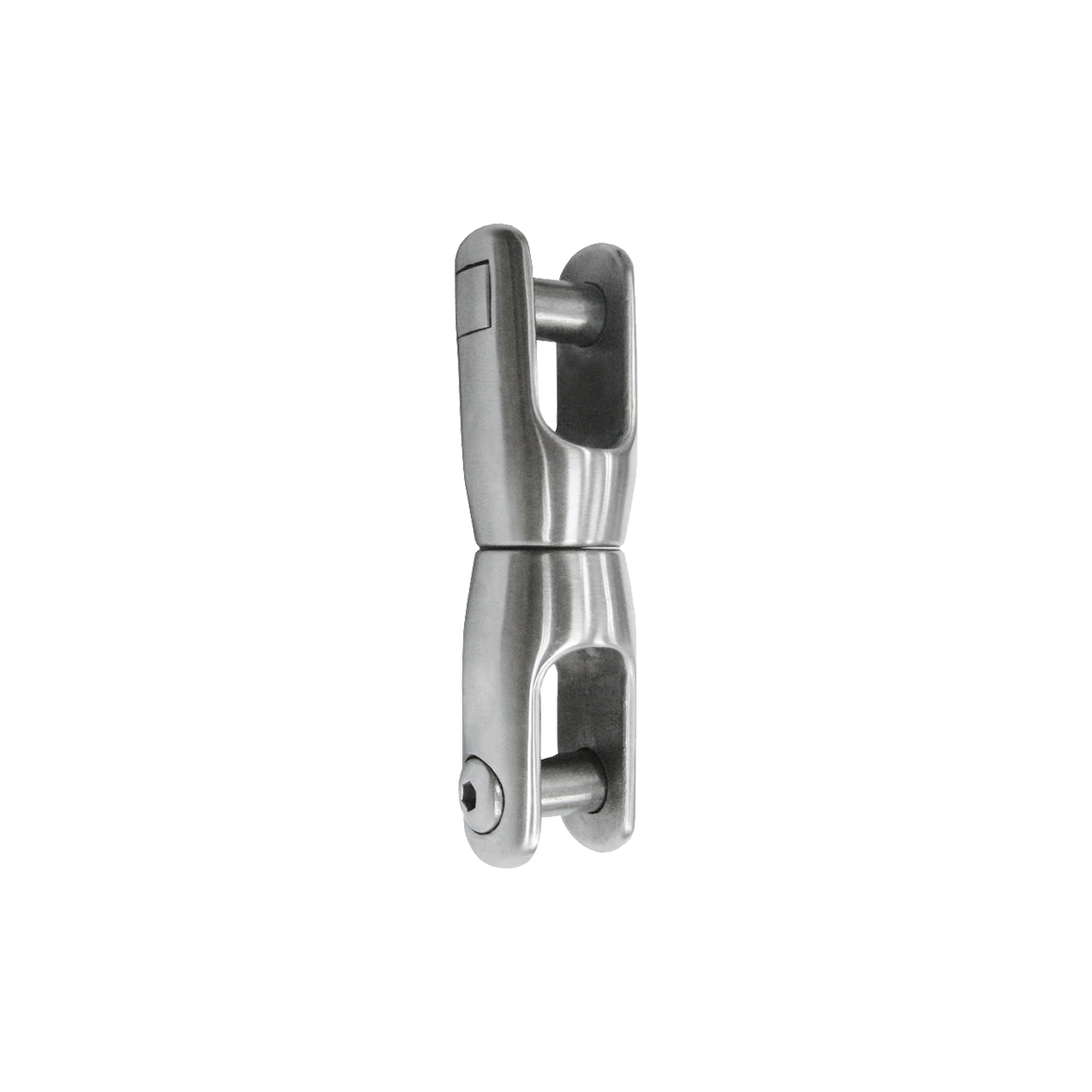

ROPE ANCHOR CONNECTOR
Stainless Steel 316
- Designed specially for use with rope.
- Incorporates wider and smoother jaws to accomodate up to 12mm thimbles.
- Captured pins will not loosen when under load.
- Pins can be removed by using an allen wrench.
- Loctite on screws is required after installation.
- Designed specially for use with rope.
- Incorporates wider and smoother jaws to accomodate up to 12mm thimbles.
- Captured pins will not loosen when under load.
- Pins can be removed by using an allen wrench.
- Loctite on screws is required after installation.
Qty
MOQ
-
Bulk No.
A mm
B mm
C mm
Pin1 Ø mm
Pin2 Ø mm
S.W.L.
NDH-AC-16-R 100(3-15/16”) 18(11/16") 18(11/16") 10(3/8") 10(3/8") 850 kg/ 1900 lb -
Bulk No.
Download

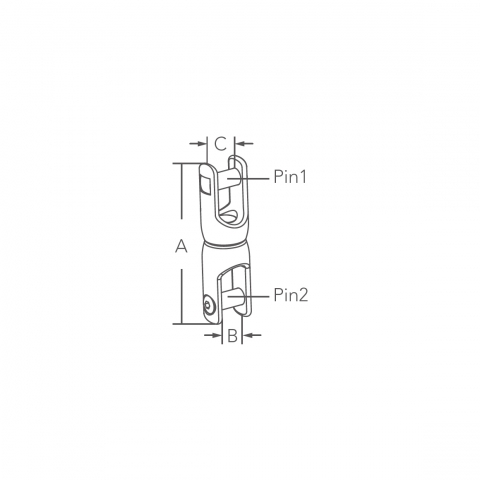

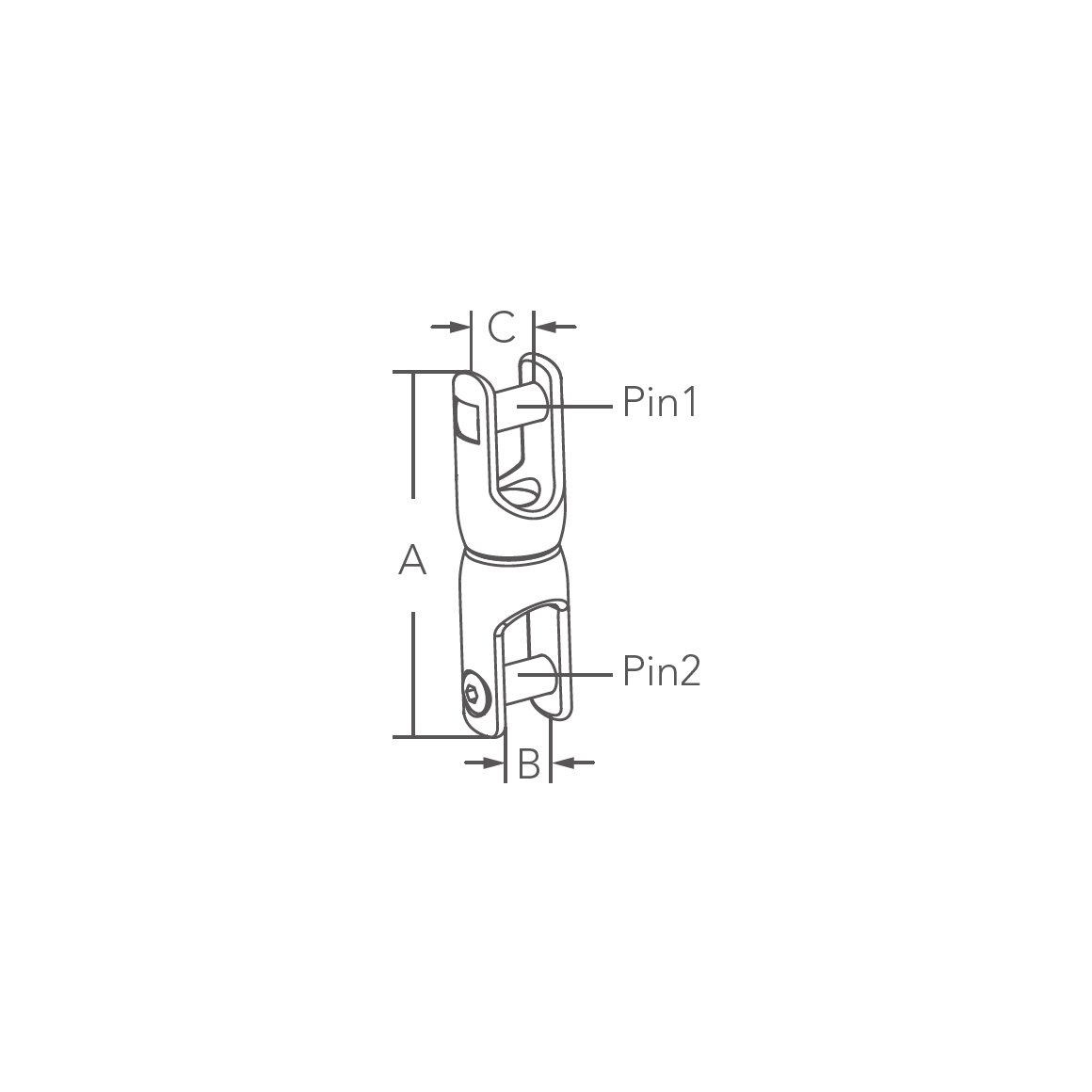

NDH-AC-16-R Drawing
