CUBIC MAG. HOLDER - PROUD TYPE
Stainless Steel 316 & Nylon & Rubber
- Magnets fully encapsulated in stainless steel 316 to withstand corrosive marine
environment.
- Match any north and south pole magnets as a set.
- If you pair a flush rubber bumper style magnet with a proud magnet, the proud side
should be the same or larger size to prevent damages.
- Rubber bumper style magnets reduce noise, hence ideal for interior application.
Plus, due to potential UV degradation, exterior use is not recommended.
- Sold by piece.
- Screw size M4 or #8.
- Magnets fully encapsulated in stainless steel 316 to withstand corrosive marine
environment.
- Match any north and south pole magnets as a set.
- If you pair a flush rubber bumper style magnet with a proud magnet, the proud side
should be the same or larger size to prevent damages.
- Rubber bumper style magnets reduce noise, hence ideal for interior application.
Plus, due to potential UV degradation, exterior use is not recommended.
- Sold by piece.
- Screw size M4 or #8.
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
-
Bulk No.
Mag. Pole
Model

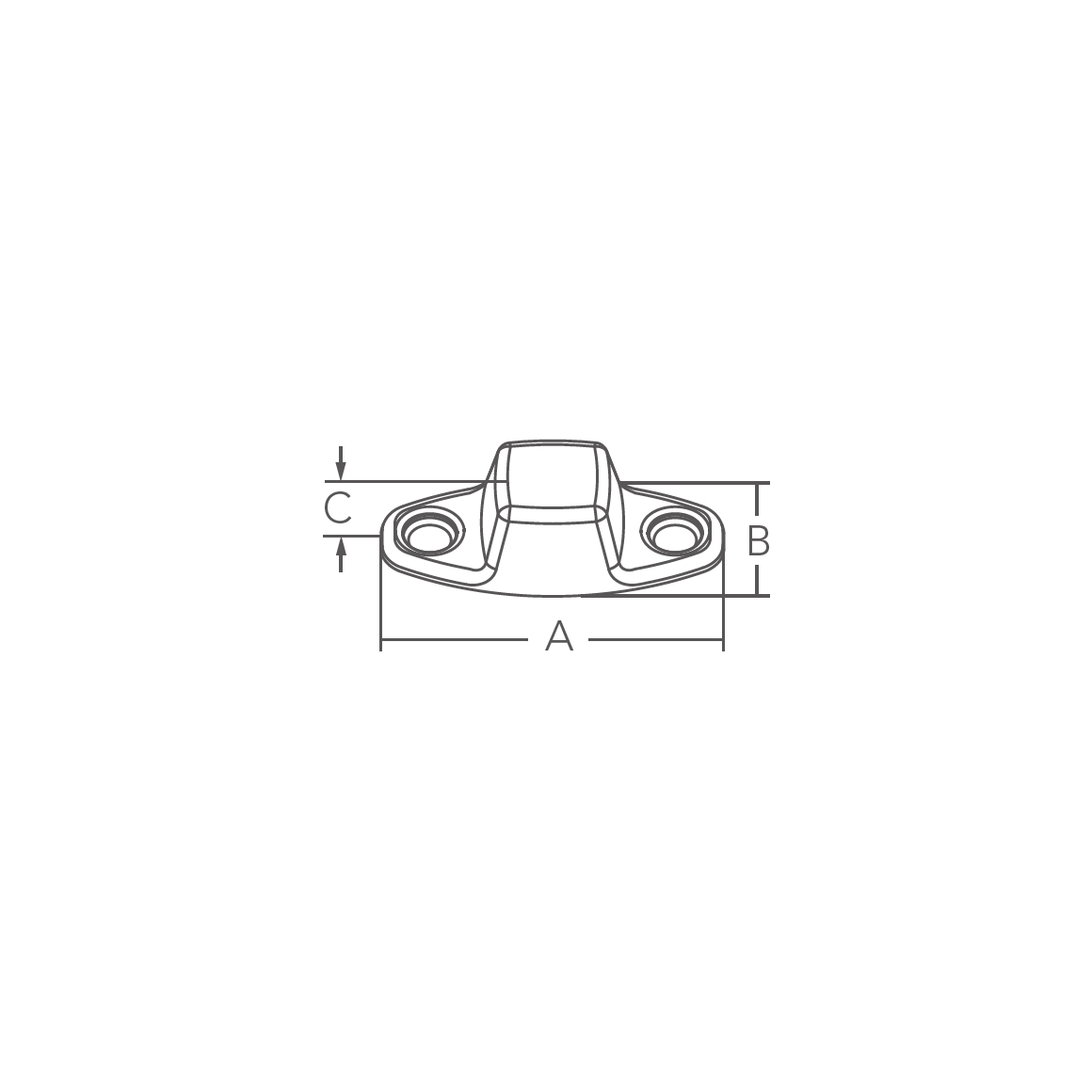

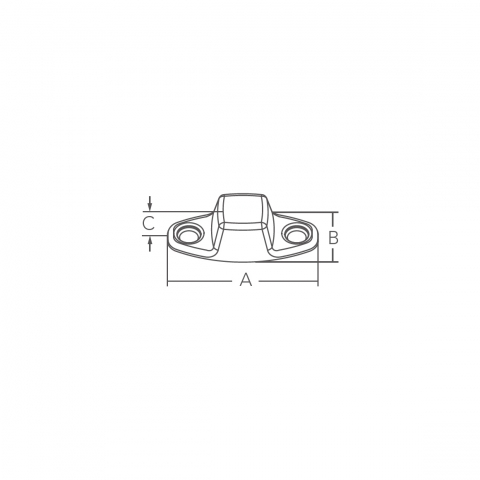

Mag. Size
A mm
B mm
C mm

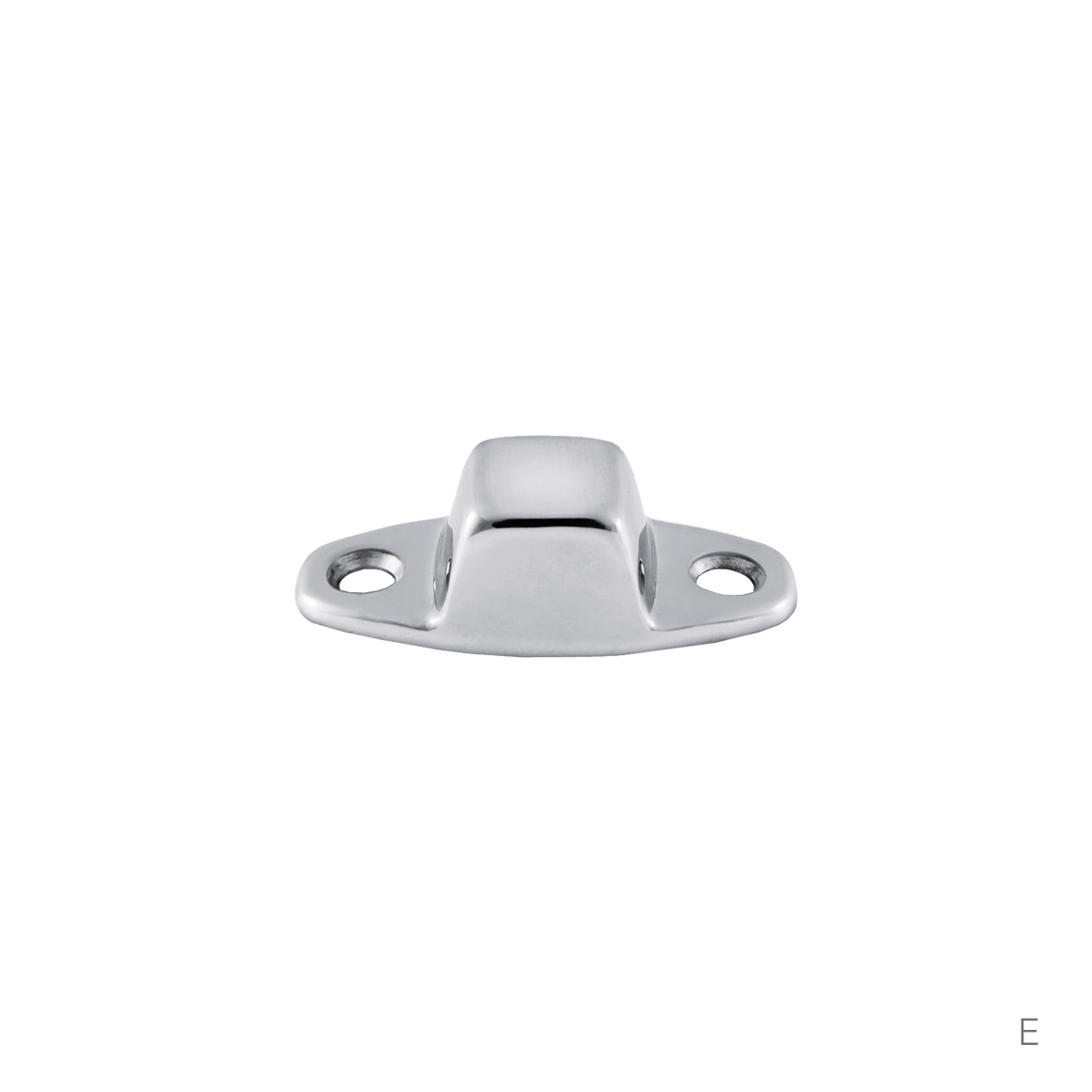

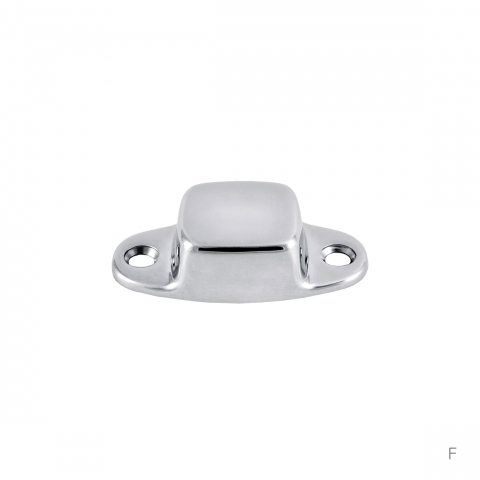

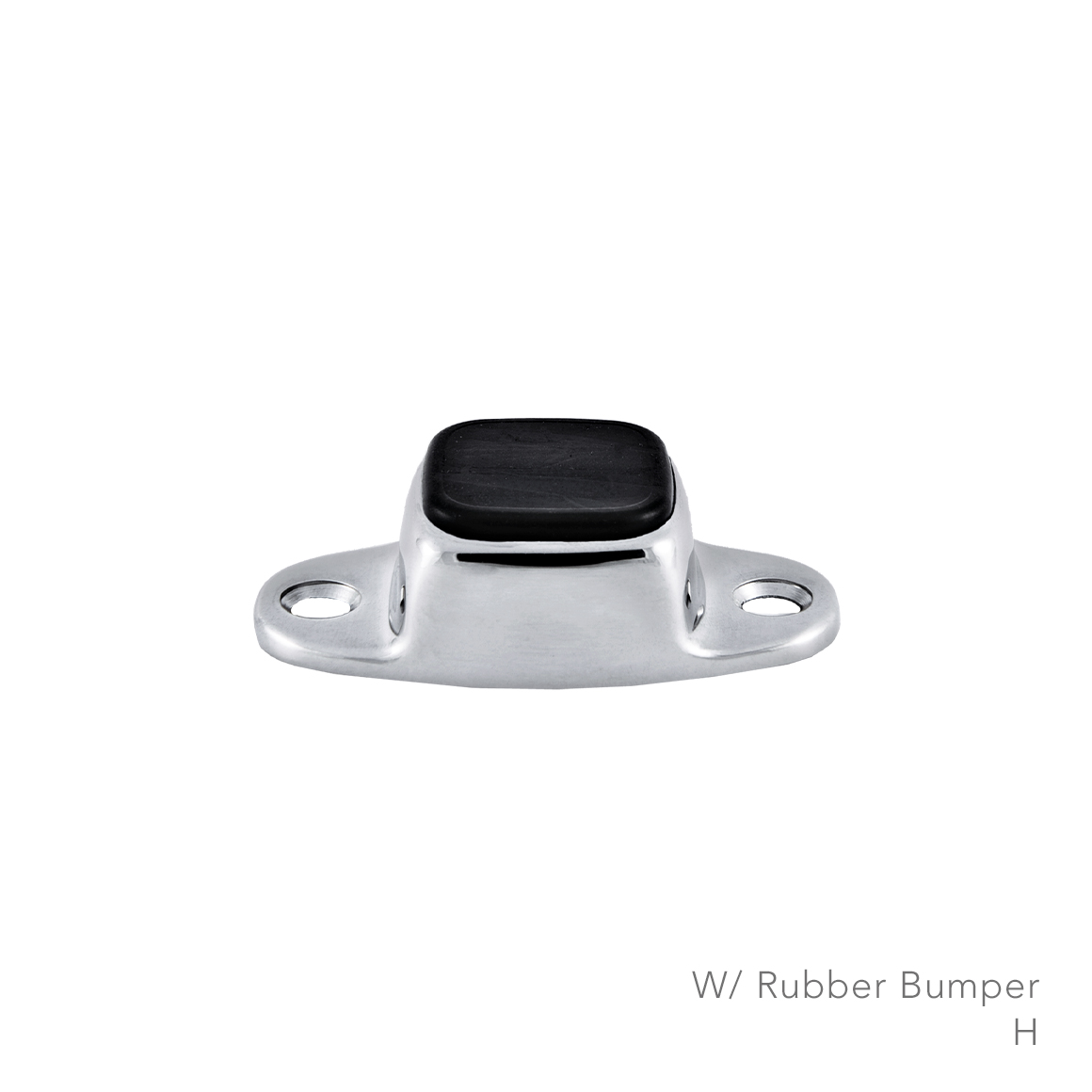

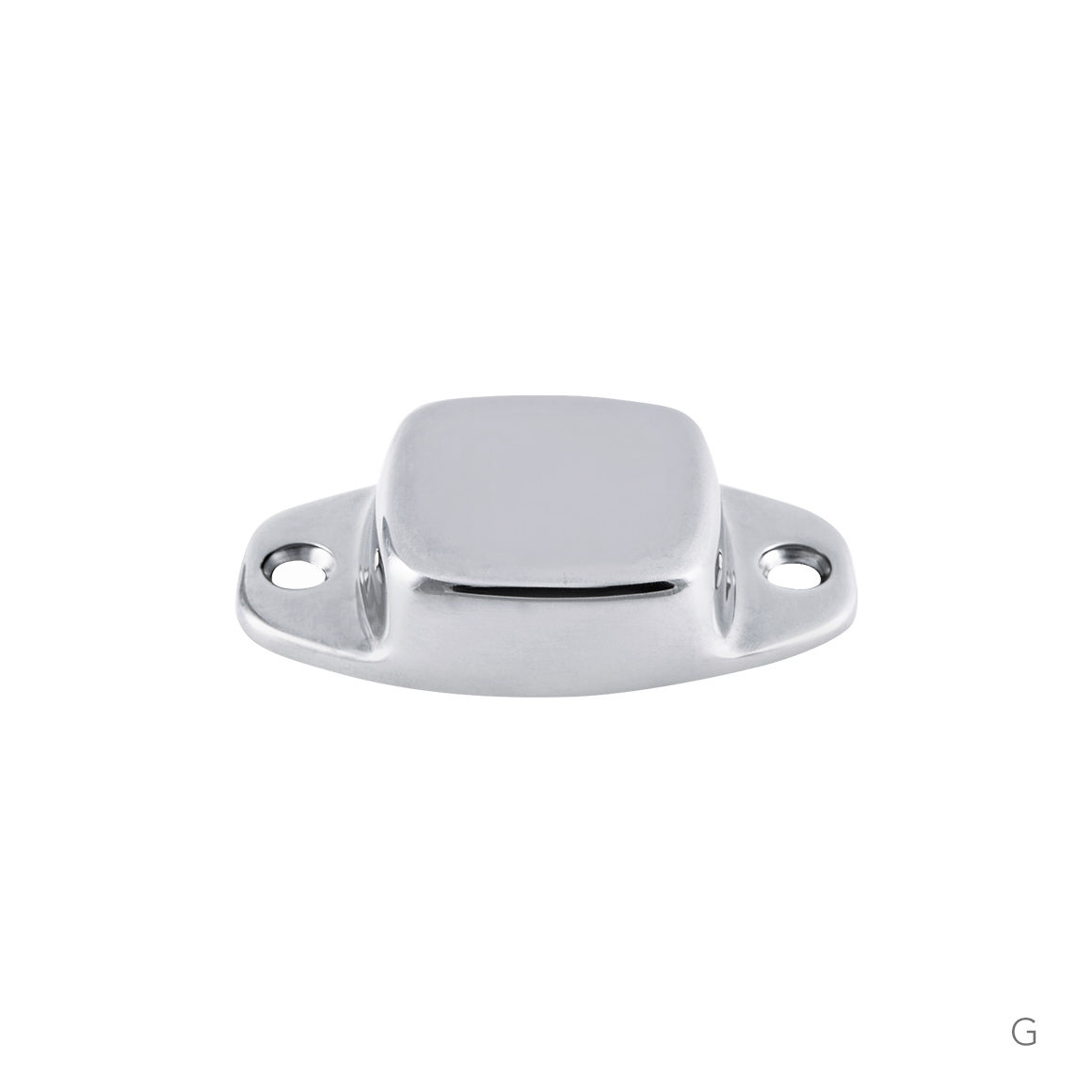

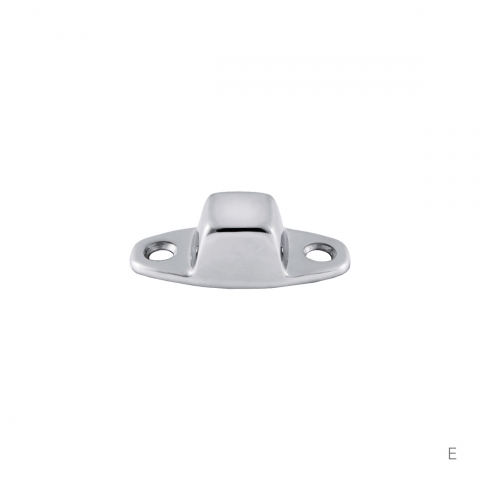

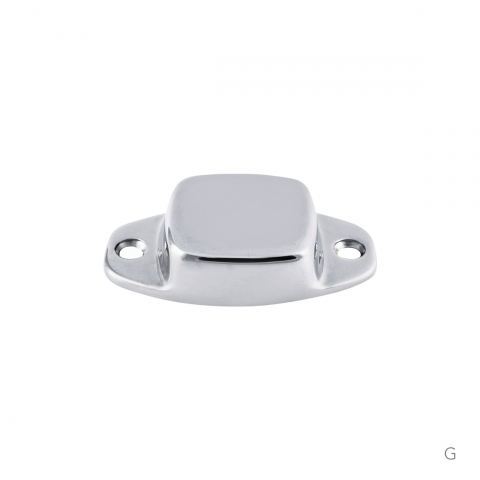

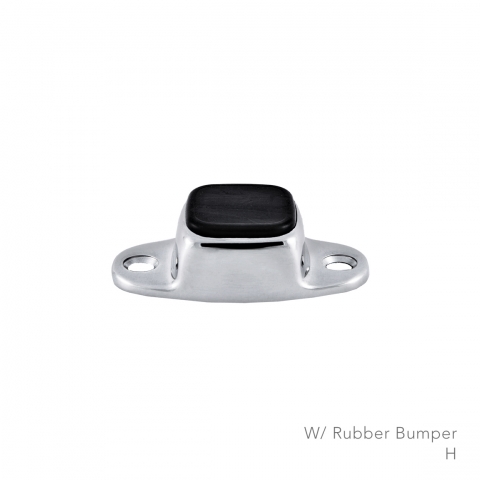

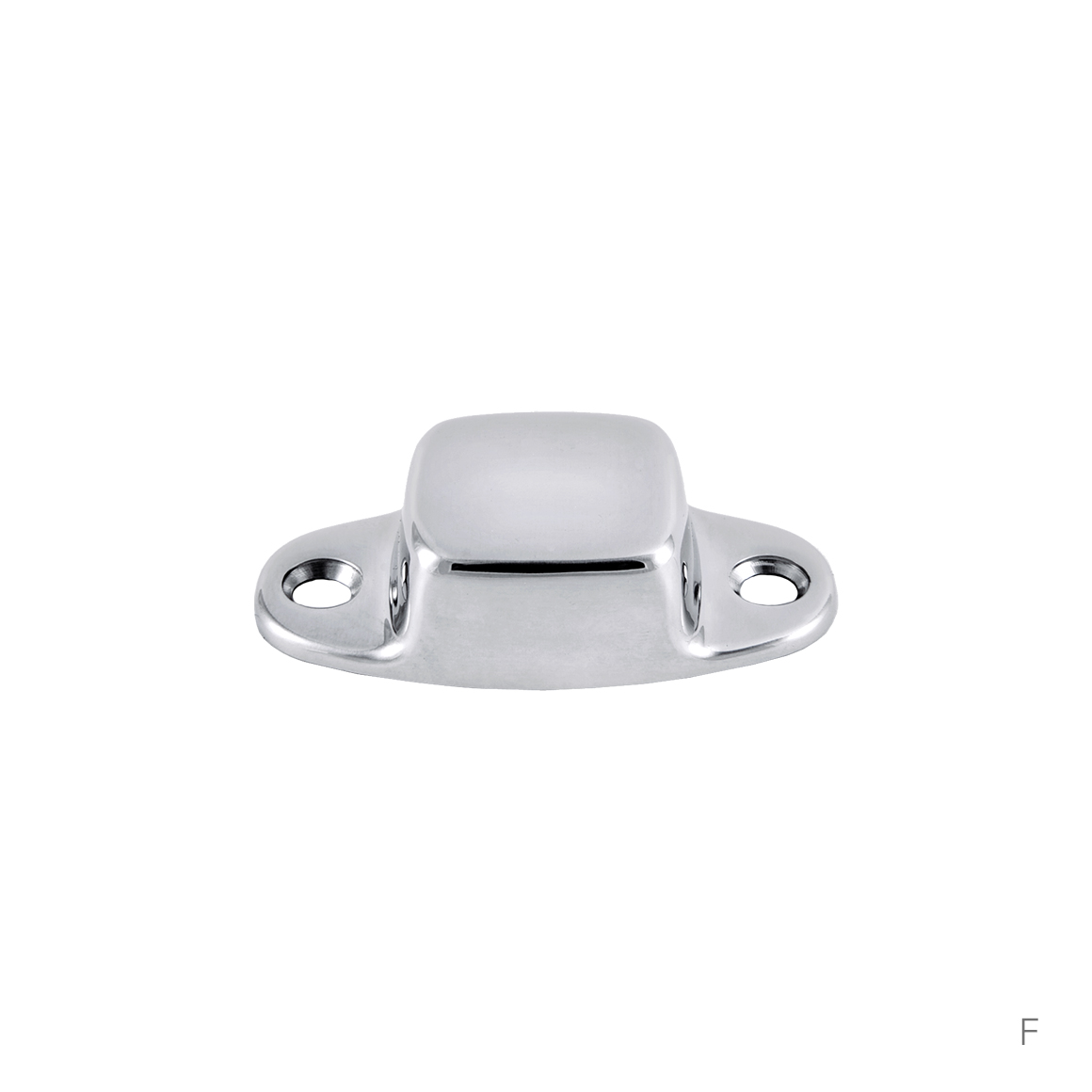

0207671P North E 15 x 10 53(2-1/16") 24(15/16") 15(9/16") 0207671N South E 15 x 10 53(2-1/16") 24(15/16") 15(9/16") 0207671NR South H 15 x 10 53(2-1/16") 24(15/16") 16(5/8") 0207673P North F 25 x 10 60(2-3/8") 31(1-1/4") 15(9/16") 0207673N South F 25 x 10 60(2-3/8") 31(1-1/4") 15(9/16") 0207673NR South H 25 x 10 60(2-3/8") 31(1-1/4") 16(5/8") 0207675P North G 35 x 10 70(2-3/4") 40(1-9/16") 15(9/16") 0207675N South G 35 x 10 70(2-3/4") 40(1-9/16") 15(9/16") 0207675NR South H 35 x 10 70(2-3/4") 40(1-9/16") 16(5/8") MAGNET SIZE
HOLDING POWER
W/O RUBBER BUMPER
W/ RUBBER BUMPER
15 x 10 15 x 10 3.3 kg / 7.3 lb 1.5 kg / 3.3 lb 25 x 10 25 x 10 7.0 kg / 15.4 lb 5.2 kg / 11.5 lb 35 x 10 35 x 10 9.0 kg / 19.8 lb 7.2 kg / 15.8 lb 30 x 15 35 x 10 11 kg / 24.2 lb 10 kg / 22 lb MAG. HOLDER BOTTOM
P (North) N (South)
