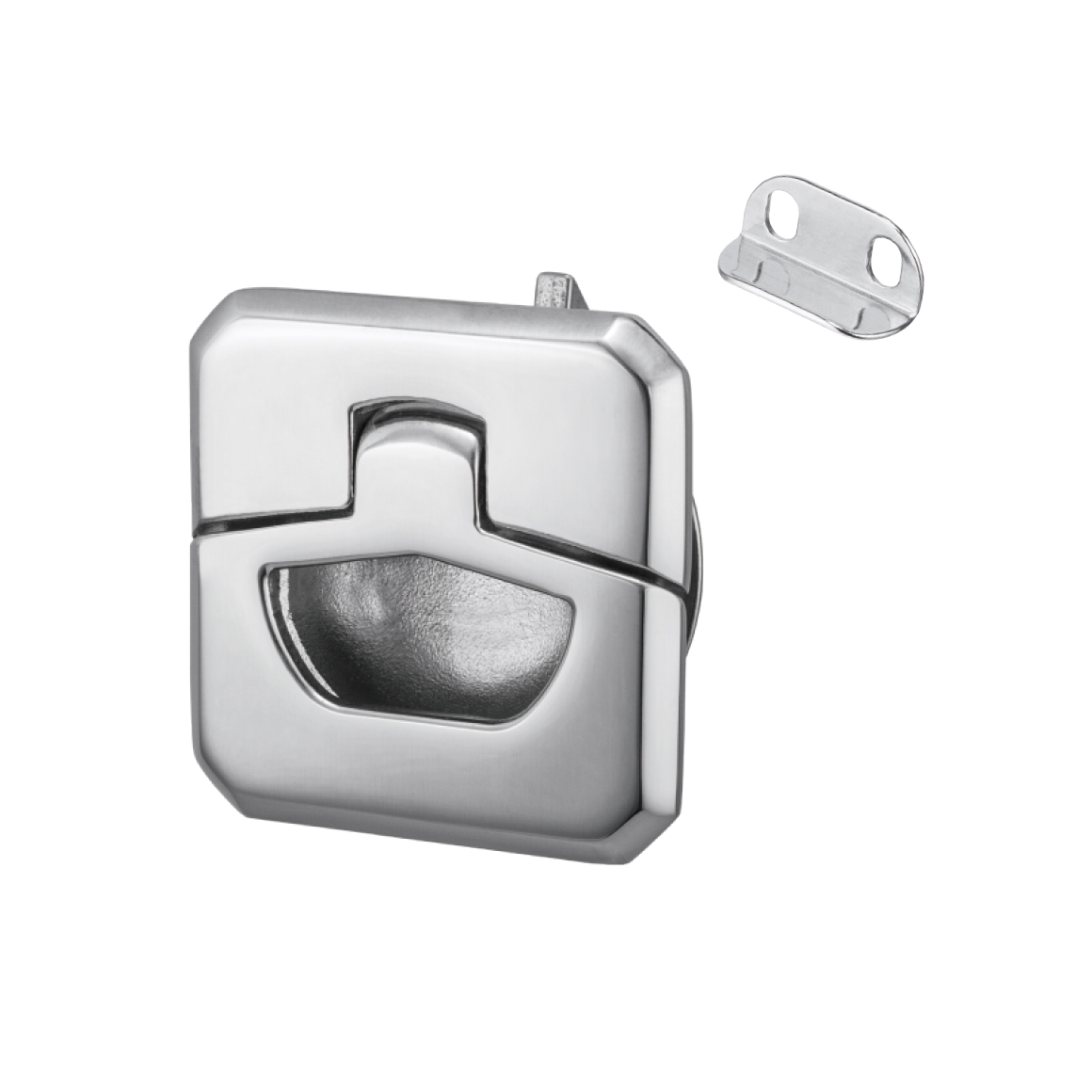

GRAND SERIES - SQUARE MINI SLAM LATCH 1-3/8"
- Stainless Steel 316
- New smaller self-closing latch.
- Larger handle opening for comfortable grip.
- Anti-rattle design incorporates double springs.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.
- New smaller self-closing latch.
- Larger handle opening for comfortable grip.
- Anti-rattle design incorporates double springs.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.
Qty
Qty
-
Bulk No.
Shape
Model

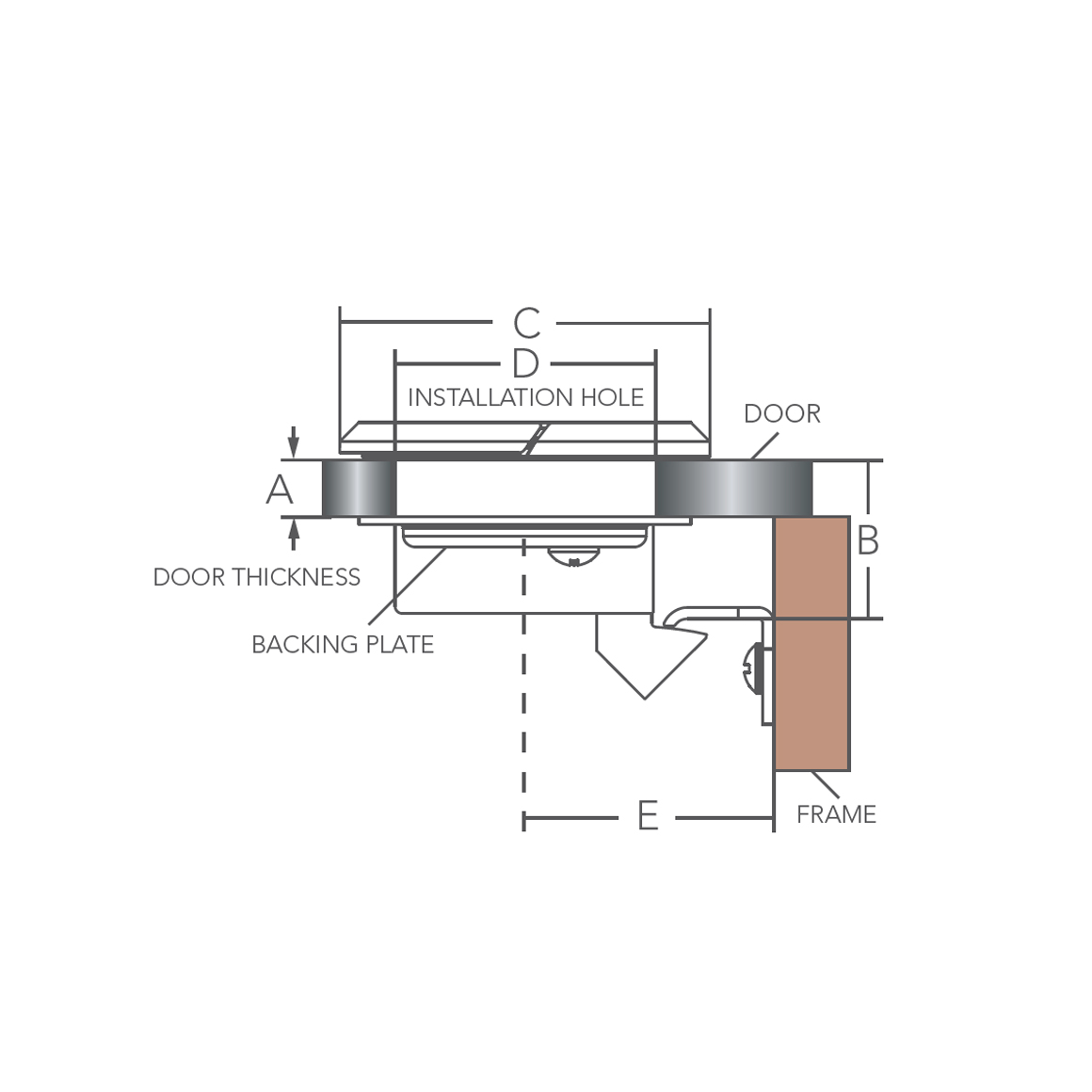

A mm
B mm
C mm
D mm
E mm
0207851 Square W/O Lock 8~19(5/16"~3/4") 22(7/8") 49(1-15/16") 35(1-3/8") 33(1-5/16") 9105511-V1 3mm(1/8") Spacer
Bulk No.
SCREW SIZE
LATCH BODY
STRIKE
0207851 #8 (included) M4 or #8 (not included)
-
Bulk No.
Download
0207851 Drawing
