GRAND SERIES - MINI SLAM LATCH 1-3/8''

Stainless Steel 316
- Smaller self-closing latch.
- Anti-rattle design incorporates double springs.
- Stainless steel 316 slide built to endure high-speed impacts under way.
- Reversible backing plate for wide range of door thickness.
- Included gasket eliminates the need for caulking.



Qty
Qty
Qty
Qty
  •

    Bulk No.

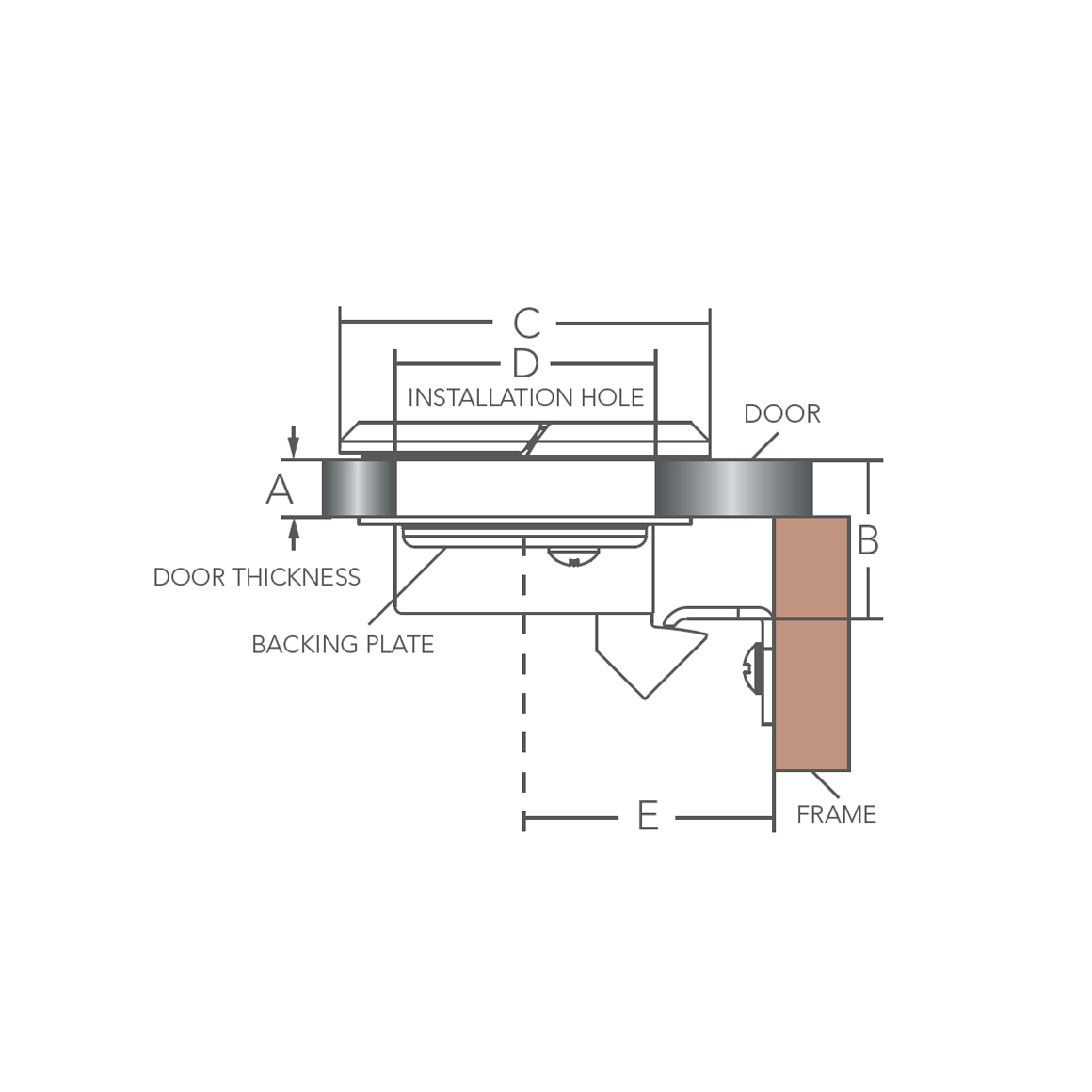

    Shape

    Model

    A mm

    B mm

    C mm

    D mm

    E mm

    0207801 Round W/O Lock 8~19(5/16"~3/4") 22(7/8") 49(1-15/16") 35(1-3/8") 33(1-5/16")
    0207802 Round W/ Lock 8~19(5/16"~3/4") 22(7/8") 49(1-15/16") 35(1-3/8") 33(1-5/16")
    9105511-V1           3mm(1/8") Spacer
    9707938           Stainless Steel 304 Universal MT Key




    Bulk No.

    SCREW SIZE

    LATCH BODY

    STRIKE

    0207801 #6 (included) M4 or #8 (not included)
    0207802 #8 (included) M4 or #8 (not included)

  •

    Bulk No.

    Download

    0207801 Drawing
    0207802 Drawing
