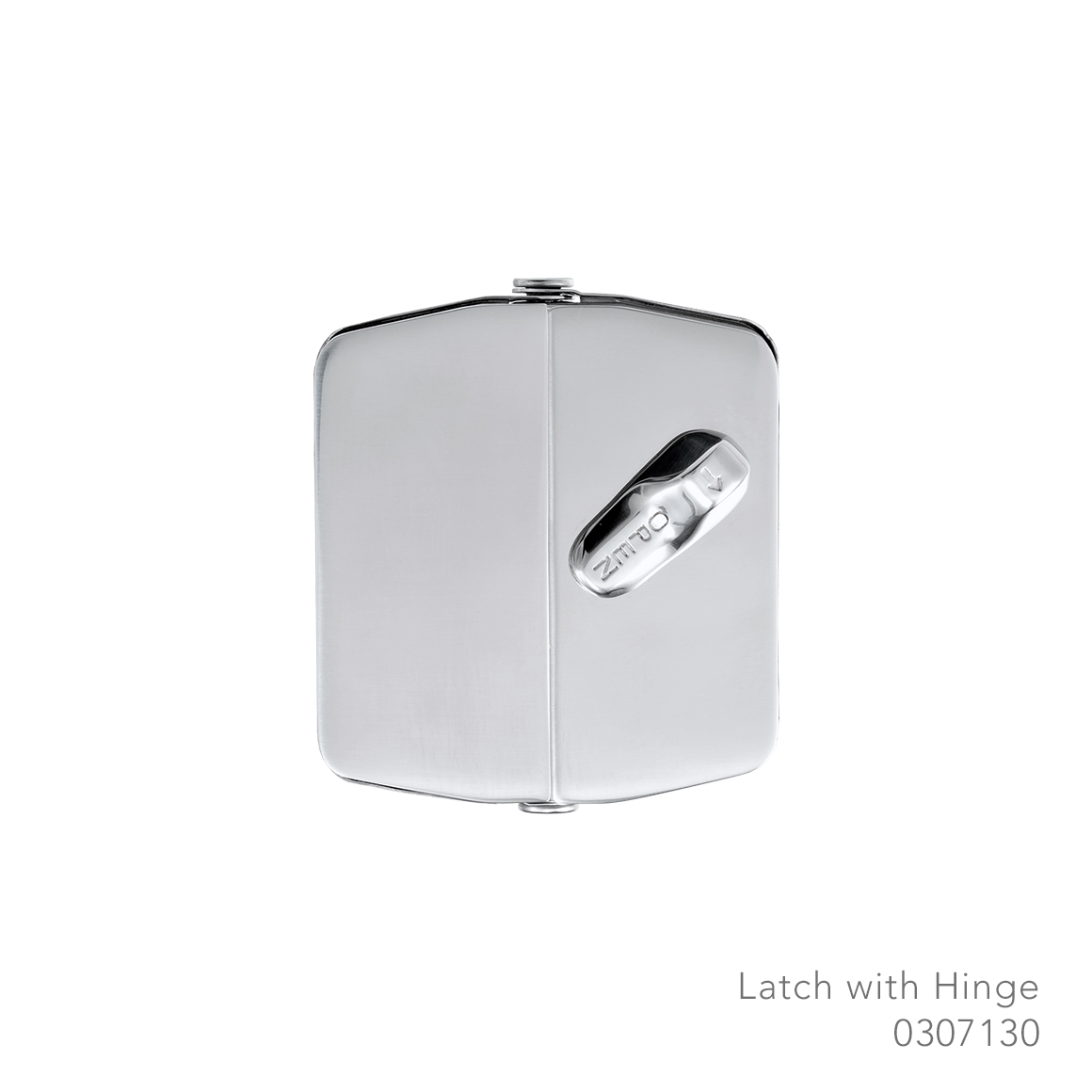

BI - FOLD DOOR LATCH
Stainless Steel 316
- Strong stainless steel construction.

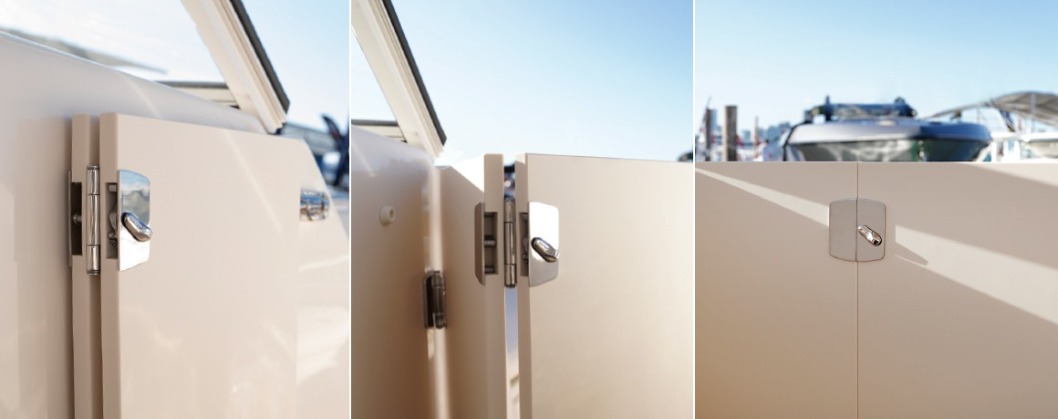

- Ideal for use on bi-fold doors isolating bow area from cockpit.
- Innovative latch-hinge combination facilitates easy operation and secure closure
of bi-fold doors.
- Compact hidden screw design offers clean look and allows door to store properly
when not in use.
- Door thicknesses: Max. depends on screw length; min. 12mm (1/2").

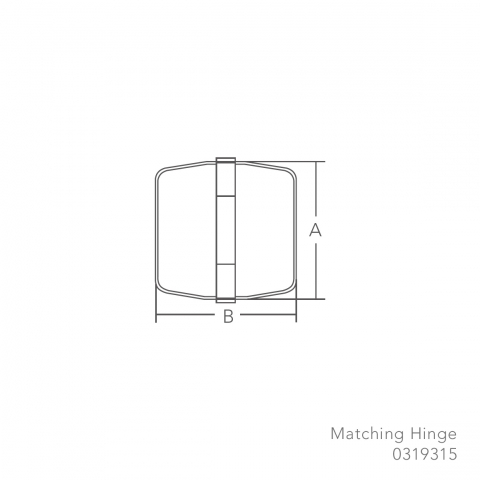

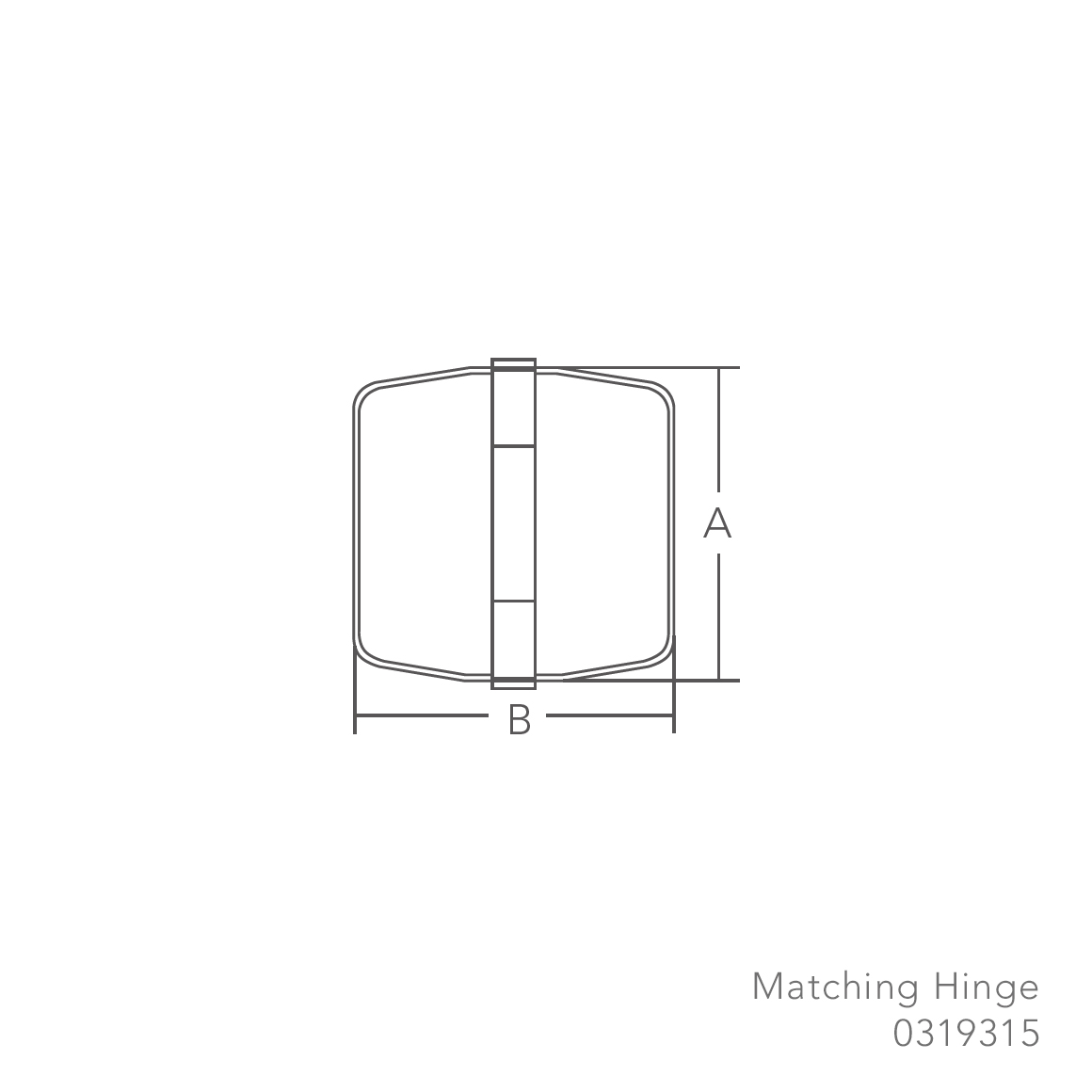

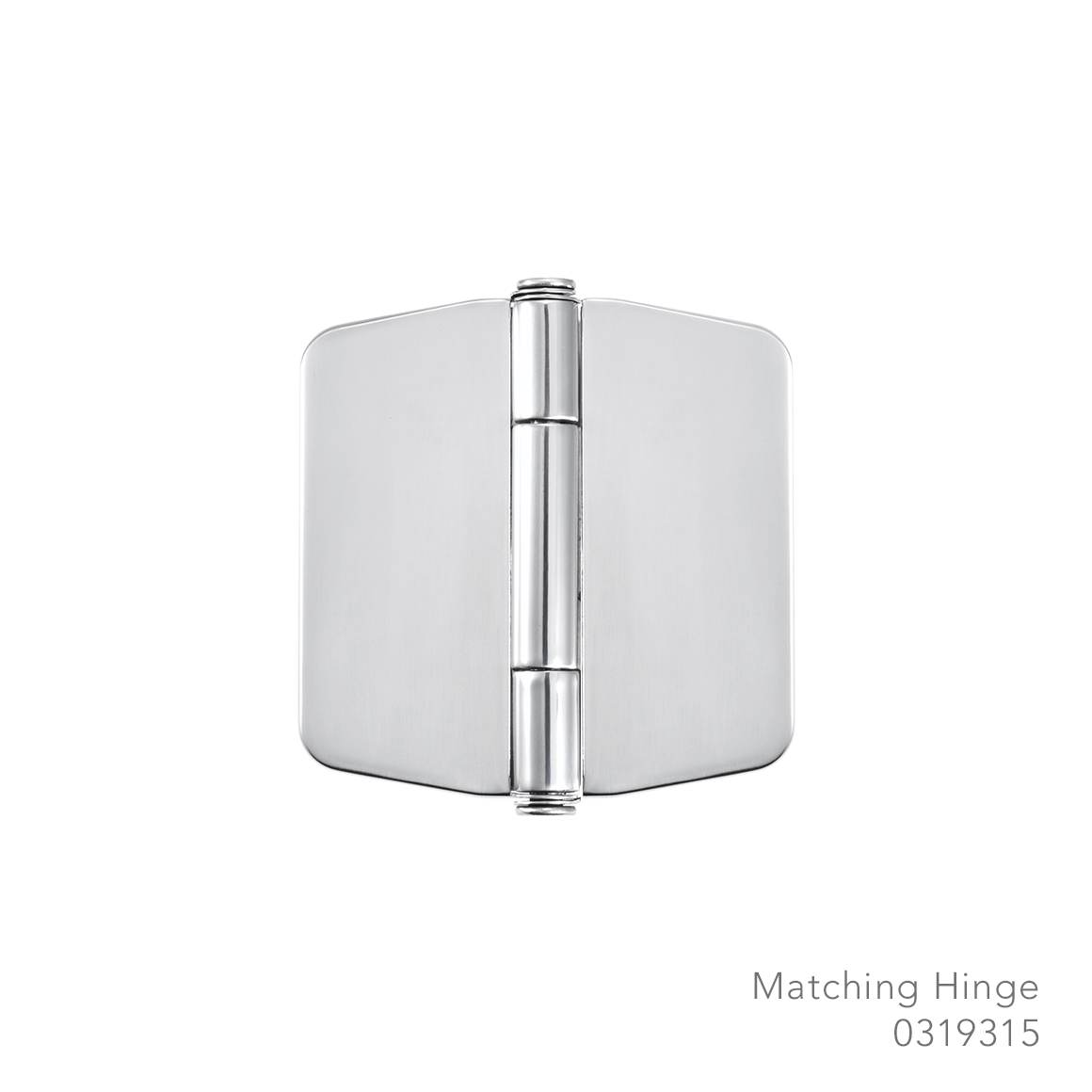

- A matching butterfly hinge 0319315 is available to go with it.
- 0319315 is sold separately.
- Screw size M5 or #10 for 0319315 and 0307130.
- Stainless steel 304 accessories are included.
- Strong stainless steel construction.
- Ideal for use on bi-fold doors isolating bow area from cockpit.
- Innovative latch-hinge combination facilitates easy operation and secure closure
of bi-fold doors.
- Compact hidden screw design offers clean look and allows door to store properly
when not in use.
- Door thicknesses: Max. depends on screw length; min. 12mm (1/2").
- A matching butterfly hinge 0319315 is available to go with it.
- 0319315 is sold separately.
- Screw size M5 or #10 for 0319315 and 0307130.
- Stainless steel 304 accessories are included.
Qty
Qty
-
Bulk No.

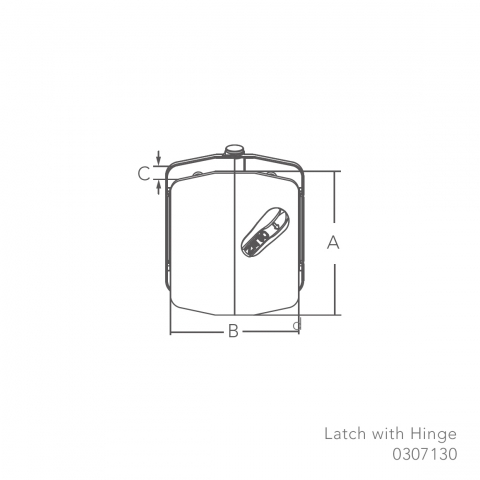

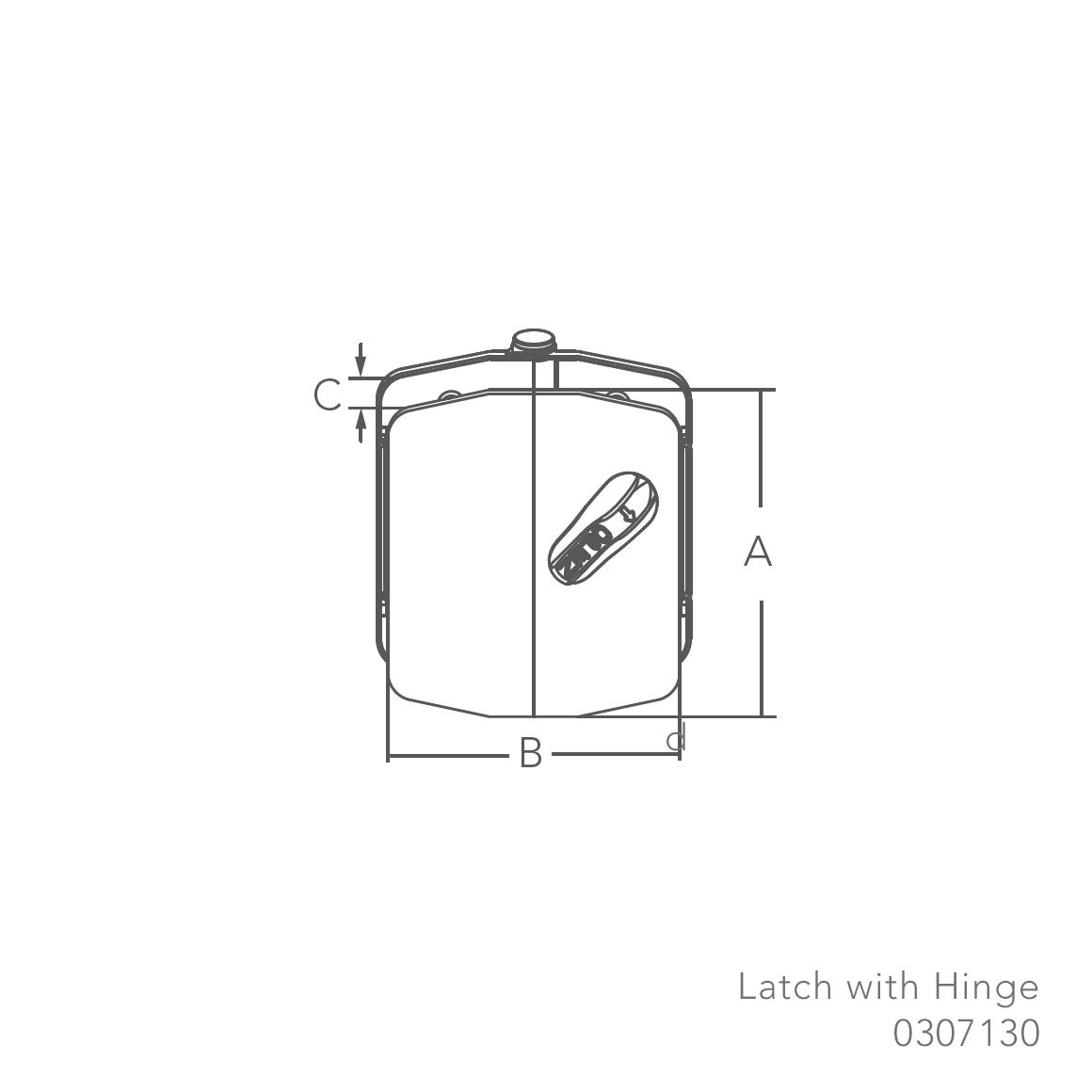

A mm
B mm
C mm
0307130 75(2-15/16") 70(2-3/4") Min.12(1/2") 0319315 78(3-1/16") 78(3-1/16") -
