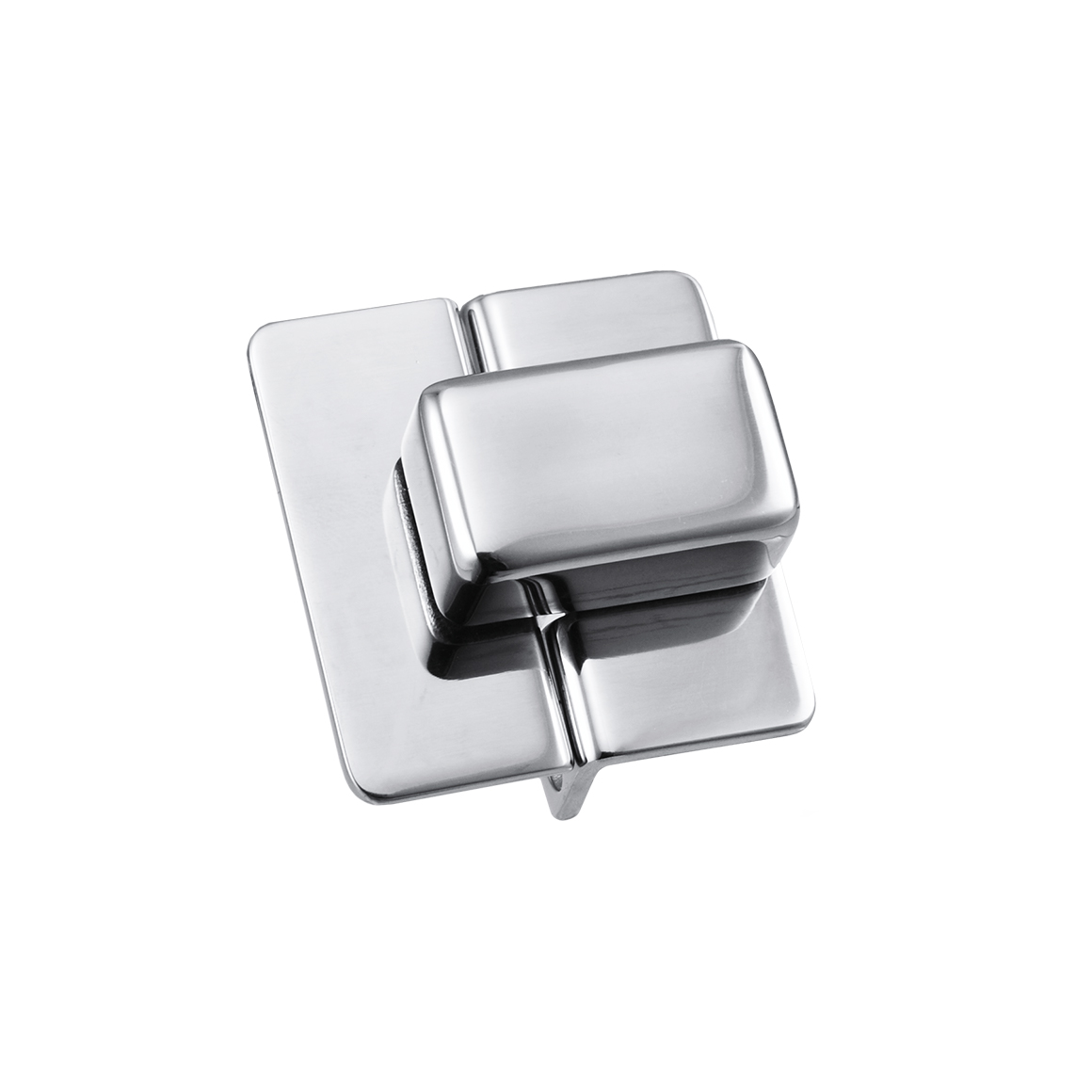

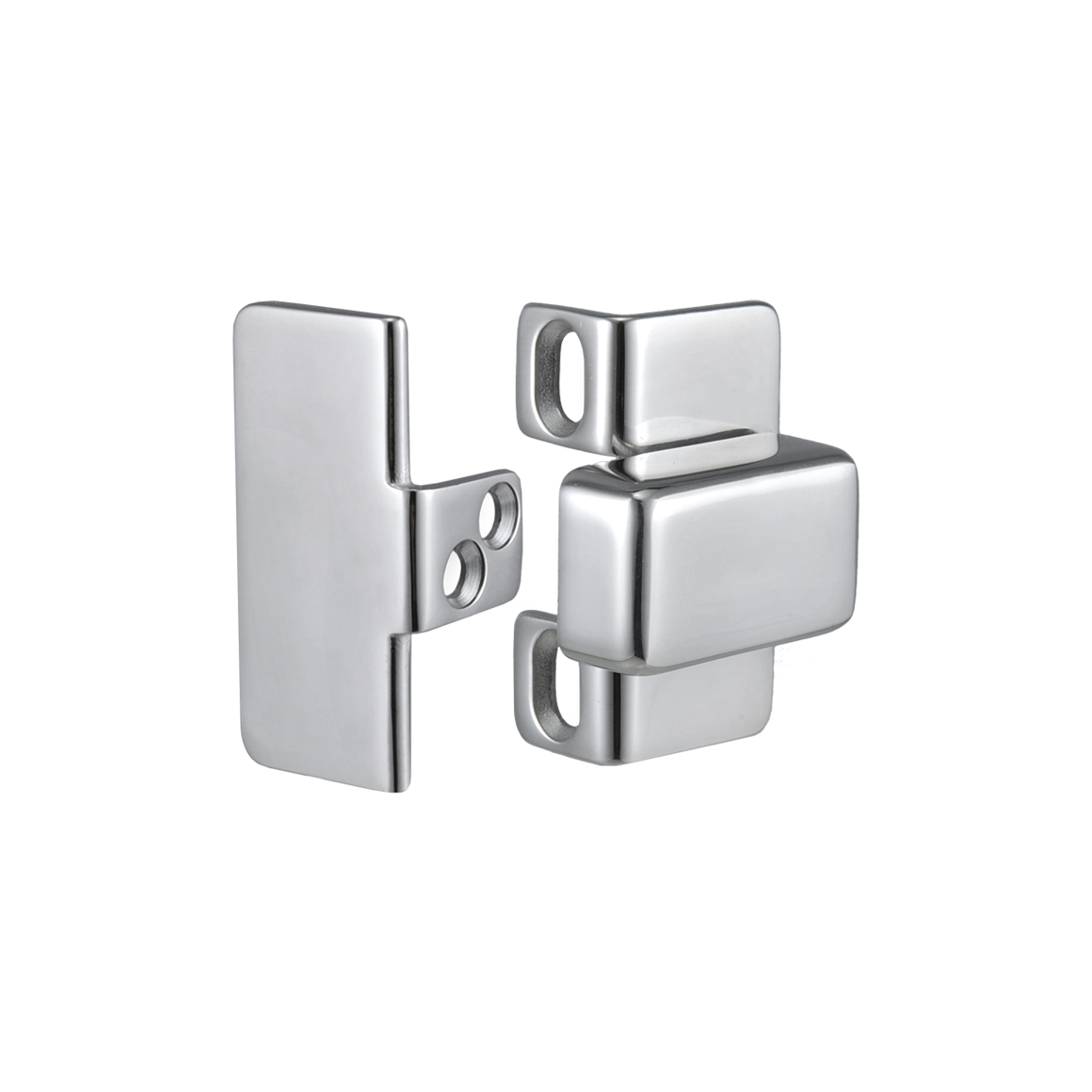

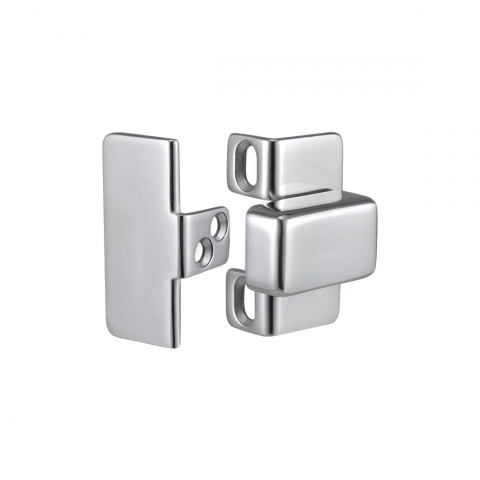

SWIVEL CABINET LATCH
Stainless Steel 316

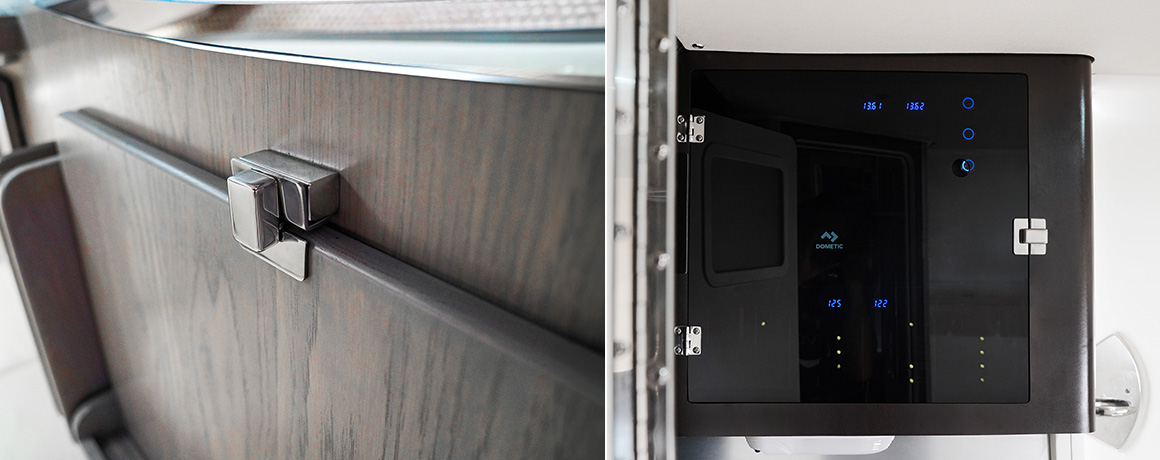

- Act as a stop to prevent cabinet doors from opening.
- Hidden fastener design for clean appearance.
- Unique detent knob design allows fixed positioning after each 90° rotation.
- Slot holes incorporated to facilitate minor adjustments following installation.
- Minimum 3mm of door gap is required.
- Screw size M4 or #8 for latch.
- Screw size M3 or #6 for strike.
- Stainless steel 304 accessories are included.
- Act as a stop to prevent cabinet doors from opening.
- Hidden fastener design for clean appearance.
- Unique detent knob design allows fixed positioning after each 90° rotation.
- Slot holes incorporated to facilitate minor adjustments following installation.
- Minimum 3mm of door gap is required.
- Screw size M4 or #8 for latch.
- Screw size M3 or #6 for strike.
- Stainless steel 304 accessories are included.
Qty
Qty
-
Bulk No.

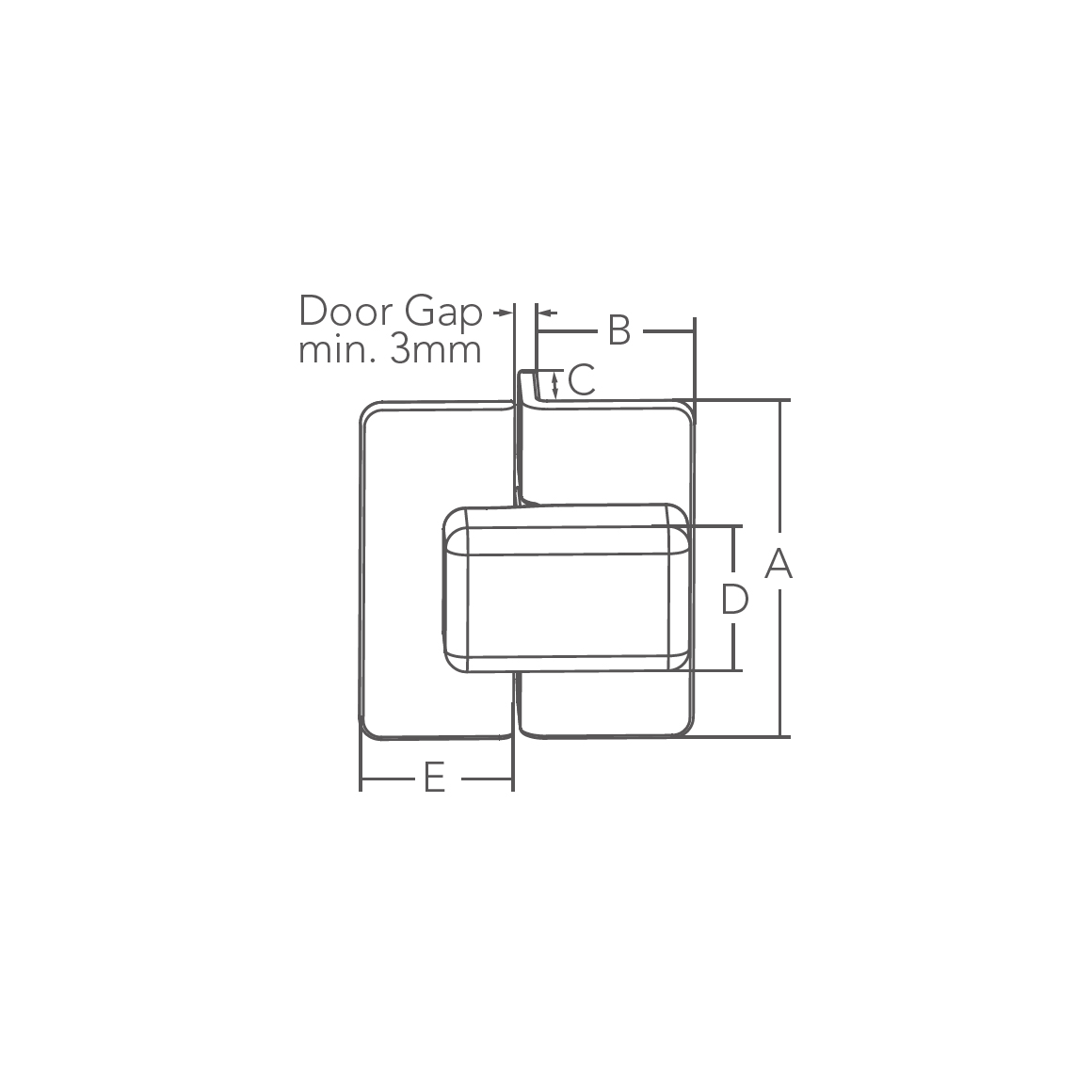

Model
A mm
B mm
C mm
D mm
E mm
0511976 W/ Strike 49(1-15/16") 22(7/8") 16(5/8") 21(13/16") 22(7/8") 0511976-1 W/O Strike 49(1-15/16") 22(7/8") 16(5/8") 21(13/16") -
