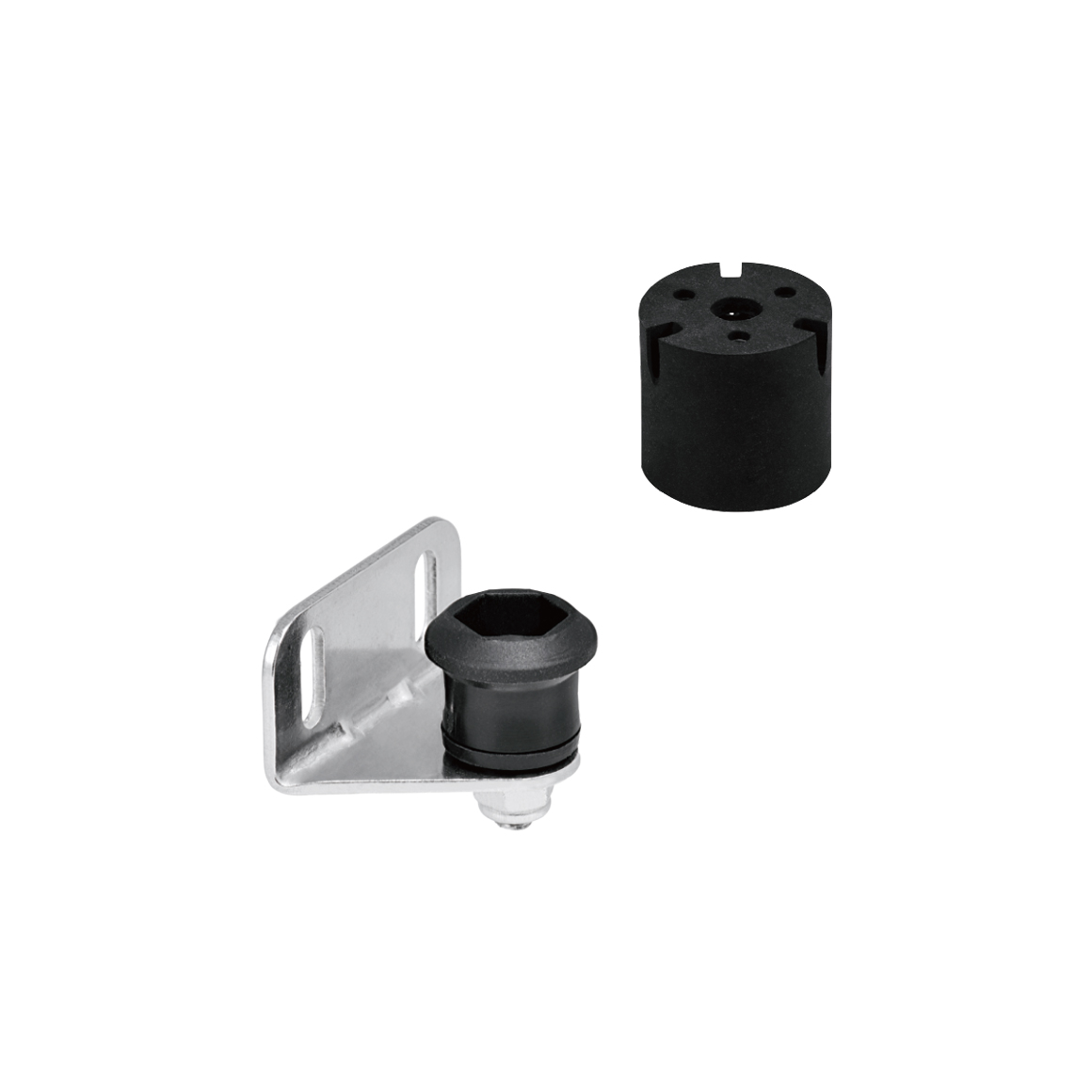

HATCH PLUNGER
Stainless Steel 316 Bracket & Rubber & PP

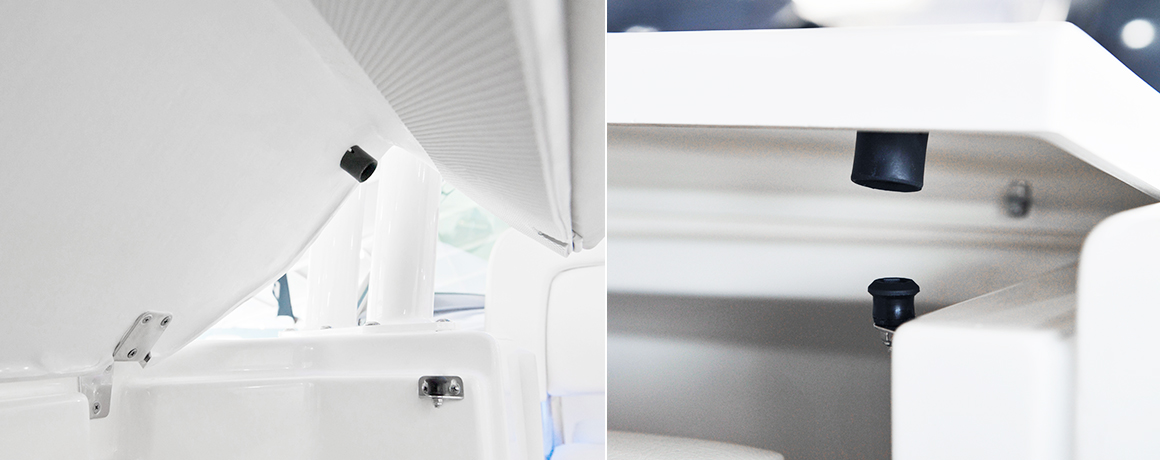

- Compact design for versatile application on small anchor lockers, seat cushions,
doors, hatches, access panels, etc.
- Comes with 90° stainless steel mounting bracket.
- Recommended to use with lift handle as a package.
- Lift handle options: 0307314, 0107865, 1007861, 1007863.
- Screw size M3 or #6 for bracket.
- Screw size M5 or #10 for rubber holder.
- Reusable marking punch is required for proper installation and
warranty will be voided in the event one is not used.
Marking punch should be replaced after prolonged use to ensure
ongoing proper alignment during installation.
- Stainless steel 304 screw and locking nut are included.
- Compact design for versatile application on small anchor lockers, seat cushions,
doors, hatches, access panels, etc.
- Comes with 90° stainless steel mounting bracket.
- Recommended to use with lift handle as a package.
- Lift handle options: 0307314, 0107865, 1007861, 1007863.
- Screw size M3 or #6 for bracket.
- Screw size M5 or #10 for rubber holder.
- Reusable marking punch is required for proper installation and
warranty will be voided in the event one is not used.
Marking punch should be replaced after prolonged use to ensure
ongoing proper alignment during installation.
- Stainless steel 304 screw and locking nut are included.
Qty
Qty
Qty
-
Bulk No.

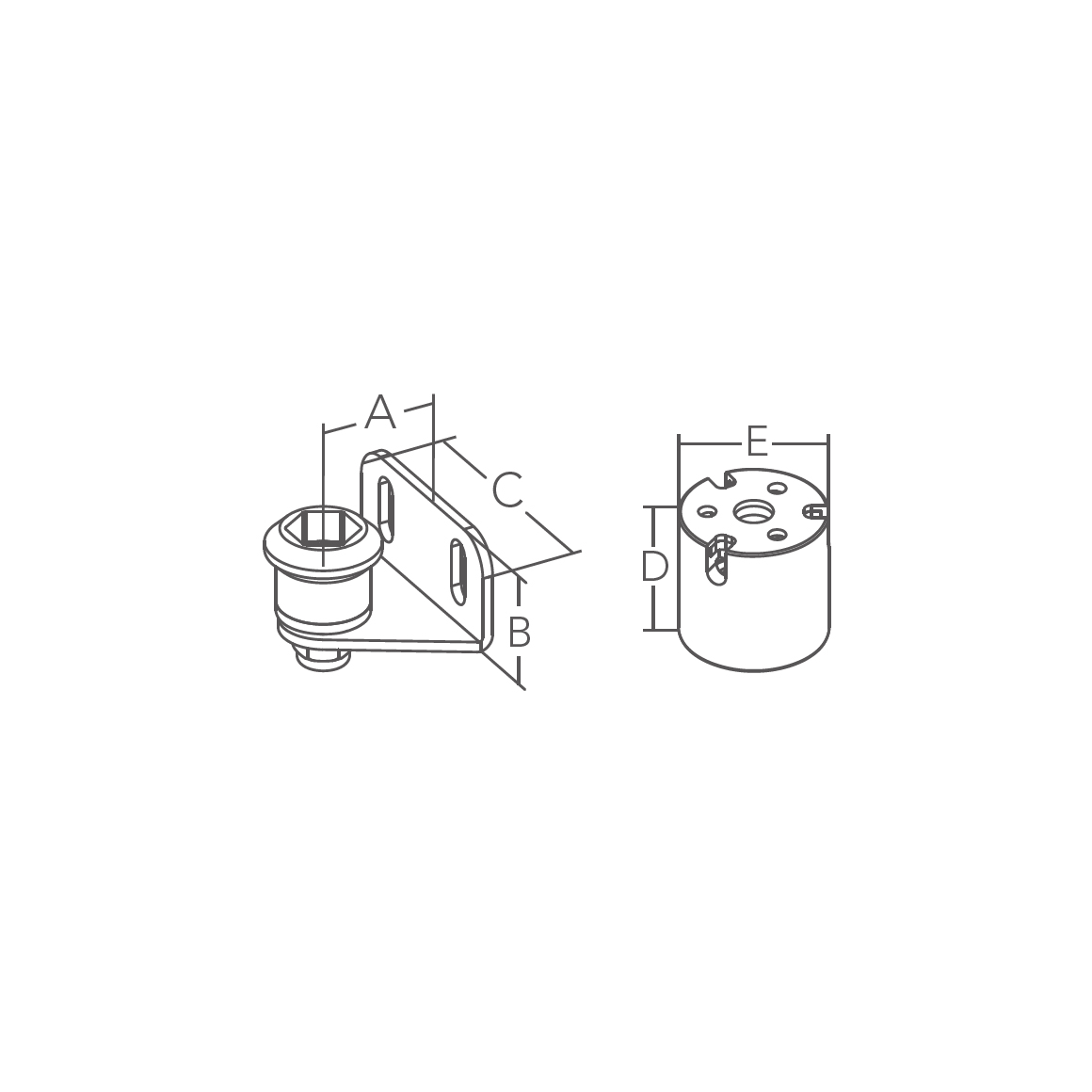

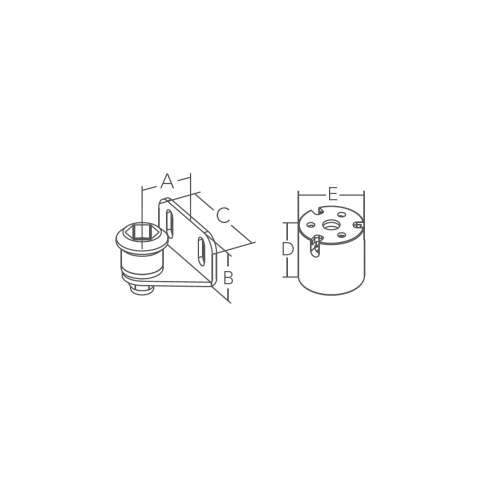

A mm
B mm
C mm
D mm
E mm
Holding Power

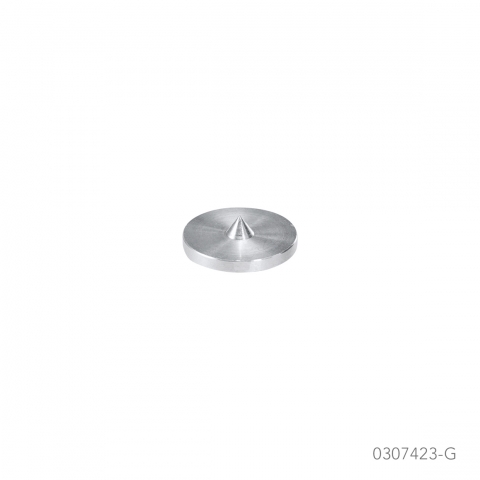

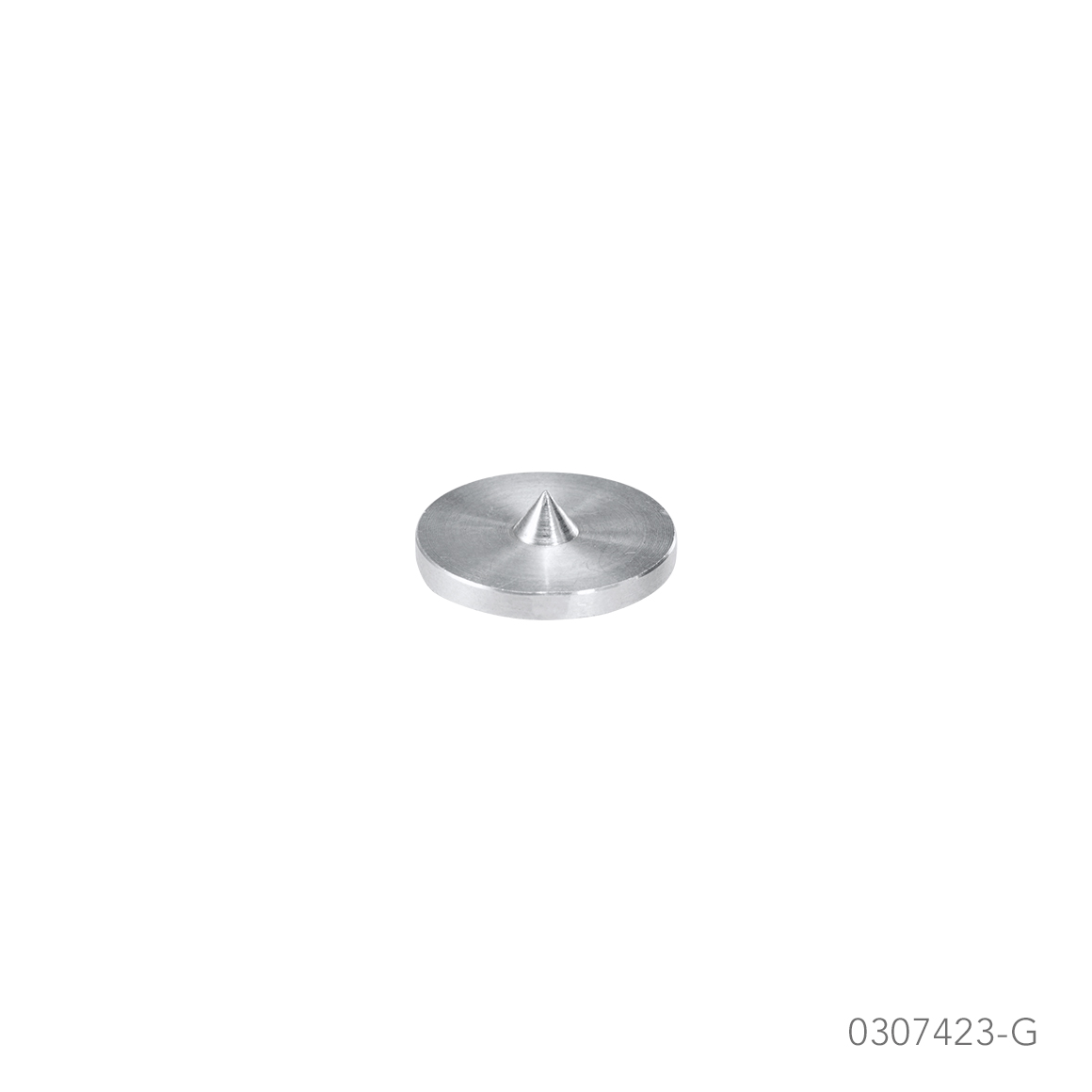

0307423 16.5(5/8") 16(5/8") 32(1-1/4") 20(13/16") 21(13/16") 8 kg(17 lb) 0707433 16.5(5/8") 16(5/8") 32(1-1/4") 20(13/16") 21(13/16") 16 kg(35 lb) 0307423-G Aluminum Marking Punch

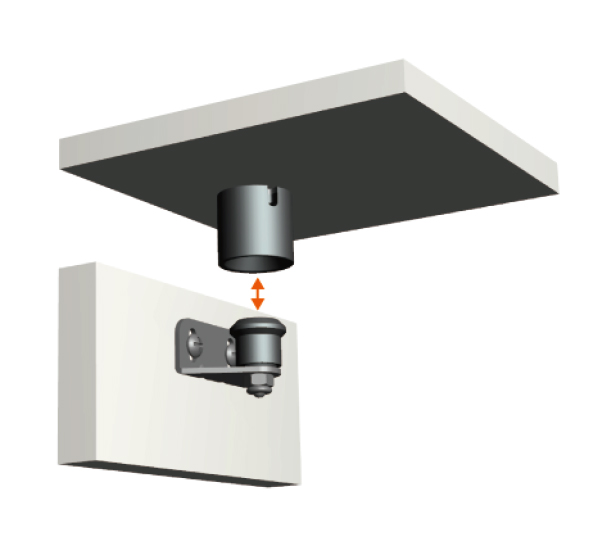

INSTALLATION INSTRUCTION

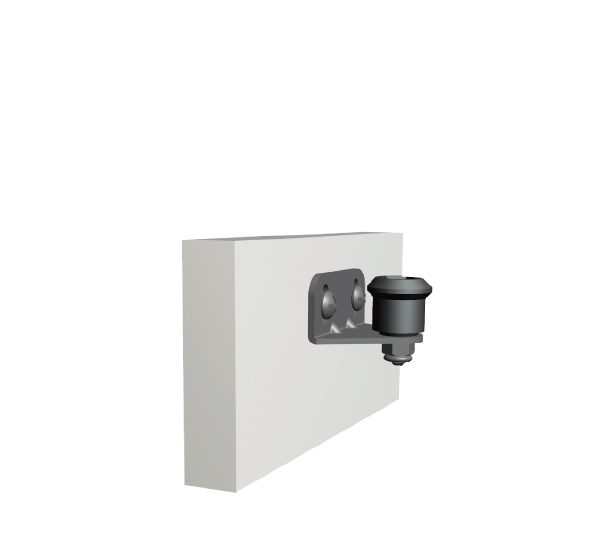

❶ Install bracket.

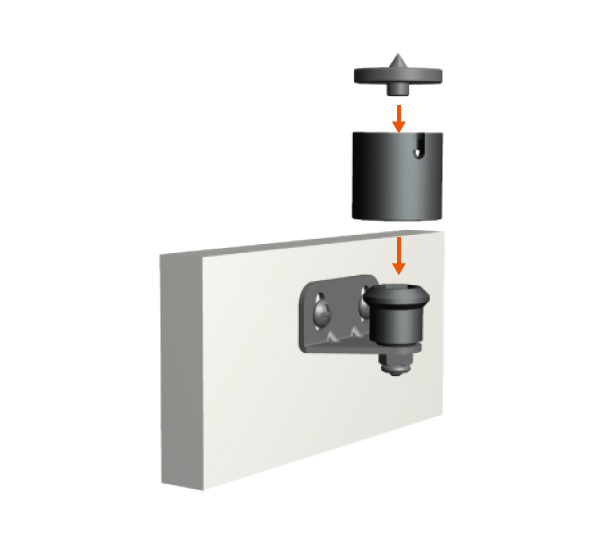

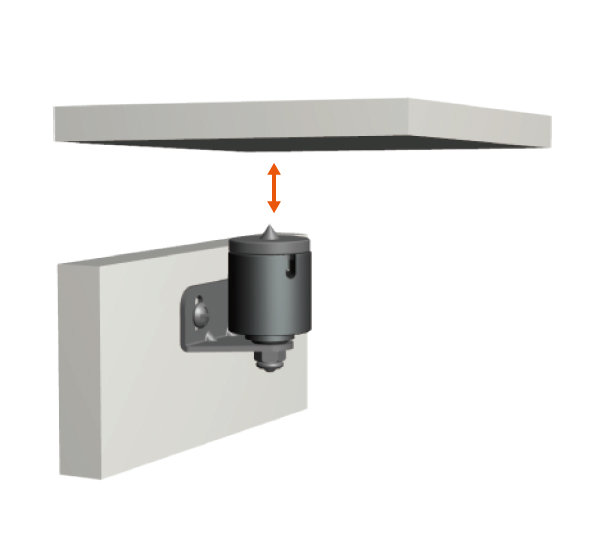

❷ Place marking punch on
top of holder.❸ Tap to mark.
❹ Install rubber holder
and hold in place.
