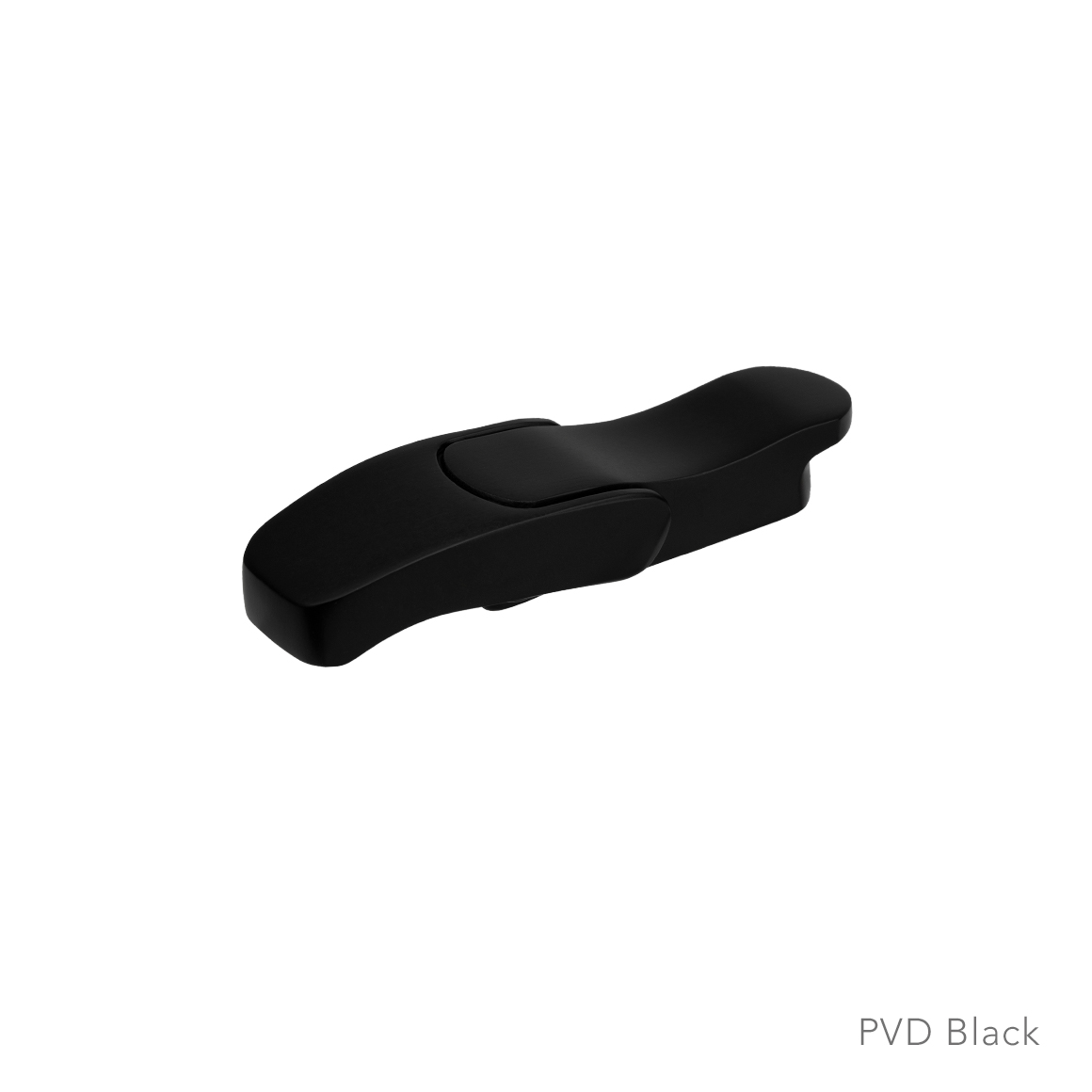

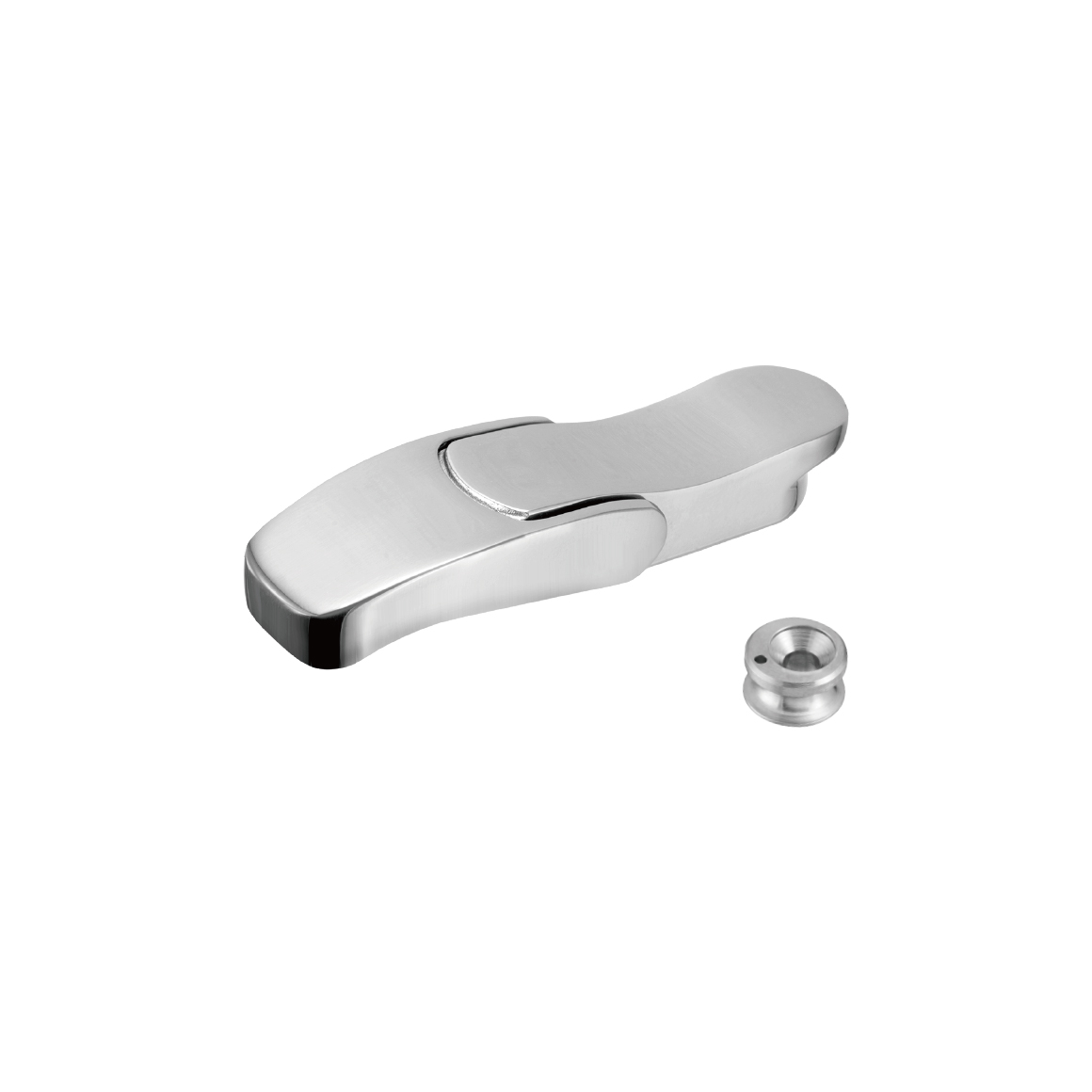

MINI OVER CENTER LATCH
Stainless Steel 316
- Heavy duty cast construction with strong holding power.

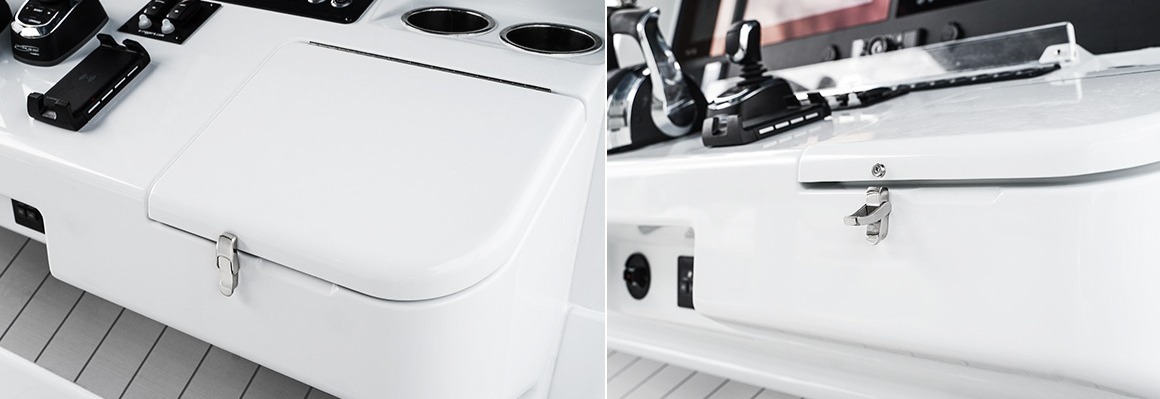

- Designed to fit various applications for a tight seal on any compartment lid.
- Off-center strike can be rotated to achieve desired catch tension.
- Stainless steel mechanism presents smooth and low profile appearance in the
closed position.
- Includes a PVC installation jig to ensure precise strike alignment.
- Stainless steel 304 accessories are included for locking type.
- Heavy duty cast construction with strong holding power.
- Designed to fit various applications for a tight seal on any compartment lid.
- Off-center strike can be rotated to achieve desired catch tension.
- Stainless steel mechanism presents smooth and low profile appearance in the
closed position.
- Includes a PVC installation jig to ensure precise strike alignment.
- Stainless steel 304 accessories are included for locking type.
Qty
Qty
Qty
-
Bulk No.
Lock

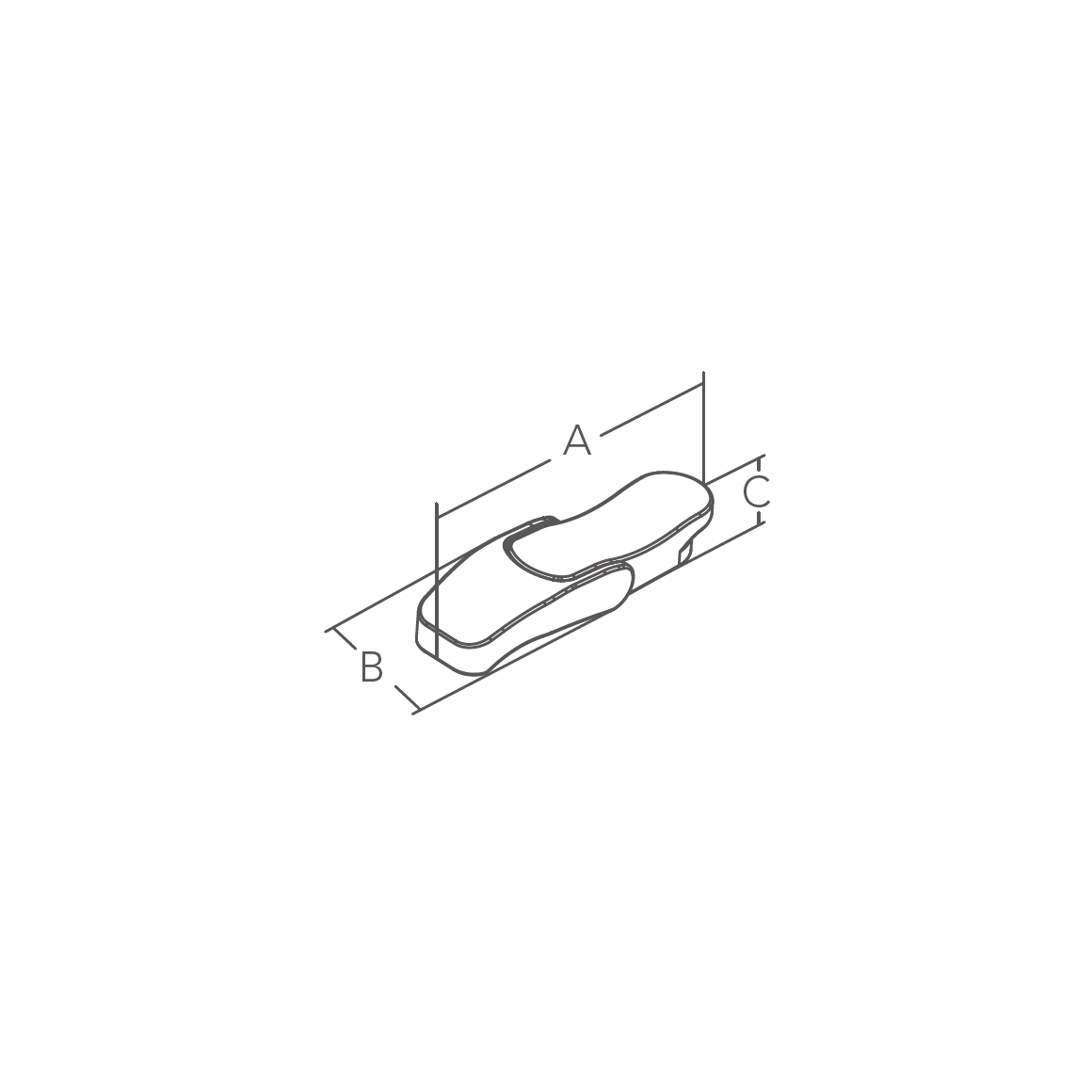

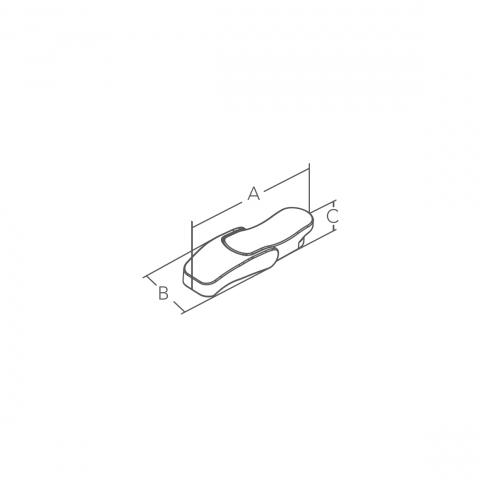

A mm
B mm
C mm
Screw Size

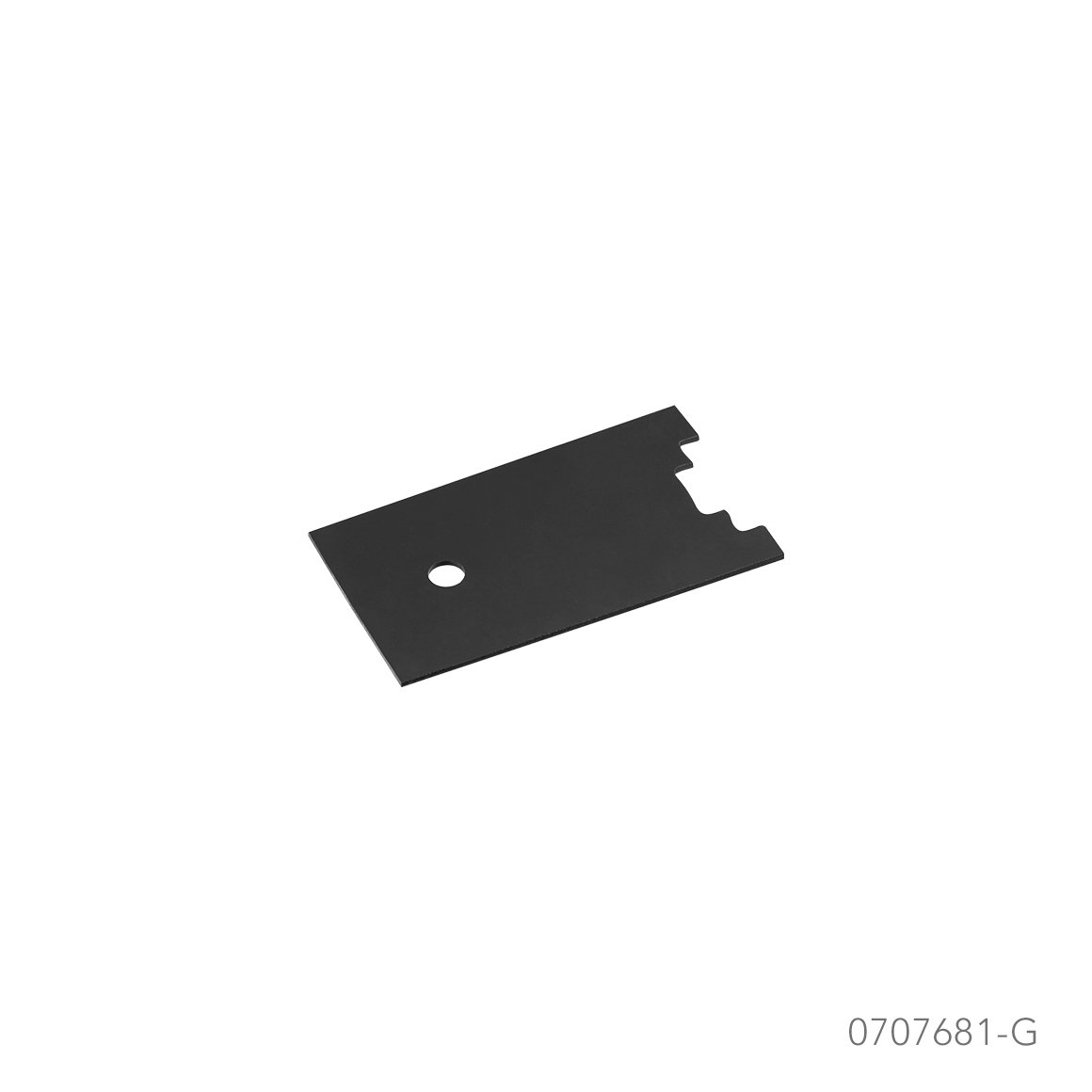

0707681 W/O Lock 68(2-11/16") 20(13/16") 13(1/2") M3 or #6 0707683 W/ Lock 68(2-11/16") 20(13/16") 13(1/2") M3 or #6 0707681-G PVC Installation Jig for 0707681/3

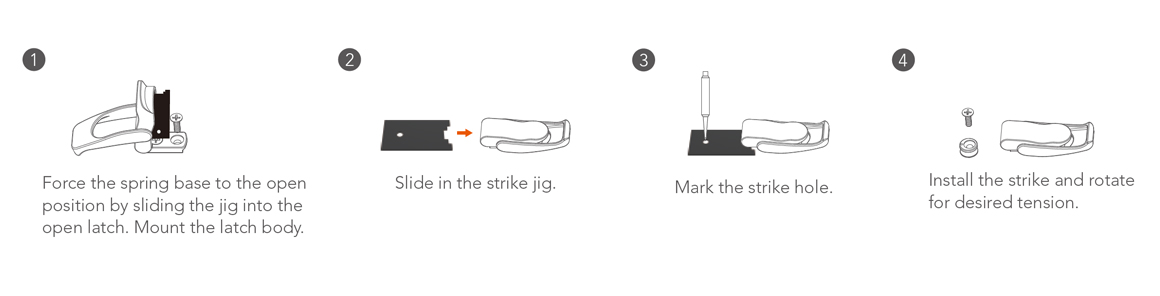

INSTALLATION INSTRUCTION
❶ Force the spring base to the open
position by sliding the jig into the open
latch. Mount the latch body.❷ Slide in the strike jig.
❸ Mark the strike hole.
❹ Install the strike and rotate for
desired tension.
