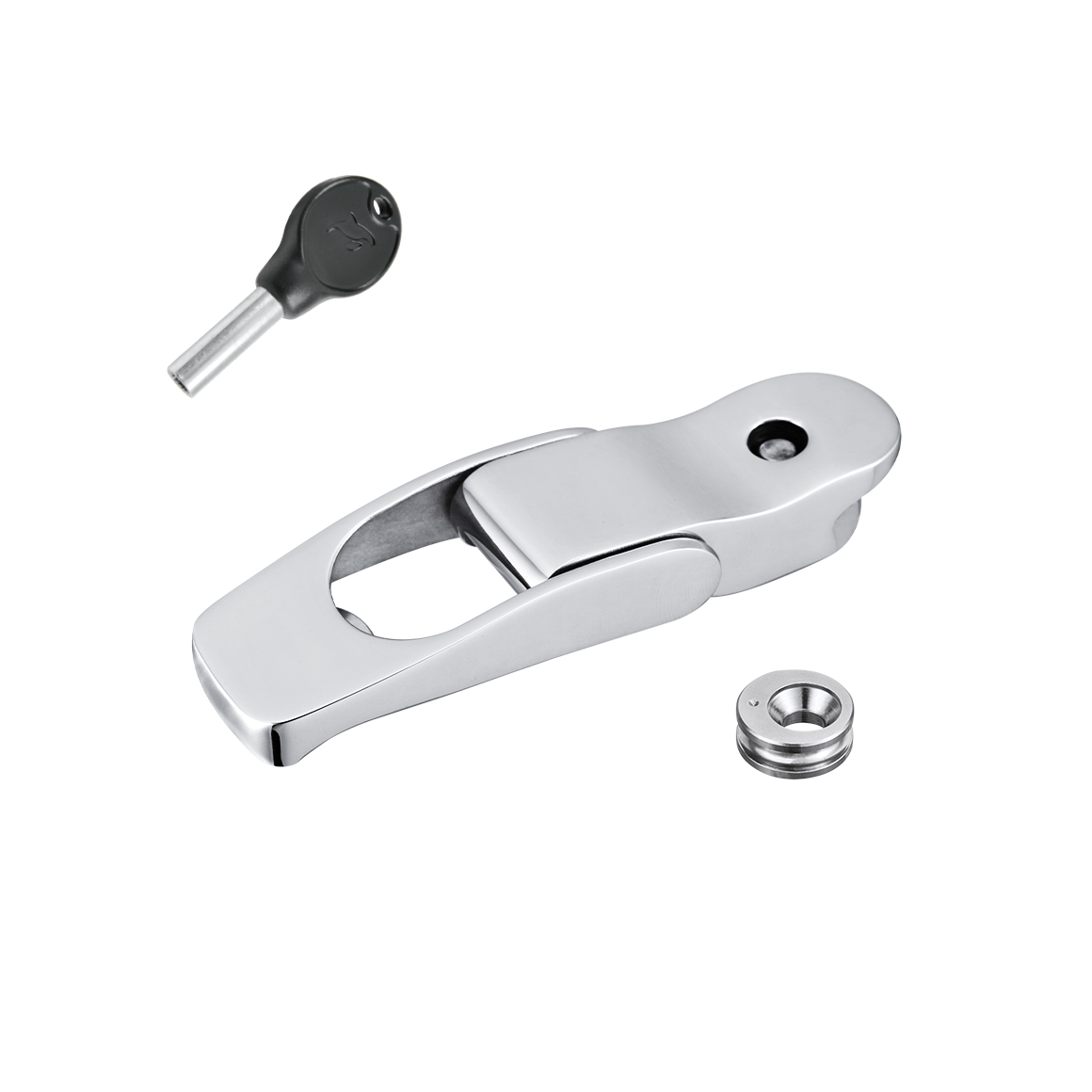

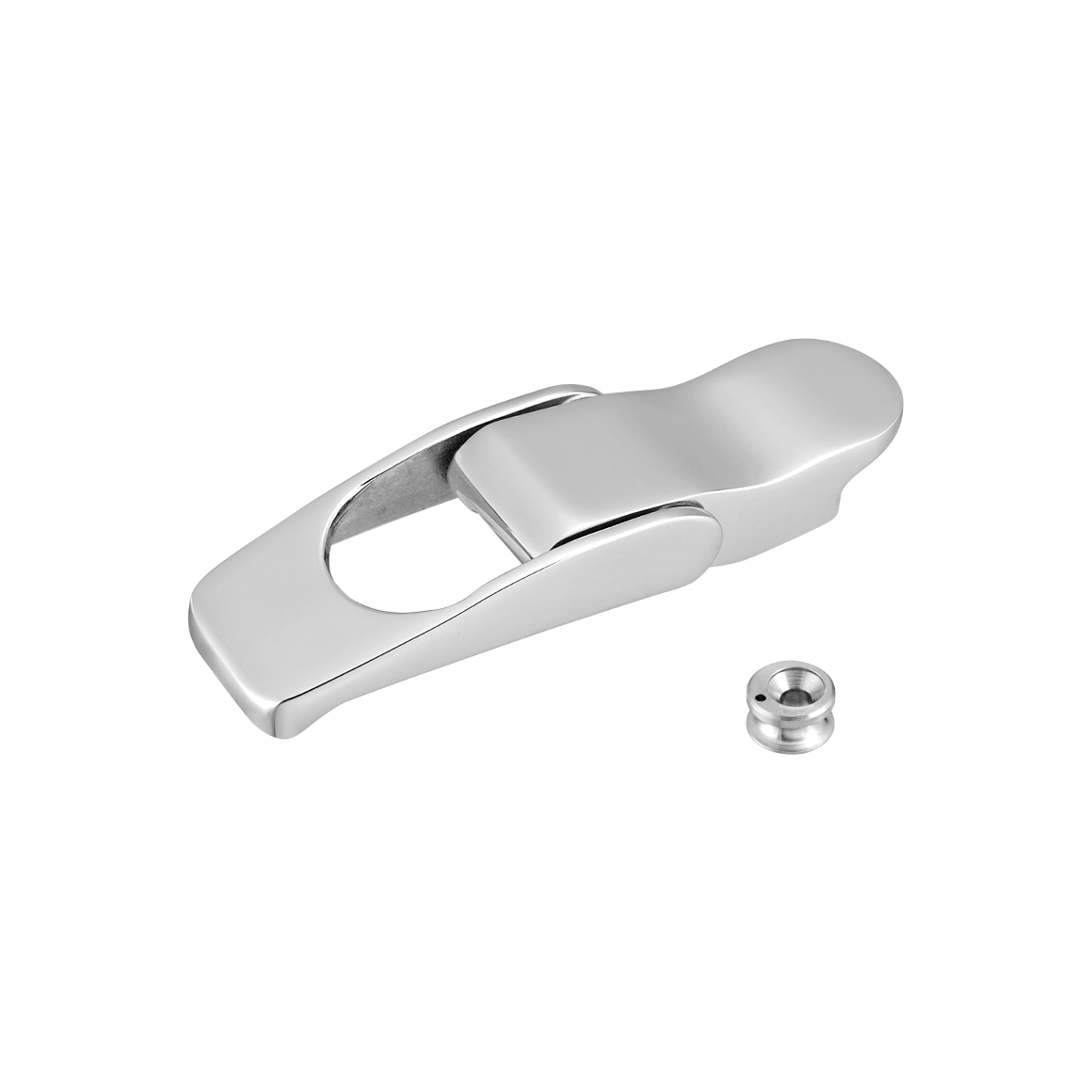

OVER CENTER LATCH - STANDARD
Stainless Steel 316
- Heavy duty cast construction with strong holding power.

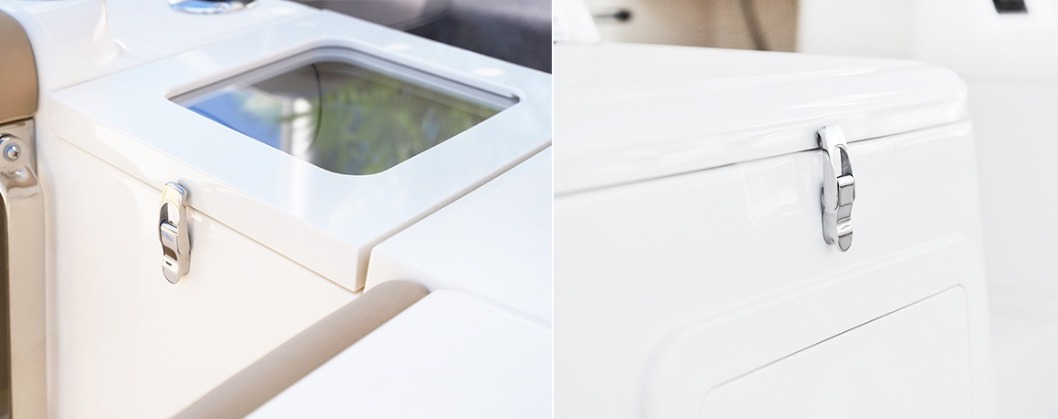

- Designed to fit various applications for a tight seal on any compartment lid.
- Off-center strike can be rotated to achieve desired catch tension.
- 0607981/3: Slot hole incorporated in housing to facilitate minor adjustments
following installation.
- Stainless steel mechanism presents smooth and low profile appearance in
the closed position.
- Includes a PVC installation jig to ensure precise strike alignment.
- Stainless steel 304 accessories are included for locking type.
- Heavy duty cast construction with strong holding power.
- Designed to fit various applications for a tight seal on any compartment lid.
- Off-center strike can be rotated to achieve desired catch tension.
- 0607981/3: Slot hole incorporated in housing to facilitate minor adjustments
following installation.
- Stainless steel mechanism presents smooth and low profile appearance in
the closed position.
- Includes a PVC installation jig to ensure precise strike alignment.
- Stainless steel 304 accessories are included for locking type.
Qty
Qty
Qty
Qty
Qty
Qty
-
Bulk No.
Lock

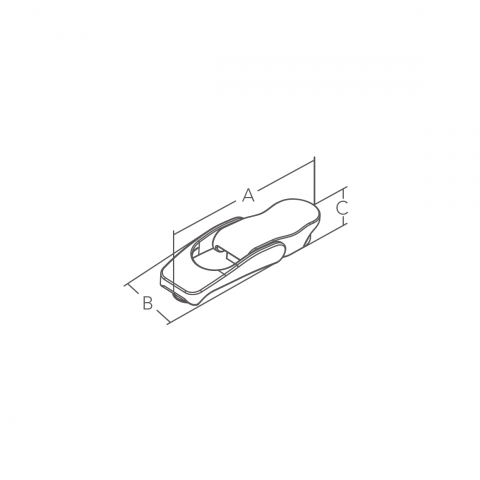

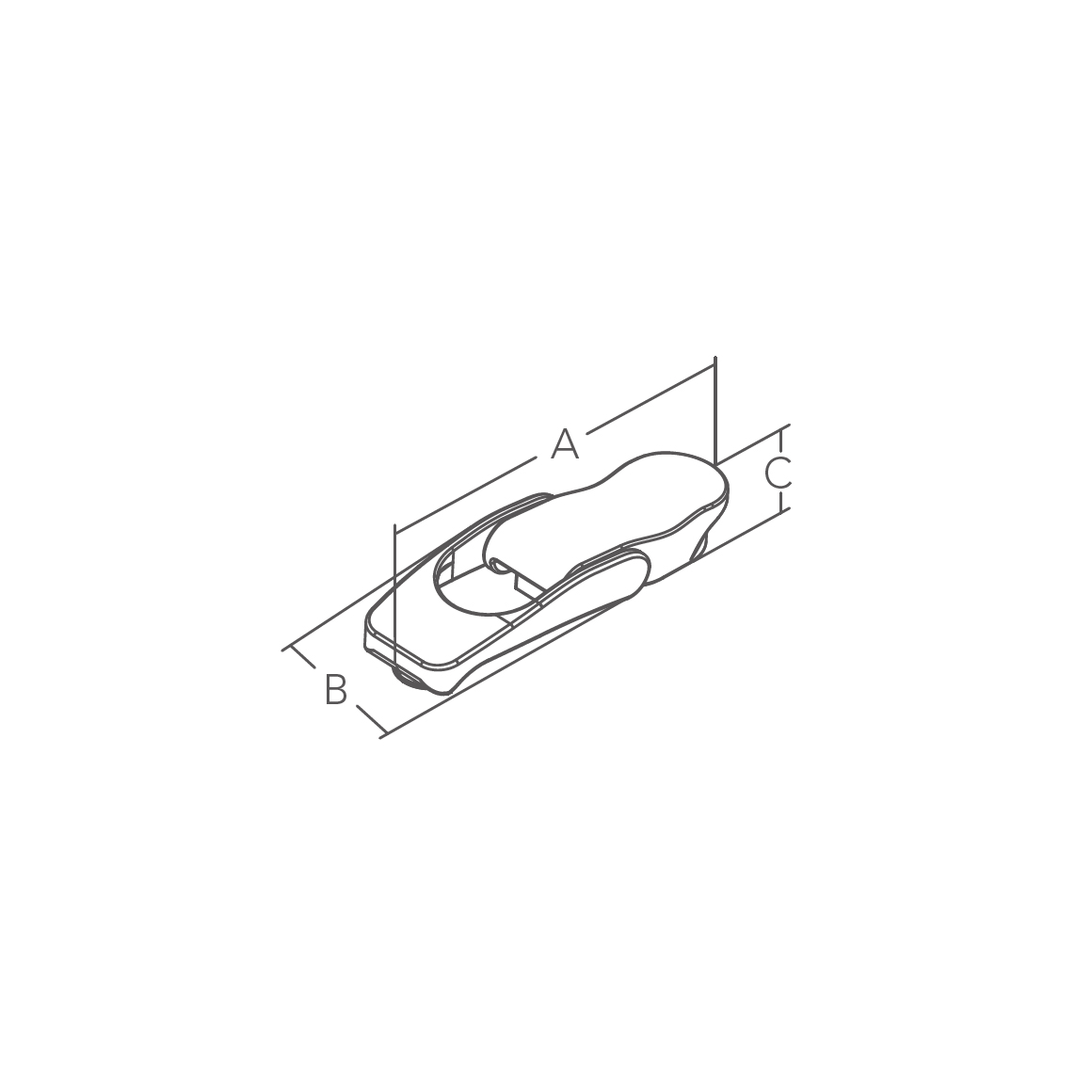

A mm
B mm
C mm
Screw Size

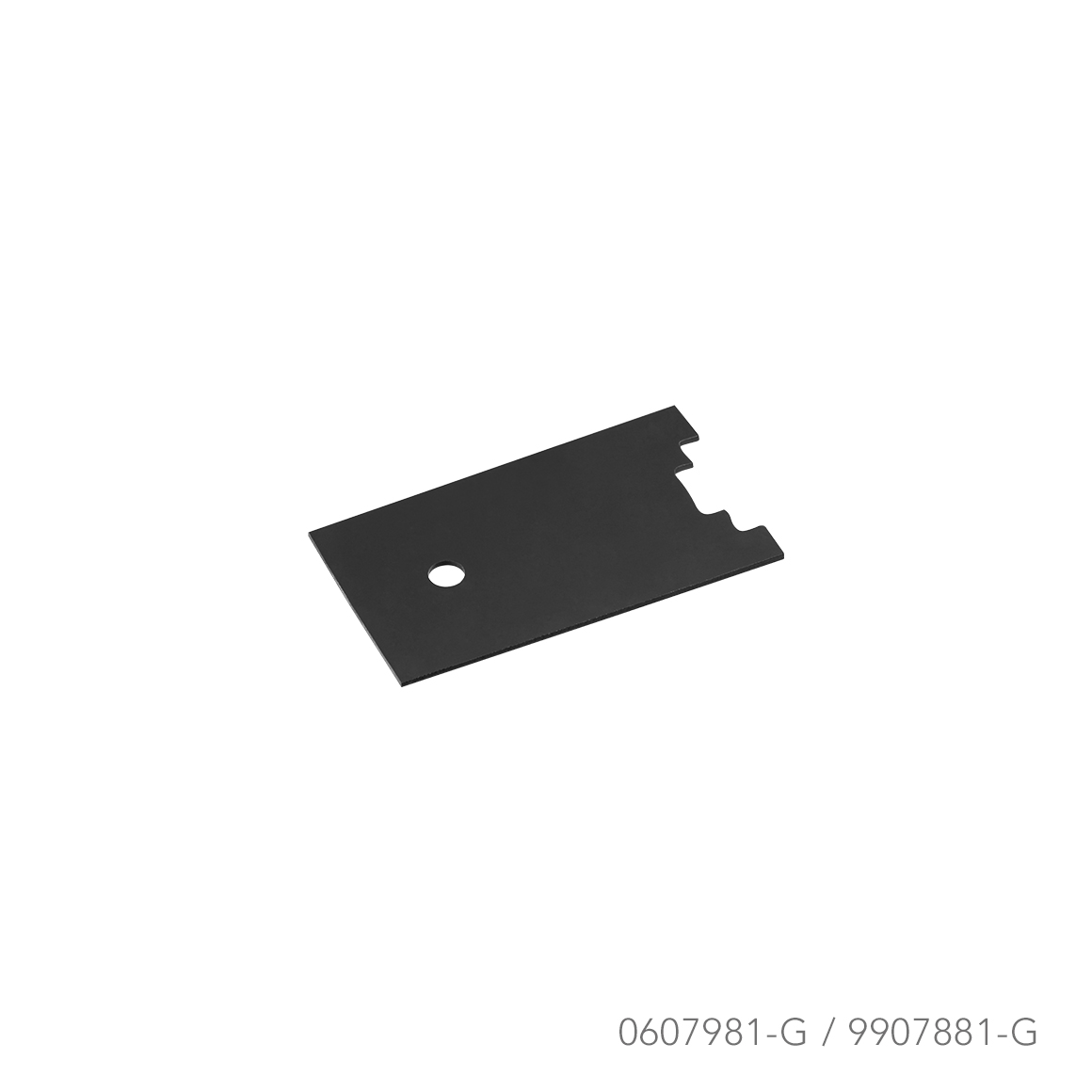

9907881 W/O Lock 82(3-1/4") 25(1") 15(9/16") M4 or #8 9907883 W/ Lock 82(3-1/4") 25(1") 15(9/16") M4 or #8 0607981 W/O Lock 106(4-3/16") 32(1-1/4") 19(3/4") M5 or #10 0607983 W/ Lock 106(4-3/16") 32(1-1/4") 19(3/4") M5 or #10 9907881-G PVC Installation Jig for 9907881/3 0607981-G PVC Installation Jig for 0607981/3

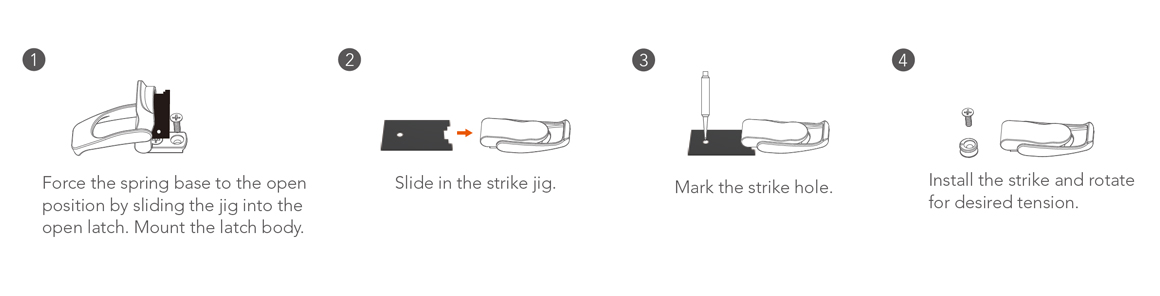

INSTALLATION INSTRUCTION
❶ Force the spring base to the open
position by sliding the jig into the open
latch. Mount the latch body.❷ Slide in the strike jig.
❸ Mark the strike hole.
❹ Install the strike and rotate for
desired tension.
