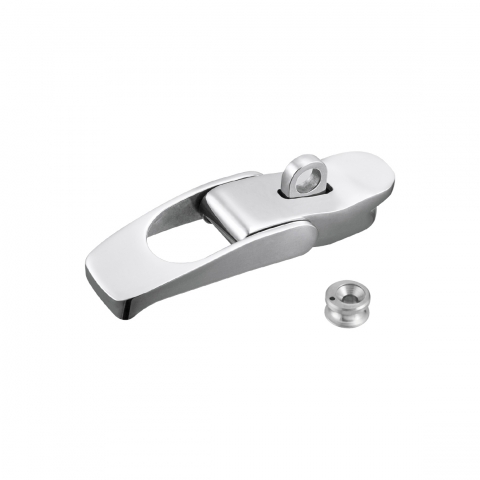

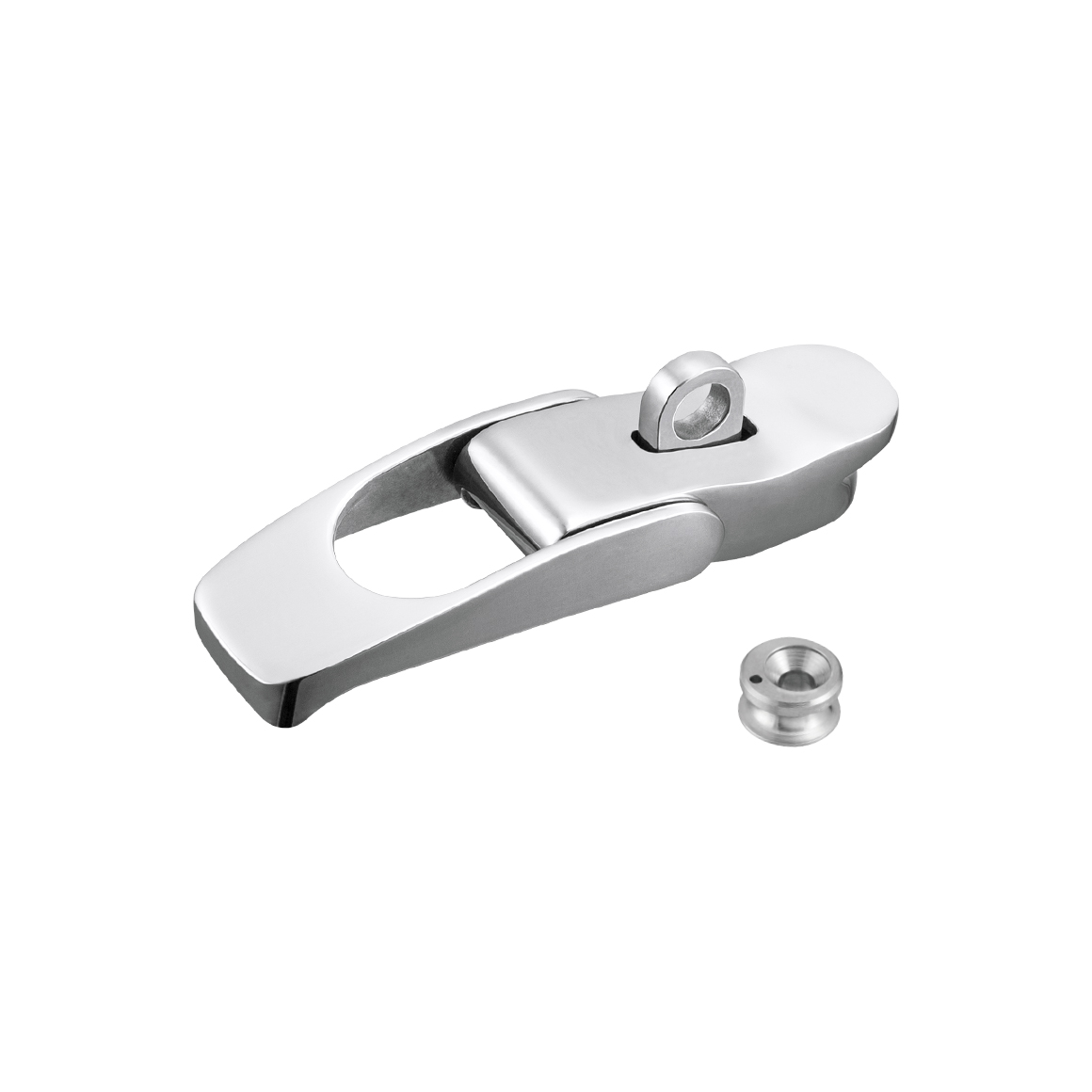

OVER CENTER LATCH W/ EYE
Stainless Steel 316
- Complete with eye for padlock.
- Heavy duty cast construction with strong holding power.

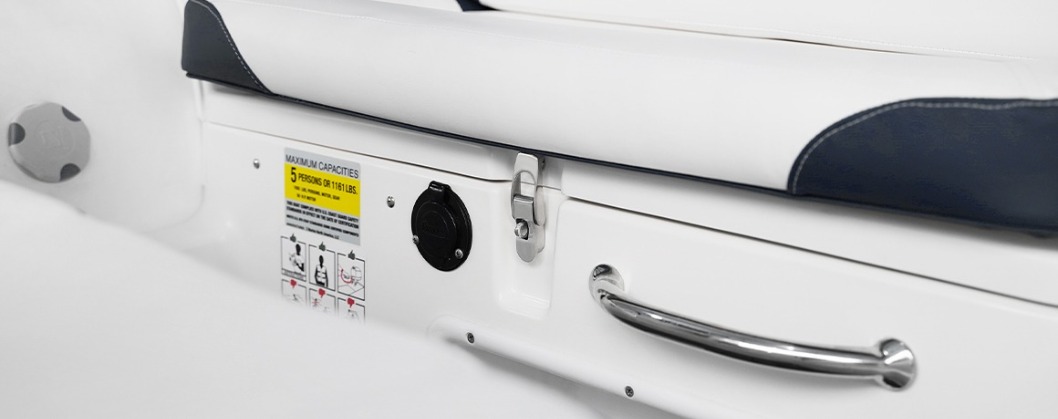

- Designed to fit various applications for a tight seal on any compartment lid.
- Off-center strike can be rotated to achieve desired catch tension.
- Complete with eye for padlock up to 6mm shackles.

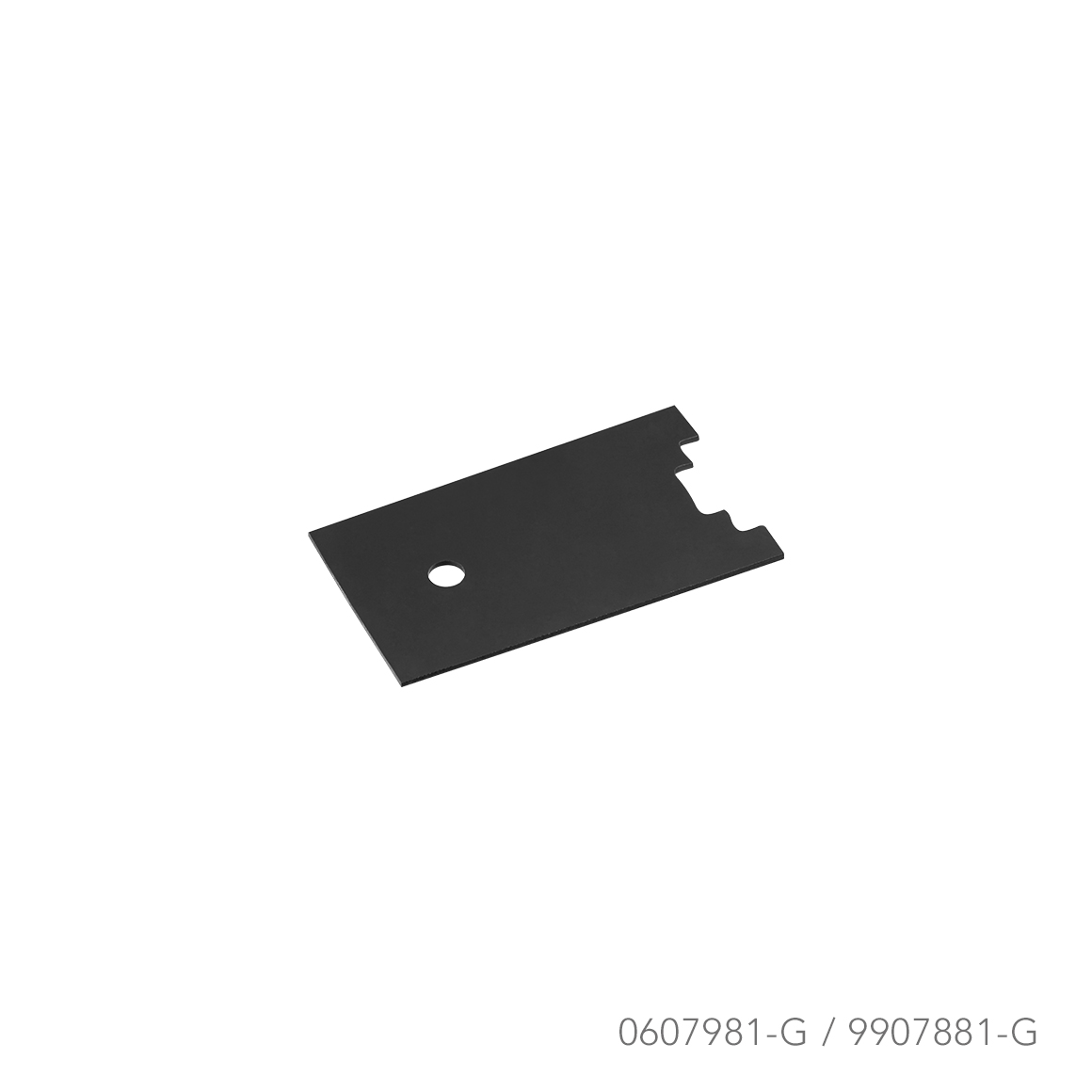

- Includes a PVC installation jig to ensure precise strike alignment.
- Complete with eye for padlock.
- Heavy duty cast construction with strong holding power.
- Designed to fit various applications for a tight seal on any compartment lid.
- Off-center strike can be rotated to achieve desired catch tension.
- Complete with eye for padlock up to 6mm shackles.
- Includes a PVC installation jig to ensure precise strike alignment.
Qty
Qty
Qty
Qty
-
Bulk No.

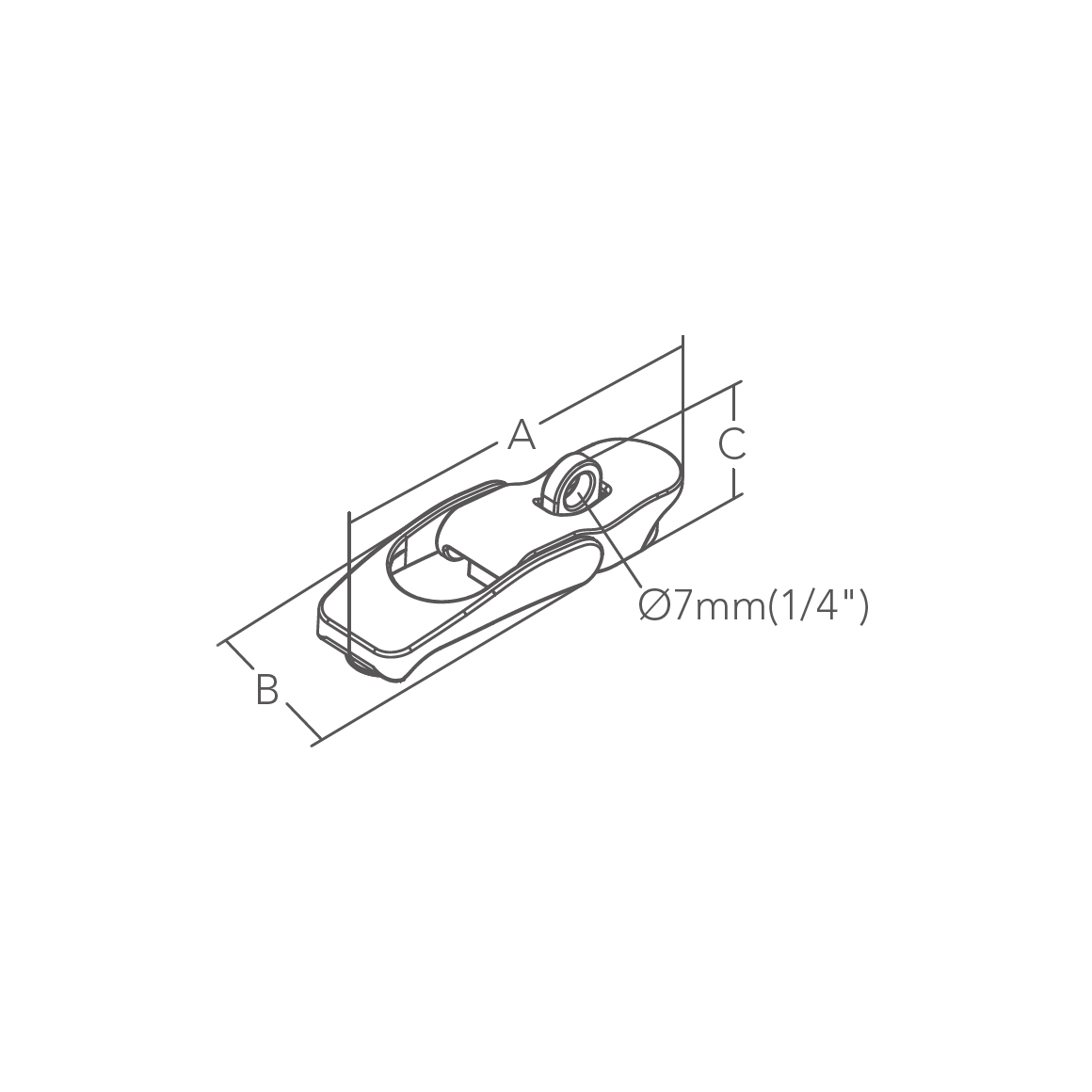

A mm
B mm
C mm
Ø mm
Screw Size
0507878 83(3-1/4") 25(1") 21(13/16") 7(1/4") M4 or #8 0807880 106(4-3/16") 32(1-1/4") 29(1-1/8") 9(3/8") M5 or #10 9907881-G PVC Installation Jig for 0507878 0607981-G PVC Installation Jig for 0807880

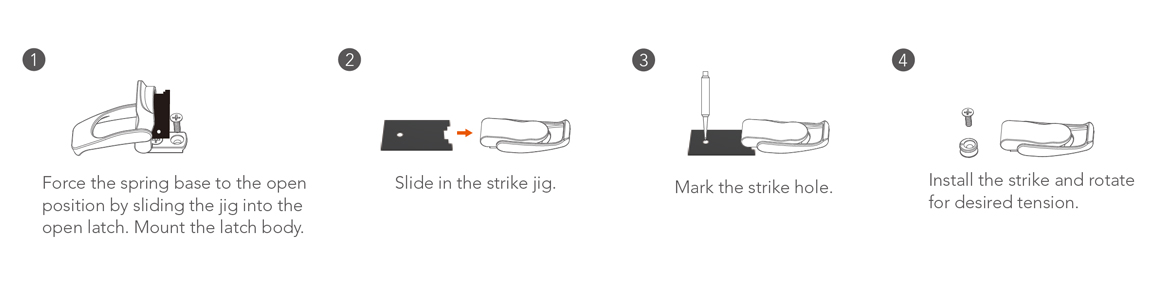

INSTALLATION INSTRUCTION
❶ Force the spring base to the open
position by sliding the jig into the open
latch. Mount the latch body.❷ Slide in the strike jig.
❸ Mark the strike hole.
❹ Install the strike and rotate for
desired tension.
