SPLASH WELL DRAIN
Stainless Steel 316 & Nylon Tube
- Stainless steel 316 flange provides deluxe appearance.
- Fits wide range of hull thickness.
- The narrowed flange allows water to drain out at a lower water level.
- Simply press the tube from both ends to complete installation.
- Caulk is required under flanges and between tubes.
- Stainless steel 316 flange provides deluxe appearance.
- Fits wide range of hull thickness.
- The narrowed flange allows water to drain out at a lower water level.
- Simply press the tube from both ends to complete installation.
- Caulk is required under flanges and between tubes.
Qty
Qty
Qty
Qty
Qty
Qty
-
Bulk No.

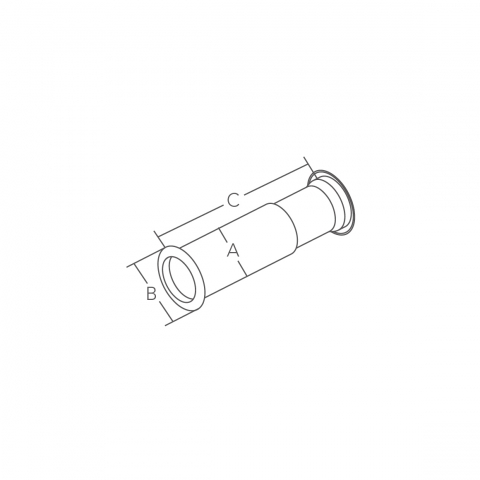

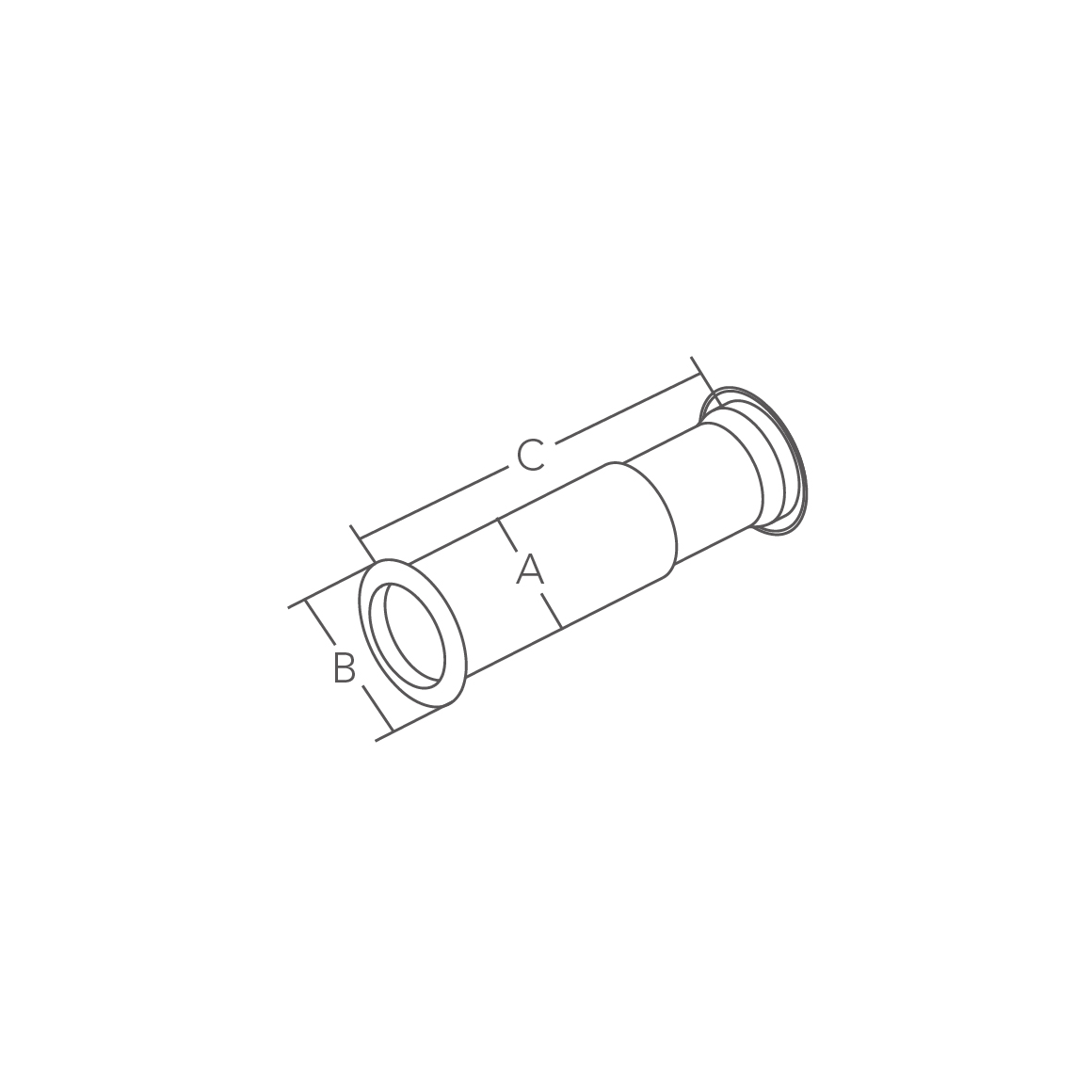

A mm
B mm
C mm

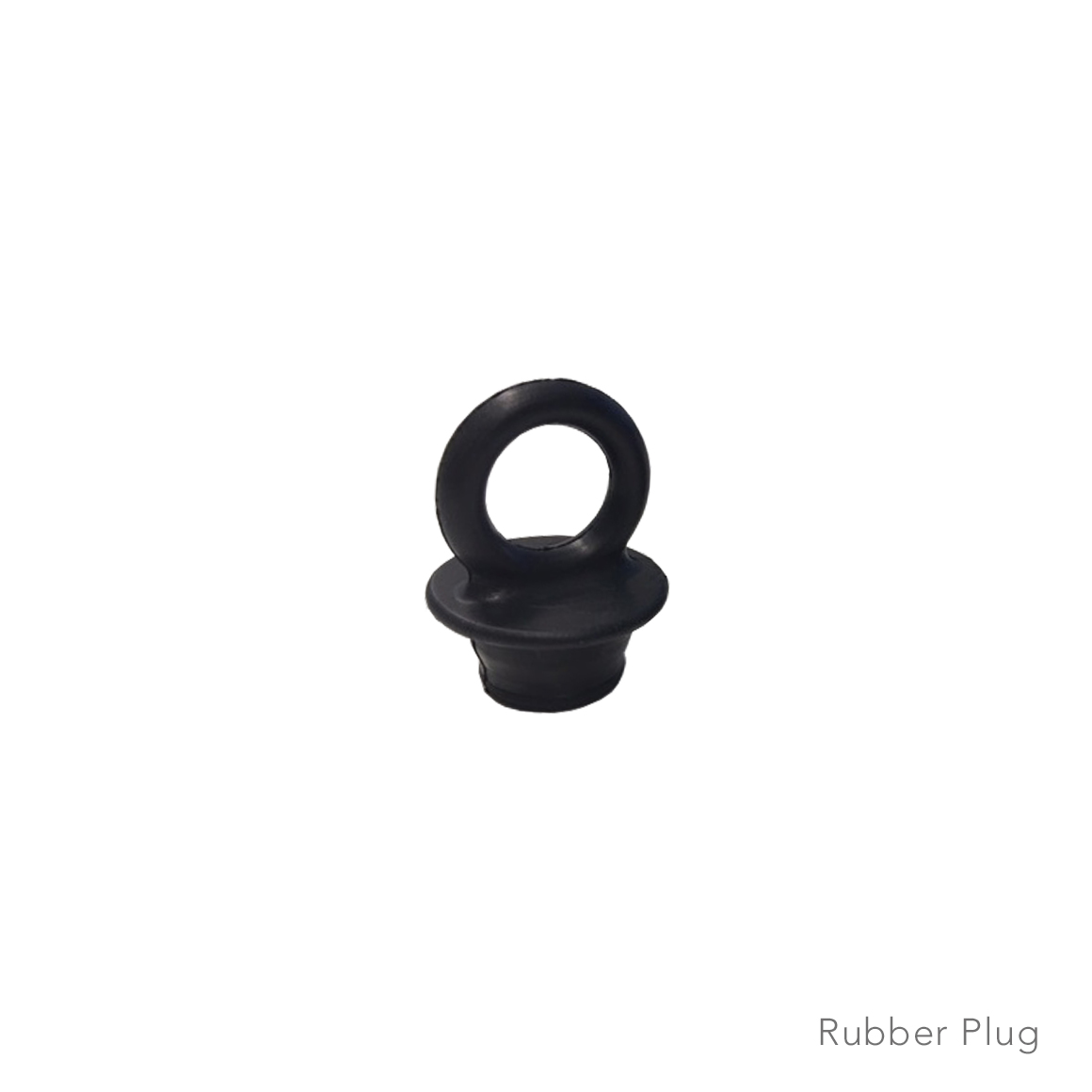

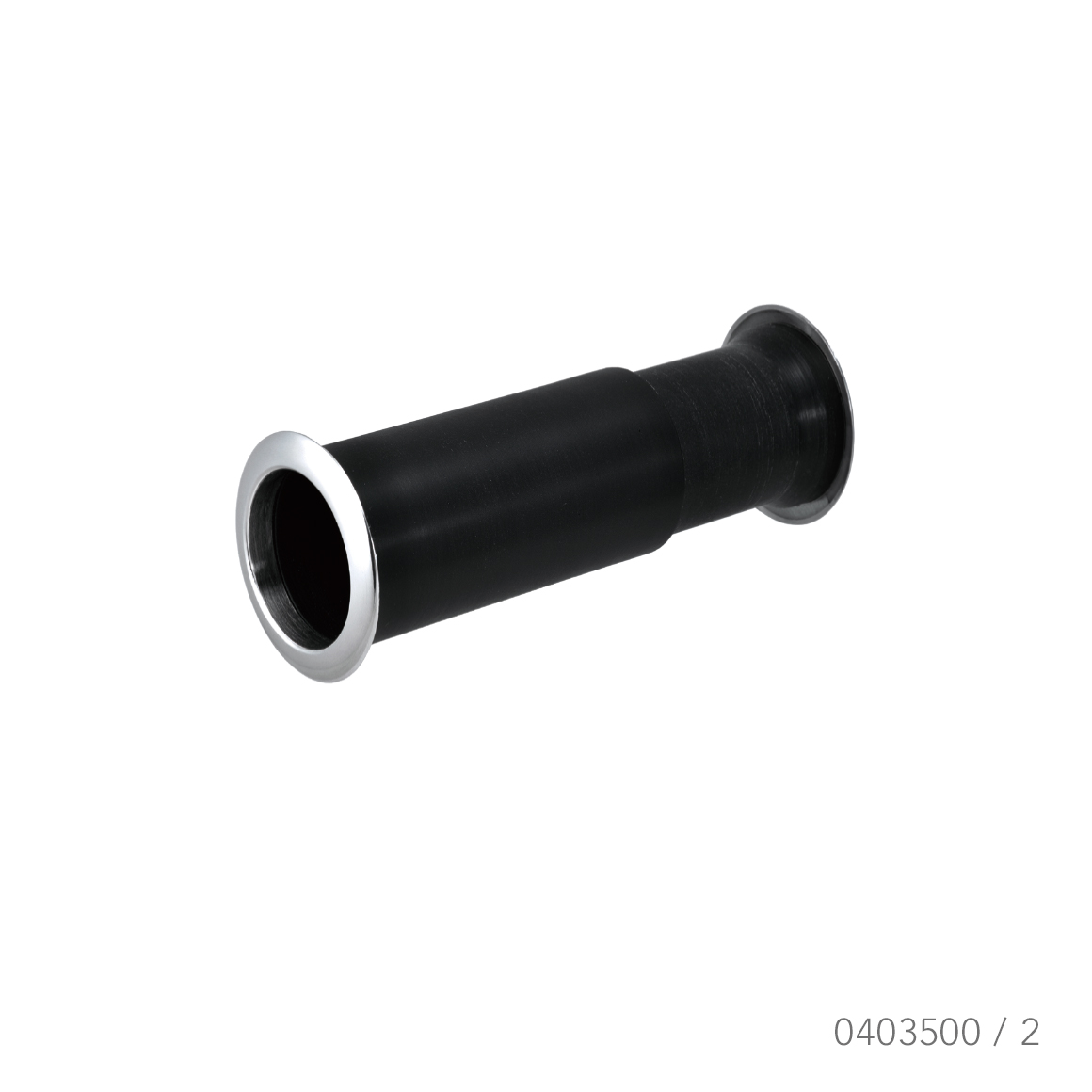

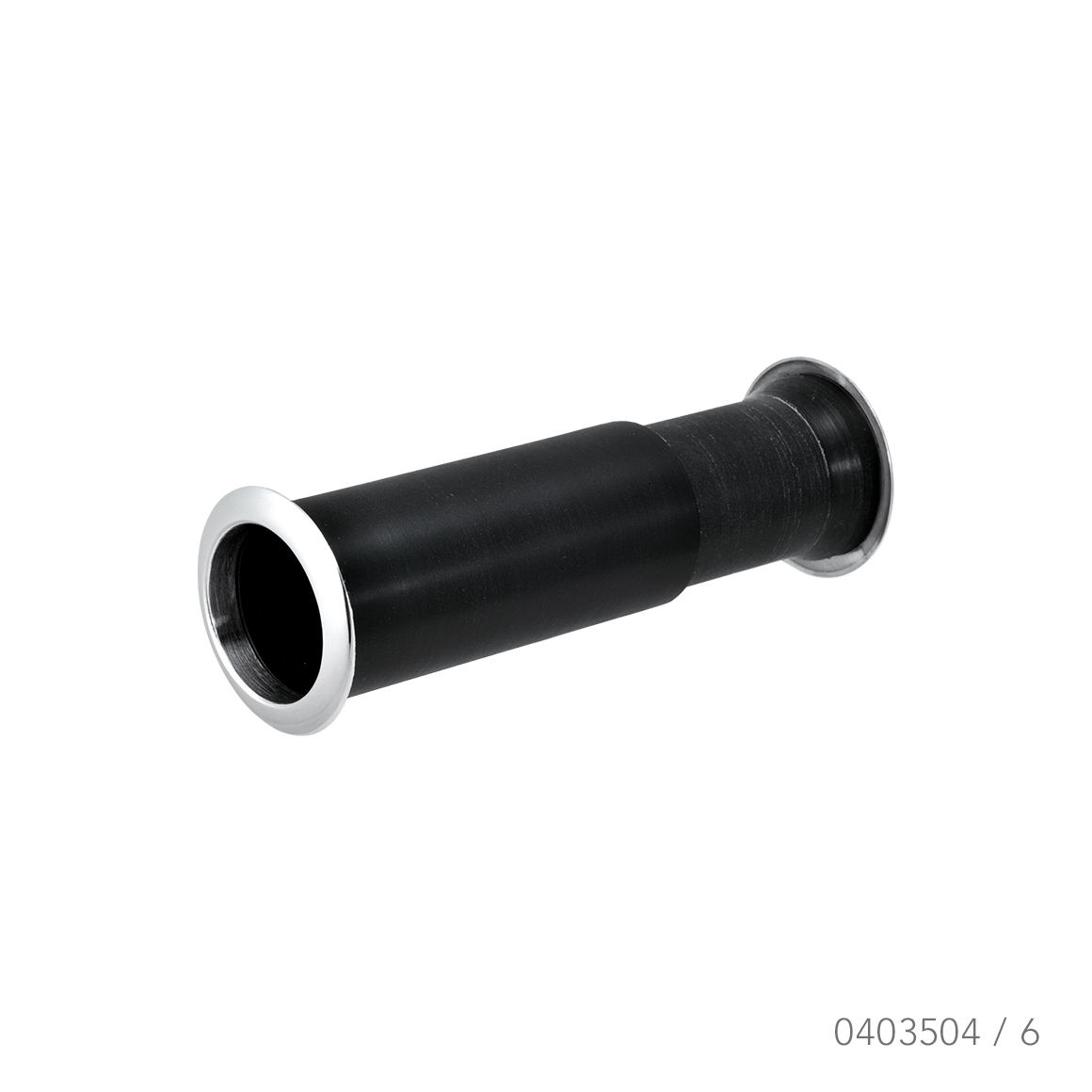

0403500 28(1-1/8") 35(1-3/8") 50~73(2"~2-7/8") 0403502 28(1-1/8") 35(1-3/8") 72~98(2-13/16"~3-7/8") 0403504 38(1-1/2") 45(1-3/4") 51~73(2"~2-7/8") 0403506 38(1-1/2") 45(1-3/4") 76~98(3"~3-7/8") 0403500C Rubber Plug for 0403500/2 0403504C Rubber Plug for 0403504/6
