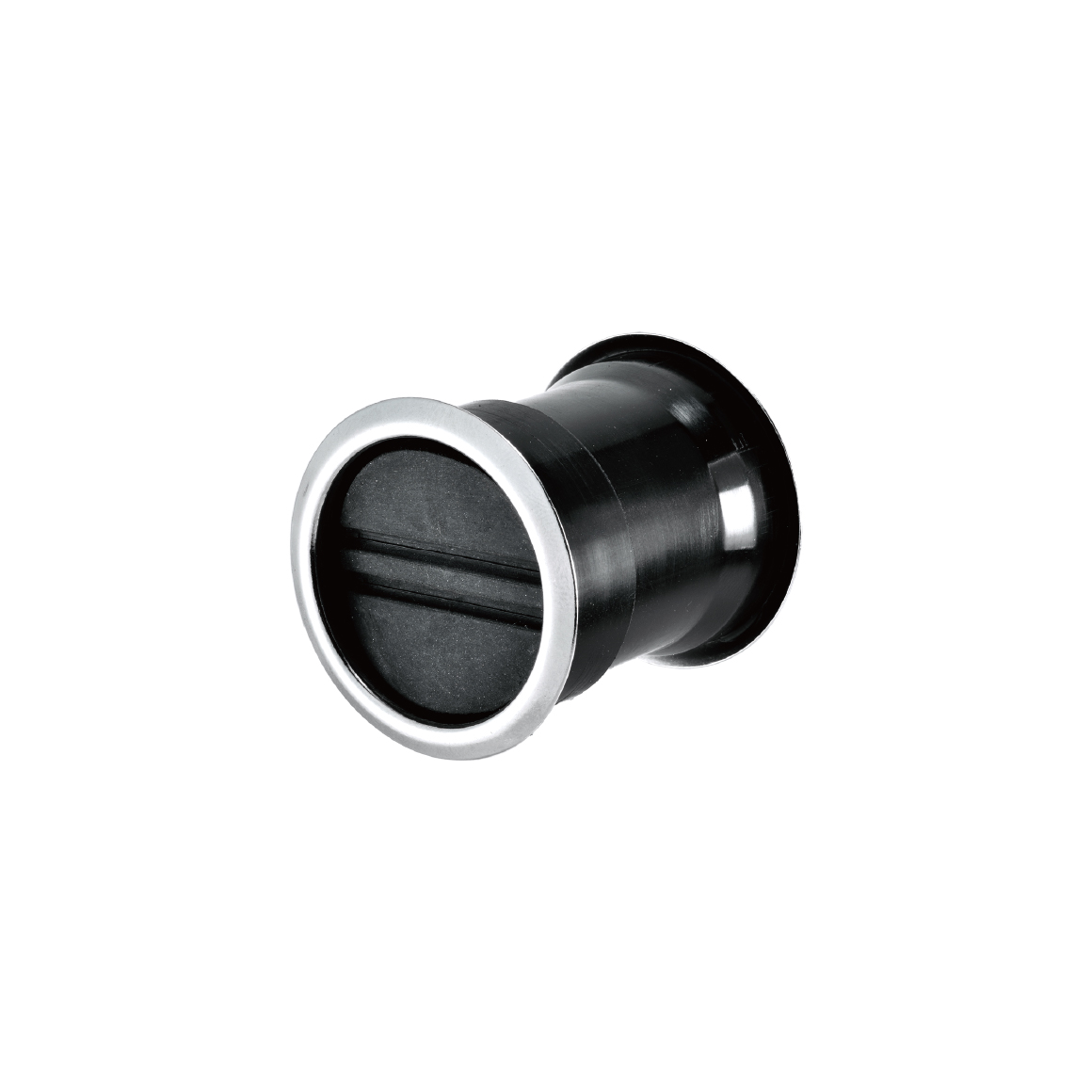

SPLASH WELL DRAIN SCUPPER
Stainless Steel 316 & Nylon Tube
- Stainless steel 316 face provides an elegant appearance.
- Fits wide range of hull thickness.
- One-way rubber flapper for discharge.
- The narrowed flange allows water to drain out at a lower water level.

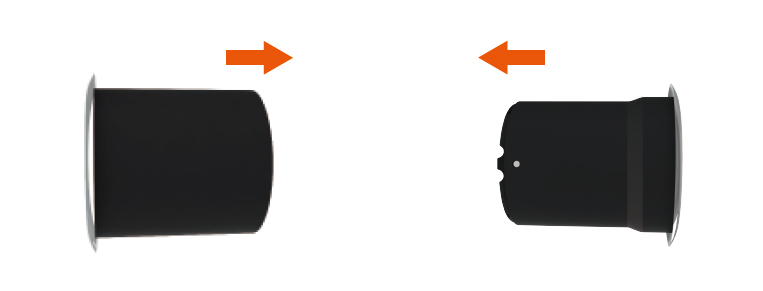

- Simply press the tube at both ends to complete installation.
- Caulk is required under flanges and between tubes.
- Stainless steel 316 face provides an elegant appearance.
- Fits wide range of hull thickness.
- One-way rubber flapper for discharge.
- The narrowed flange allows water to drain out at a lower water level.
- Simply press the tube at both ends to complete installation.
- Caulk is required under flanges and between tubes.
Qty
MOQ
Qty
Qty
Qty
Qty
MOQ
-

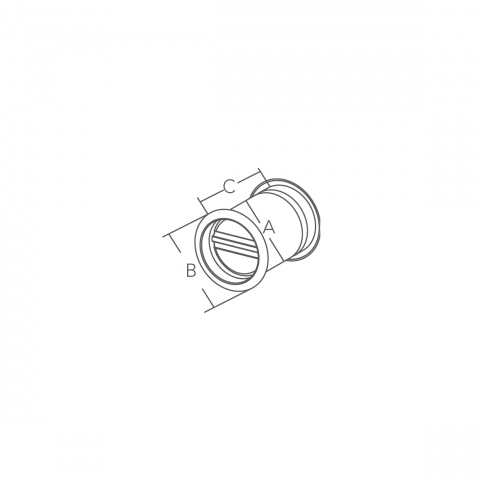

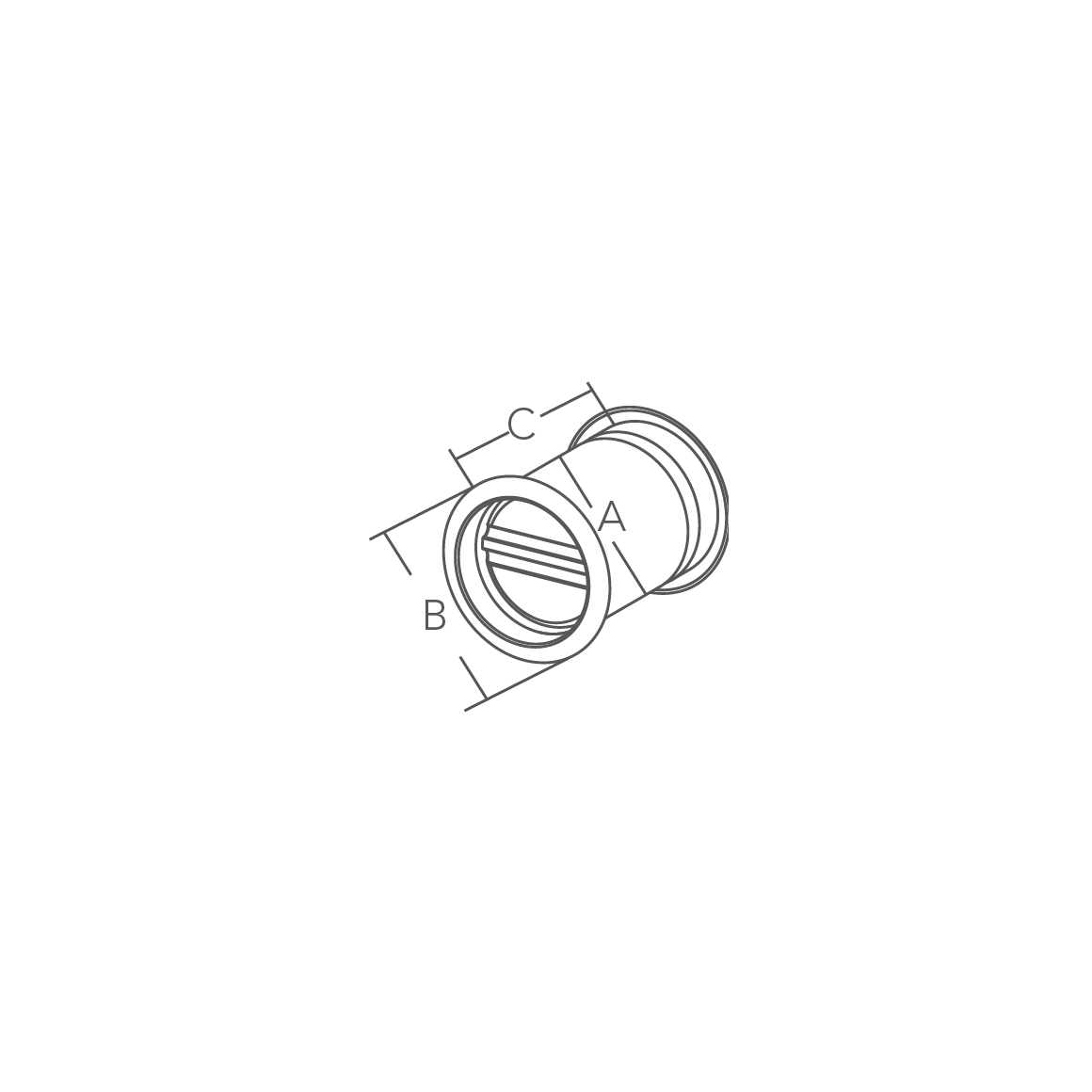

Bulk No.
A mm
B mm
C mm
0503513-8 38(1-1/2") 45(1-3/4") 27~28(1-1/16"~1-1/8") 0503513 38(1-1/2") 45(1-3/4") 30~38(1-3/16"~1-1/2") 0503514 38(1-1/2") 45(1-3/4") 51~73(2"~2-7/8") 0503516 38(1-1/2") 45(1-3/4") 76-100(3"~3-15/16") 0503513-V4 Rubber Flapper only
INSTRUCTION
