COCKPIT DRAIN SCUPPER SYSTEM
Stainless Steel 304
- Comes with a removable one-way flow diaphragm and a stopper plug.
- Tube can be cut to fit different hull thickness.
- Caulk is required under the flange of end caps and between tubes.
- Comes with a removable one-way flow diaphragm and a stopper plug.
- Tube can be cut to fit different hull thickness.
- Caulk is required under the flange of end caps and between tubes.
Qty
Qty
Qty
Qty
Qty
-
Bulk No.

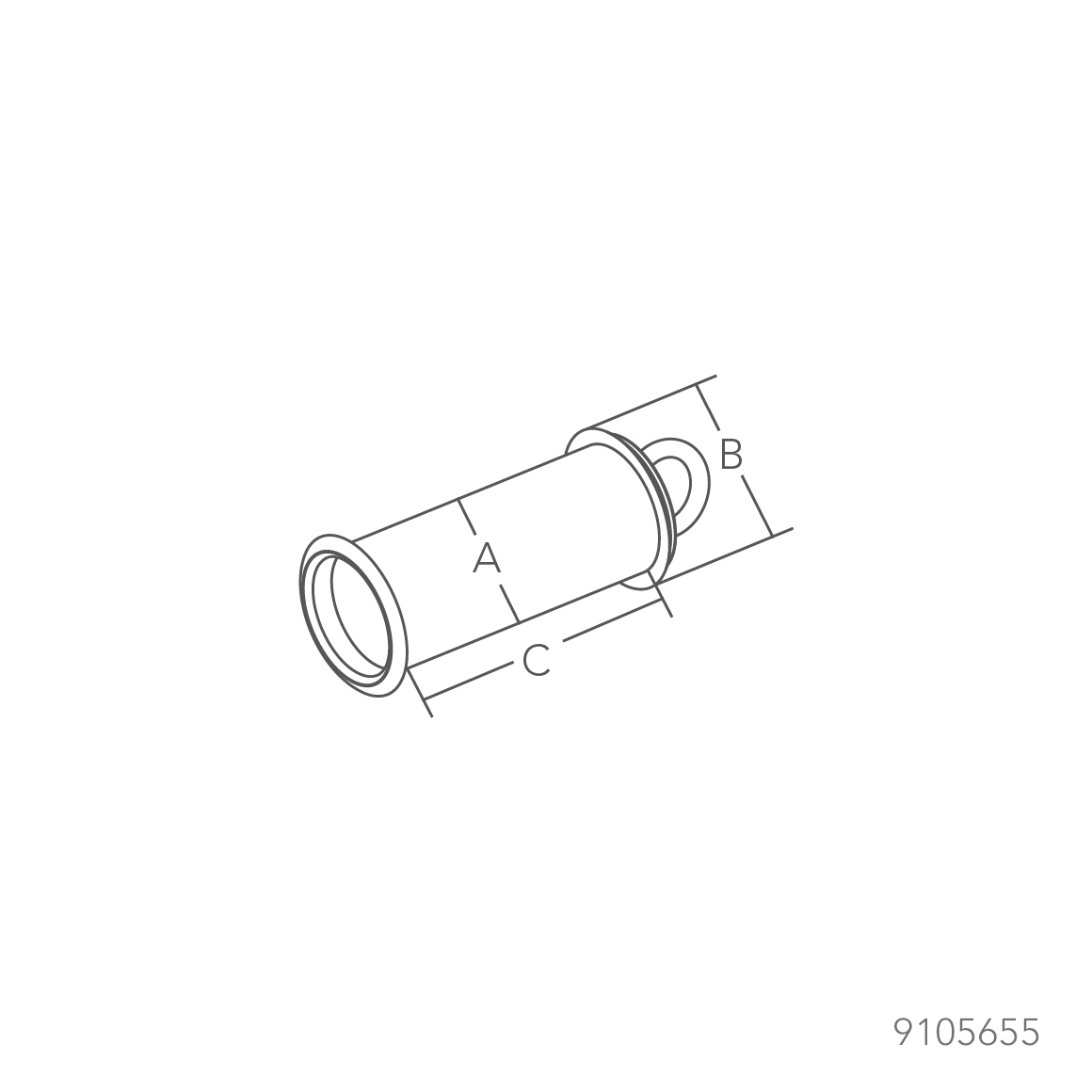

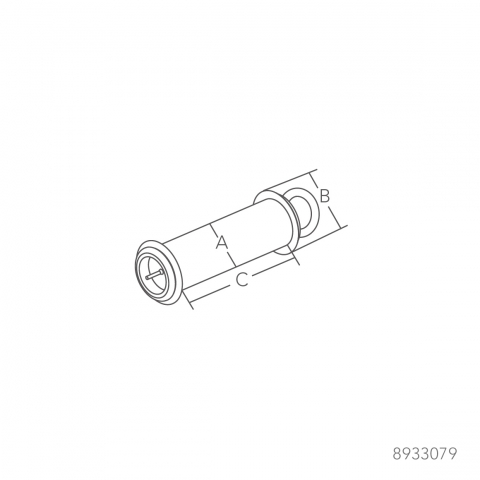

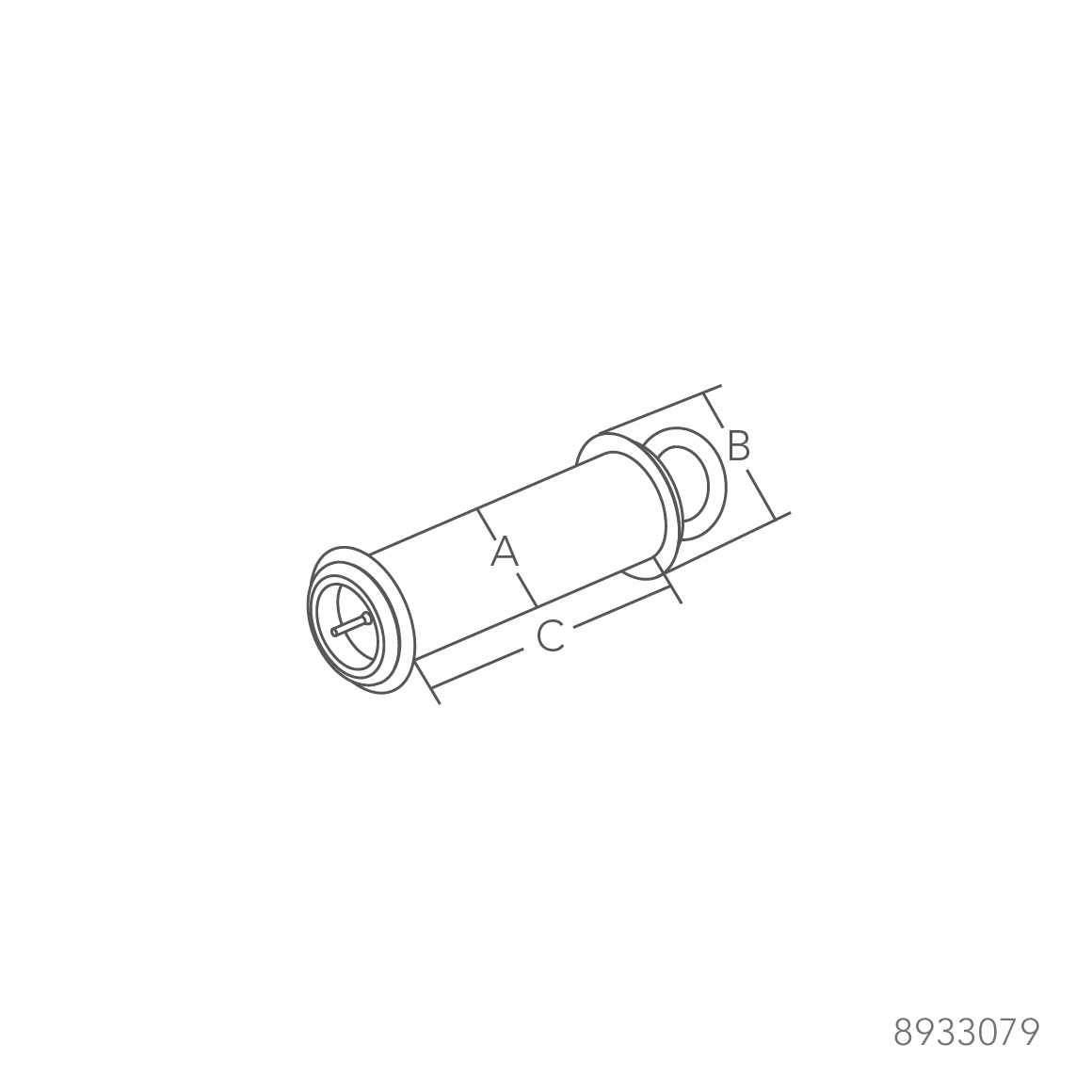

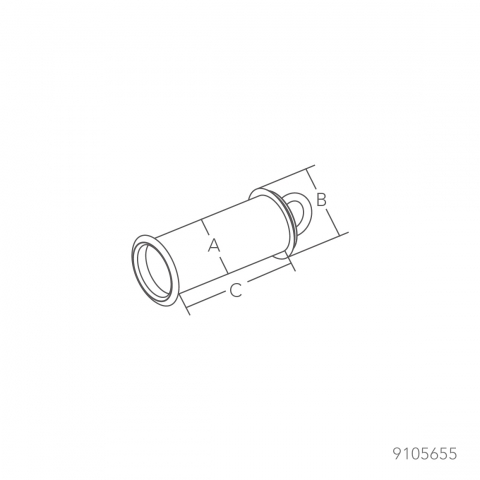

A mm
B mm
C mm

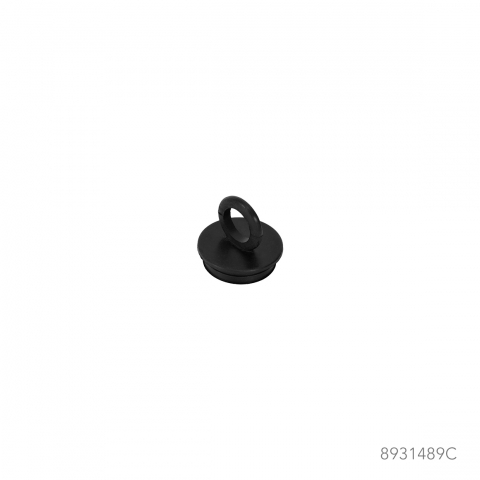

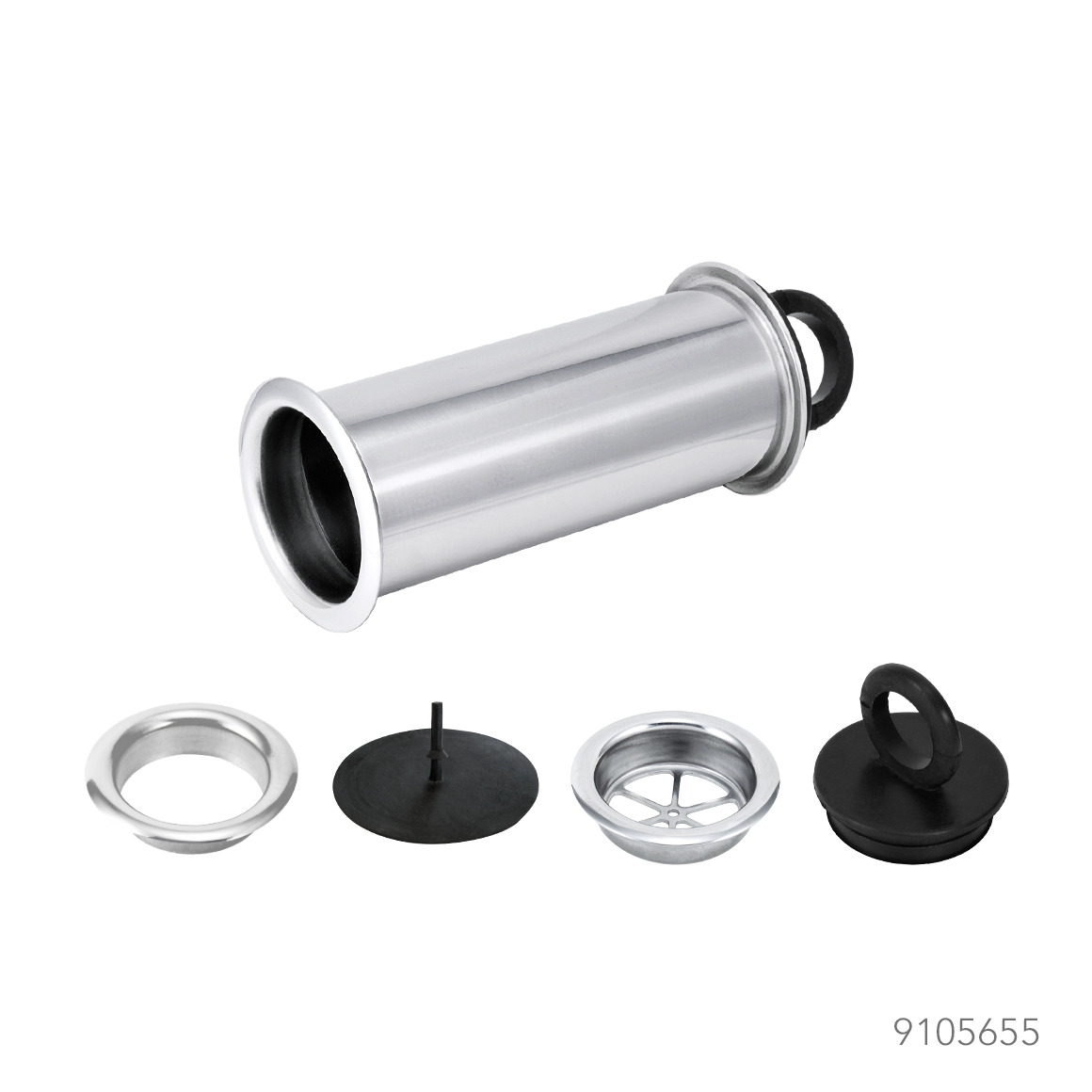

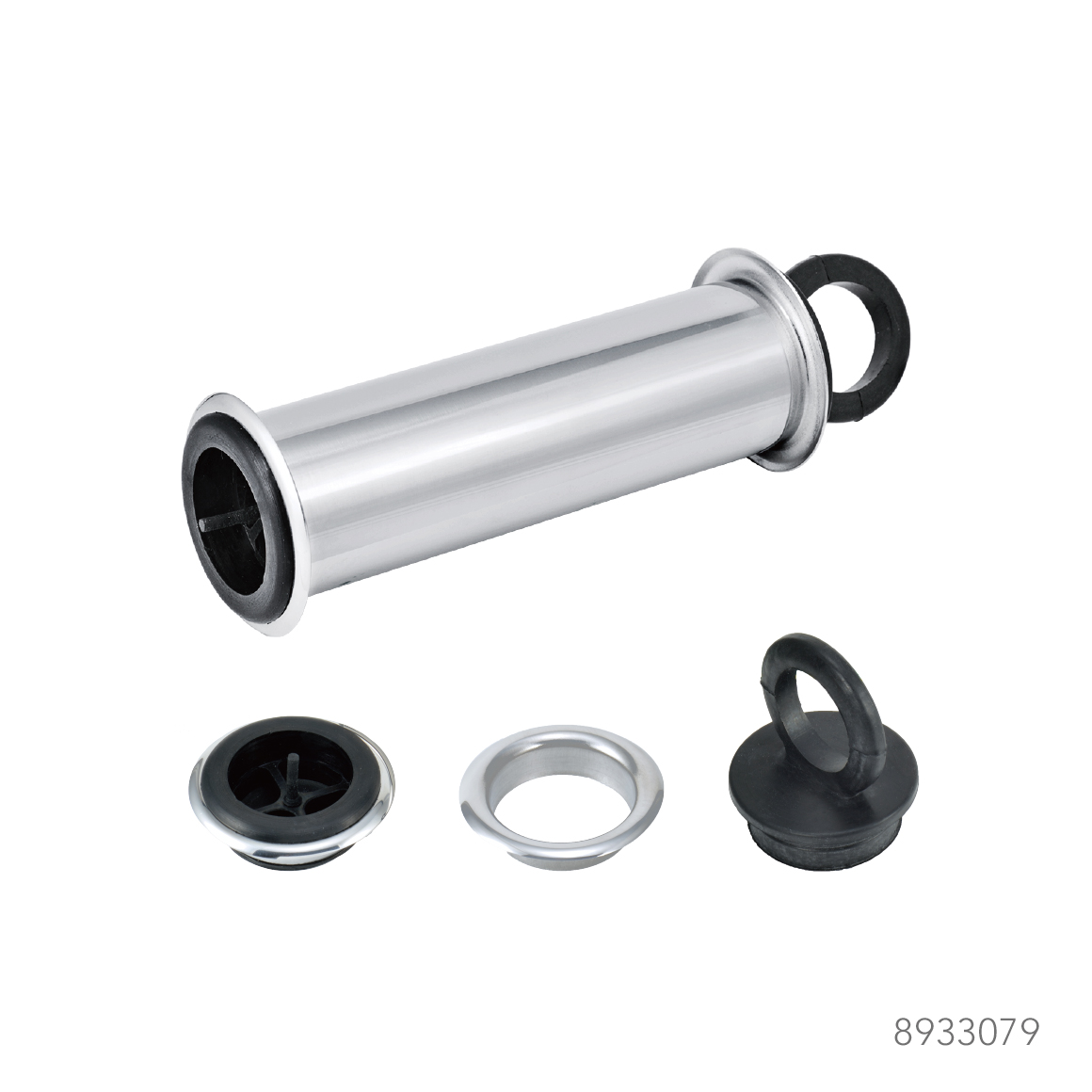

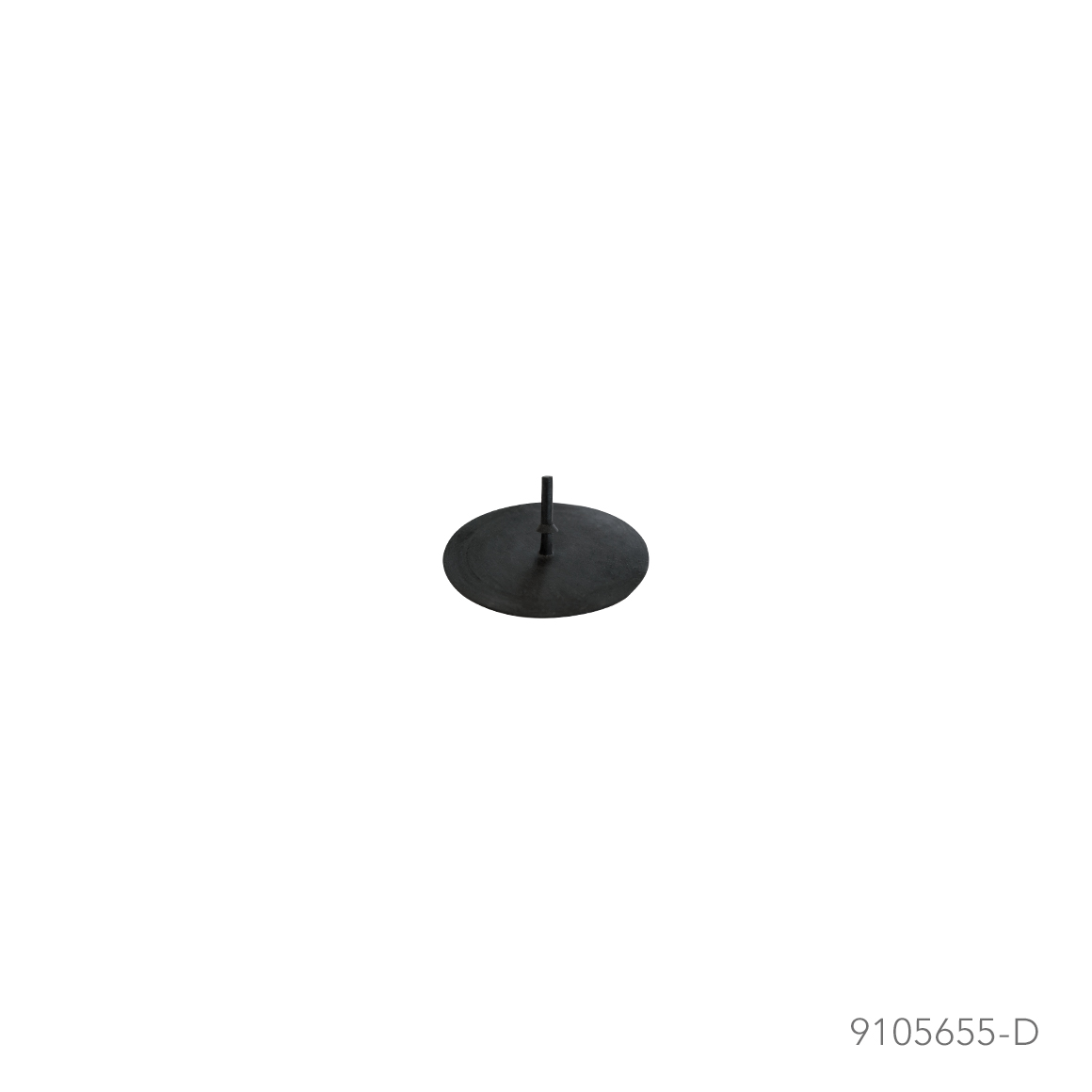

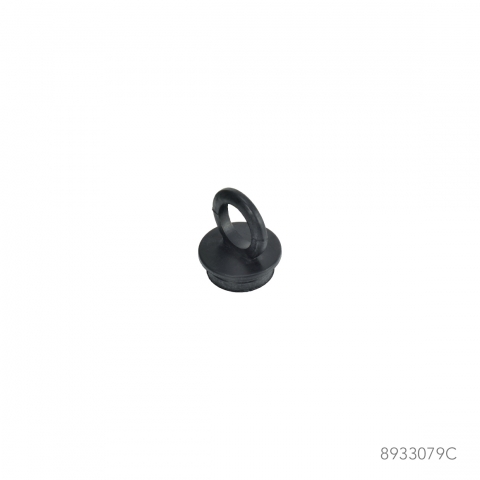

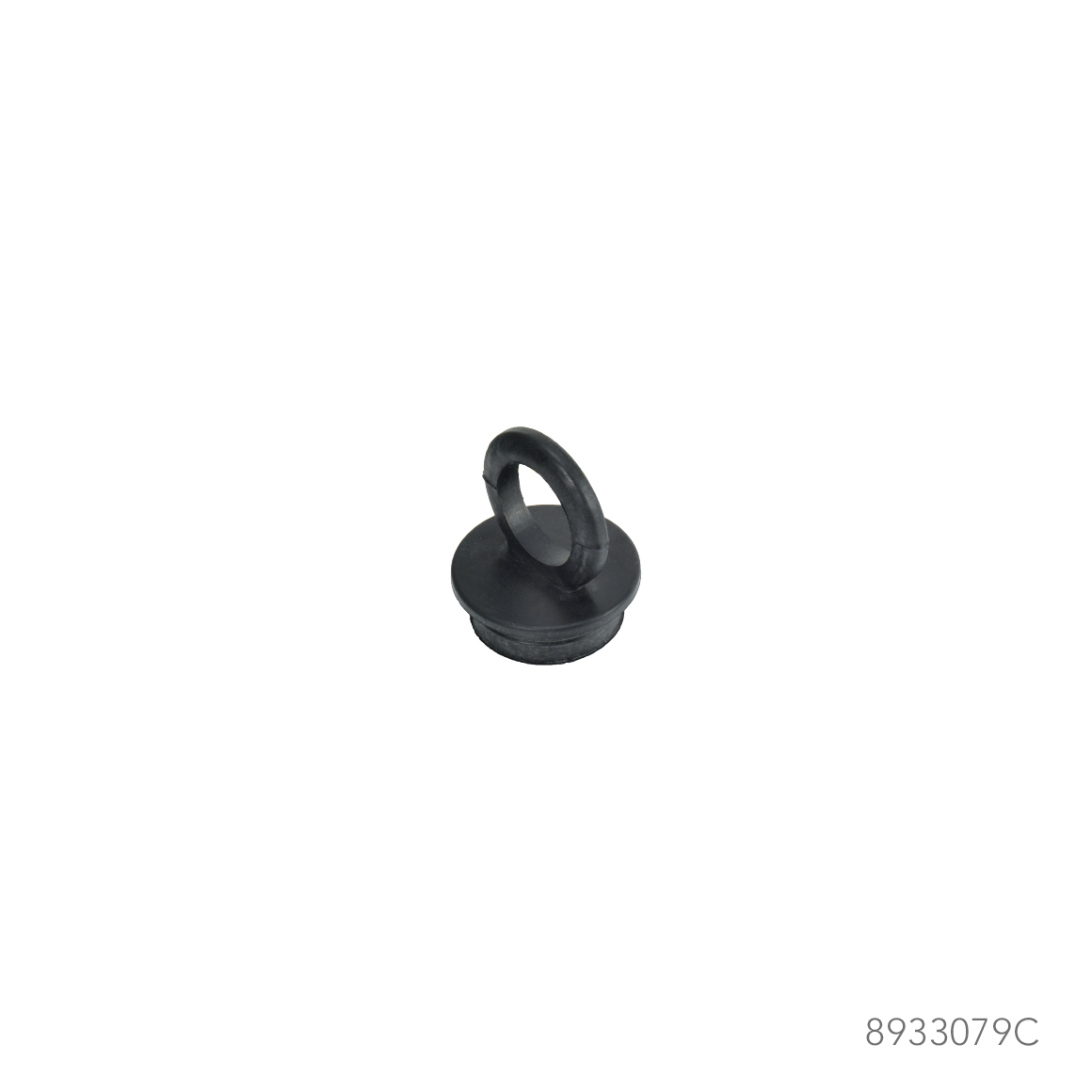

8933079 38(1-1/2") 51(2") 25.4~120(1"~4-3/4") 9105655 51(2") 63(2-1/2") 31~120(1-1/4"~4-3/4") 8933079C Rubber plug only for 8933079 8931489C Rubber plug only for 9105655 9105655-D Rubber diaphragm only for 910565
