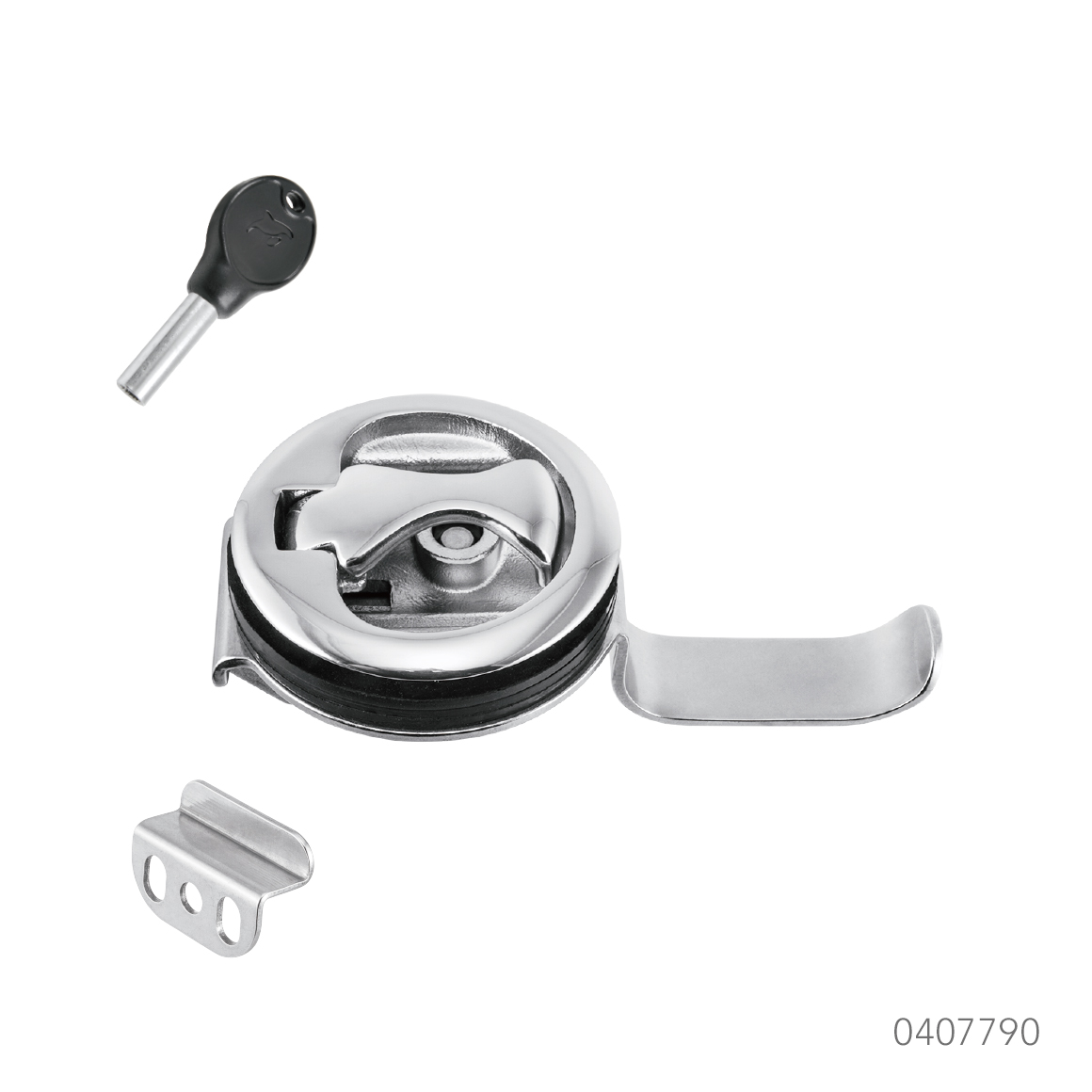

PRIVACY DOOR SLAM LATCH
Stainless Steel 316
- Combines our integral lock slam latch technology with inside egress capabilities.
- Comfortable stainless steel 304 inside pull handle.
- Key lock on the outside, lever lock on the inside.

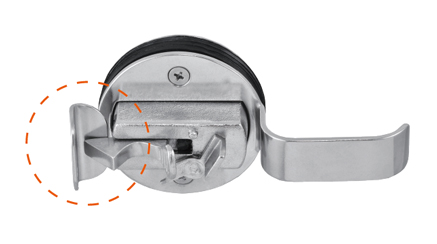

- 0407790: Interlocking strike would catch the backing plate for double engagement,
which suits even curved cabin door or head door.
- 3 pcs of 2mm spacers are included.
- Screw size M4 or #8.
- Stainless steel 304 accessories are included.
- Combines our integral lock slam latch technology with inside egress capabilities.
- Comfortable stainless steel 304 inside pull handle.
- Key lock on the outside, lever lock on the inside.
- 0407790: Interlocking strike would catch the backing plate for double engagement,
which suits even curved cabin door or head door.
- 3 pcs of 2mm spacers are included.
- Screw size M4 or #8.
- Stainless steel 304 accessories are included.
Qty
Qty
-
Bulk No.

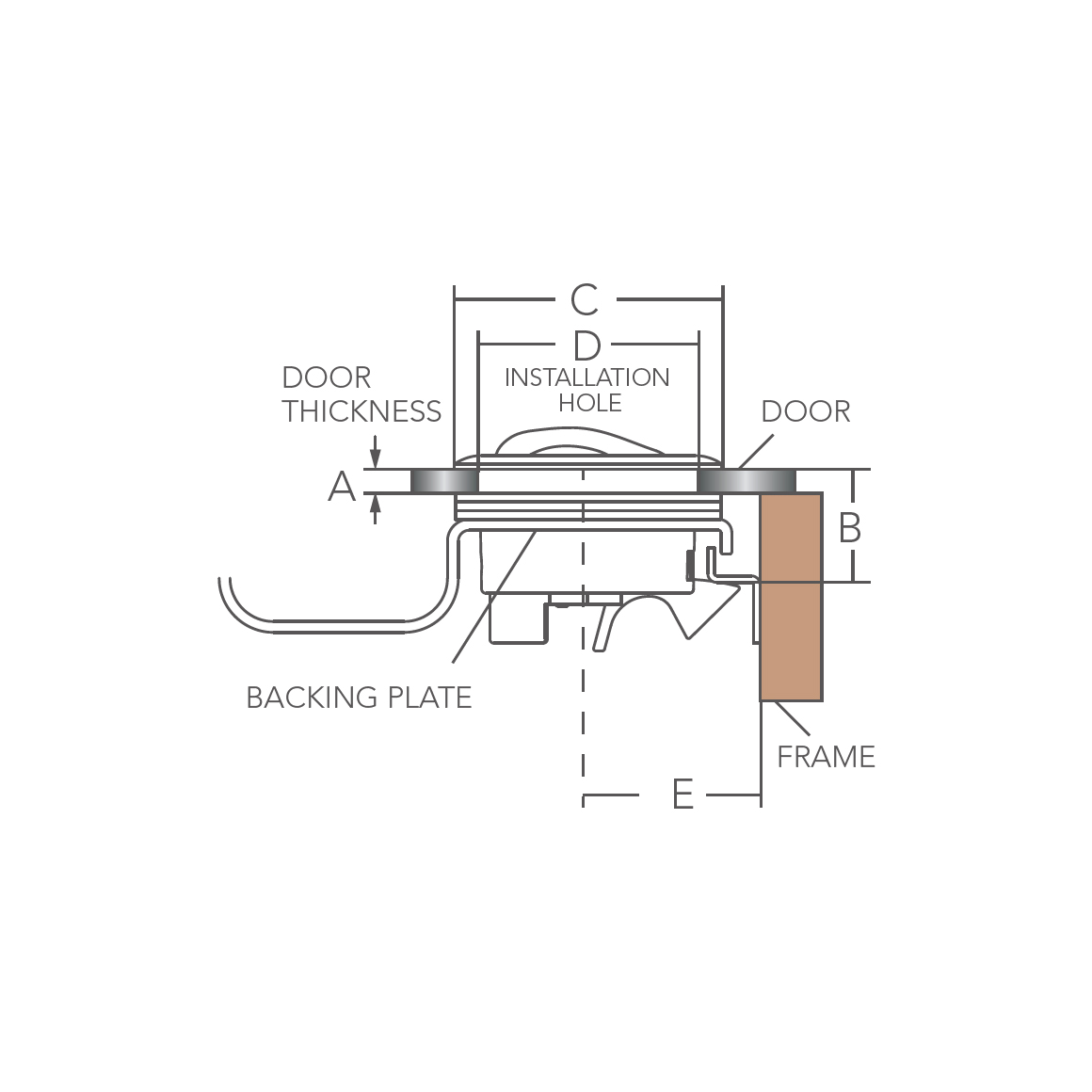

Model
A mm
B mm
C mm
D mm
E mm
0407790 Double Engagement 6~11(1/4"~7/16") 26(1") 62(2-7/16") 51(2") 40(1-9/16") 0407790-8 Single Engagement 13~19(1/2"~3/4") 26(1") 62(2-7/16") 51(2") 40(1-9/16")
0407790
Double Engagement0407790-8
Single Engagement
