TOUCH PULL D HANDLE LATCH
Stainless Steel 316
- Low profile.
- Larger handle for comfortable grip.
- New latching concept:
Simply push the button and handle will pop up to unlatch.
- Swinging pawl prevents accidental damage to
fiberglass frame when closing.
- Latch compresses about 6mm (1/4").
- Longer screws are required for thicker door.
- #8 installation screws and watertight gasket are included.
- Stainless steel 304 locking nut is included.
- Low profile.
- Larger handle for comfortable grip.
- New latching concept:
Simply push the button and handle will pop up to unlatch.
- Swinging pawl prevents accidental damage to
fiberglass frame when closing.
- Latch compresses about 6mm (1/4").
- Longer screws are required for thicker door.
- #8 installation screws and watertight gasket are included.
- Stainless steel 304 locking nut is included.
Qty
Qty
Qty
-
Bulk No.

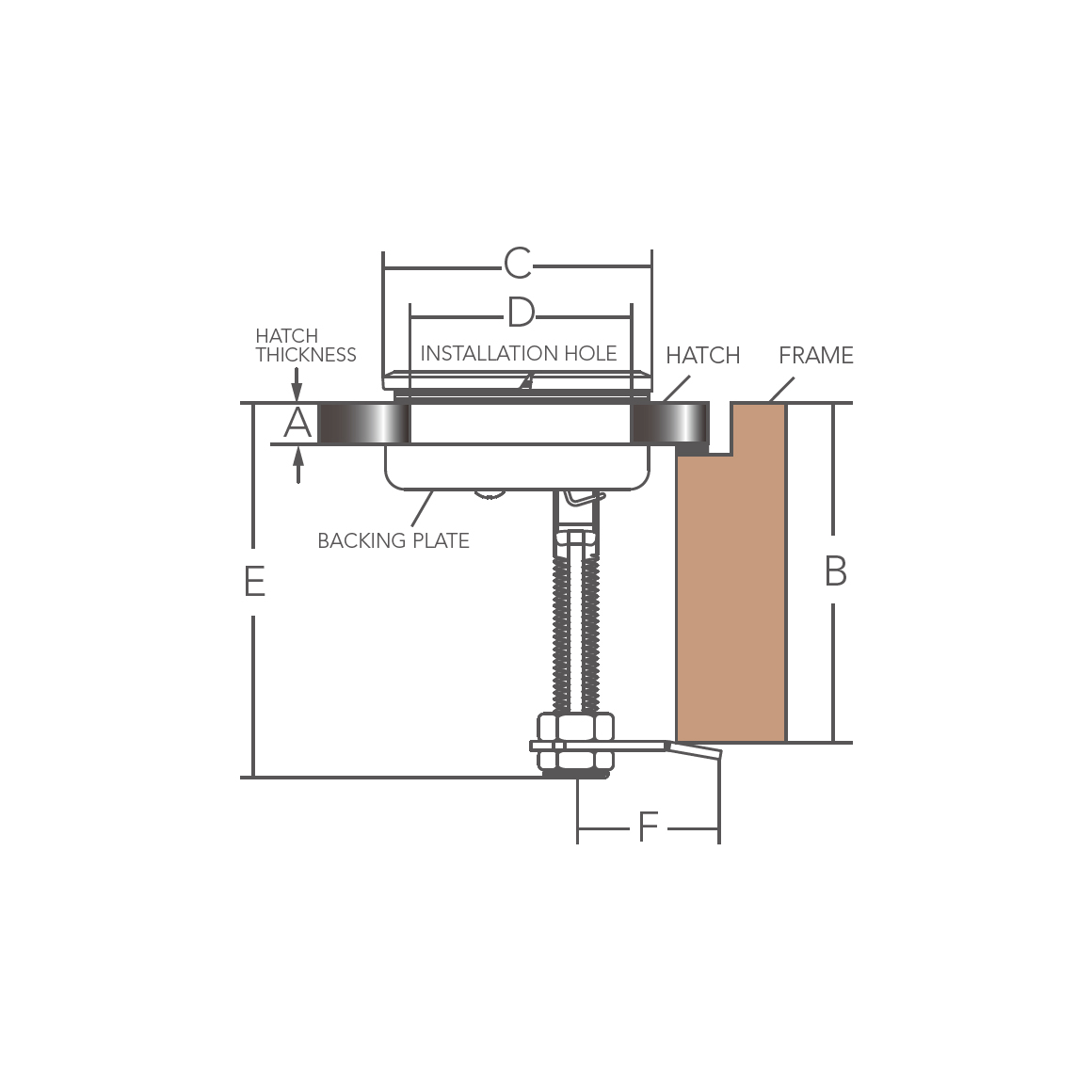

Model
A mm
B mm
C mm
D mm
E mm
F mm

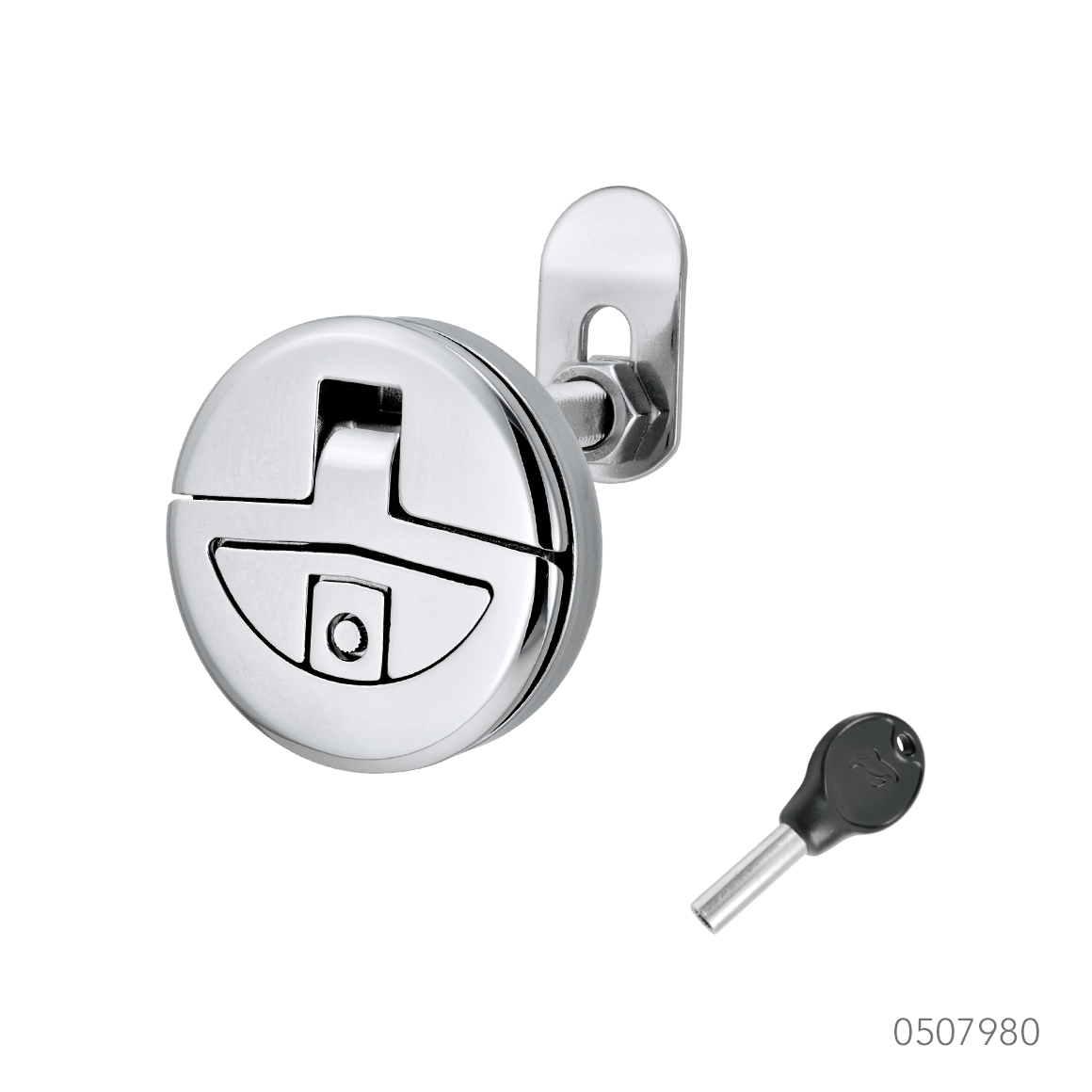

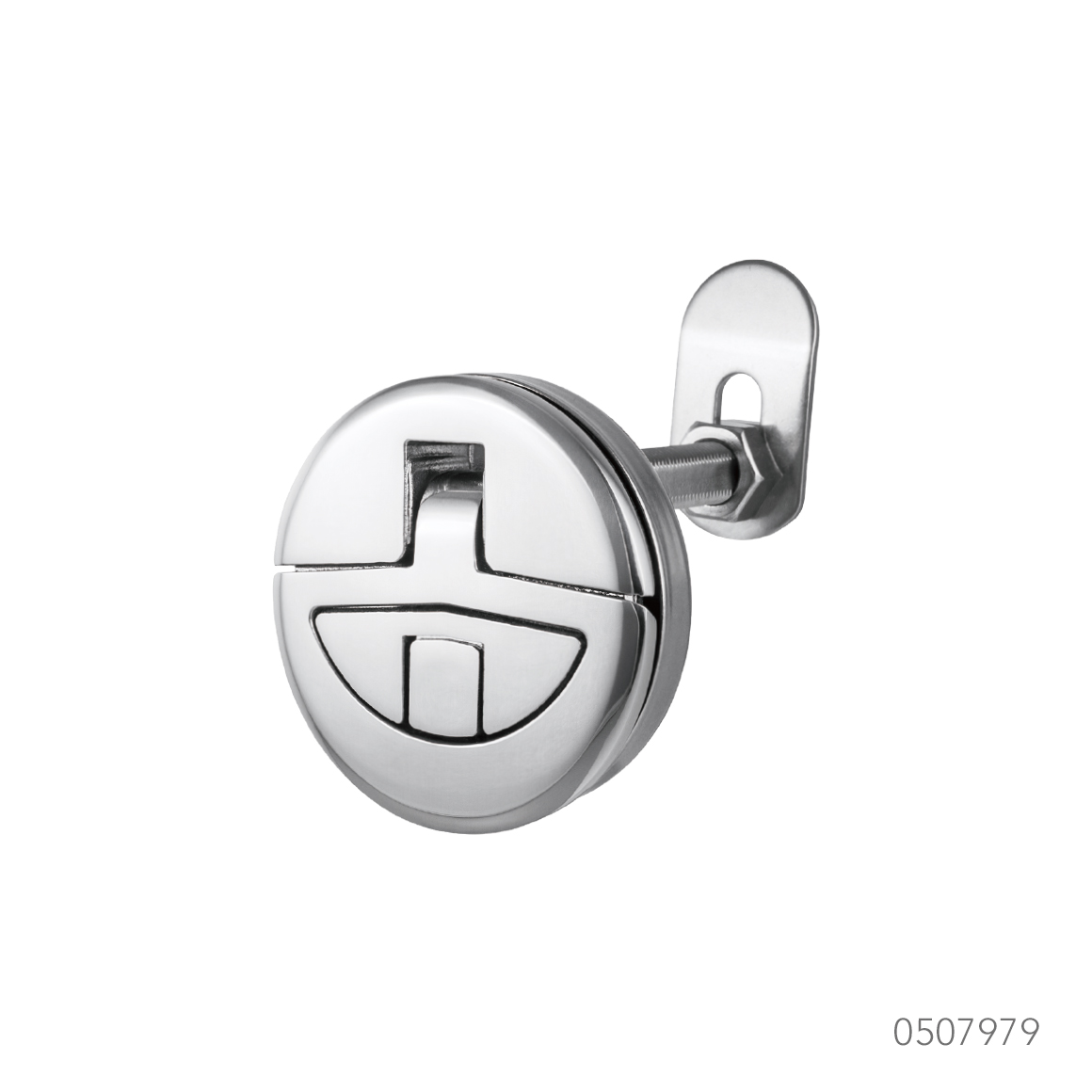

0507979 W/O Lock 4~13(3/16"~1/2") 45~86(1-3/4"~3-3/8") 78(3-1/16") 64(2-1/2") 97(3-13/16") 28~42(1-1/8"~1-5/8") 0507979-3 W/O Lock & W/O Pawl 4~13(3/16"~1/2") - 78(3-1/16" 64(2-1/2") 97(3-13/16") - 0507980 W/ Lock 4~13(3/16"~1/2") 45~86(1-3/4"~3-3/8") 78(3-1/16") 64(2-1/2") 97(3-13/16") 28~42(1-1/8"~1-5/8") INSTRUCTION

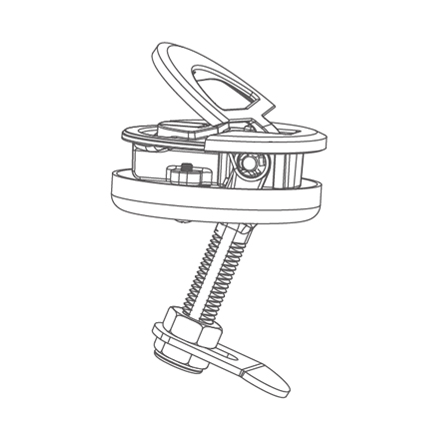

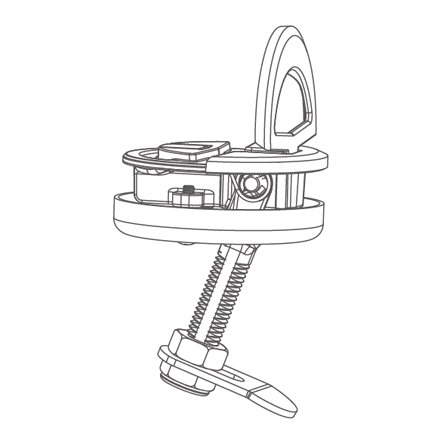

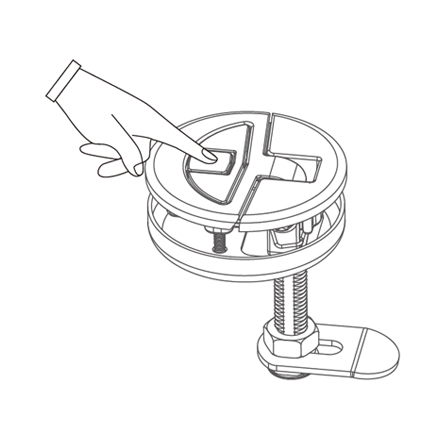

❶ Push button to open latch. ❷ Handle pops up and pawl goes
backward.❸ Lift handle up to unlatch.
