ROUND COMPRESSION D LATCH 2"
Stainless Steel 316
- Handle can be nested in either latched or unlatched position.
- Ideal for gasketed hatches.
- Red dot on the handle indicates it is unlatched and allows quick access.
- Heavy duty 3/8" pawl shaft.
- Plastic washers for #8 screws are included to prevent water penetration.
- Screw size M4 or #8.
- Handle can be nested in either latched or unlatched position.
- Ideal for gasketed hatches.
- Red dot on the handle indicates it is unlatched and allows quick access.
- Heavy duty 3/8" pawl shaft.
- Plastic washers for #8 screws are included to prevent water penetration.
- Screw size M4 or #8.
Qty
Qty
Qty
Qty
-
Bulk No.
Lock
Pawl

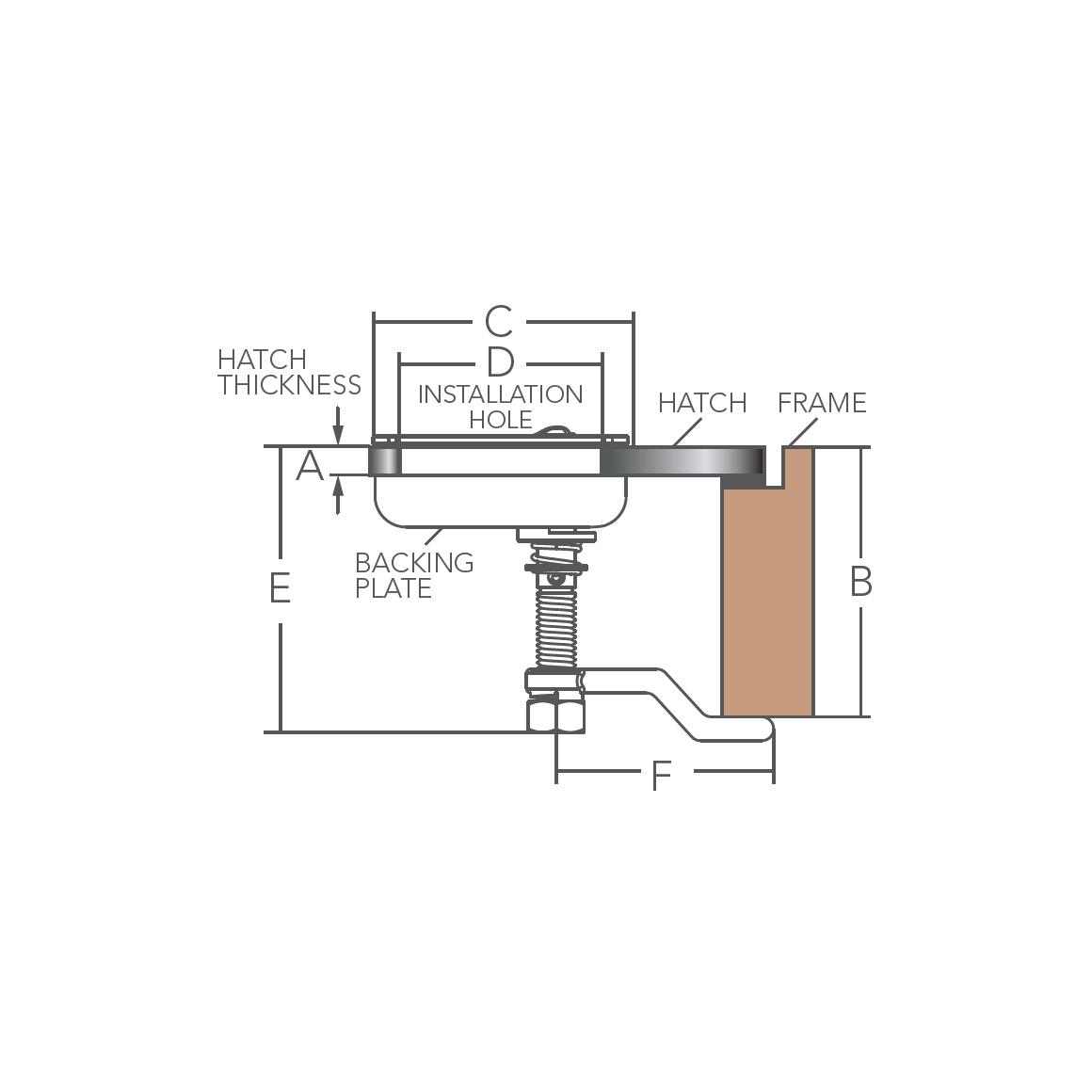

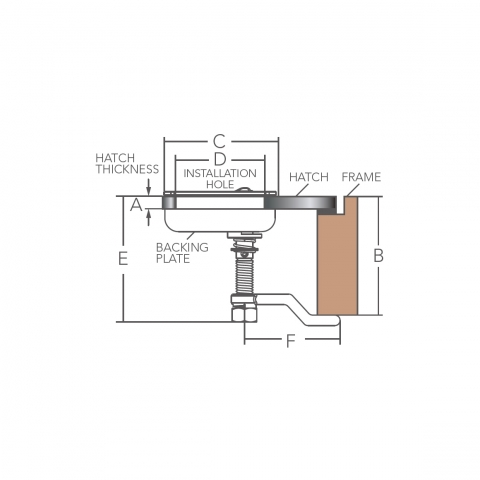

A-Min. mm
B mm
C mm
D mm
E mm
F mm

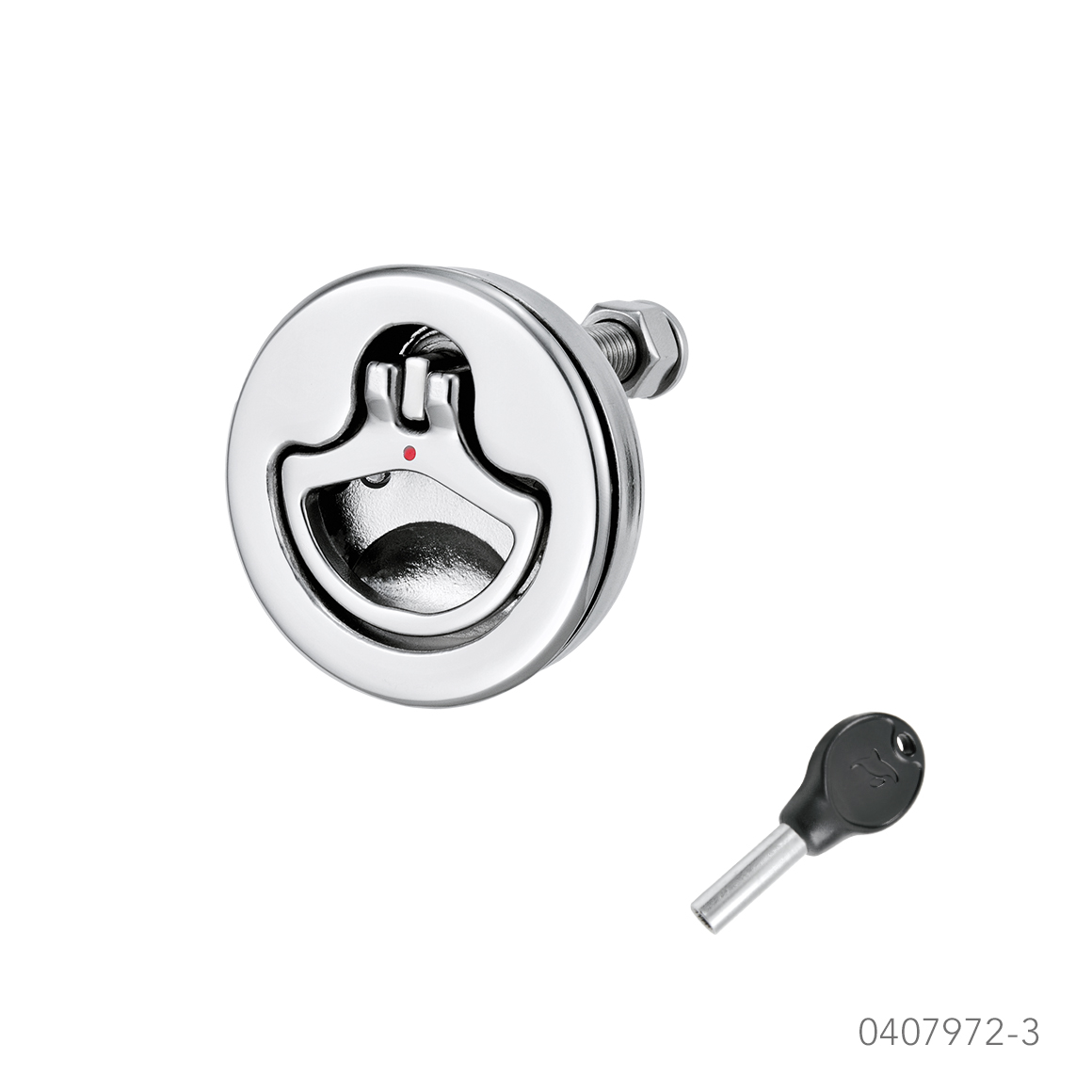

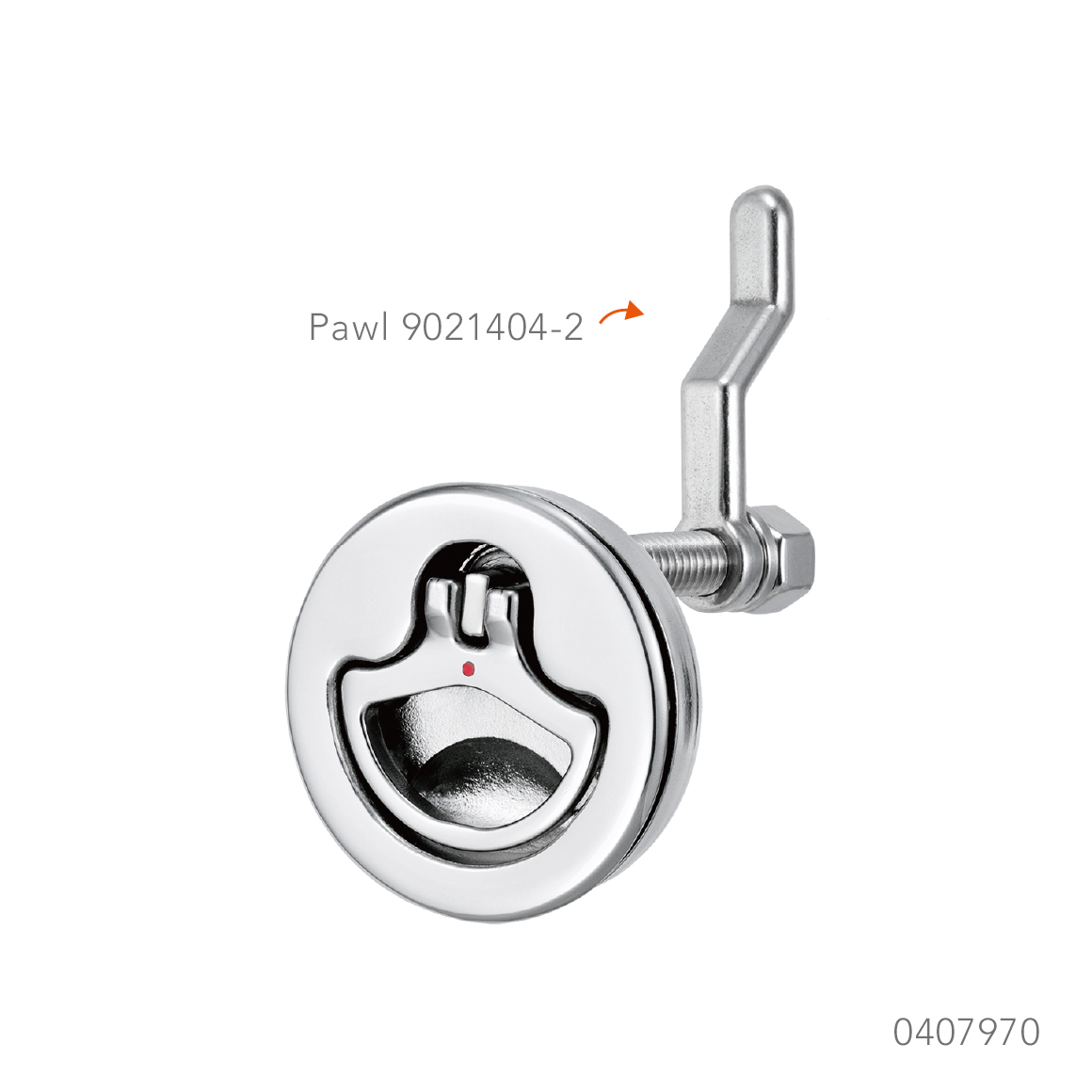

0407970 W/O Lock 9021404-2 4(3/16") 24~69(15/16"~2-3/4") 64(2-1/2") 51(2") 73(2-7/8") 54(2-1/8") 0407970-3 W/O Lock None 4(3/16") - 64(2-1/2") 51(2") 73(2-7/8") - 0407972 W/ Lock 9021404-2 4(3/16") 24~69(15/16"~2-3/4") 64(2-1/2") 51(2") 73(2-7/8") 54(2-1/8") 0407972-3 W/ Lock None 4(3/16") - 64(2-1/2") 51(2") 73(2-7/8") -
