GRAND SERIES - COMPRESSION LATCH 2-1/2"
Stainless Steel 316
- Spring loaded, anti-rattle design.
- Larger handle opening for comfortable grip.
- Detent handle ensures positioning after a 90° turn.

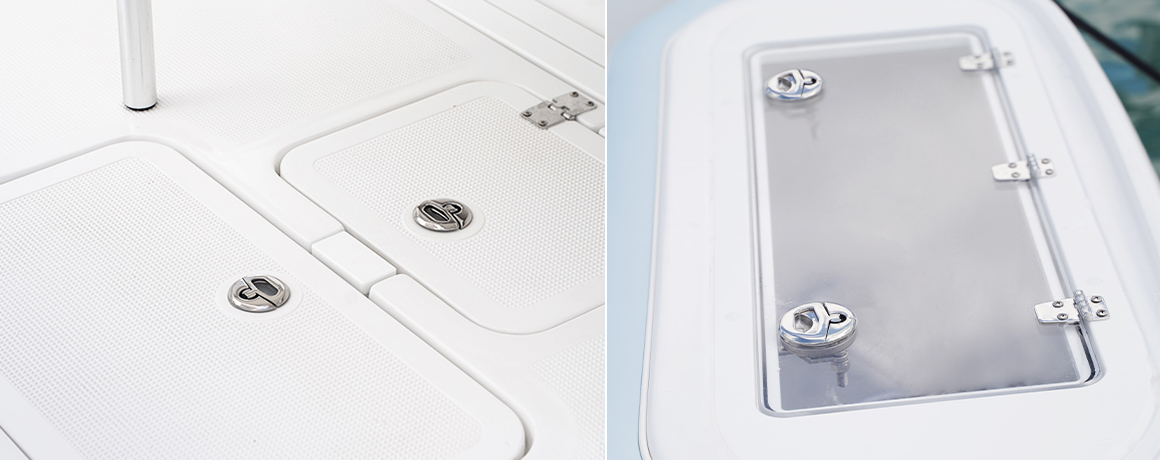

- Ideal for gasketed hatches.
- #8 installation screws, watertight gasket and 2 pcs of 5mm spacers are included.
- Stainless steel 304 accessories are included.
- Spring loaded, anti-rattle design.
- Larger handle opening for comfortable grip.
- Detent handle ensures positioning after a 90° turn.
- Ideal for gasketed hatches.
- #8 installation screws, watertight gasket and 2 pcs of 5mm spacers are included.
- Stainless steel 304 accessories are included.
Qty
Qty
-
Bulk No.

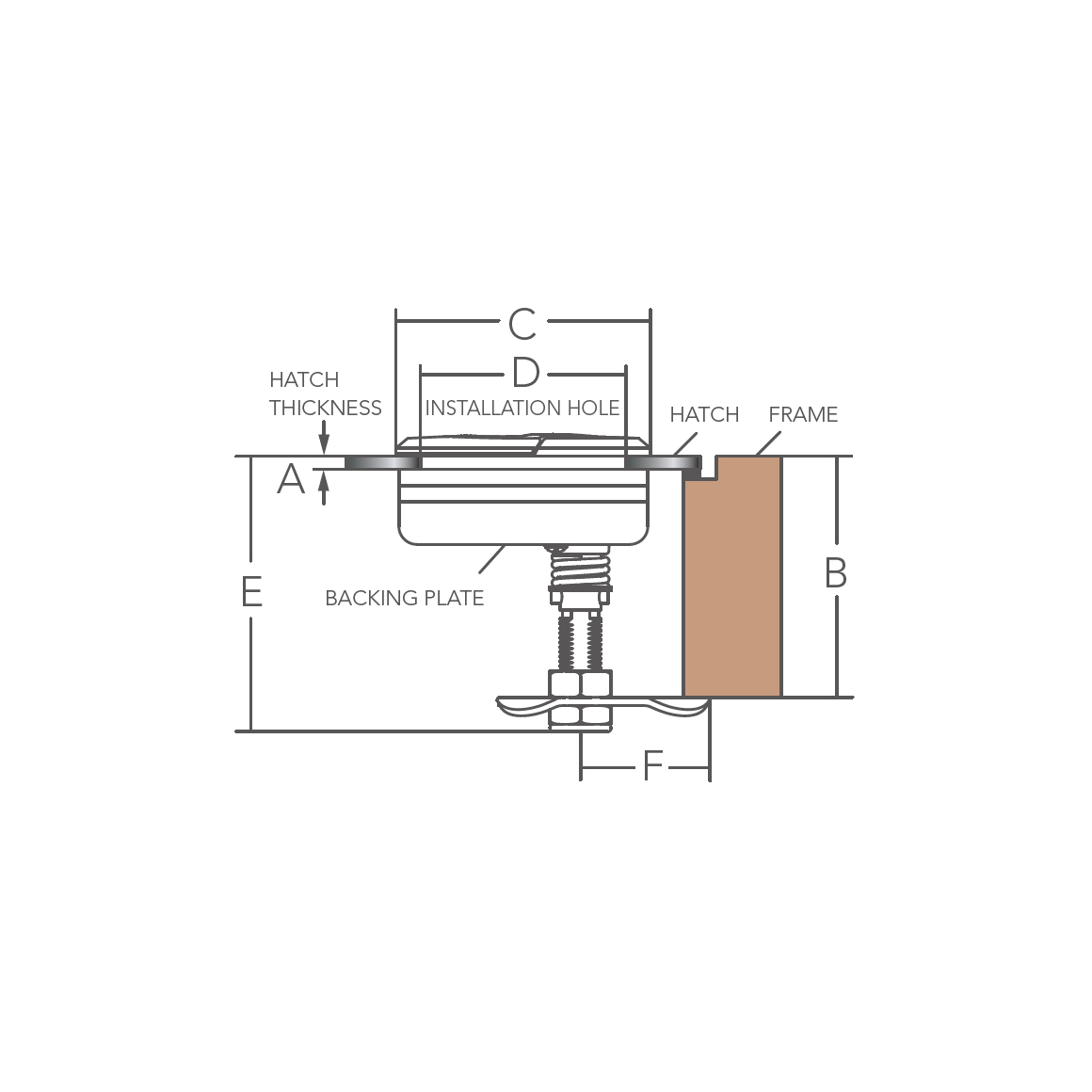

Model
A mm
B mm
C mm
D mm
E mm
F mm

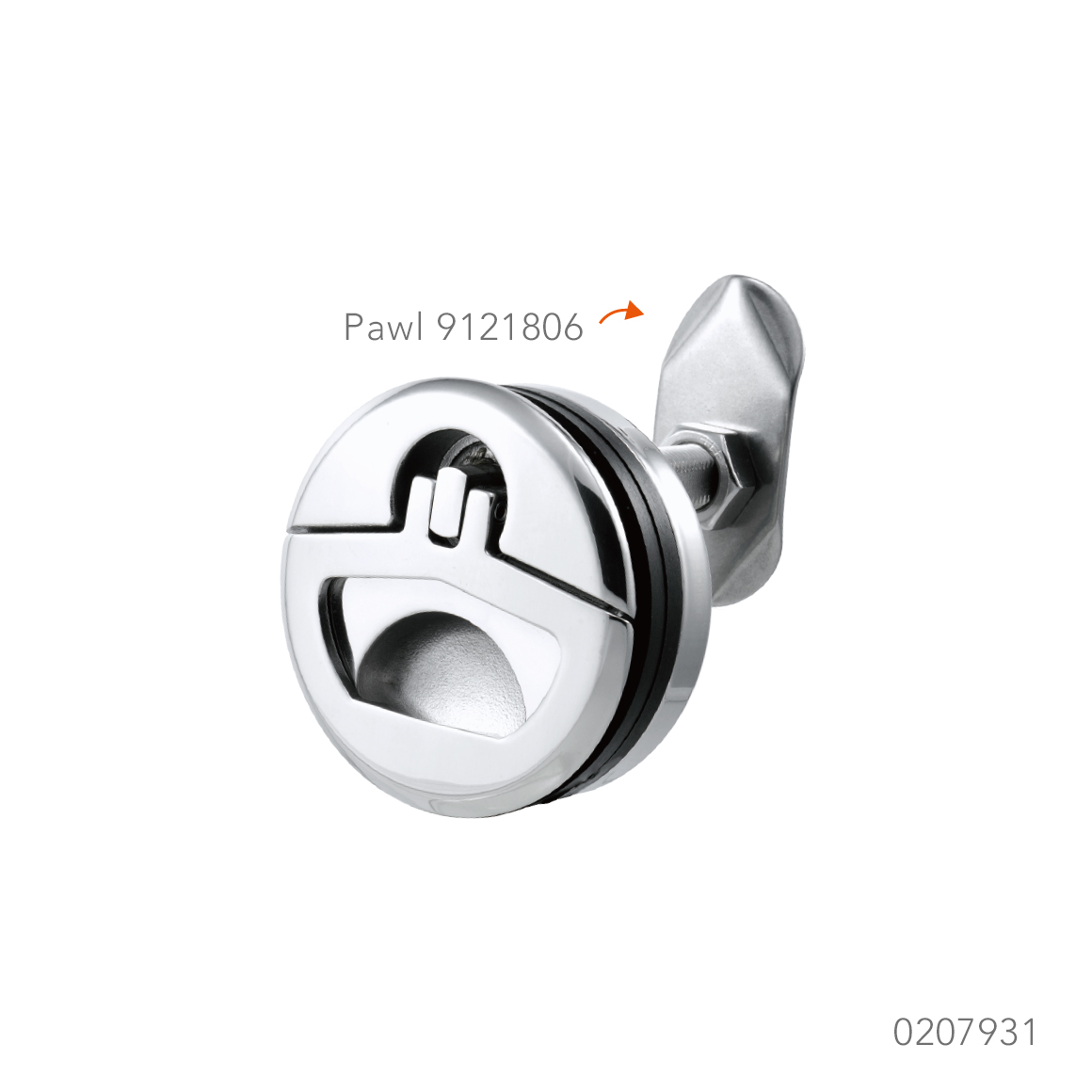

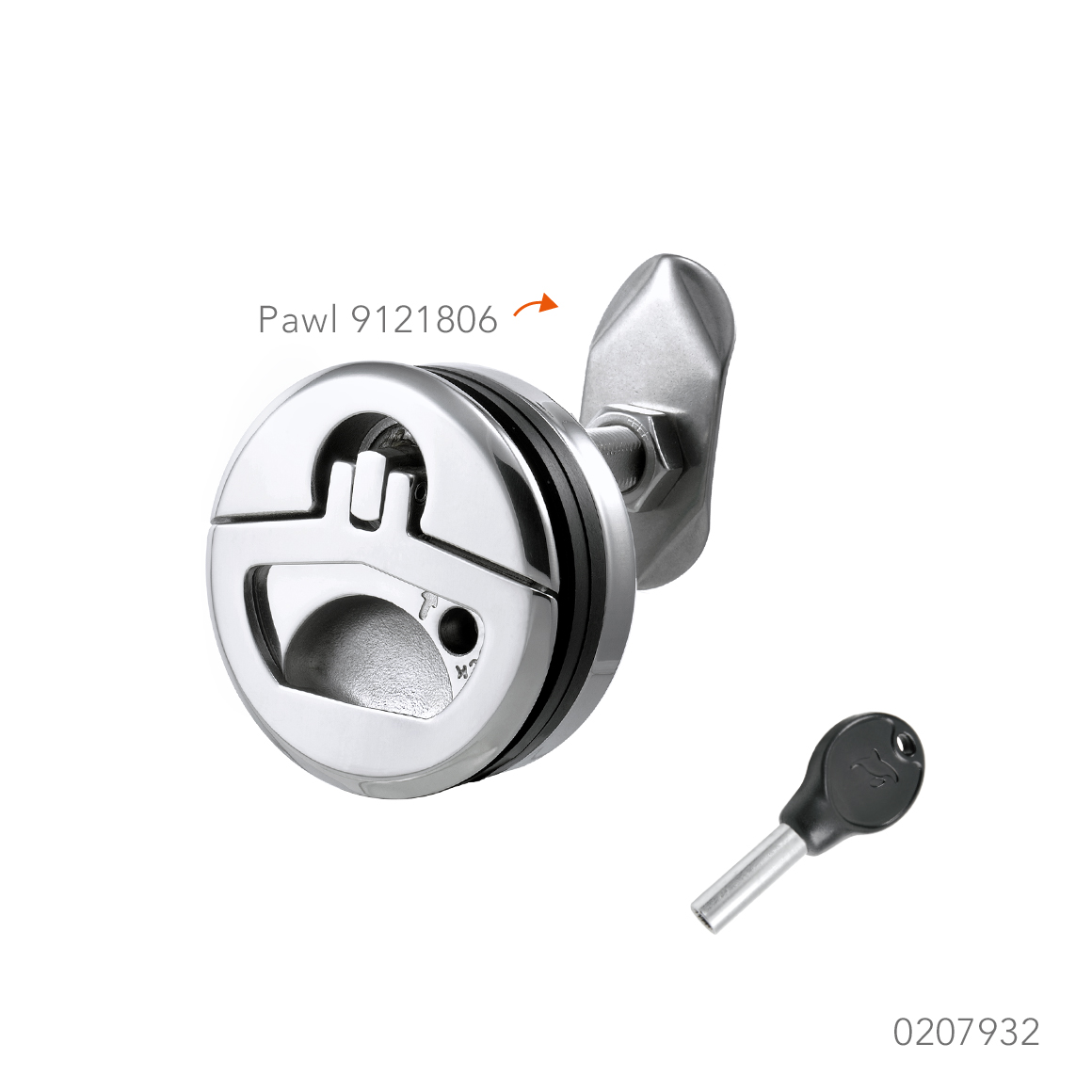

0207931 W/O Lock 1~19(1/16"~3/4") 55~74(2-3/16"~2-15/16") 78(3-1/16") 64(2-1/2") 84(3-5/16") 39(1-9/16") 0207932 W/ Lock 4~22(3/16"~7/8") 55~74(2-3/16"~2-15/16") 78(3-1/16") 64(2-1/2") 84(3-5/16") 39(1-9/16")
