GRAND SERIES - SQUARE COMPRESSION LATCH 2"
Stainless Steel 316
- Spring loaded, anti-rattle design.
- Larger handle opening for comfortable grip.
- Detent handle ensures positioning after a 90° turn.

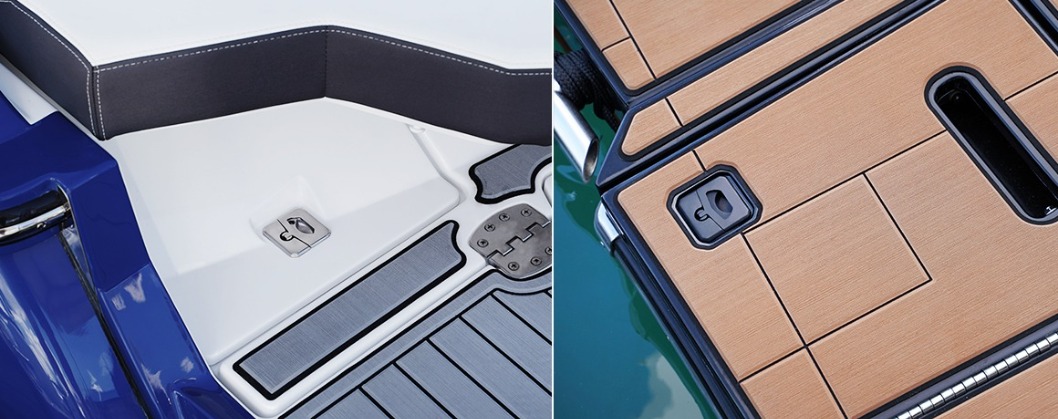

- Ideal for gasketed hatches.
- #8 installation screws and watertight gasket are included.
- Stainless steel 304 accessories are included.
- Spring loaded, anti-rattle design.
- Larger handle opening for comfortable grip.
- Detent handle ensures positioning after a 90° turn.
- Ideal for gasketed hatches.
- #8 installation screws and watertight gasket are included.
- Stainless steel 304 accessories are included.
Qty
Qty
Qty
-
Bulk No.

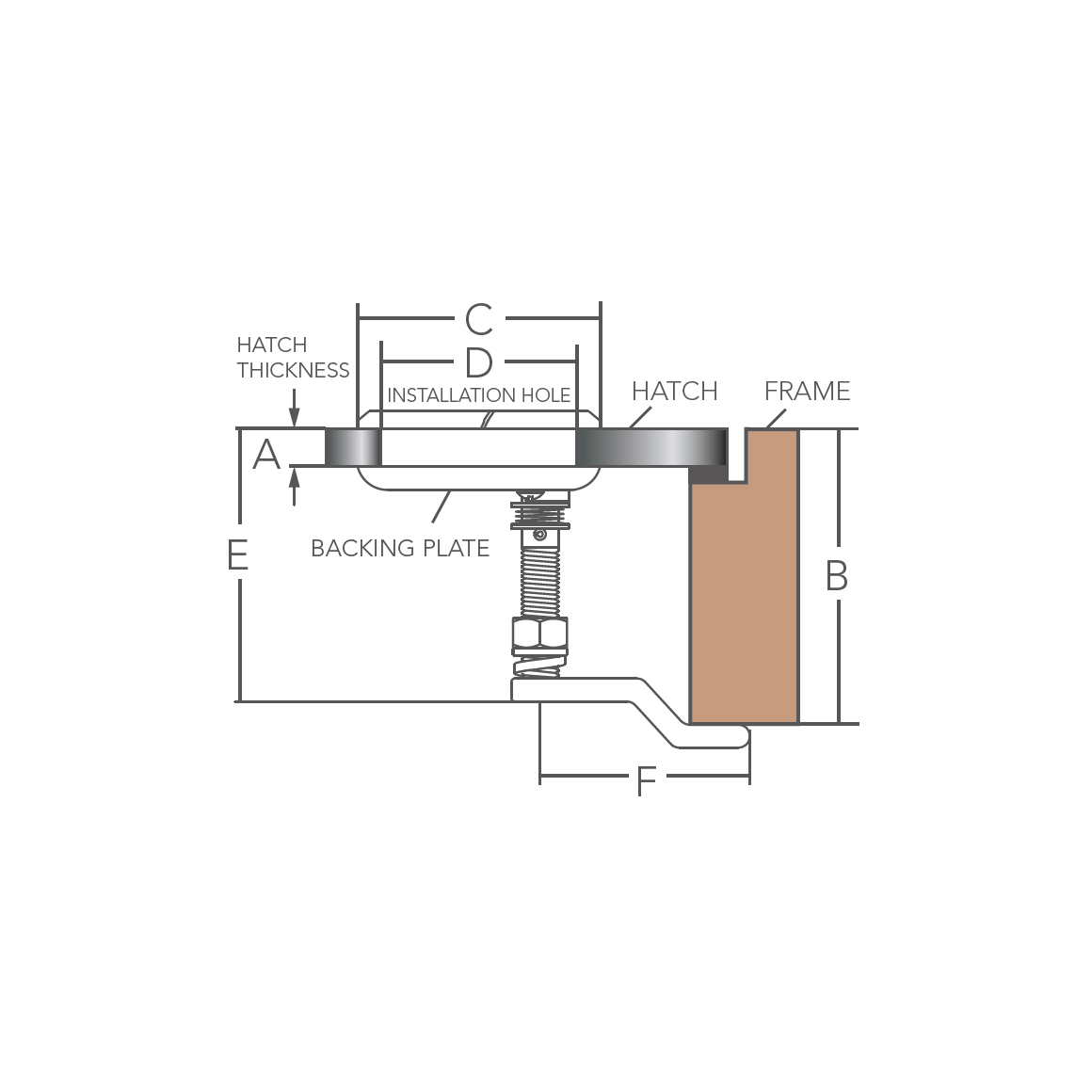

Model
Pawl
A mm
B mm
C mm
D mm
E mm
F mm

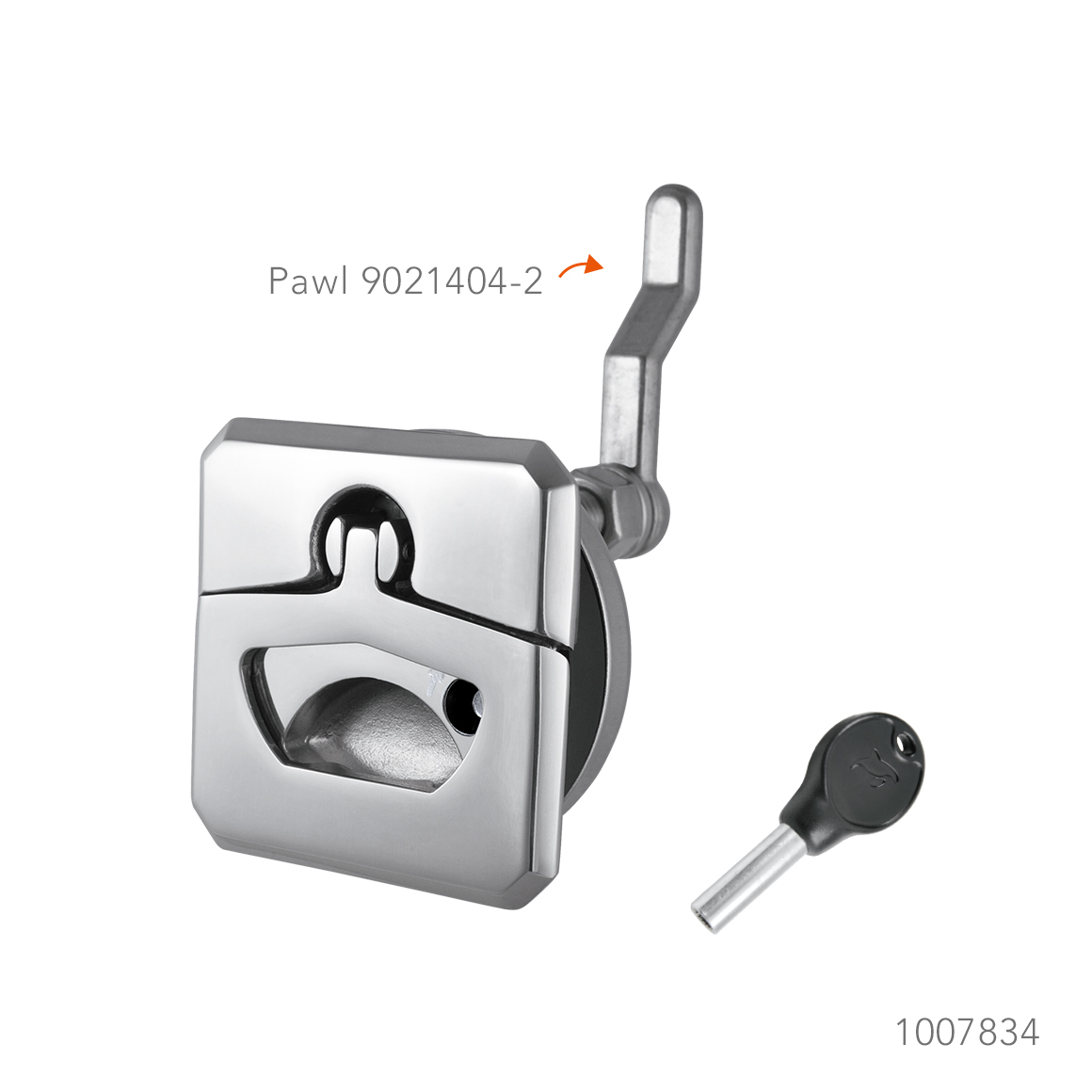

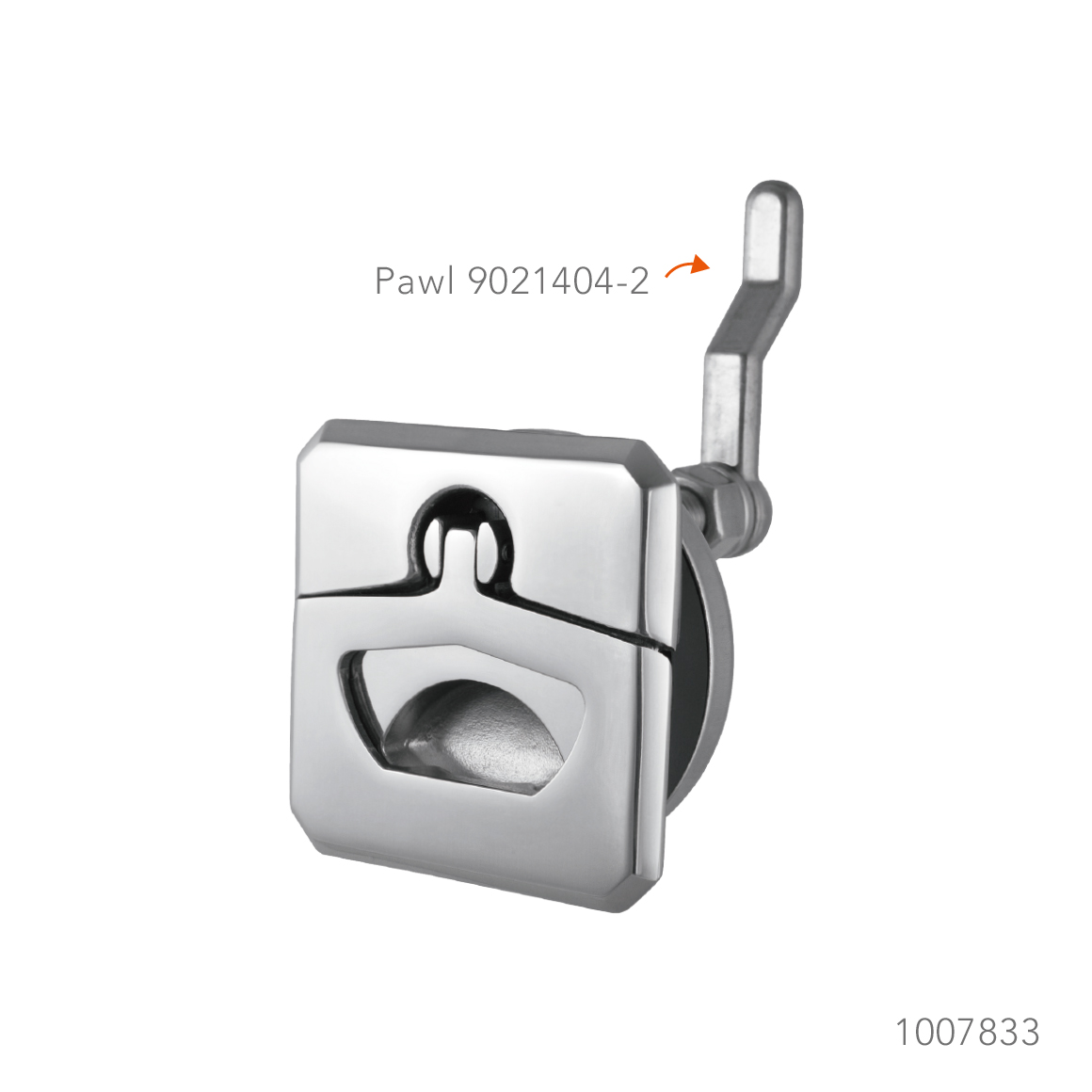

1007833 W/O Lock 9021404-2 1~20(1/16"~13/16") 25~76(1"~3") 65(2-9/16") 51(2") 71(2-13/16") 54(2-1/8") 1007833-3 W/O Lock None 1~20(1/16"~13/16") - 65(2-9/16") 51(2") 71(2-13/16") - 1007834 W/ Lock 9021404-2 6~20(1/4"~13/16") 25~76(1"~3") 65(2-9/16") 51(2") 71(2-13/16") 54(2-1/8")
