COMPRESSION D LATCH 2-1/2"
Stainless Steel 316
- Handle can be nested in either latched or unlatched position.
- When handle is pressed down, pawl is raised to compress hatch, hence ideal
for gasketed hatches.
- Red dot on the handle indicates it is unlatched and allows quick access.
- Heavy duty 1/2" pawl shaft.
- PVC washers for M4 or #8 screws are included to prevent water penetration.
- Screw size M4 or #8.
- Stainless steel 304 locking nut is included.
- Handle can be nested in either latched or unlatched position.
- When handle is pressed down, pawl is raised to compress hatch, hence ideal
for gasketed hatches.
- Red dot on the handle indicates it is unlatched and allows quick access.
- Heavy duty 1/2" pawl shaft.
- PVC washers for M4 or #8 screws are included to prevent water penetration.
- Screw size M4 or #8.
- Stainless steel 304 locking nut is included.
Qty
Qty
Qty
Qty
-
Bulk No.
Model

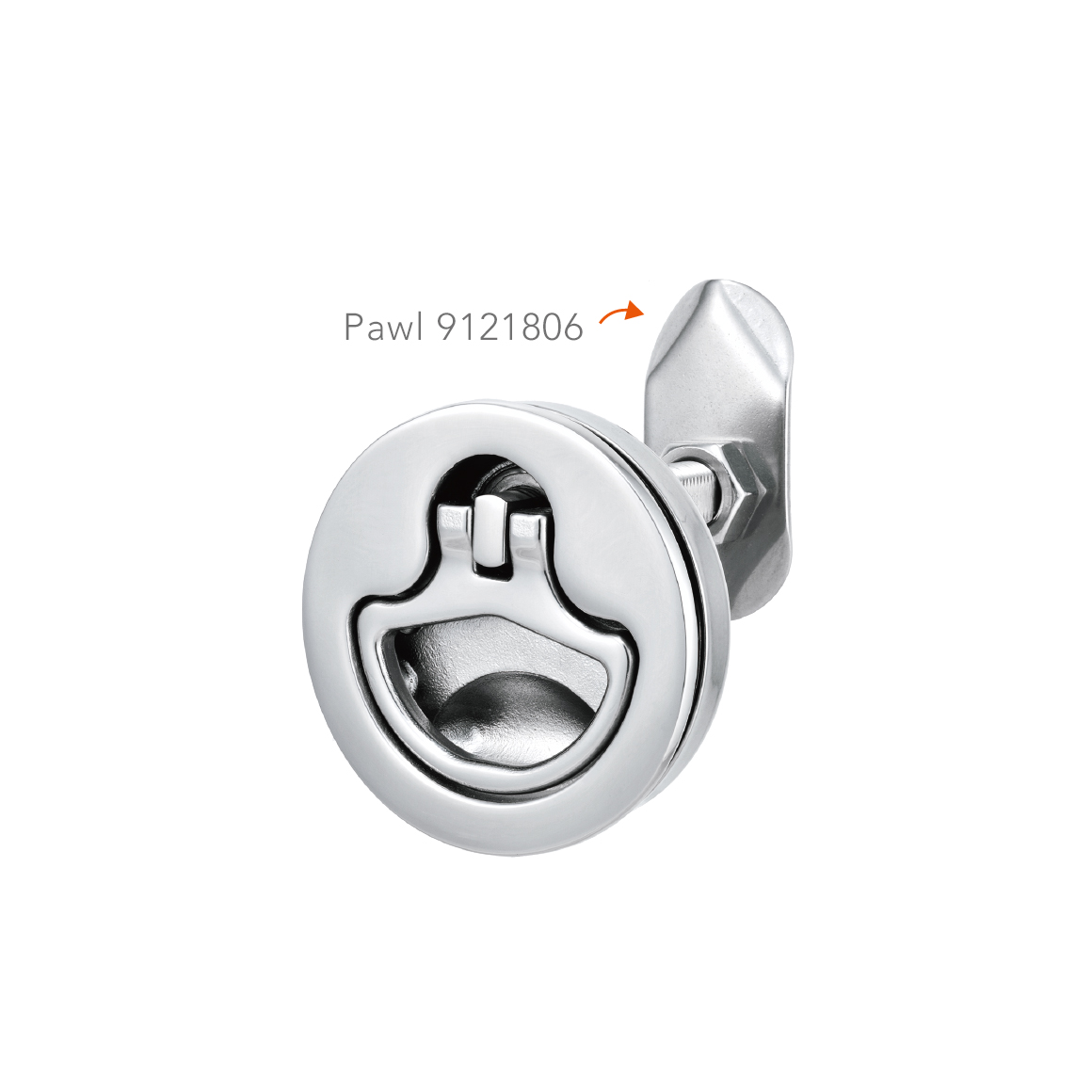

Pawl

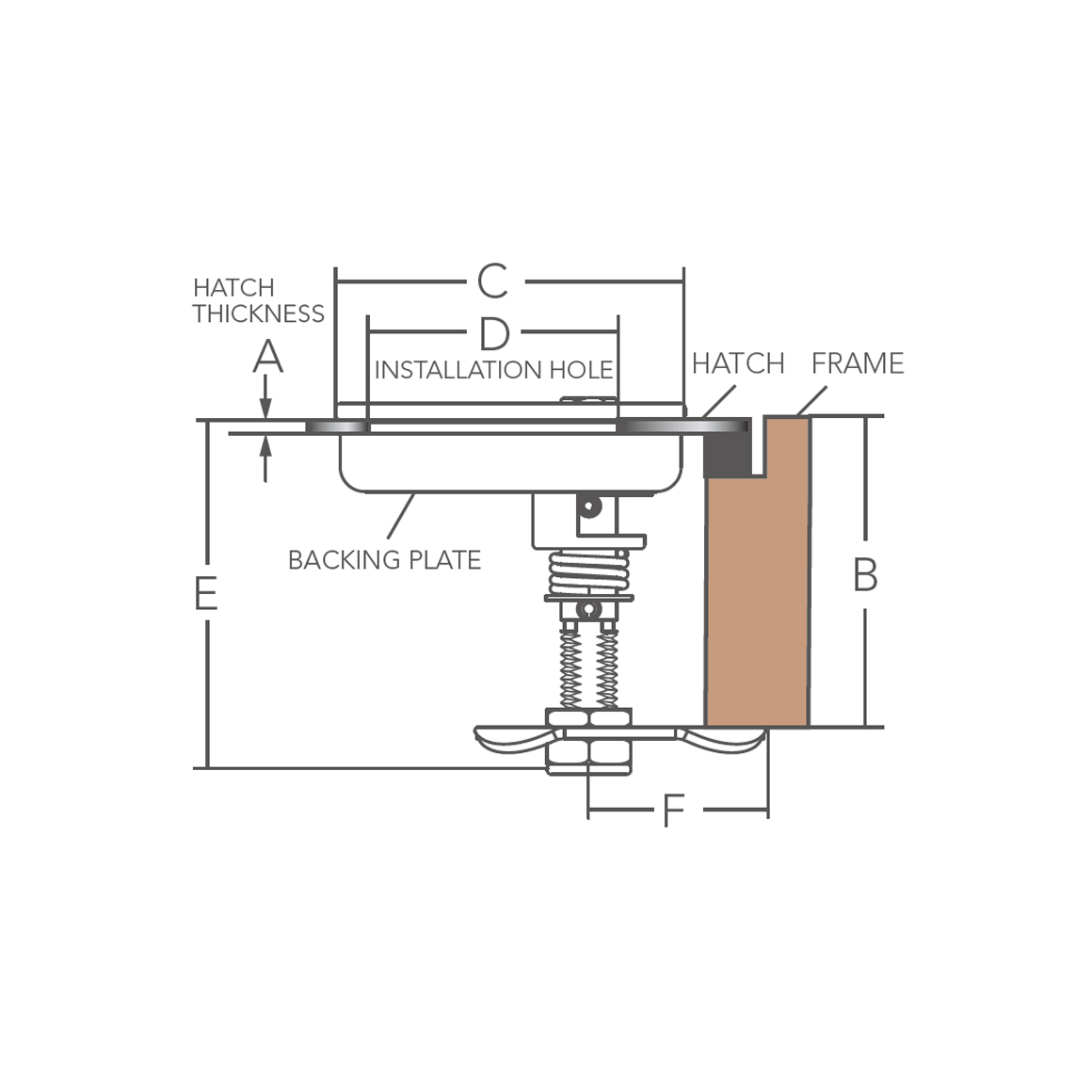

A-Min. mm
B mm
C mm
D mm
E mm
F mm

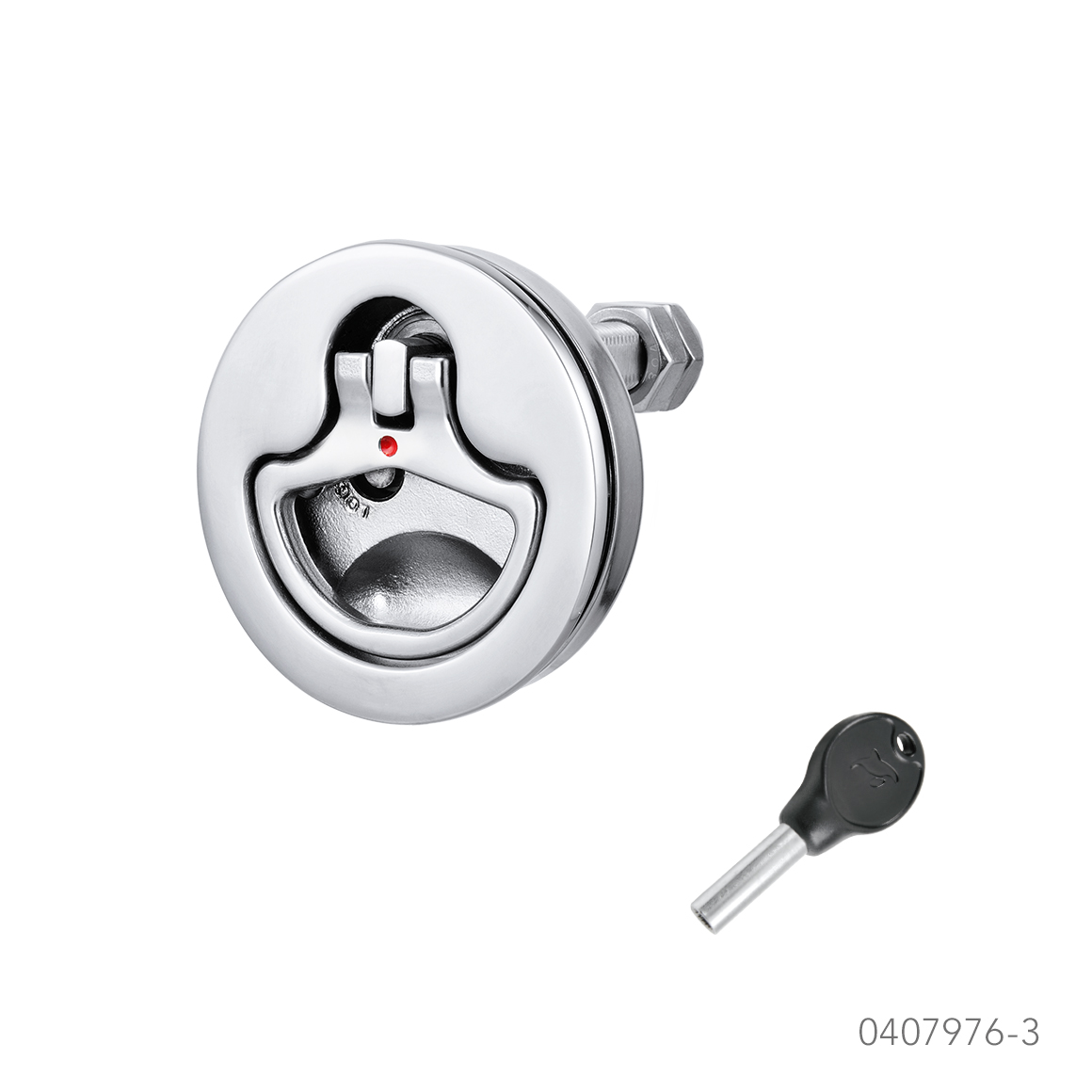

0407974 W/O Lock 9121806 5(3/16") 49~68(1-15/16"~2-11/16") 78(3-1/16") 64(2-1/2") 79(3-1/8") 39(1-9/16") 0407974-3 W/O Lock None 5(3/16") - 78(3-1/16") 64(2-1/2") 79(3-1/8") - 0407976 W/ Lock 9121806 5(3/16") 49~68(1-15/16"~2-11/16") 78(3-1/16") 64(2-1/2") 79(3-1/8") 39(1-9/16") 0407976-3 W/ Lock None 5(3/16") - 78(3-1/16") 64(2-1/2") 79(3-1/8") -
