SQUARE "T" HANDLE LATCH - BOSS TYPE
Stainless Steel 316
- Spring loaded handle for anti-rattle operation.
- Rectangular cutout 67mm(2-5/8")x84mm(3-5/16") is required for installation.
- Hidden fasteners.

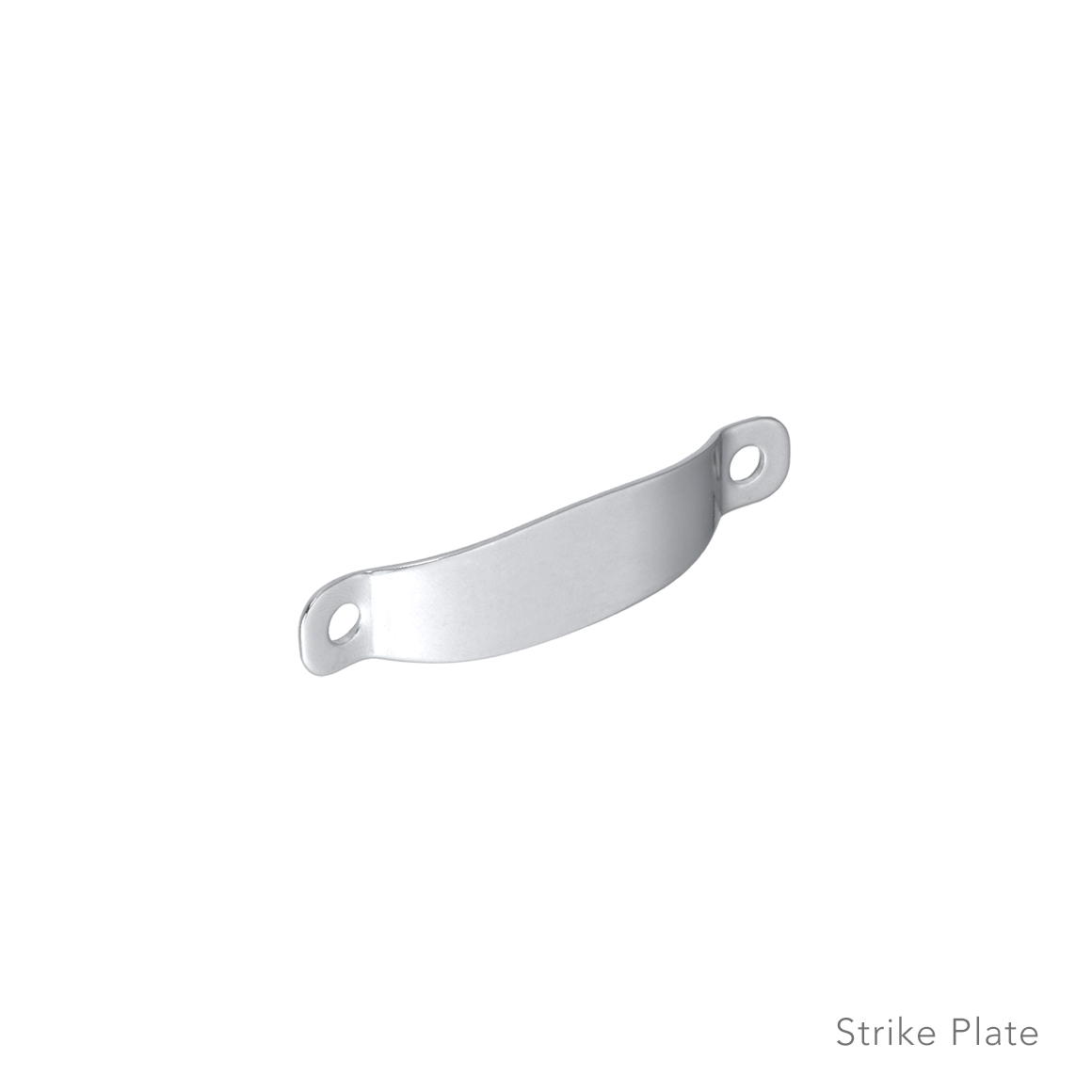

- Strike plate is included and installed under frame which helps compress hatch.
- Screw size M5 or #10.
- Spring loaded handle for anti-rattle operation.
- Rectangular cutout 67mm(2-5/8")x84mm(3-5/16") is required for installation.
- Hidden fasteners.
- Strike plate is included and installed under frame which helps compress hatch.
- Screw size M5 or #10.
Qty
MOQ
Qty
MOQ
-
Bulk No.

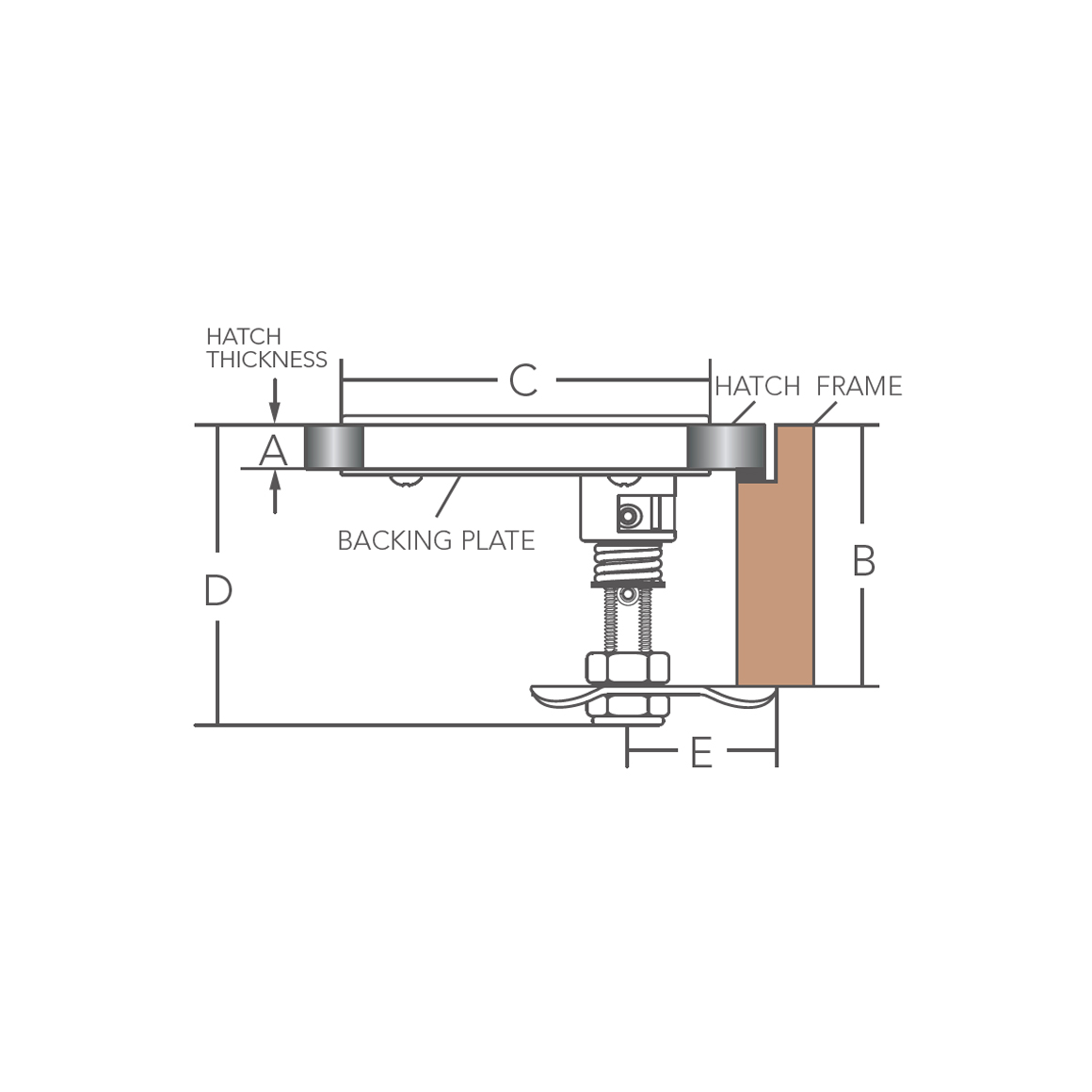

Model
A mm
B mm
C mm
D mm
E mm

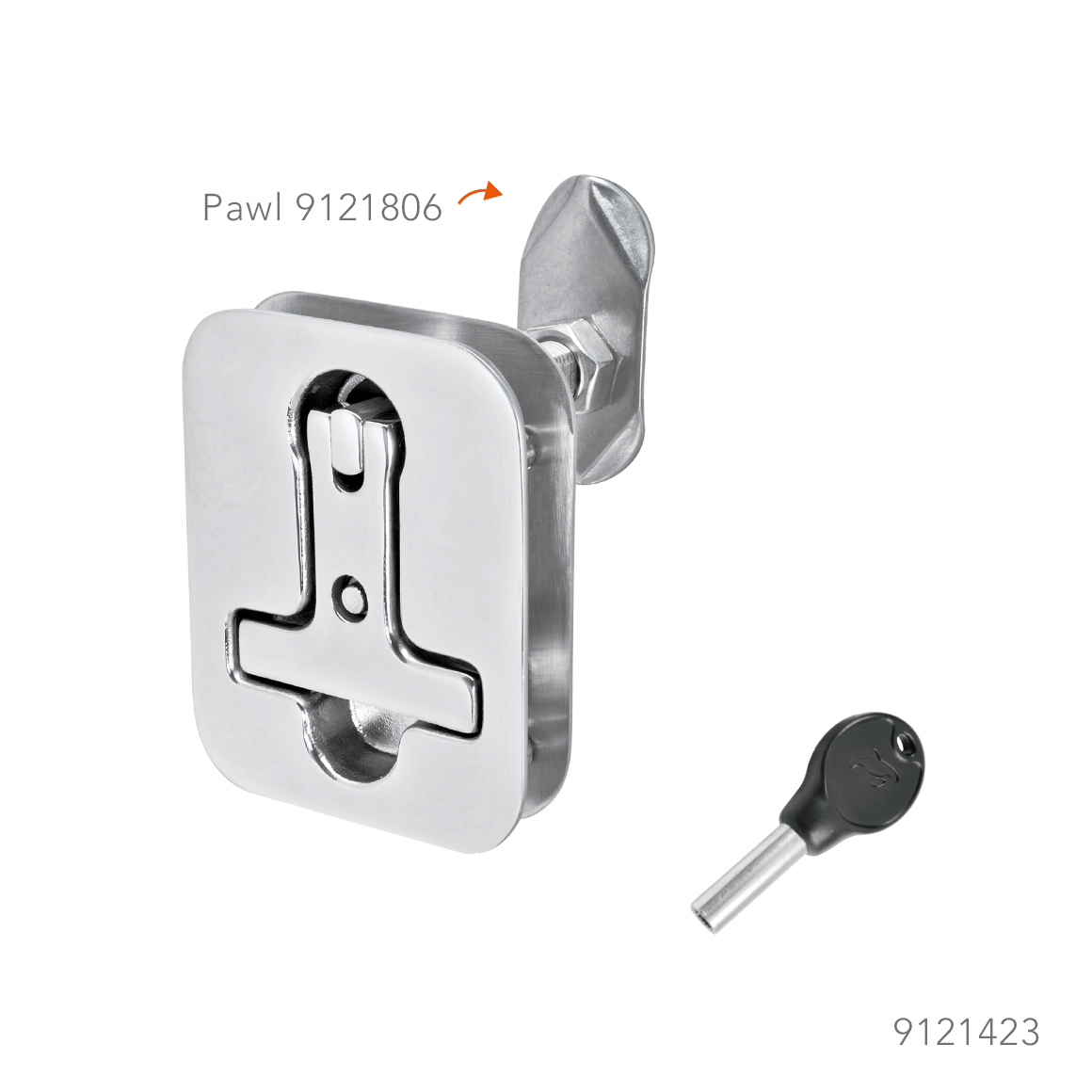

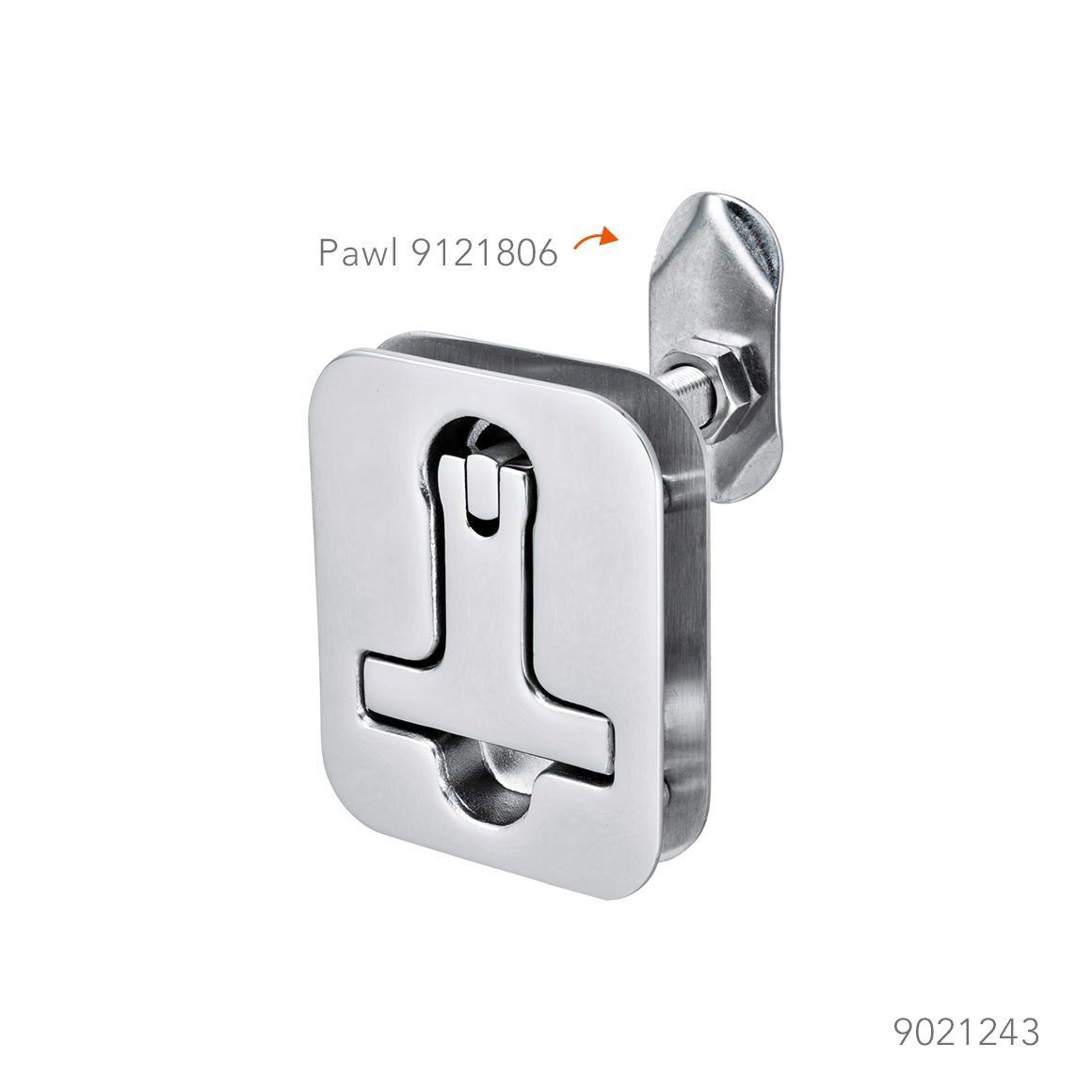

9021243 W/O Lock 4~15(3/16"~9/16") 55~70(2-3/16"~2-3/4") 97(3-13/16") 80(3-1/8") 39(1-9/16") 9121423 W/ Lock 4~15(3/16"~9/16") 55~70(2-3/16"~2-3/4") 97(3-13/16") 80(3-1/8") 39(1-9/16")
