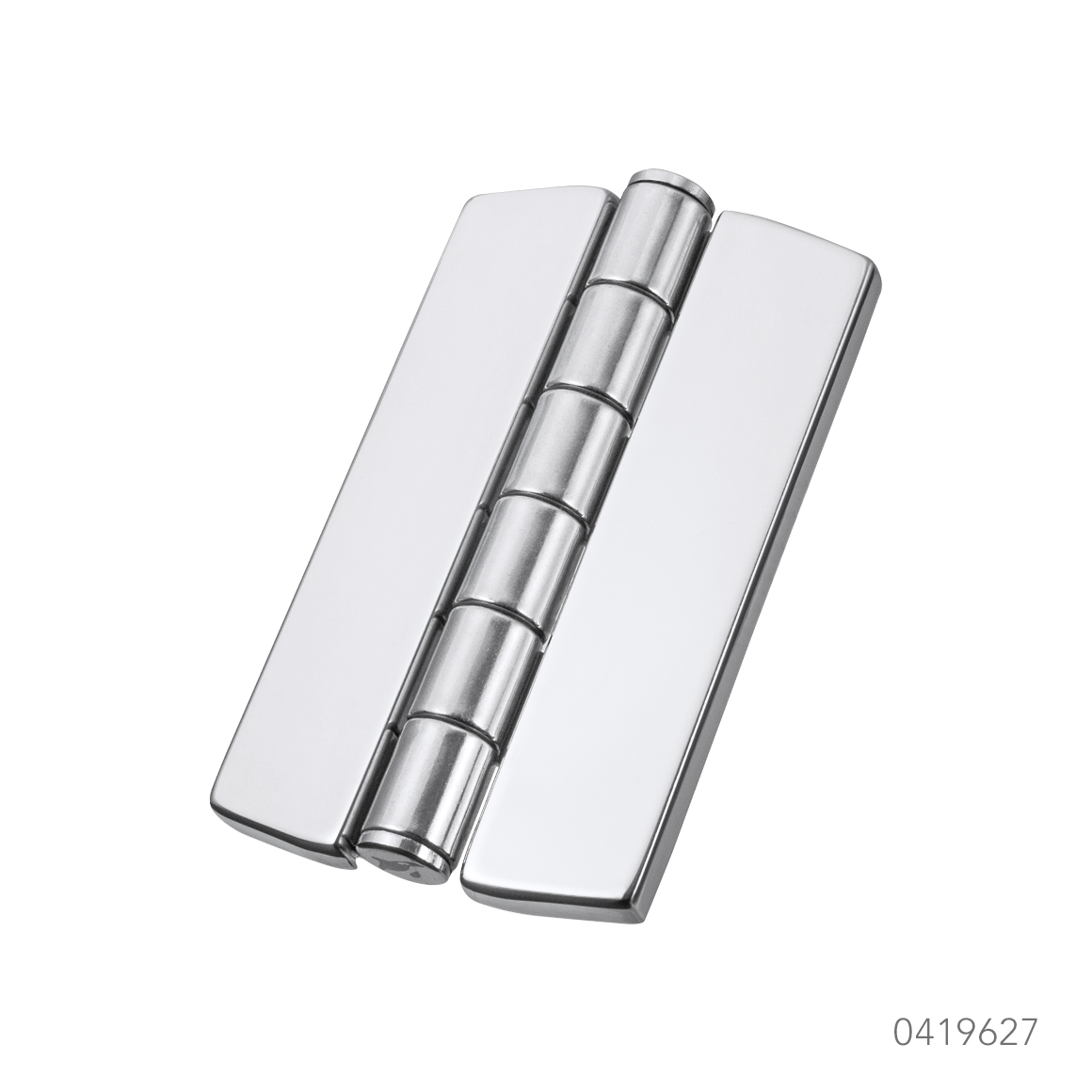

COVERED SEAM FRICTION HINGE
Stainless Steel 316
- Piano-style hinge provides constant torque throughout the entire range of motion.
- Holds door open at any desired angle without torque adjustment.

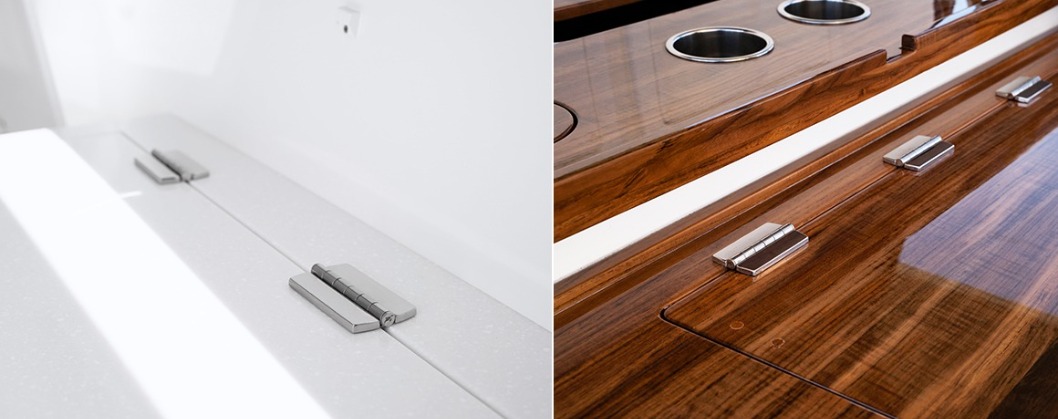

- Designed to fit various door sizes including overhead door, baitwell lid, glove box,
access door, interior door, anchor locker, electronic panel, hatch, etc.

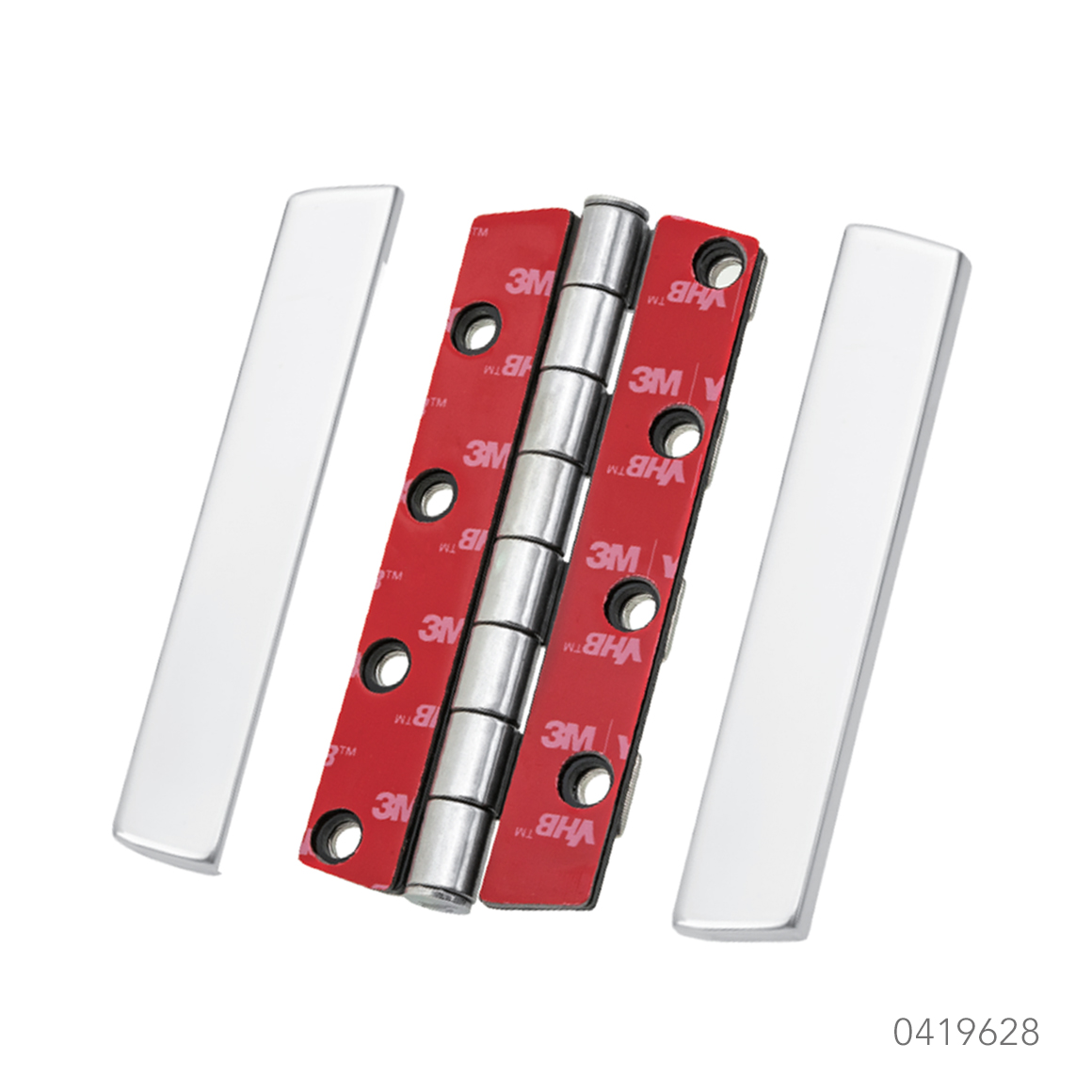

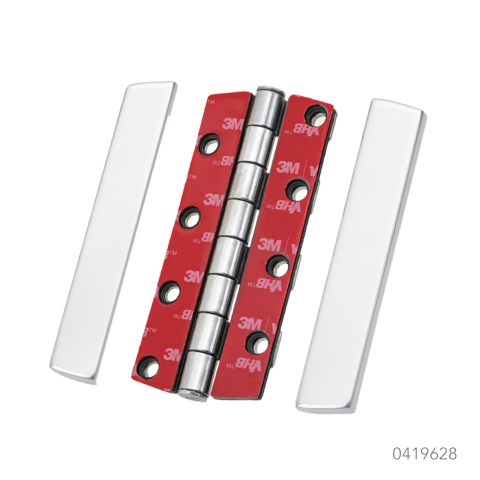

- Easy installation with 3M VHB double-sided tape.
- The cover can be removed by using a heat gun or hair dryer.
- Innovation and beauty combined.
- Passed 10,000 times cycle test and lost less than 20% on torque;
20,000 times lost 25% or less only.
- Passed 500-hour salt-spray test.
- Screw size M4 or #8.
- Piano-style hinge provides constant torque throughout the entire range of motion.
- Holds door open at any desired angle without torque adjustment.
- Designed to fit various door sizes including overhead door, baitwell lid, glove box,
access door, interior door, anchor locker, electronic panel, hatch, etc.
- Easy installation with 3M VHB double-sided tape.
- The cover can be removed by using a heat gun or hair dryer.
- Innovation and beauty combined.
- Passed 10,000 times cycle test and lost less than 20% on torque;
20,000 times lost 25% or less only.
- Passed 500-hour salt-spray test.
- Screw size M4 or #8.
Qty
Qty
Qty
Qty
-

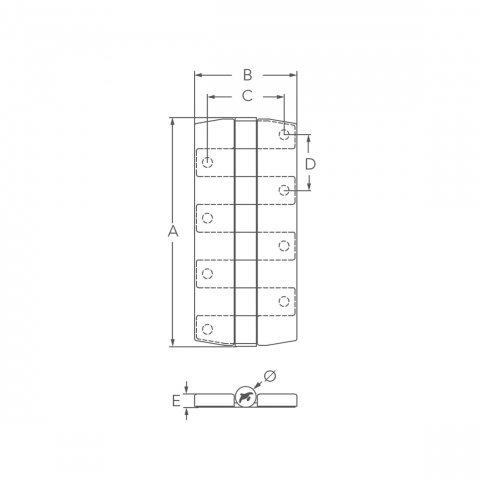

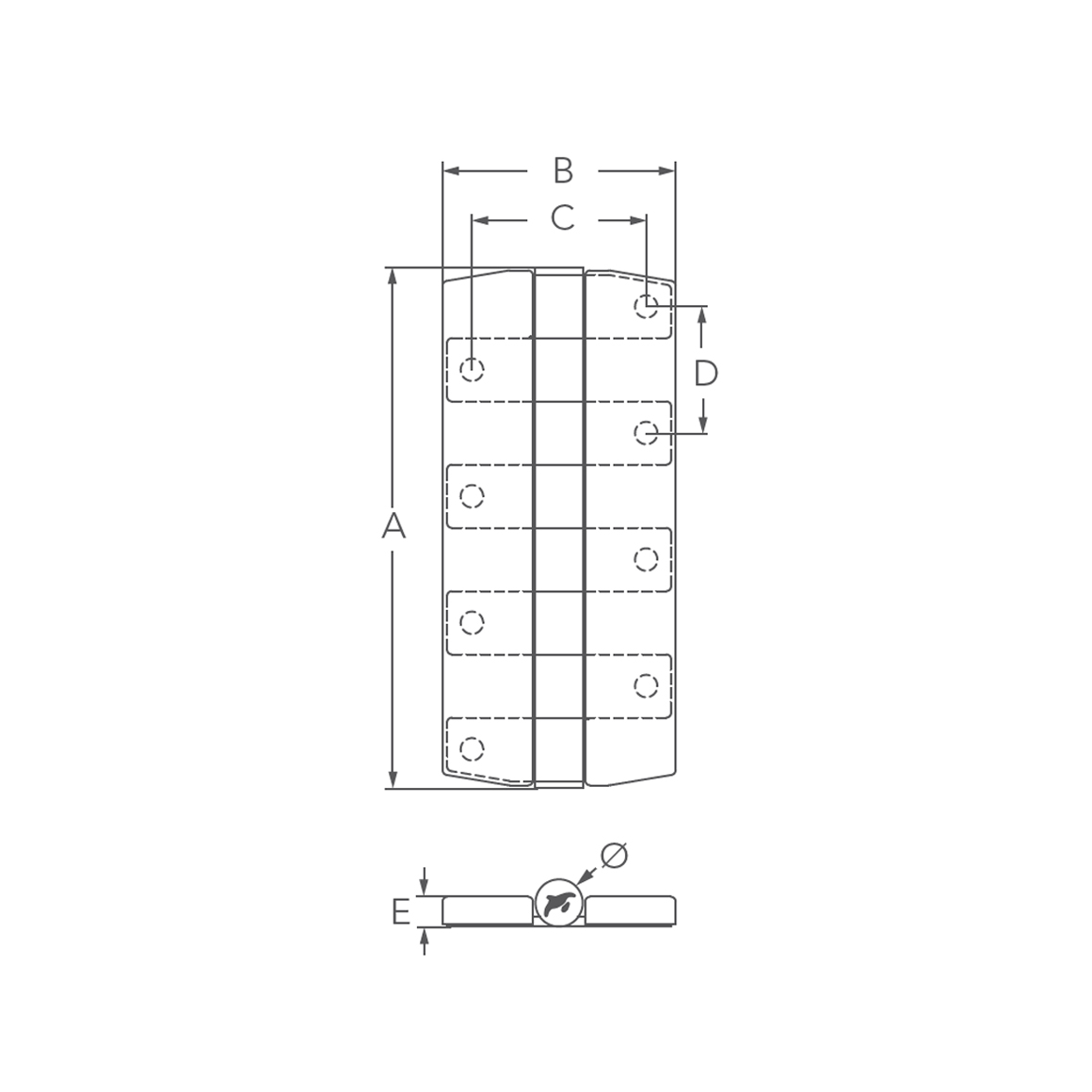

Bulk No.
Leaves
A mm
B mm
C mm
D mm
E mm
Ø mm
Torque Range
1219655 Long 53.8(2-1/8") 47(1-7/8") 35(1-3/8") 25.4(1") 6(1/4") 9.5(3/8") 2±0.5N-m 0419627 Long 79.2(3-1/8") 47(1-7/8") 35(1-3/8") 25.4(1") 6(1/4") 9.5(3/8") 3.2±0.6N-m 0419628 Long 104.6(4-1/8") 47(1-7/8") 35(1-3/8") 25.4(1") 6(1/4") 9.5(3/8") 4.3±0.7N-m 1219659 Long 130(5-1/8") 47(1-7/8") 35(1-3/8") 25.4(1") 6(1/4") 9.5(3/8") 5.4±0.8N-m
