SEAM FRICTION HINGE - LONG LEAVES

Stainless Steel 316
- Piano-style hinge provides constant torque throughout the entire range of motion.
- Holds door open at any desired angle without torque adjustment.
- Designed to fit various door sizes including overhead door, baitwell lid, glove box,
  access door, interior door, anchor locker, electronic panel, hatch, etc.
- Long mounting leaves to fit the radious of fiberglass door.
- Passed 10,000 times cycle test and lost less than 20% on torque; 20,000 times
  lost 25% or less only.
- Passed 500-hour salt-spray test.
- #6 R/H fasteners are required.
Qty
Qty
Qty
Qty
  •

    Bulk No.

    Leaves

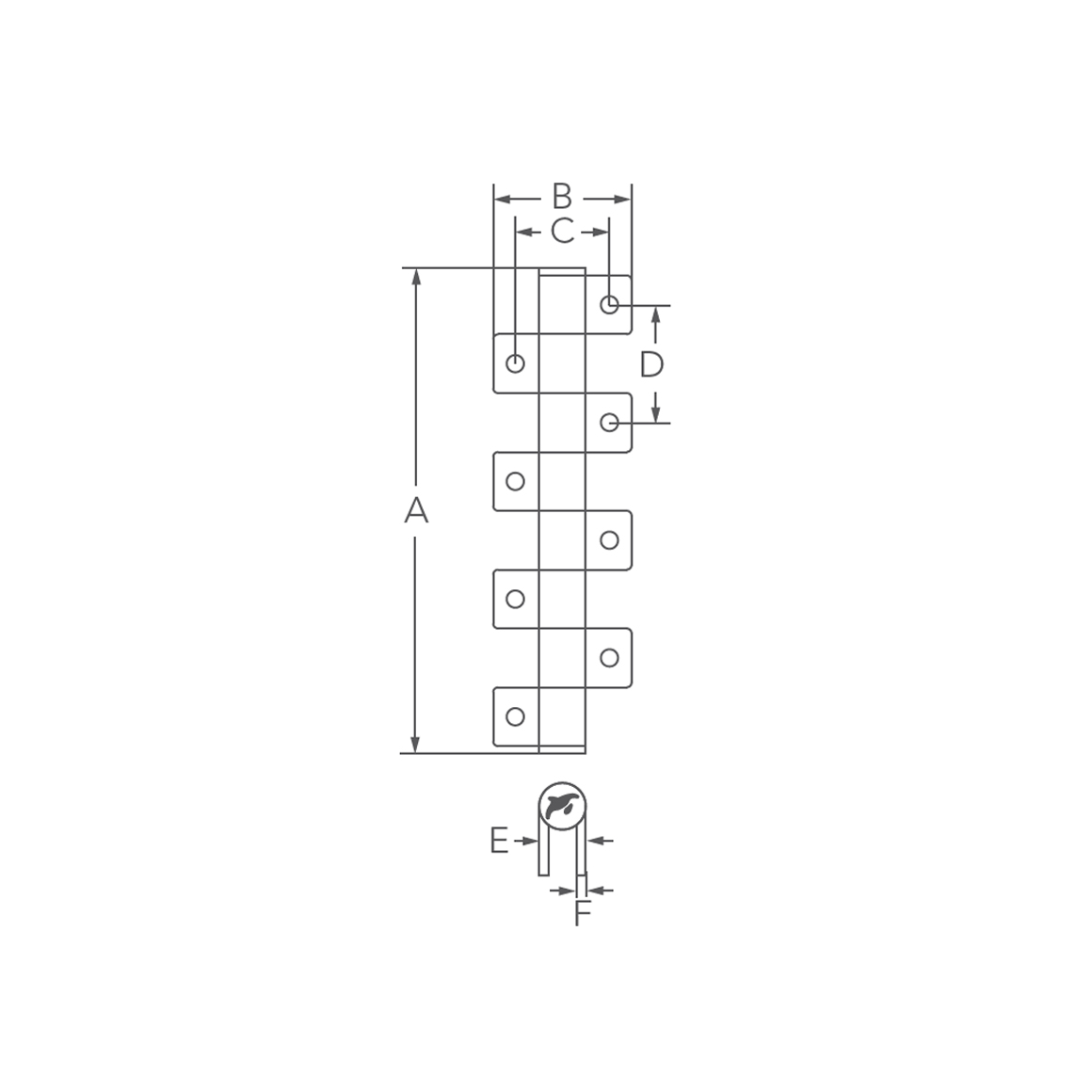

    A mm

    B mm

    C mm

    D mm

    E mm

    F mm

    Torque

    0419623 Long 53.8(2-1/8") 45(1-3/4") 35(1-3/8") 25.4(1") 10.6(7/16") 2(1/16") 2.0±0.5N-m

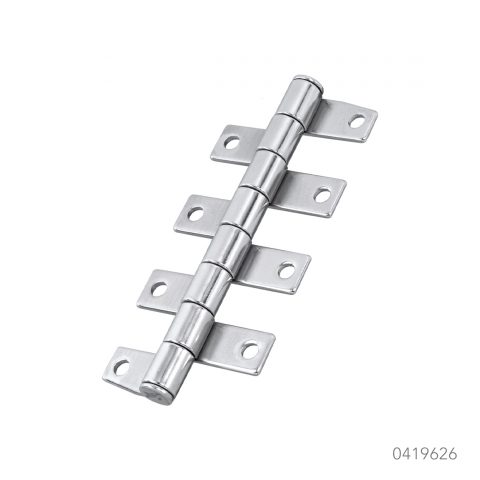

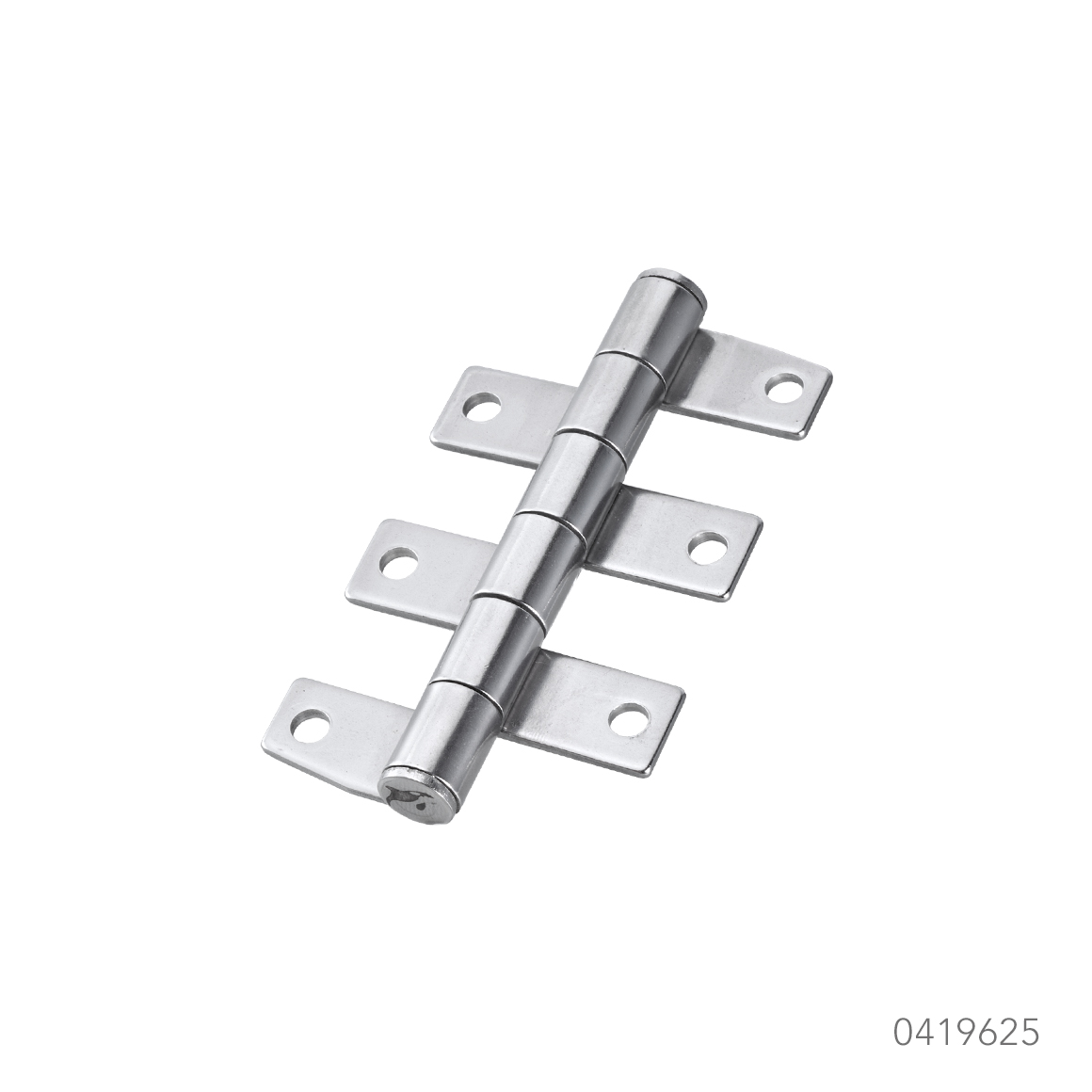

    0419625 Long 79.2(3-1/8") 45(1-3/4") 35(1-3/8") 25.4(1") 10.6(7/16") 2(1/16") 3.2±0.6N-m

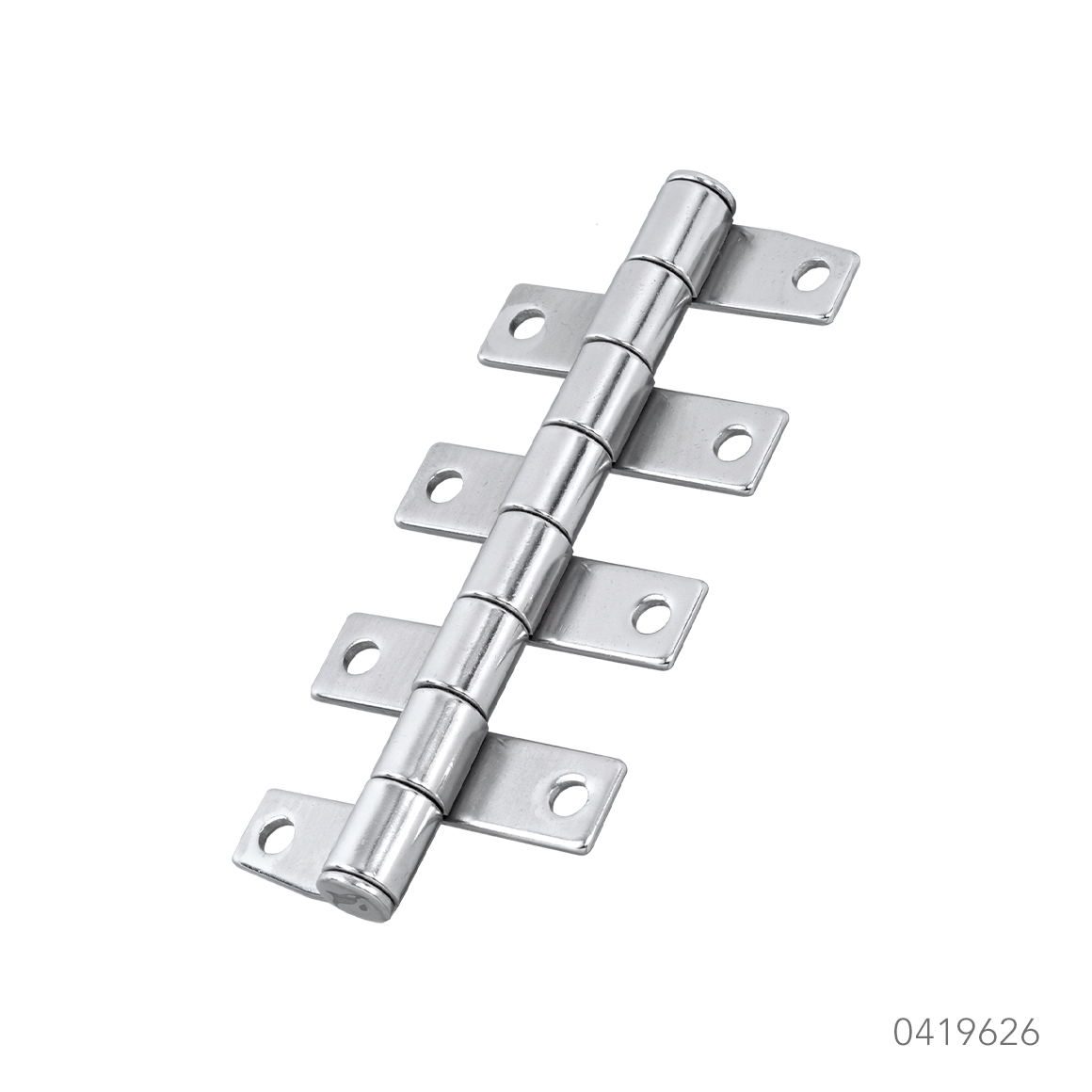

    0419626 Long 104.6(4-1/8") 45(1-3/4") 35(1-3/8") 25.4(1") 10.6(7/16") 2(1/16") 4.3±0.7N-m
    0419629 Long 130(5-1/8") 45(1-3/4") 35(1-3/8") 25.4(1") 10.6(7/16") 2(1/16") 5.4±0.8N-m
  •

    Bulk No.

    Download

    0419623 Drawing
    0419625 Drawing
    0419626 Drawing
    0419629 Drawing
