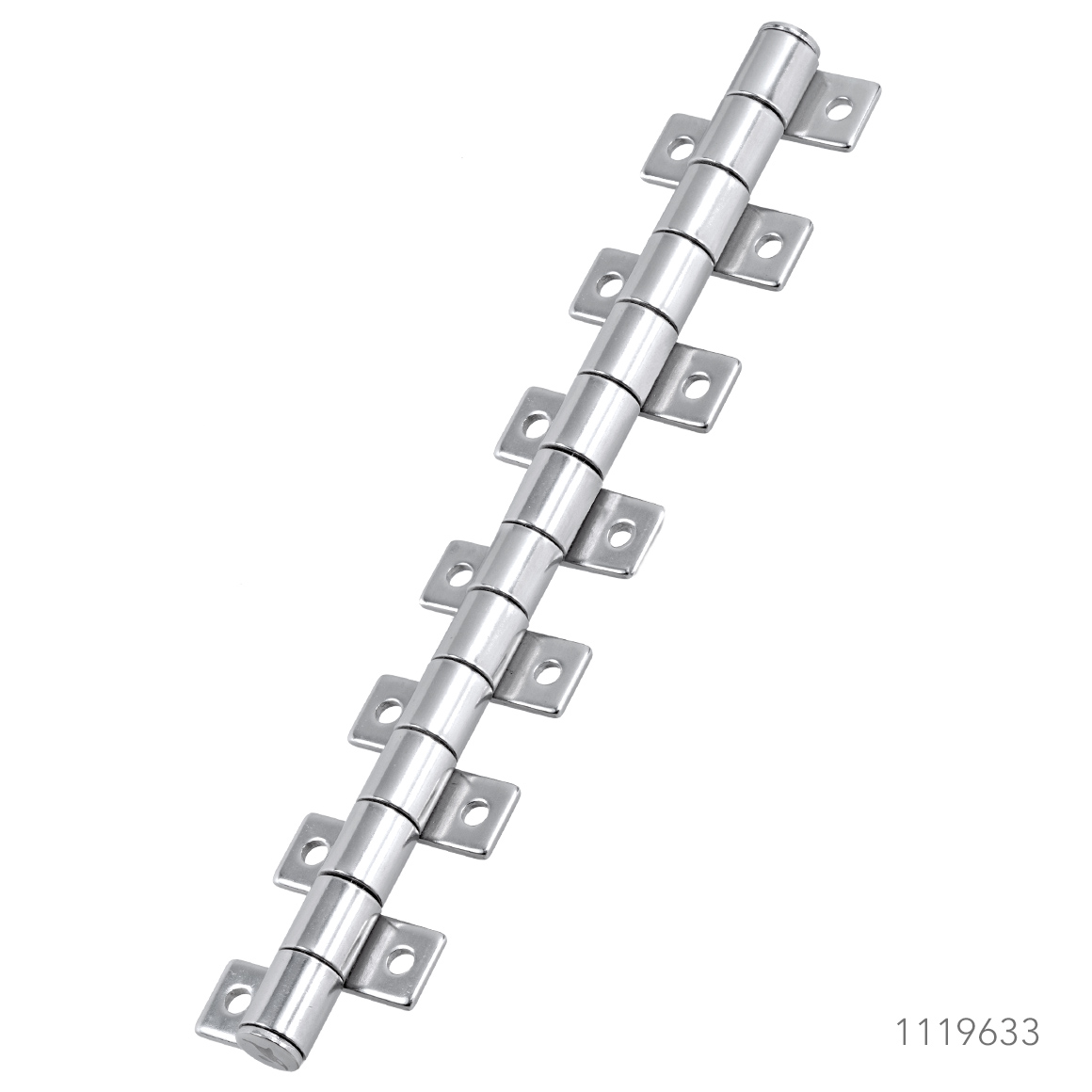

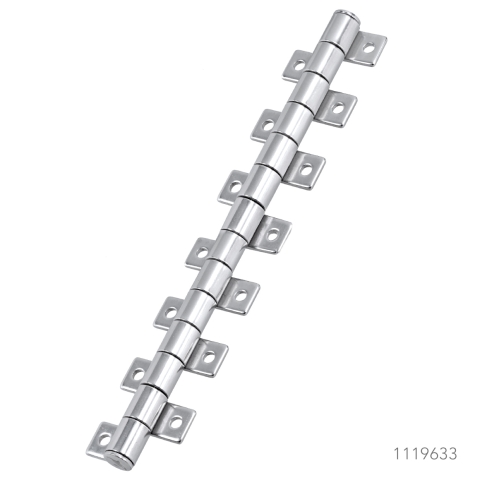

SEAM FRICTION HINGE - SHORT LEAVES
Stainless Steel 316
- Piano-style hinge provides constant torque throughout the entire range of motion.
- Holds door open at any desired angle without torque adjustment.

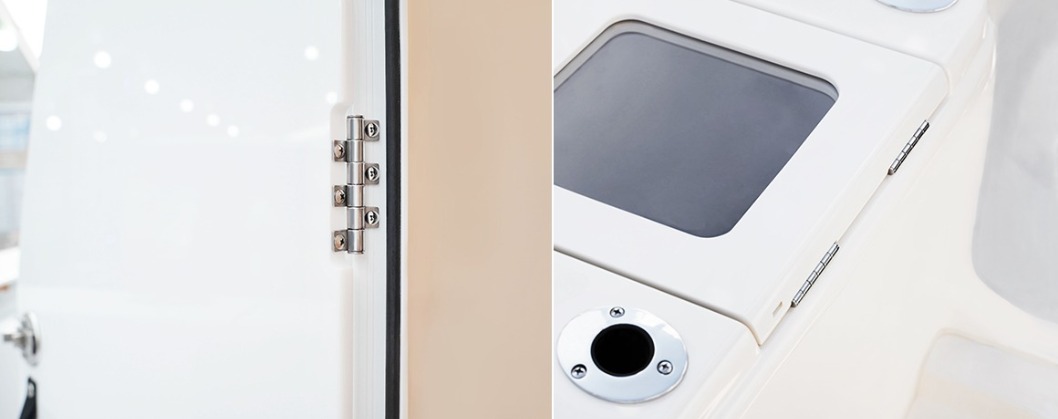

- Designed to fit various door sizes including overhead door, baitwell lid,
glove box, access door, interior door, anchor locker, electronic panel, hatch, etc.
- Short mounting leaves to fit 1/2" door thickness.
- Long mounting leaves to fit the radius of fiberglass door or hatch.
- Passed 10,000 times cycle test and lost less than 20% on torque;
20,000 times lost 25% or less only.
- Passed 500-hour salt-spray test.
- #6 R/H fasteners are required.
- Holds door open at any desired angle without torque adjustment.
- Designed to fit various door sizes including overhead door, baitwell lid,
glove box, access door, interior door, anchor locker, electronic panel, hatch, etc.
- Short mounting leaves to fit 1/2" door thickness.
- Long mounting leaves to fit the radius of fiberglass door or hatch.
- Passed 10,000 times cycle test and lost less than 20% on torque;
20,000 times lost 25% or less only.
- Passed 500-hour salt-spray test.
- #6 R/H fasteners are required.
Qty
Qty
Qty
Qty
Qty
-
Bulk No.
Leaves

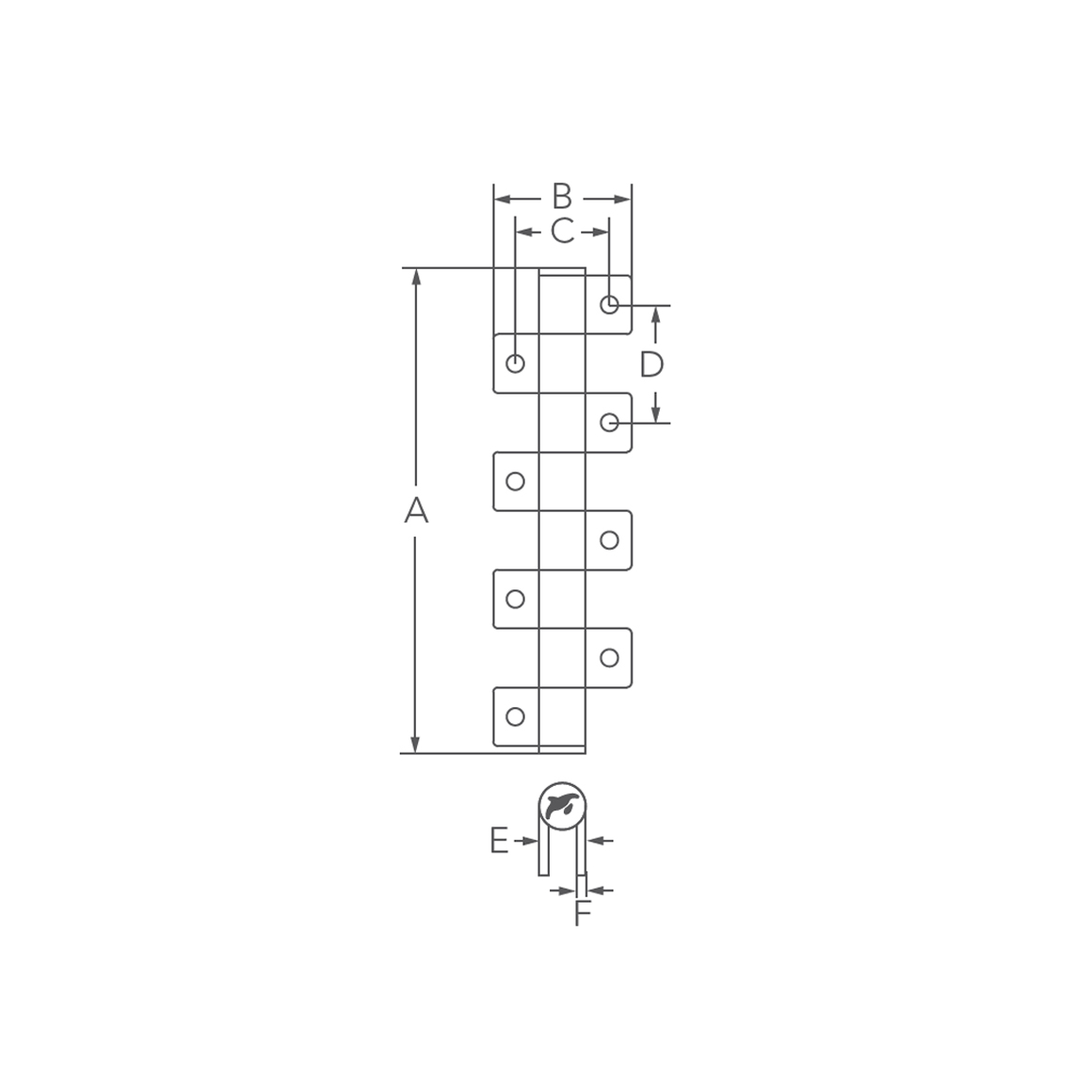

A mm
B mm
C mm
D mm
E mm
F mm
Torque

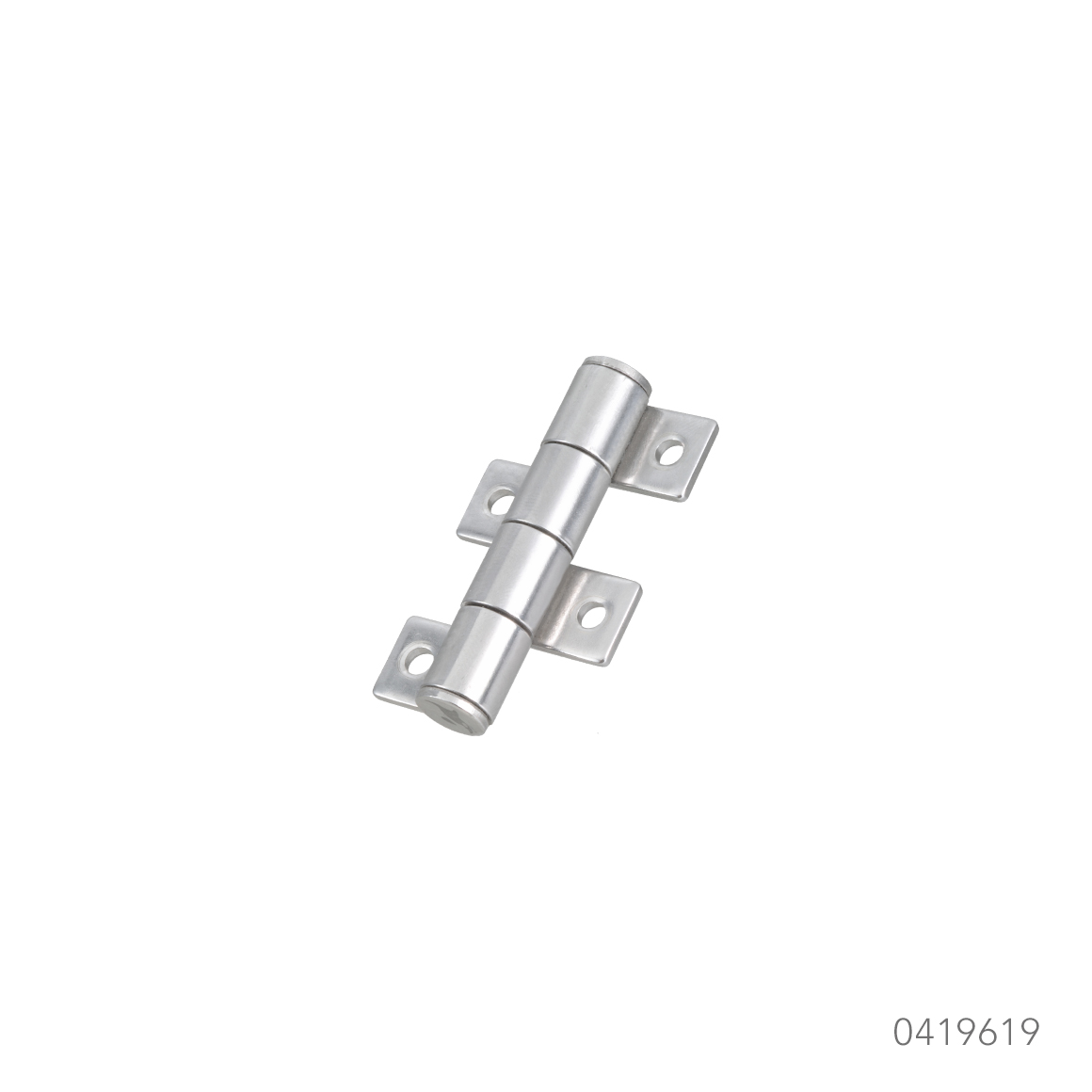

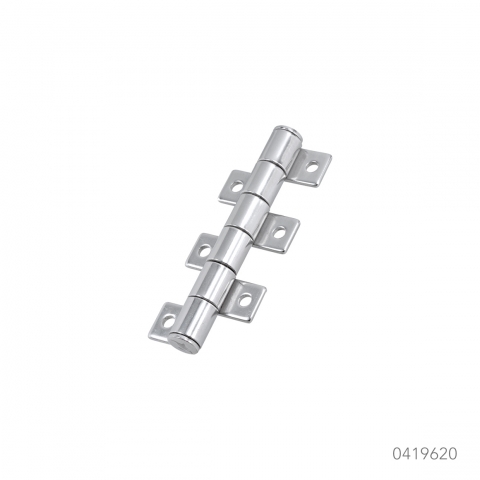

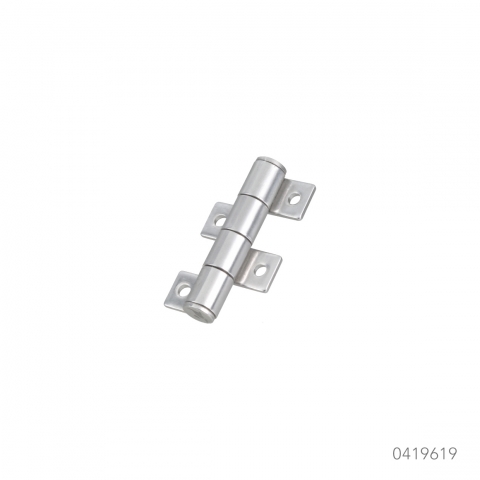

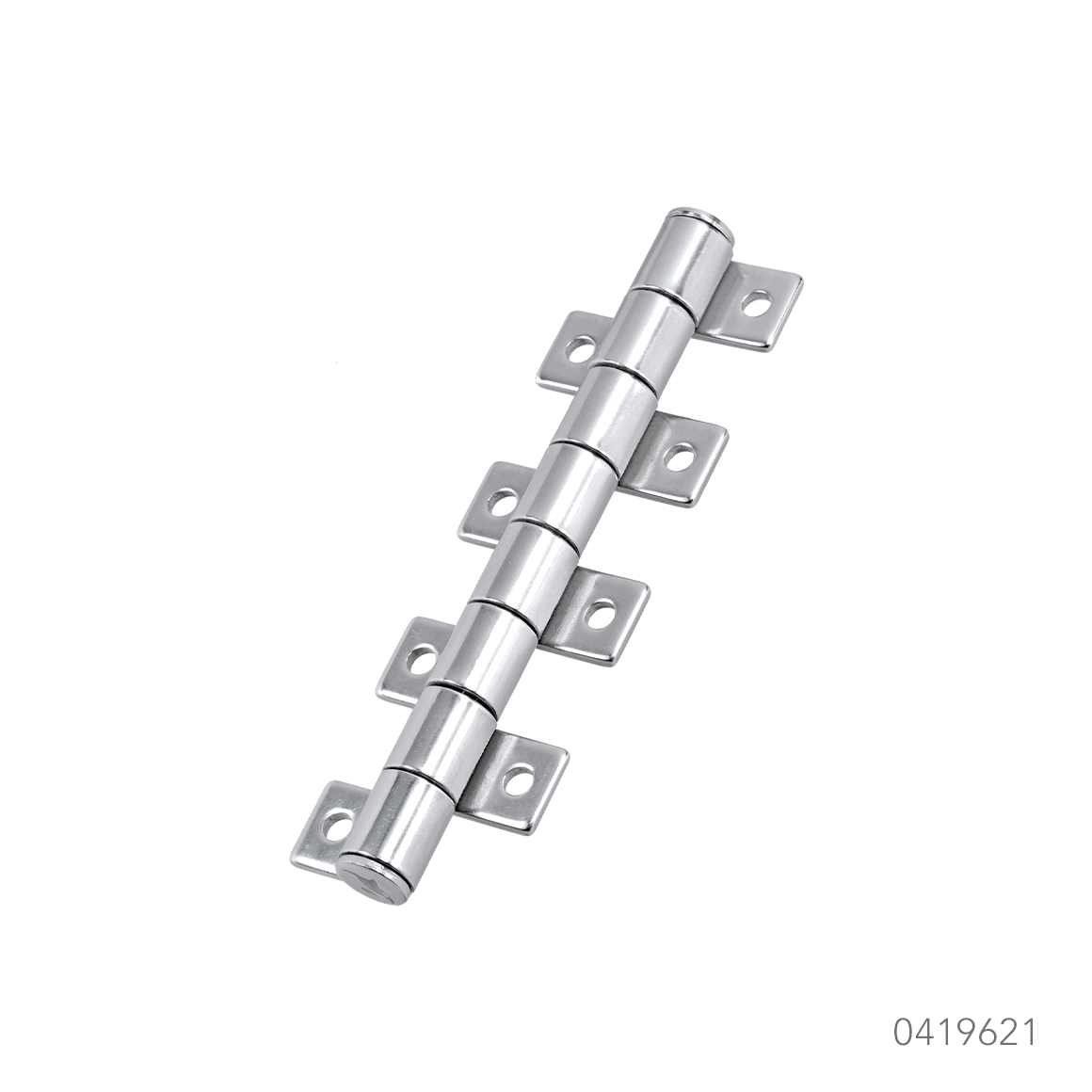

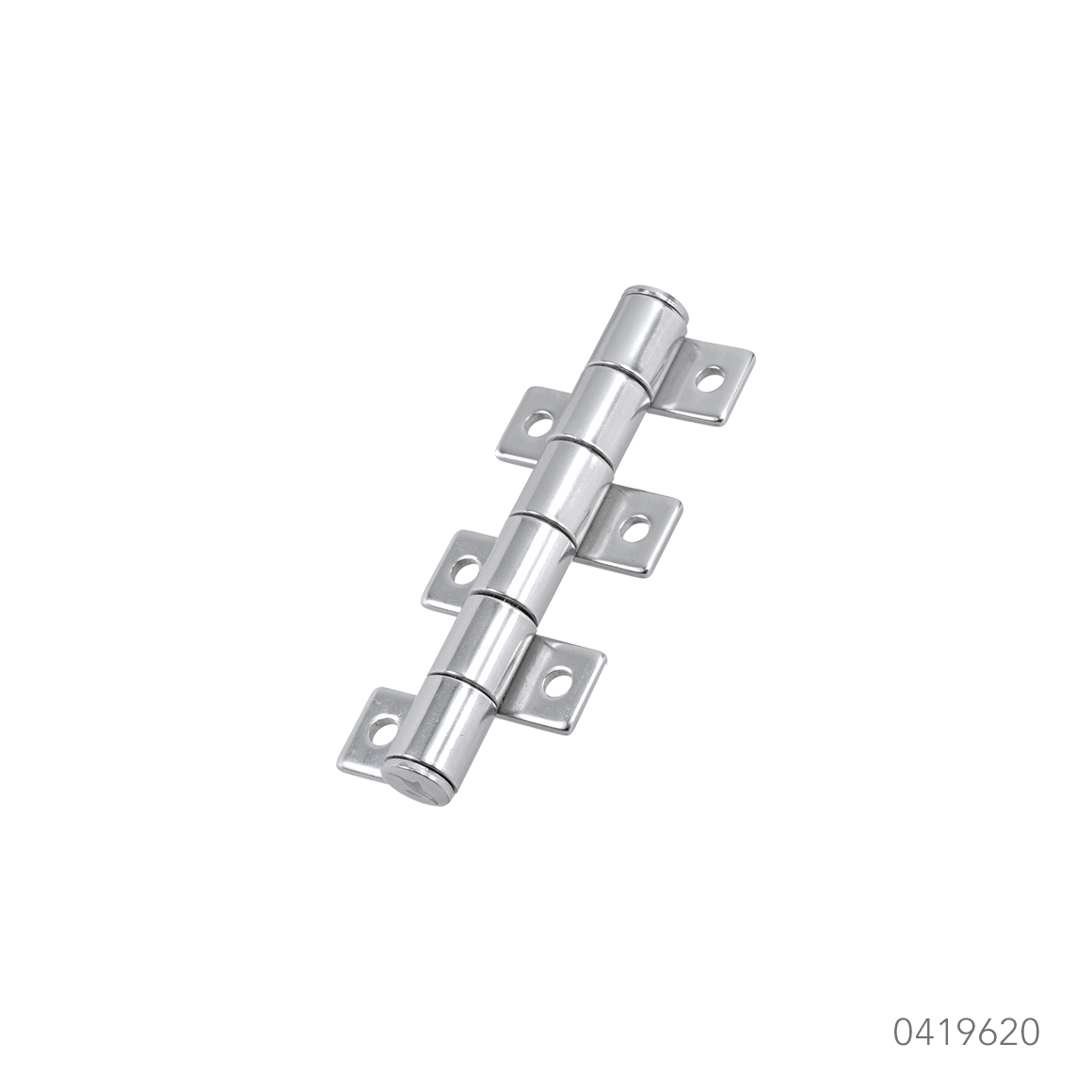

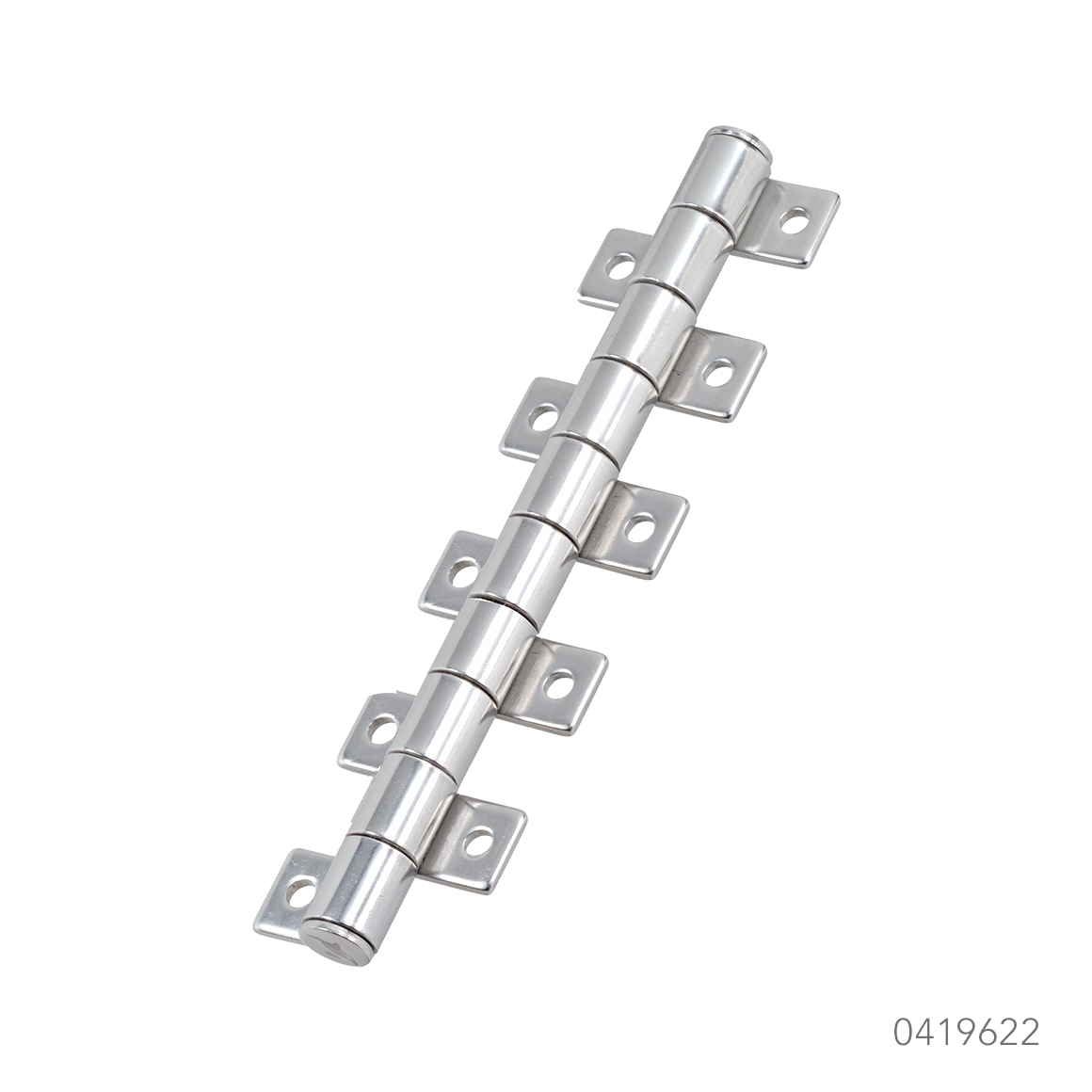

0419619 Short 51(2") 28(1-1/8") 19(3/4") 24(15/16") 10.6(7/16") 2(1/16") 1.9±0.4N-m 0419620 Short 75(2-15/16") 28(1-1/8") 19(3/4") 24(15/16") 10.6(7/16") 2(1/16") 3.1±0.6N-m 0419621 Short 99(3-7/8") 28(1-1/8") 19(3/4") 24(15/16") 10.6(7/16") 2(1/16") 4.1±0.7N-m 0419622 Short 123(4-13/16") 28(1-1/8") 19(3/4") 24(15/16") 10.6(7/16") 2(1/16") 5.3±0.8N-m 1119633 Short 171(6-3/4") 28(1-1/8") 19(3/4") 24(15/16") 10.6(7/16") 2(1/16") 6.2±0.9N-m
